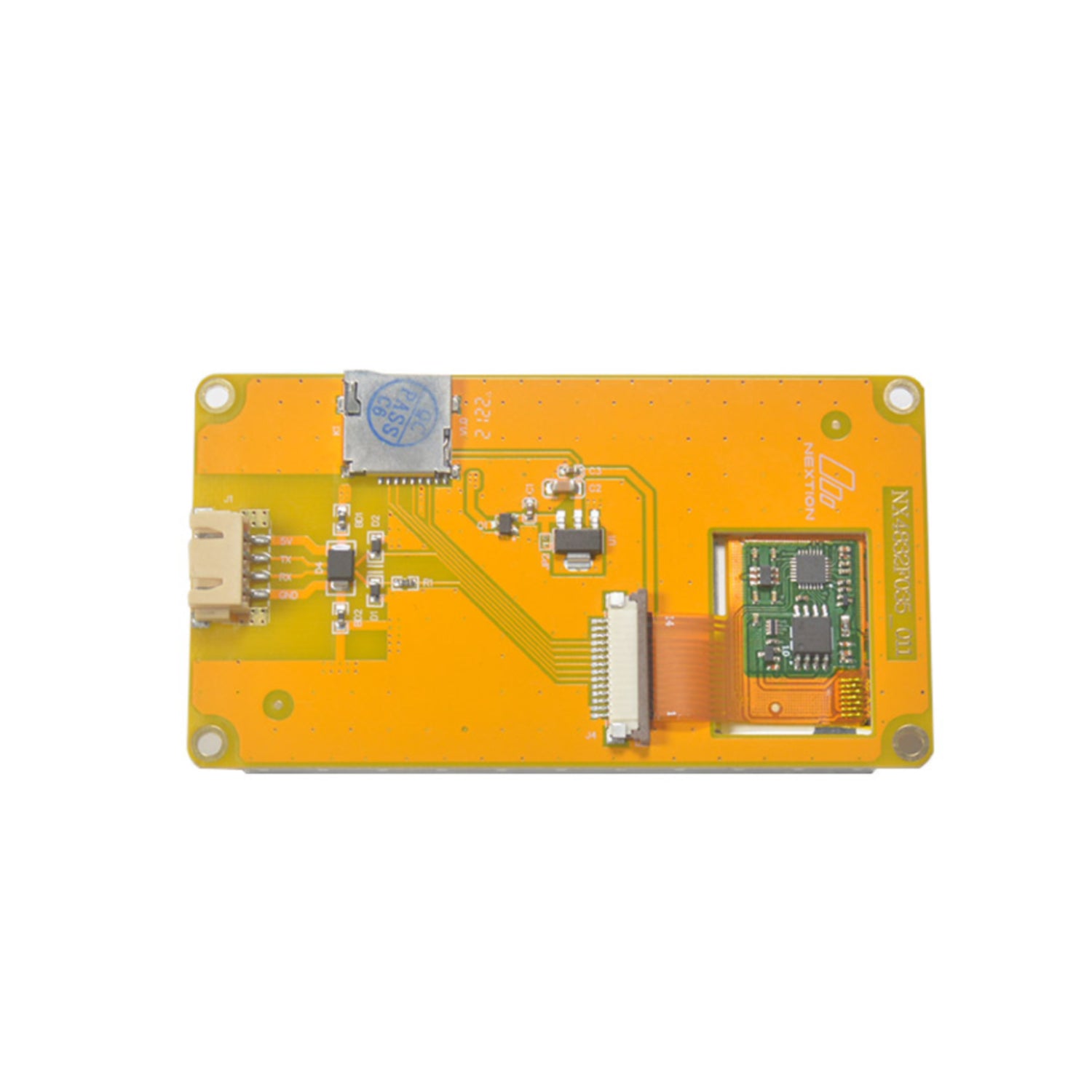

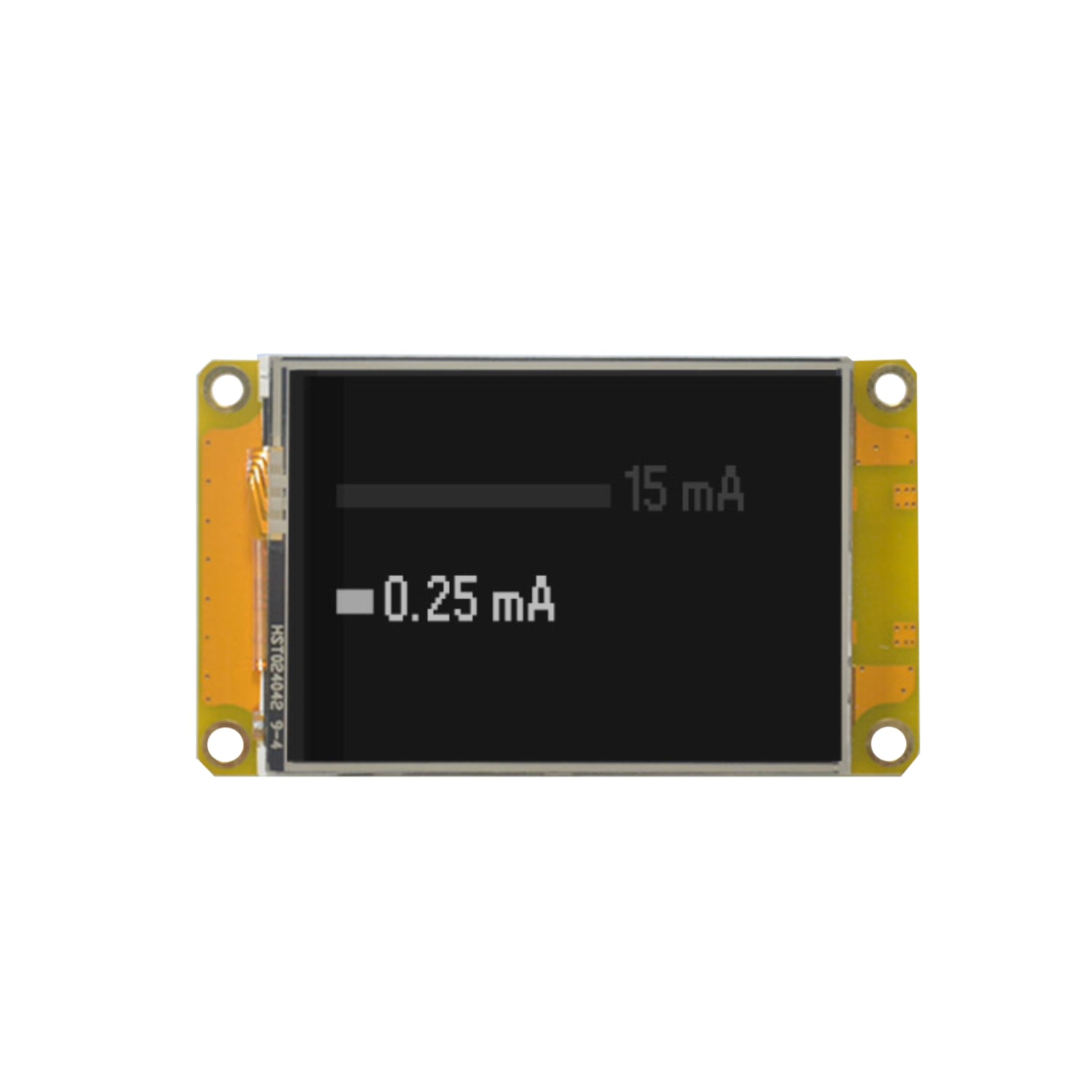

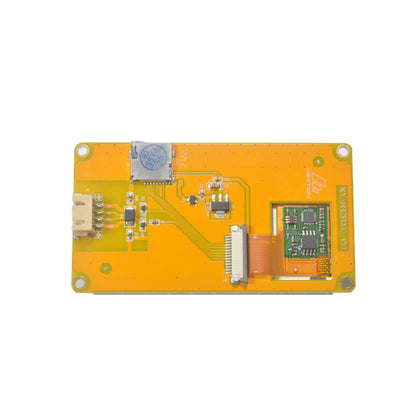

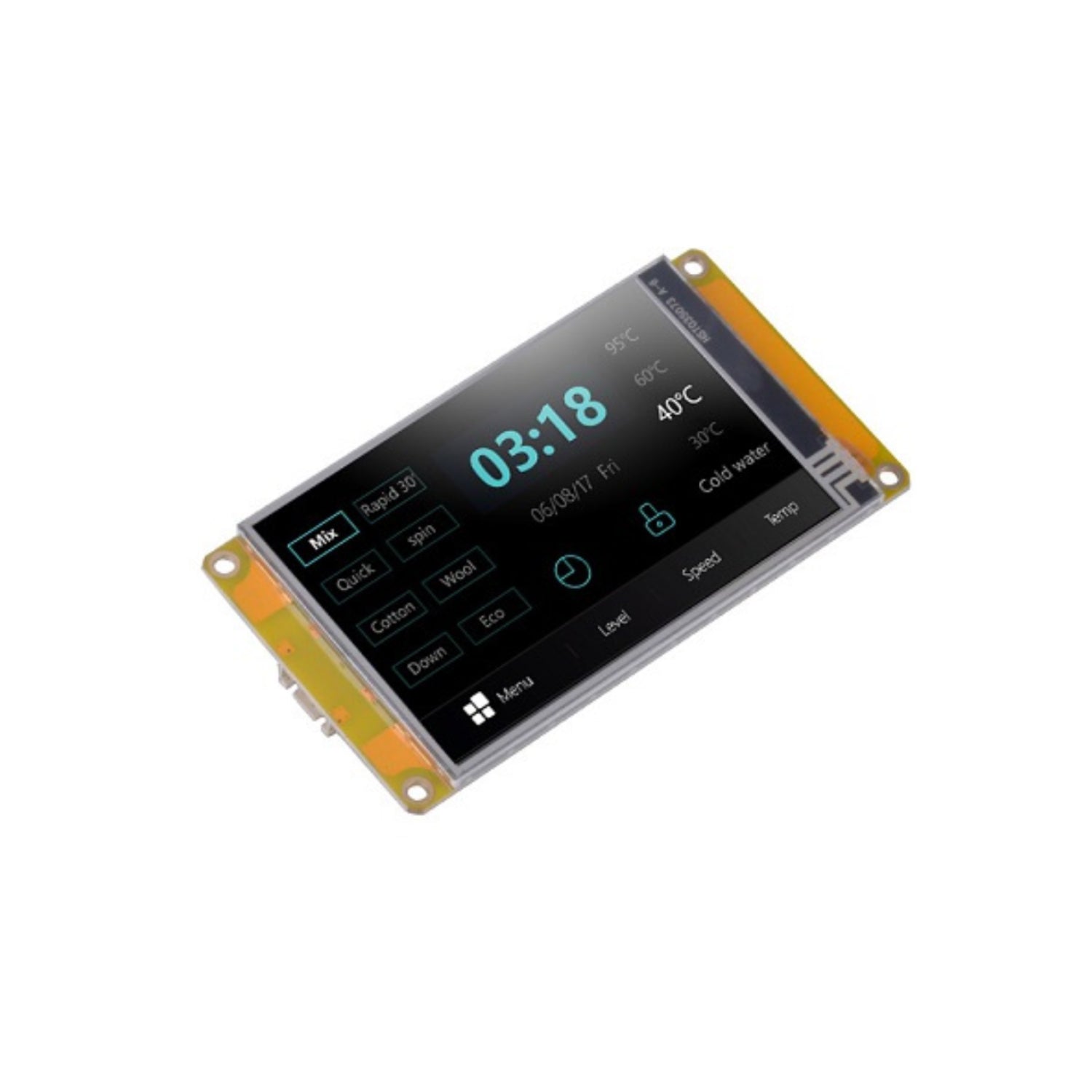

Nextion Discovery NX4832F035 3.5″ Resistive Touch Display - RS5477

Nextion Discovery NX4832F035 3.5″ Resistive Touch Display - RS5477

RS5477

17 in stock

Rs. 2,749.00
Rs. 2,749.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

 Description:

The Nextion NX4832F035 is a highly capable and cost-effective 3.5-inch SMART Human Machine Interface (HMI) Touch Display, part of the enhanced Discovery Series. Designed for developers and engineers seeking high performance without compromising efficiency, this display simplifies complex GUI creation for virtually any embedded system.

Specifications:

  • Model: NX4832F035 3.5″
  • Input Voltage: 5VDC 500mA
  • Pixel Resolution: 480×320 pixels
  • Panel Type: TFT
  • Color: 64K 65536 colors
  • Backlight: LED White
  • Backlight Lifetime (Avg): >30,000 Hours
  • Working Temperature Range: -20 to 70°C

Features:

  • 3.5” LCD-TFT Resistive HMI touch display module
  • 480 x 320 screen resolution
  • RGB 65K true-to-life colours
  • Onboard ARM® Cortex®-M0+ 64MHz MCU
  • 3584 Byte SRAM
  • 16 MB Flash memory
  • XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

Useful Links:

Package Included:

  • 1 × 3.5″ Nextion HMI Display
  • 1 × power supply test board
  • 1 x 4-pin Grove cable
