- Model NO - NX8048T070
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgradation
Description:
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part. The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Specification:
| Model No |
NX8048T070 |
| Nextion Type |
011R(R: Resistive Touchscreen) |
| Operating Voltage Range |
4.75~7 V |
| Operating Current |
510 mA; Sleep Mode: 15 mA |
| Layout Size |
181(L)×108(W)×9(H) |
| Net weight |
270g |
| Touch Type |
Resistive |
| Colors |
65K (65536) Colors, 16 bit, 5R6G5B |
| Recommended Power Supply |
5V, 500mA, DC |
| Working Temperature Range |
-20 to 70 ℃ |
| Working Humidity Range |
10% to 90% RH |
| USB Interface |
No |
| Micro-SD Card Slot |
Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory |
16 MB |
| RAM Memory |
3584 – BYTE |
| Shipment Weight |
0.33 kg |
| Shipment Dimensions |
21 x 14 x 4 cm |
Features:
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgradation
- Visual Area: 154.08mm(L)×85.92mm(W)
- Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%
- Recommended Power Supply: 5V, 2A, DC
Package Included:

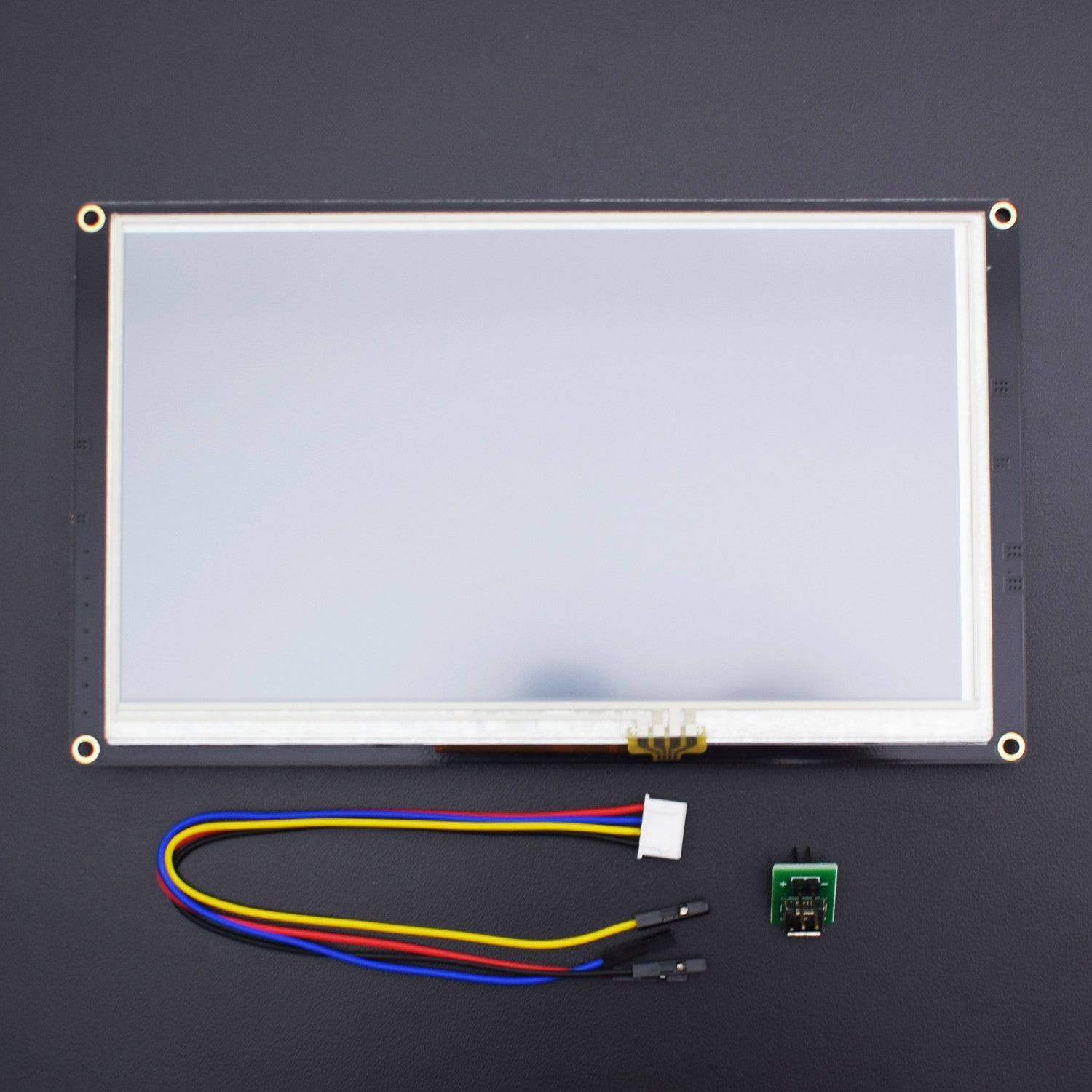

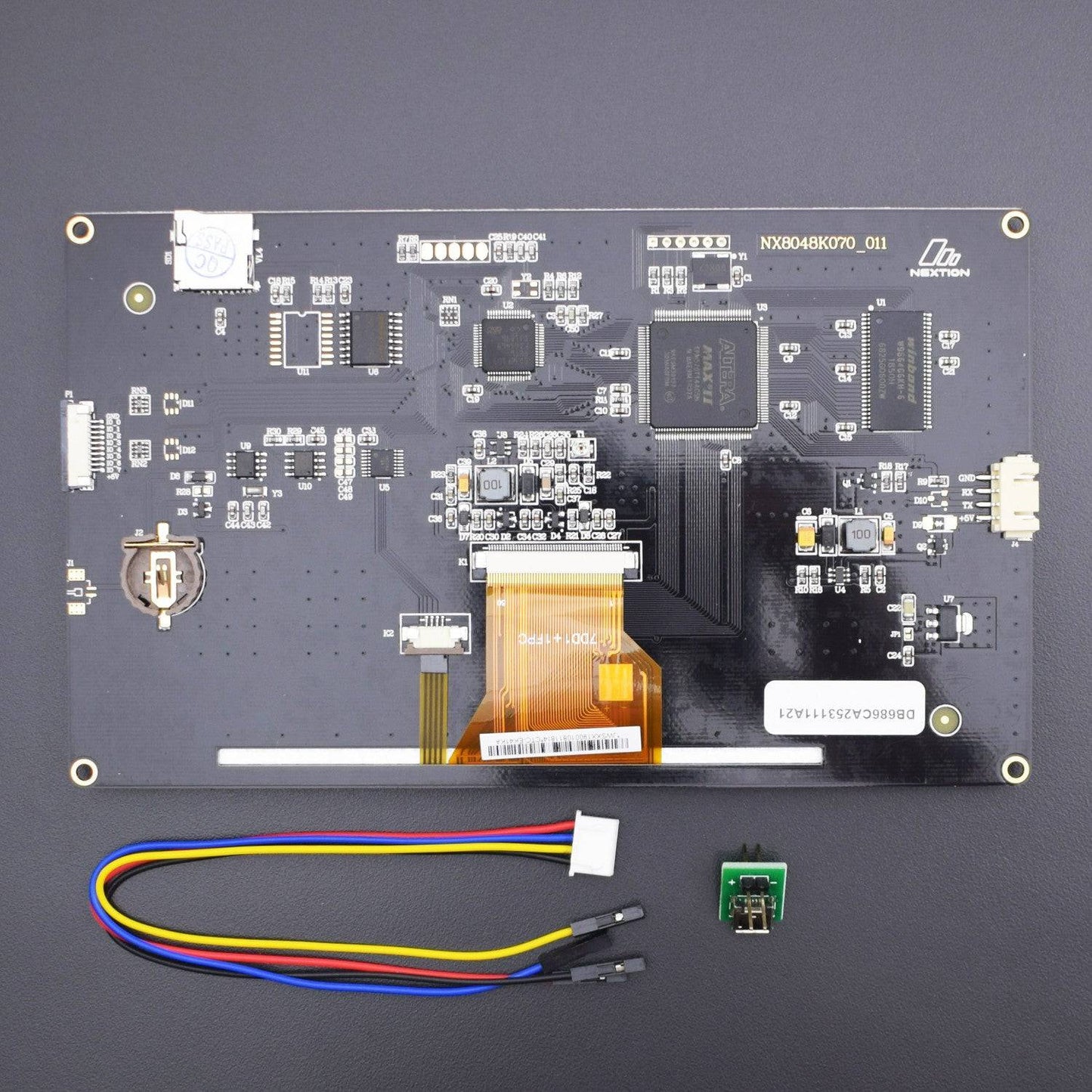

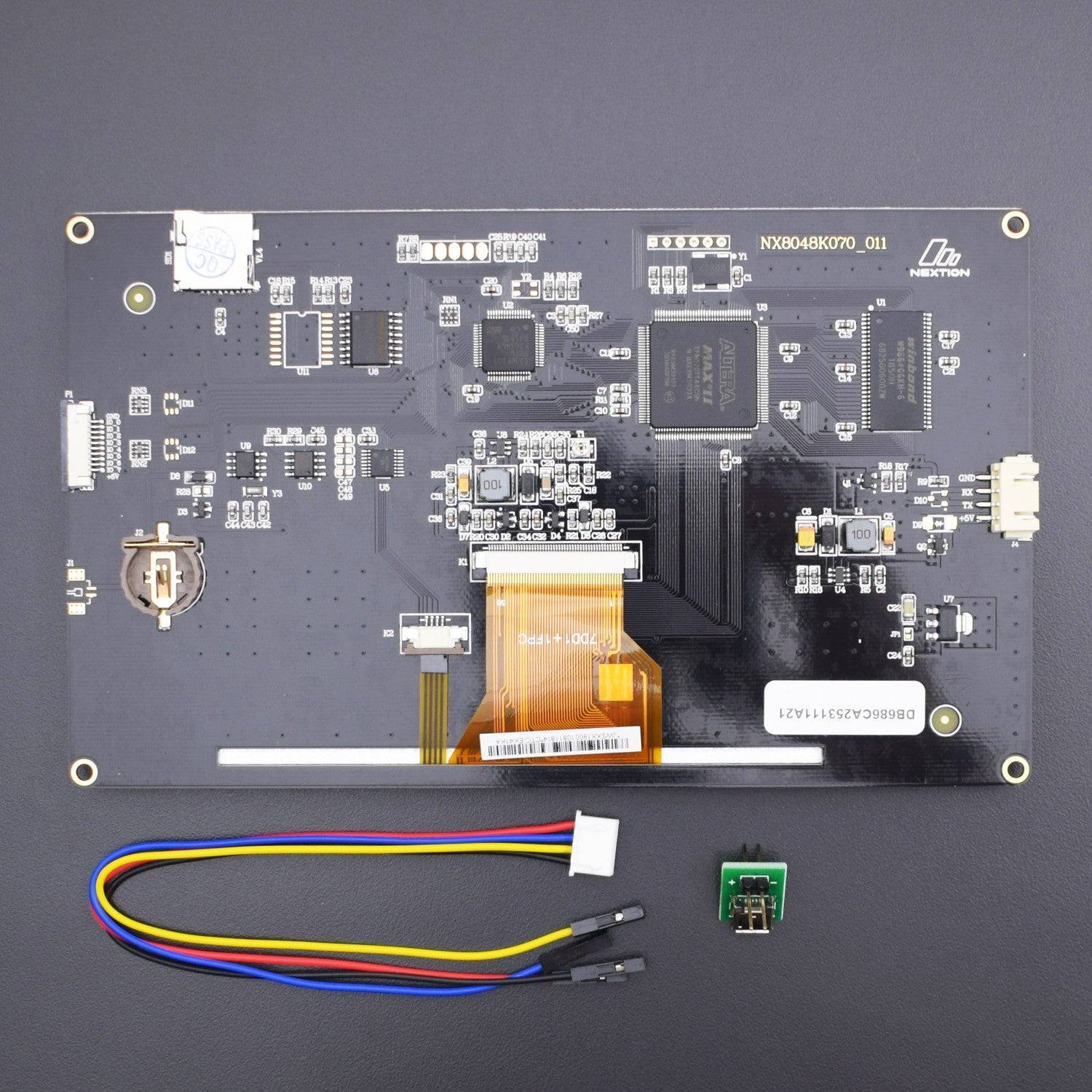

- 1 x Nextion NX8048T070 – Generic 7.0″ HMI TFT LCD Touch Display

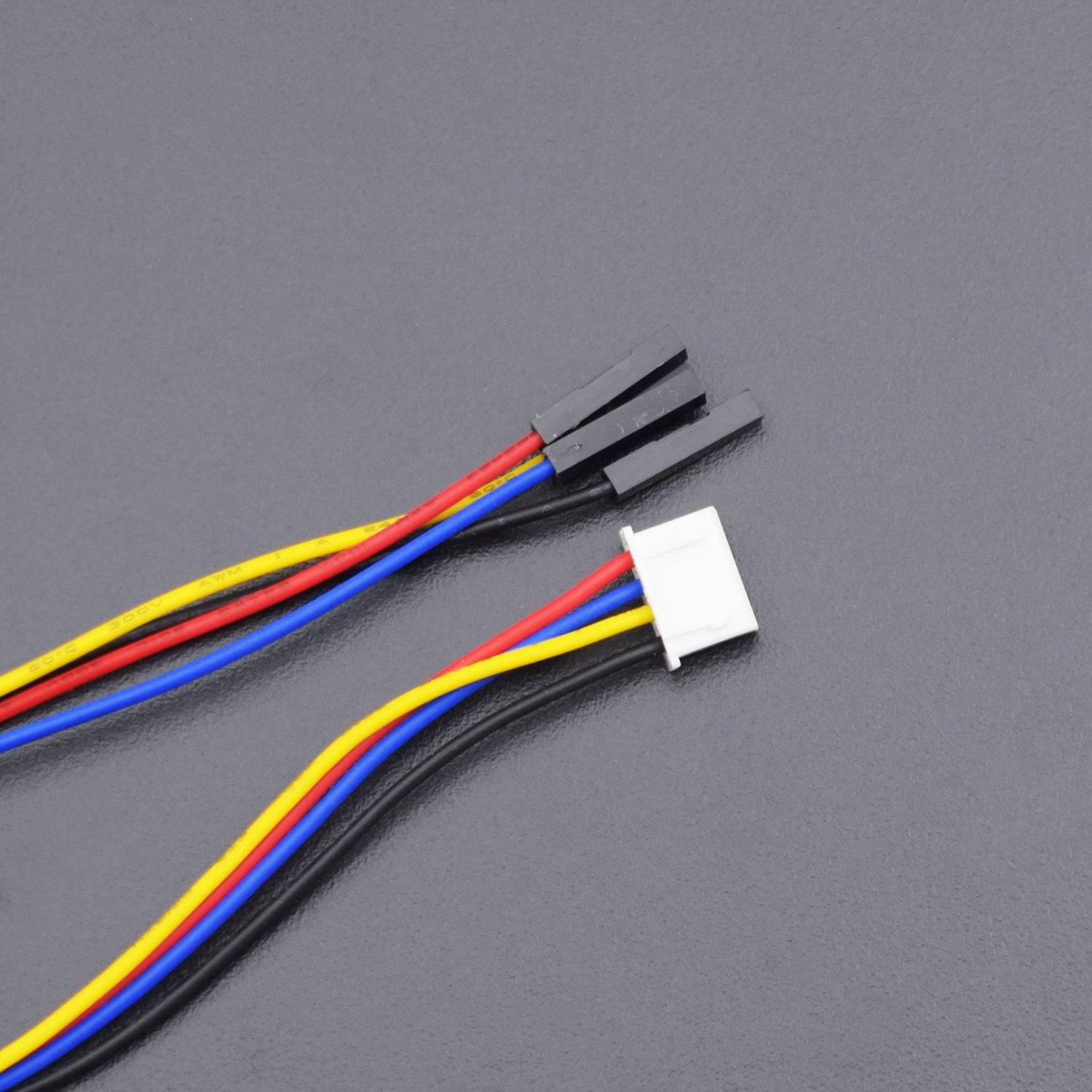

- 1 x Connecting Cable

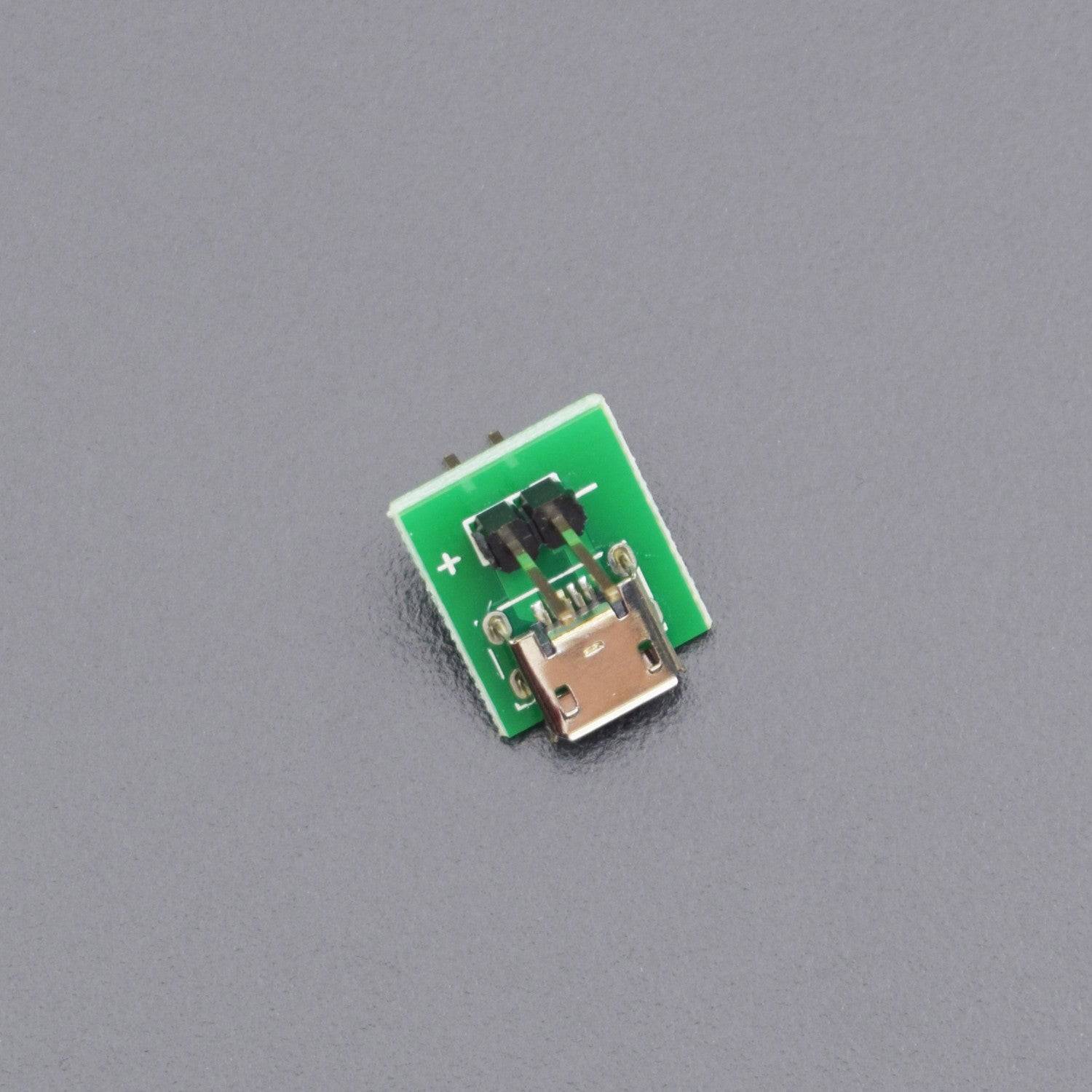

- 1 x Power Supply Test Board
