Description:

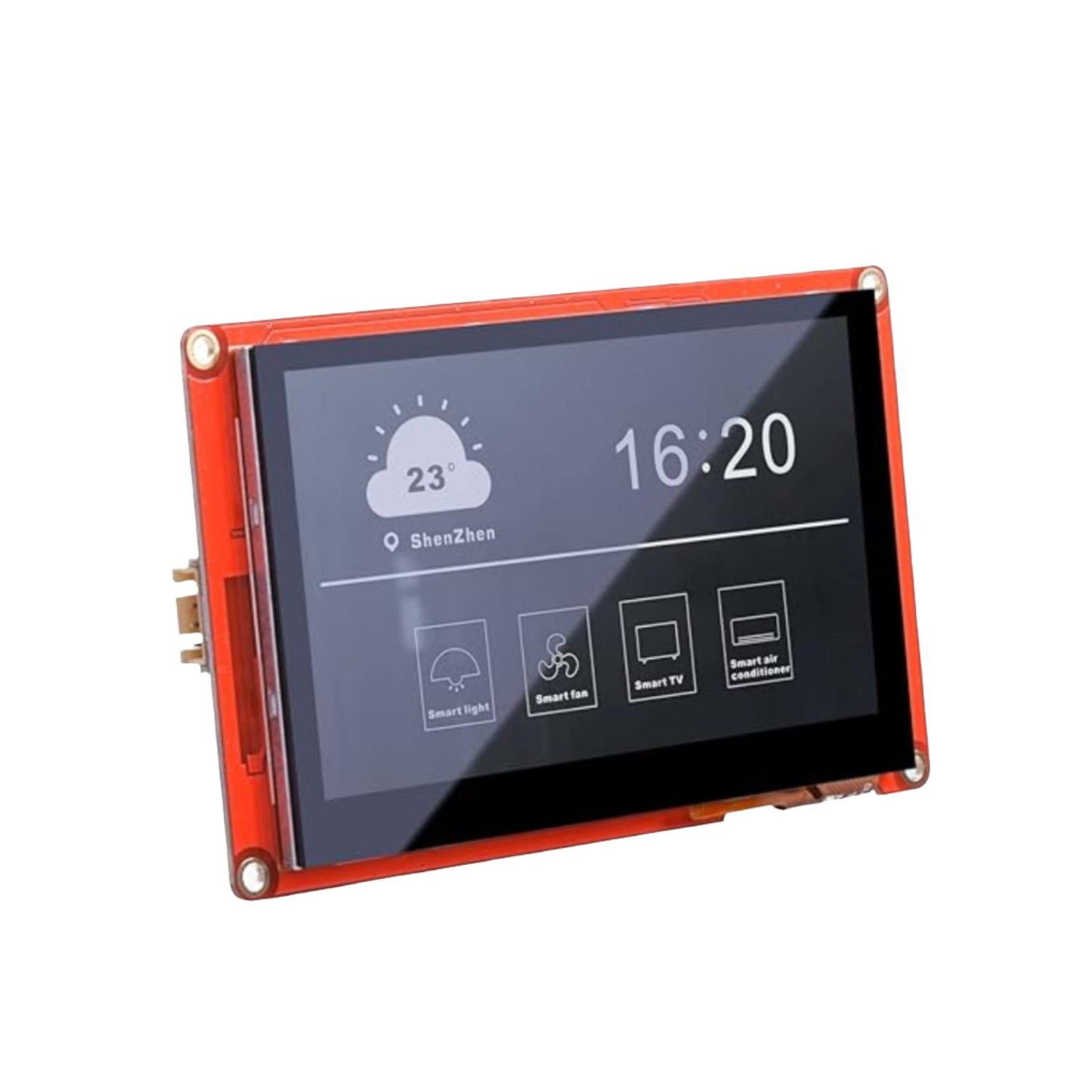

Nextion 4.3" NX4827P043-011C-Y HMI Display has a capacitive touch screen with an enclosure. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or changing the background.
Nextion 4.3" NX4827P043-011C-Y HMI Display with Enclosure is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers it will work with any board or Microcontroller that has UART port.

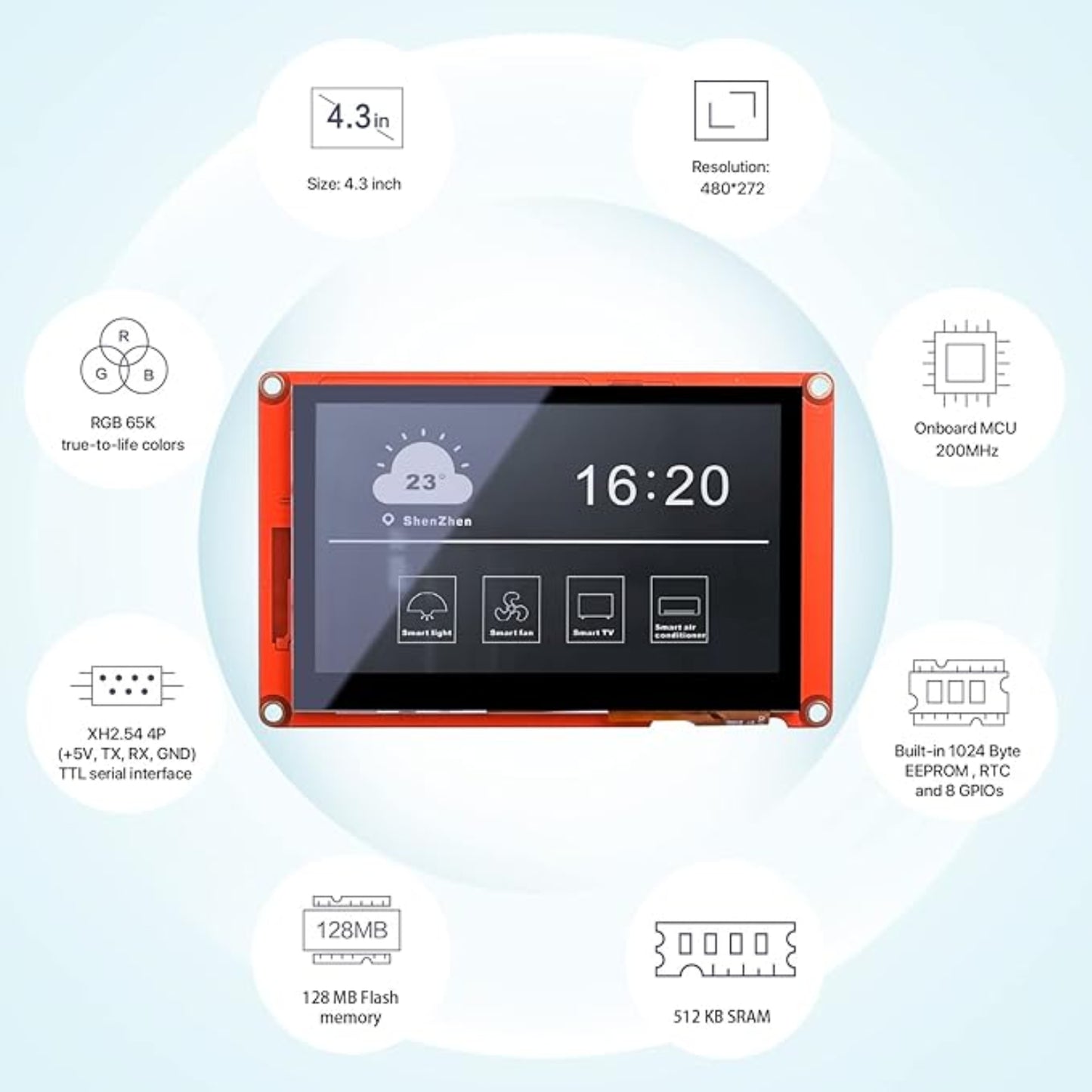

Specifications:
- Display Size: 4.3″
- Resolution: 480*272
- Touch Panel: RTP/CTP
- MCU: 200 MHz
- Flash: 128 MB
- SRAM: 512KB
- EEPROM: 1024 Byte
- GPIOs: 8, IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM
- RTC: Yes (CR1220)
- Input Power: DC 5V 1A
- USART Port: XH2.54 4P
- Storage Temperature: -30 ~ 85 °C
- Working Temperature: -20 ~ 70 °C
- Nextion Editor Components: Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode, Switch, ComboBox, TestSelect, SLText, DataRecord, FileStream, Gmov, Video, Audio, ExPicture
- Component Opaqueness: Yes
- Loading Effect: Yes

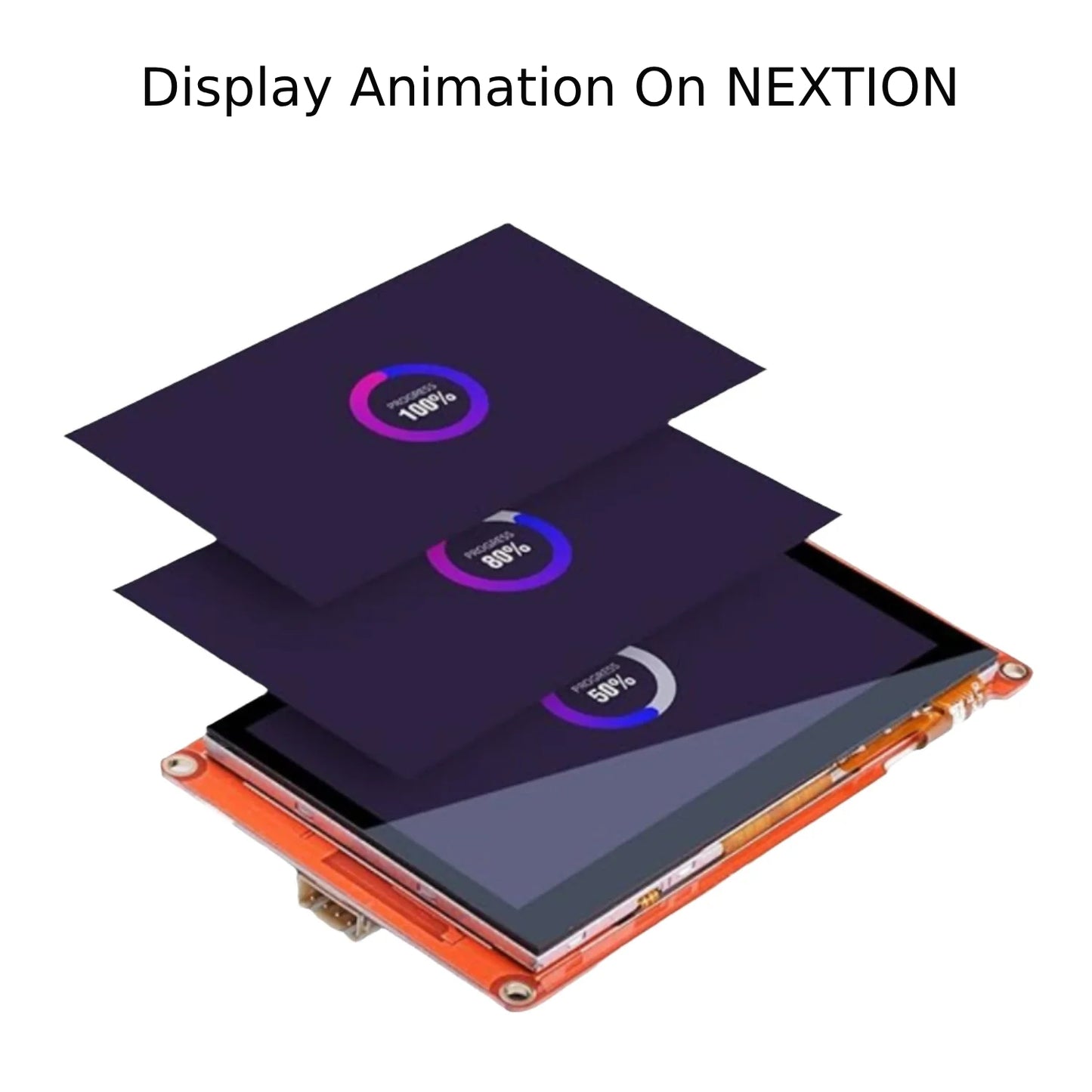

- Animation: Yes
- Video: Yes
- Audio: Yes
- Character Encoding: ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis
- Anti-aliasing font: Yes
Features:
- 128 MB of Flash memory
- 1024 Byte EEPROM
- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
- 1.25T-2-2A Audio port for external speaker connection
- 8 Digital extended GPIO (IO0-IO7 support input, output, and component binding event, IO6-IO7 support PWM)
- Built-in RTC support
- Loading Effect: Yes
- Loading Effect: Yes
- GPIOs: 8, IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM
Package Included:
1 x Nextion 4.3" NX4827P043-011C-Y HMI Display 4.3 Inch Intelligent Capacitive Touch Screen LCD TFT HMI Display Module NX4827P043-011C Supports Audio Video
