Description

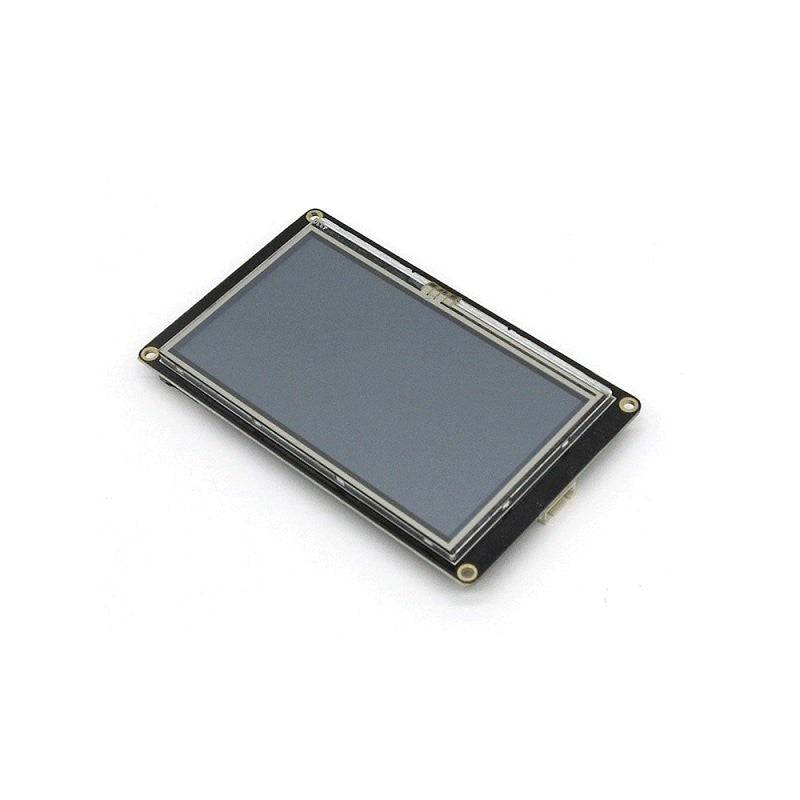

The Nextion Enhanced NX4827K043 Generic 4.3 HMI Touch Display is more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity, and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4 to 7.0.

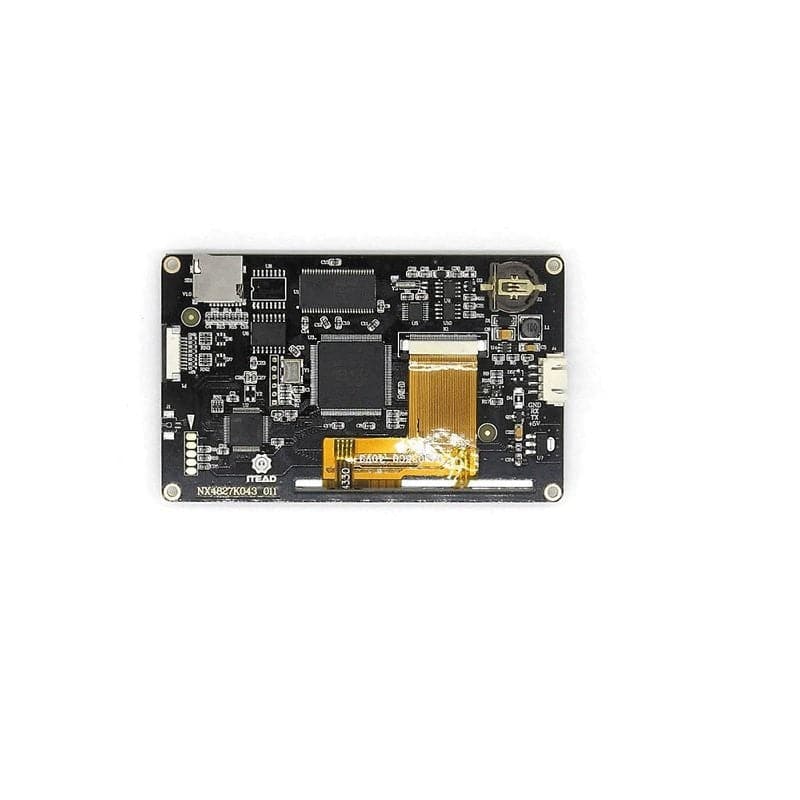

Nextion Enhanced NX4827K043is a powerful 4.3 HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM.With GPIO supported, now customers can use Nextion to control external devices.
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.
Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor).The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.
Features:
Supports built-in RTC
Supports GPIO
SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
Flash data storage space: 32MB
EEPROM: 1024 bytes
RAM: 8192 bytes
Instruction buffer: 1024 bytes
Color: 65K (65536) colors
Resolution: 480272 pixel
Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%
Specifications :-
Model No.
NX4827K043
Display Type
NX4827K043_011R (R: Resistive touchscreen)
Operating Voltage (VDC)
4.75 ~ 7
Max. Operating Current (mA)
250
Display Layout Size (L x W x H) mm
120 74 6.2
Net weight (gm)
93.8
Touch Type
Resistive
Colors
65K (65536)
Recommended Power Supply
5V, 1.0A, DC
Working Temperature Range (C)
-20 to 70
Working Humidity Range
10% to 90% RH
USB Interface
No
Micro-SD Card Slot
Yes (FAT32 format), support maximum 32G Micro SD Card
Flash Memory
32 MB
RAM
8192 bytes
Backlight
LED
Backlight Lifetime (Avg)
>30,000 Hours
Display Resolution
480272

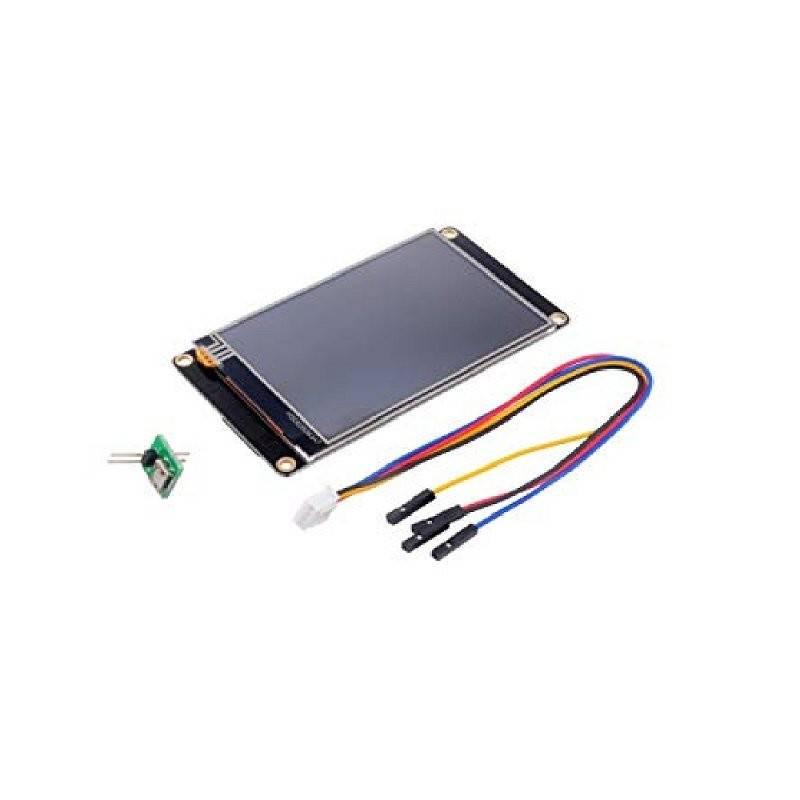

Package included:
- 1 4.3 Nextion Enhanced HMI Display
- 1 power supply test board
- 1 4-pin grove cable
