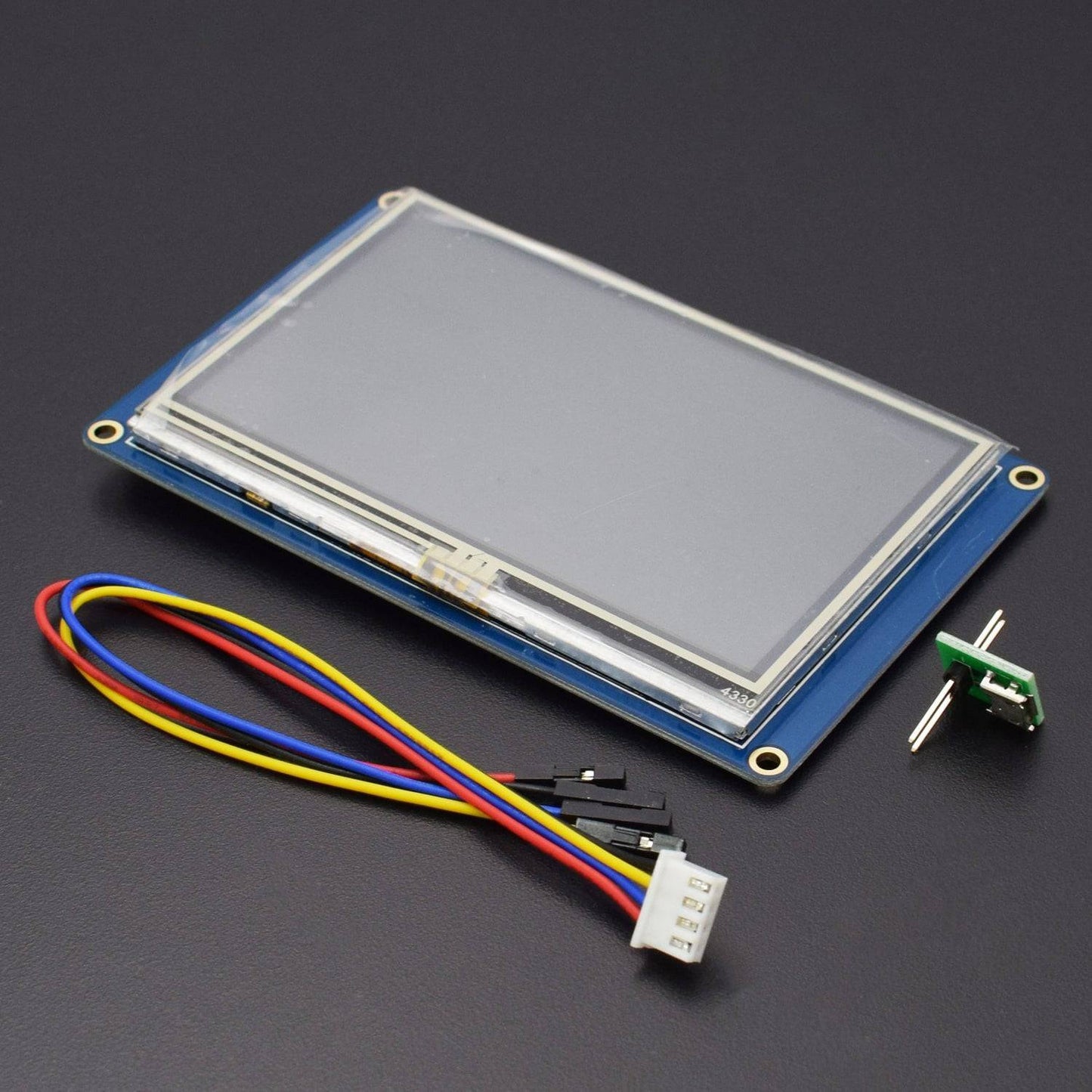

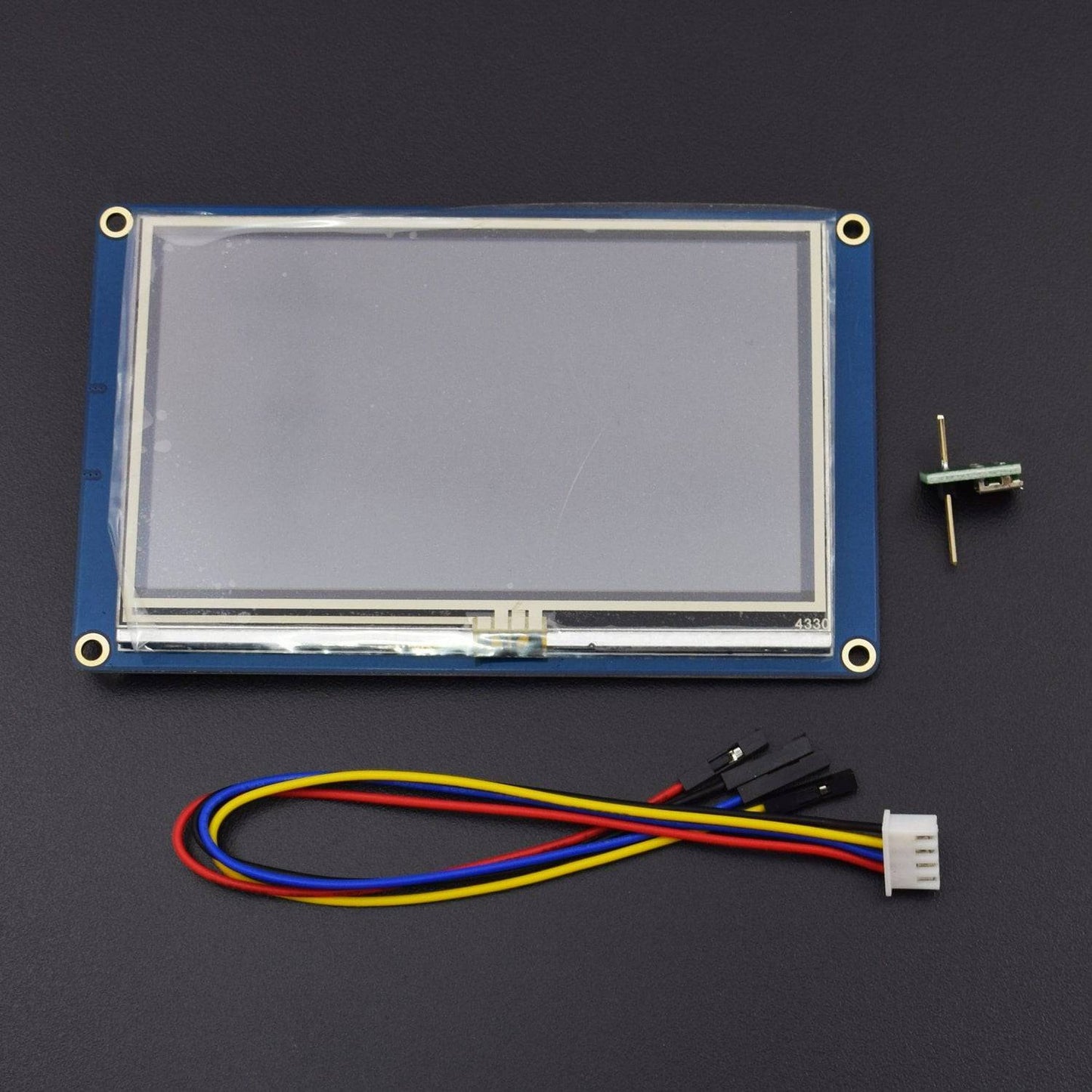

Nextion 4.3 inch BASIC NX4827T043 TFT LCD Man Machine Interface HMI Kernel Touch Display - RS989(RS2926)

Nextion 4.3 inch BASIC NX4827T043 TFT LCD Man Machine Interface HMI Kernel Touch Display - RS989(RS2926)

SKU:RS989(RS2926)

82 in stock

Regular price Rs. 5,195.00
Regular price Sale price Rs. 5,195.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model No - NX4827T043
  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
  • 480 x 272 Resolution
  • RGB 65K true to life colors
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 16M Flash memory for User Application Code and Data
  • Onboard micro-SD card for firmware upgrade

Description:

Nextion NX4827T043 – 4.3” TFT LCD ManMachine Interface HMI Kernel Intelligent Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part. The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

Specification:

Model No.

NX4827T043

Nextion Type

011R(R: Resistive Touchscreen)
NX4827T043

Operating Voltage Range

4.75~7 V

Operating Current

250mA
Sleep Mode: 15mA

Net weight

93gm

Touch Type

Resistive

Colors

65K (65536) Colors, 16 bit, 5R6G5B

Recommended Power Supply

5V, 500mA, DC

Working Temperature Range

-20 to 70 ℃

Working Humidity Range

10% to 90% RH

USB Interface

No

Micro-SD Card Slot

Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features

Flash Memory

16 MB

RAM Memory

3584 – BYTE

Shipment Weight

0.14 kg

Shipment Dimensions

18 x 10 x 3 cm
