- Model No.: NX3224T028
- Display Type: NX3224T024_011R (R: Resistive touchscreen)
- Operating Voltage: 4.75 ~ 7V DC
- Max. Operating Current: 90mA
Description:
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.
Nextion NX3224T028 Generic 2.8HMI LCD Touch Display includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend a lot of time on application development but get unsatisfactory results. As a solution to this situation, the Nextion editor has mass components such as buttons, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It is easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

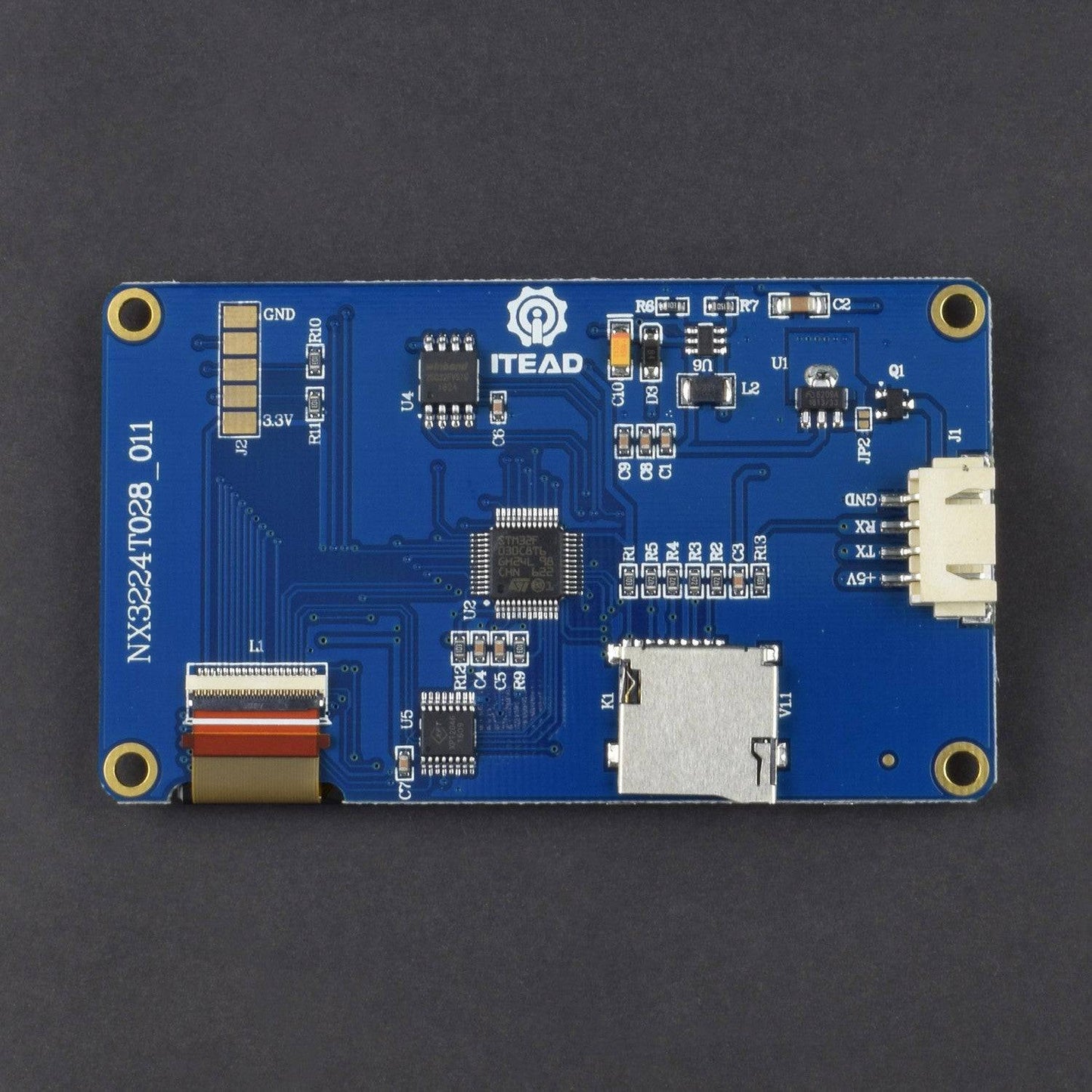

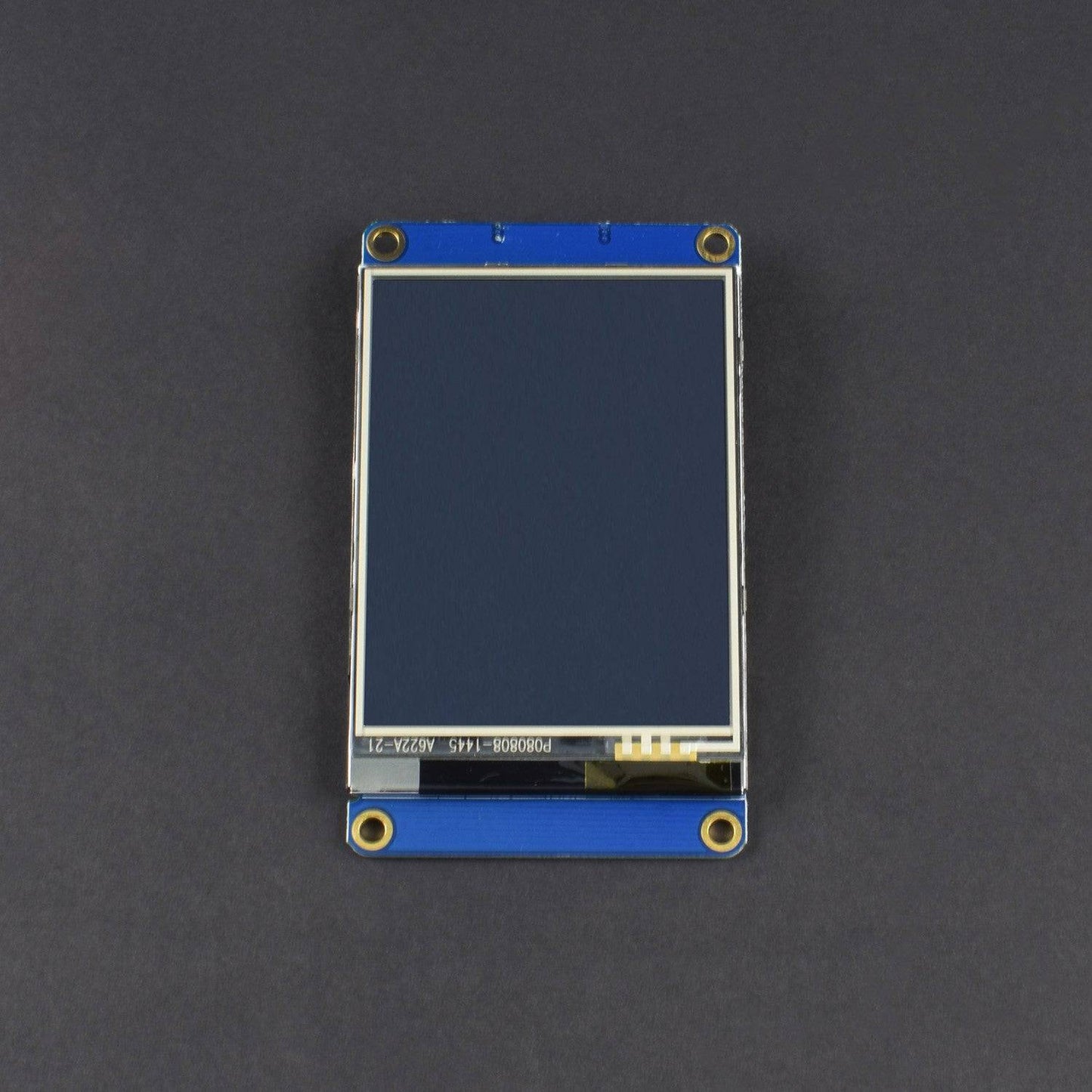

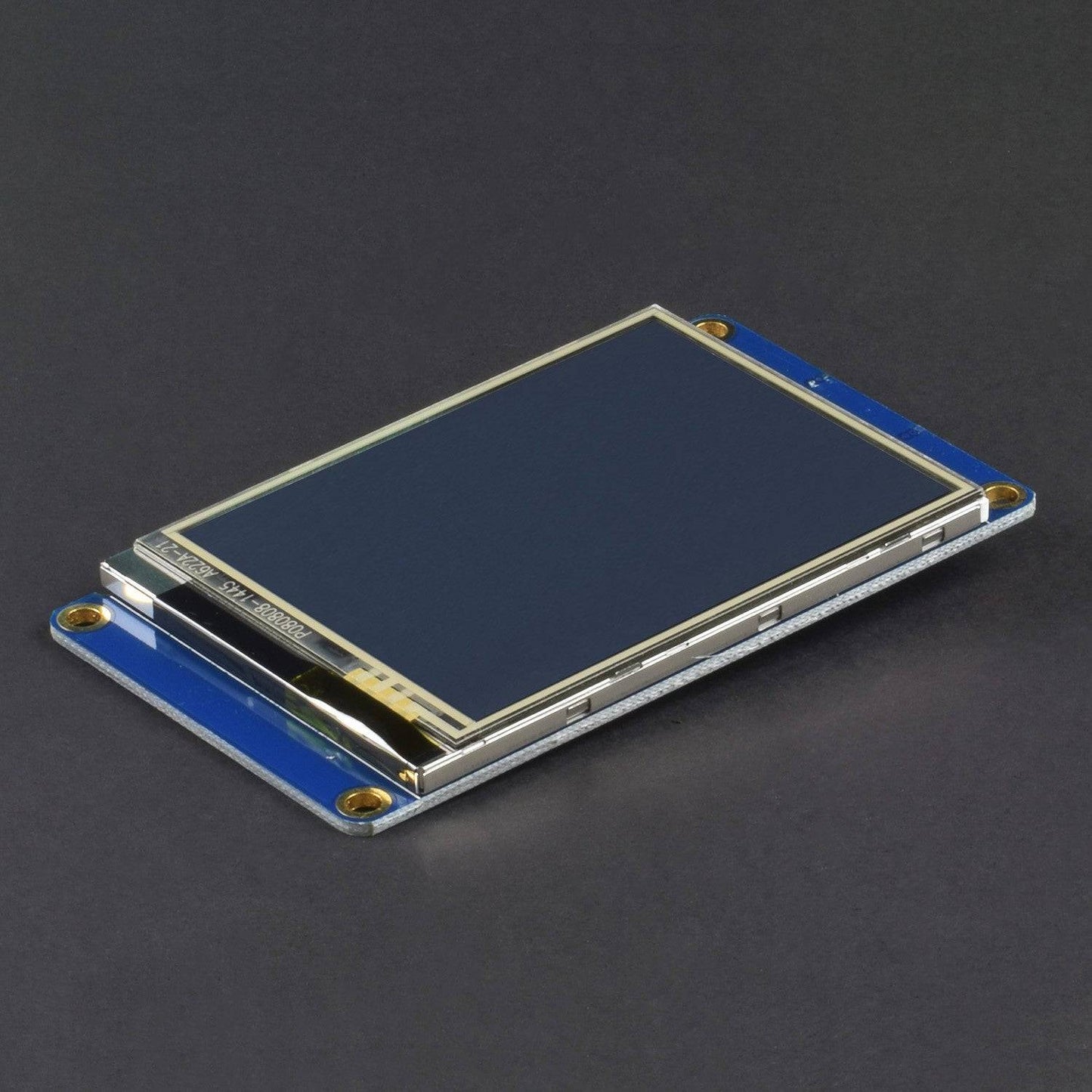

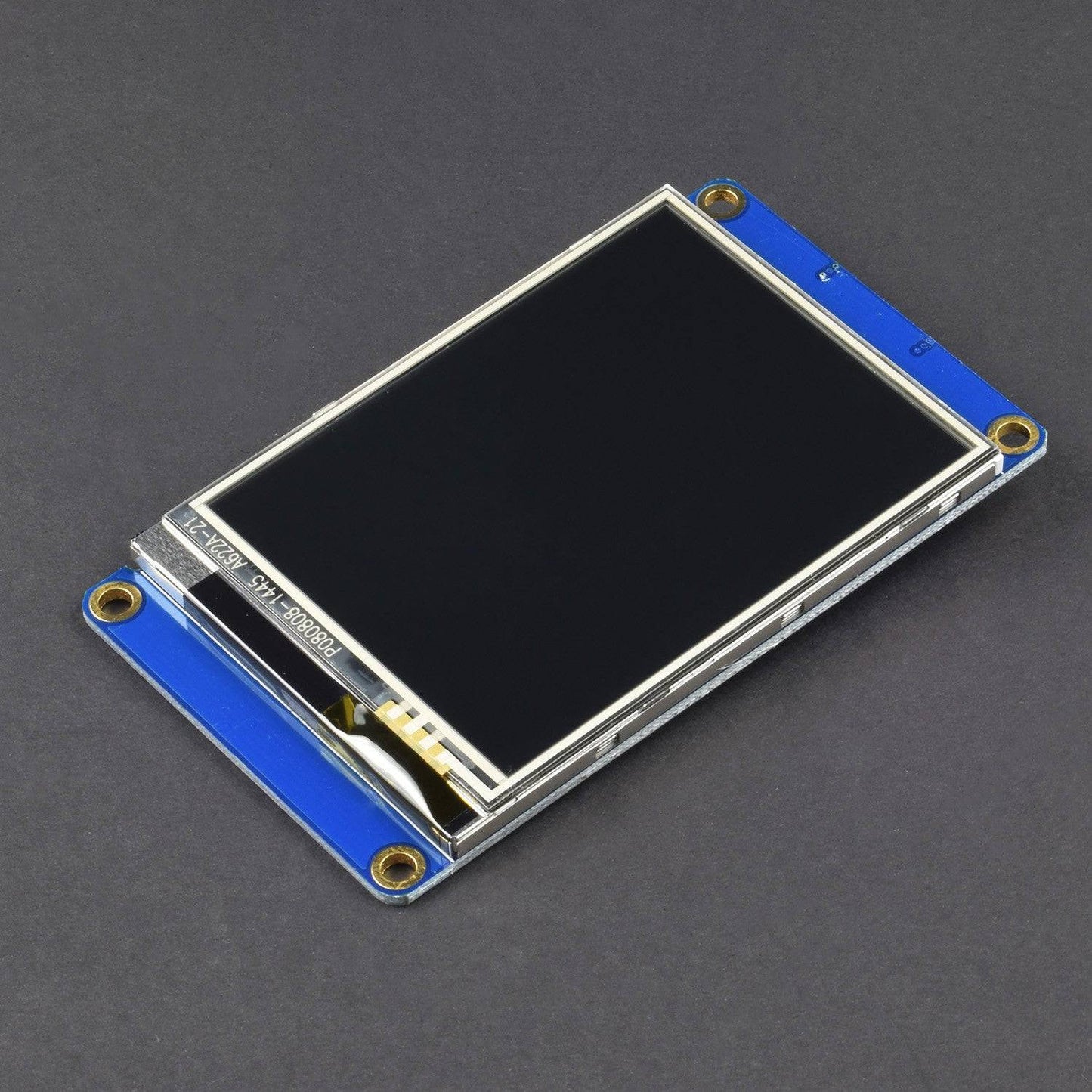

NX3224T028 is a powerful 2.8 HMI, which is a member of the Nextion family. Features include: a 2.8 TFT 320240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors
Specification:
| Model No. | NX3224T028 |
| Display Type | NX3224T024_011R (R: Resistive touchscreen) |
| Operating Voltage | 4.75 ~ 7 VDC |
| Max. Operating Current | 90mA |
| Display Layout Size (L x W x H) mm | 74.4 42.9 5.8 |
| Touch Type | Resistive |
| Colors | 65K (65536) |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range | -20 to 70C |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory | 4 MB |
| RAM | 3584 BYTE |
Features:
- 320 x 240 Resolution
- RGB 65K true-to-life colors
- TFT screen with integrated resistive touch panel
- 4-pin TTL serial interface
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware up gradation
- Visual Area: 57.6mm(L)43.2mm(W)
- Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
- 5V65mA power consumption
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
- Certificates: CE/EMC, RoHS (certificates)
Package Included:

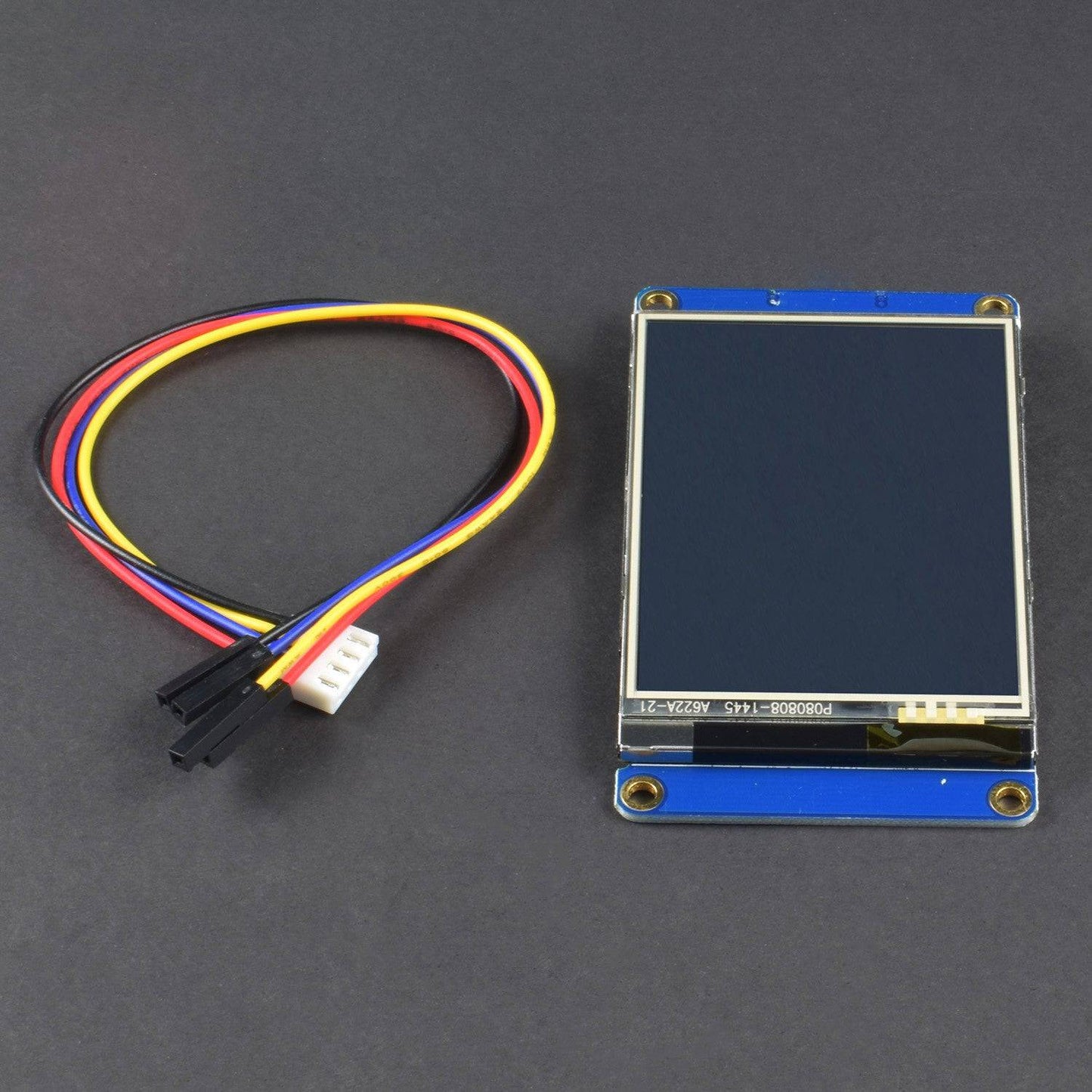

1 x Nextion 2.8 inch BASIC NX3224T028 HMI LCD Touch Display
