Description:
Nextion Nextion 2.4″ TFT is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion 2.4″ TFT uses only one serial port to communicate. Nextion 2.4″ TFT lets users avoid the hassle of wiring. The next editor has mass components such as buttons, text, progress bar, slider, instrument panels etc. to enrich the interface design.
Specifications:
- Model No: NX3224T024
- Operating Voltage: 4.75 ~ 7V DC
- Display Type: NX3224T024_011R (R: Resistive touchscreen)
- Touch Type: Yes
- Color: 65K (65536)
- Working Temperature Range: -20 to 70°C
- Working Humidity Range: 10% to 90% RH
- Recommended Power Supply: 5V, 500mA, DC
- RAM: 3584 BYTE
- Max. Operating Current: 90mA
Features:
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
- 4M Flash memory for User Application Code and Data.
- Easy 4-pin interface to any TTL Serial Host.
- RGB 65K true-to-life colours.
- Onboard micro-SD card for firmware upgrade.
Package Included:

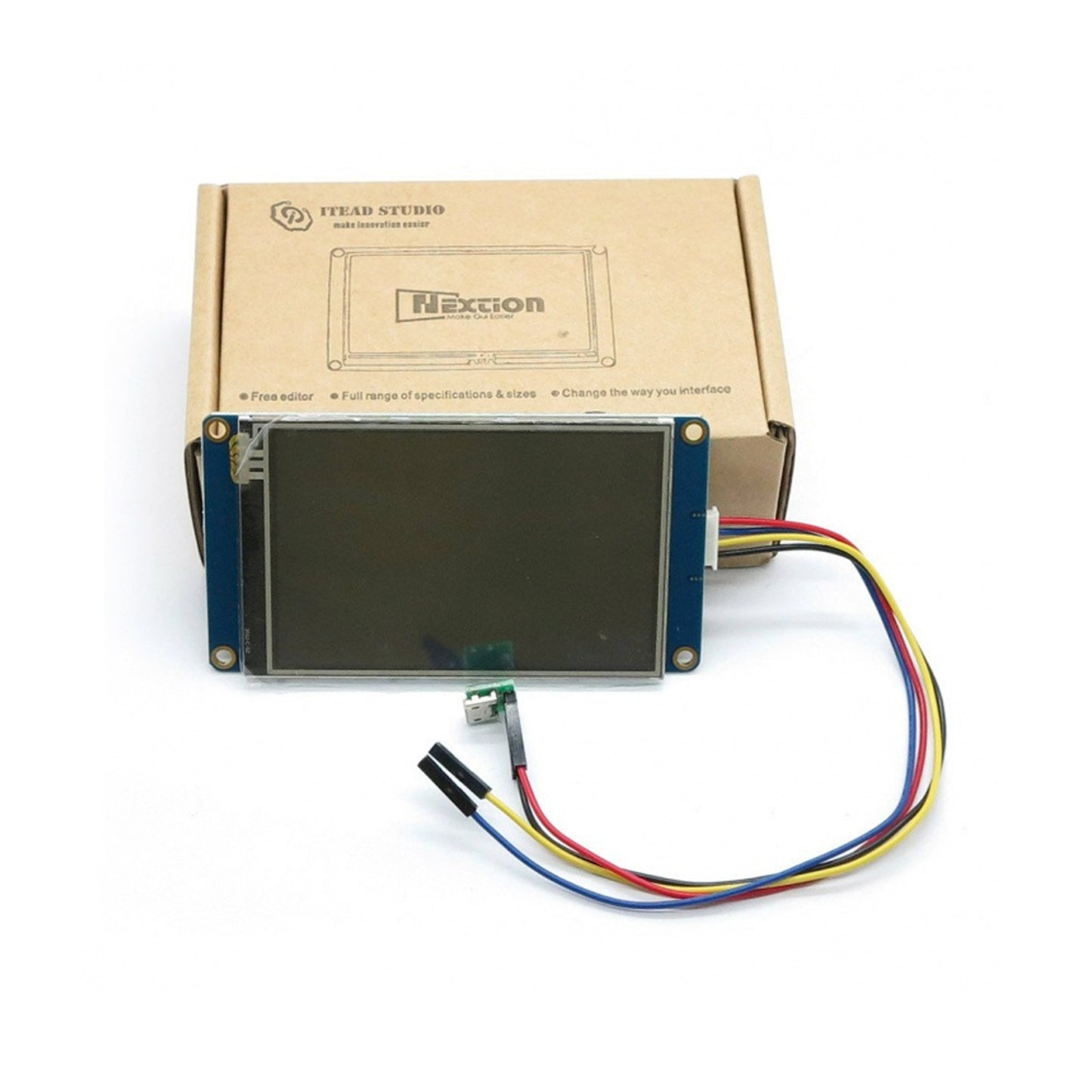

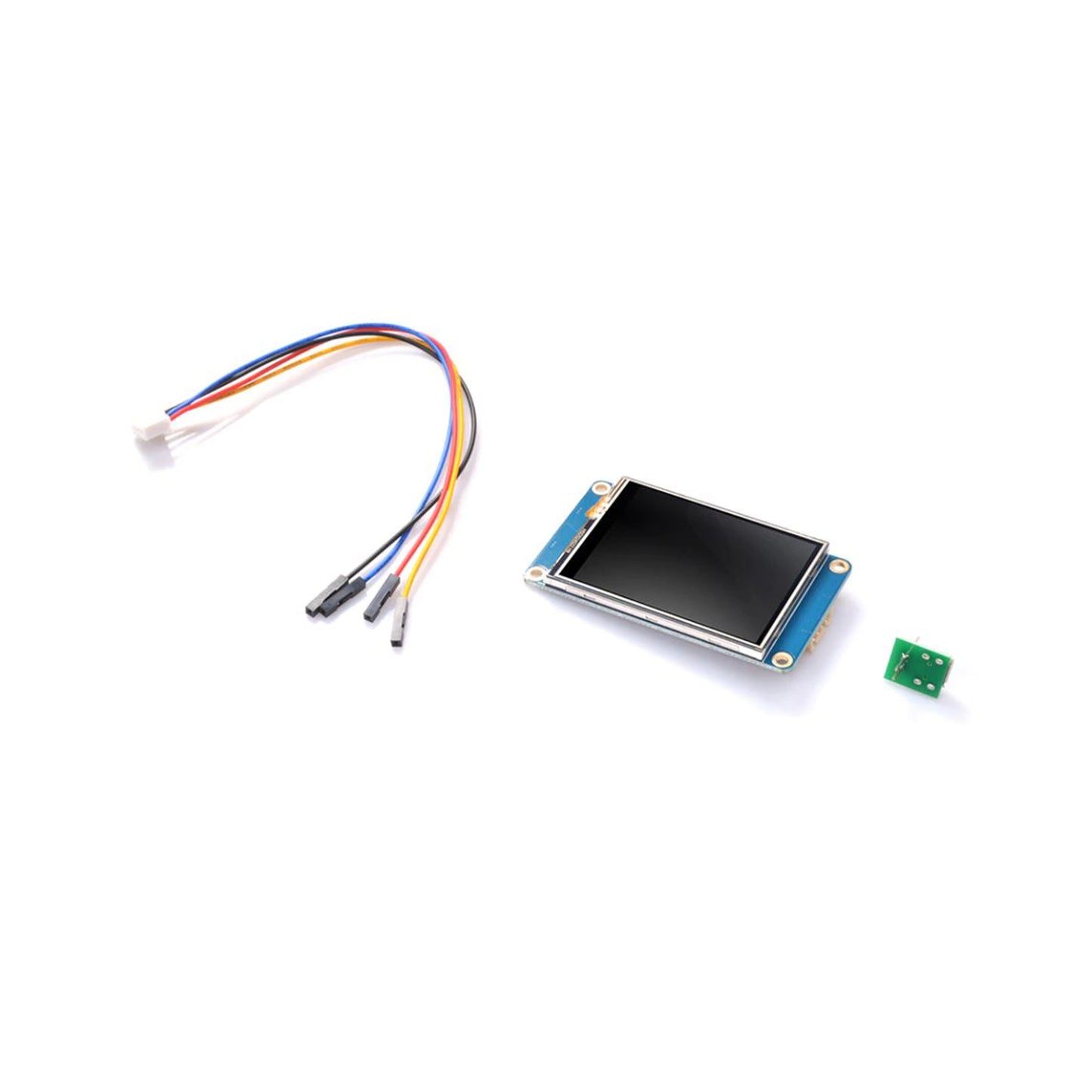

1 x Nextion 2.4″ TFT Nextion Basic NX3224T024 2.4″ TFT ManMachine Interface HMI kernel LCD Touch Display
