- Model No: NX3224TO24
- Nextion Type: NX3224T024_011R
- Operating Voltage Range: 4.5~7V
- Operating Current: 90 mA
- Resolution: 320 x 240
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
Description:
Nextion NX3224T024-Generic 2.4″ TFT Intelligent ManMachine Interface HMI kernel LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.
Nextion includes a hardware part (a series of TFT boards) and a software part. The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend a lot of time in application development but get unsatisfactory results. As a solution to this situation, the Nextion editor has mass components such as buttons, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.
Specification:
| Model No | NX3224K024 |
| Nextion Type | NX3224T024_011R (R: Resistive touchscreen) |
| Operating Voltage Range | 4.75~7 V |
| Operating Current | 90 mA |
| Touch Type | Yes |
| Colours | 65K (65536) Colors, 16 bit, 5R6G5B |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range | -20 to 70 ℃ |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory | 4 MB |
| RAM Memory | 3584 BYTE |
Features:
- 320 x 240 Resolution
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- RGB 65K true to life colours
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4 pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Visual Area:36.72mm(L)×48.96mm(W)
- Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
- 5V90mA power consumption
- Generic using for all Arduino or Raspberry Pi project

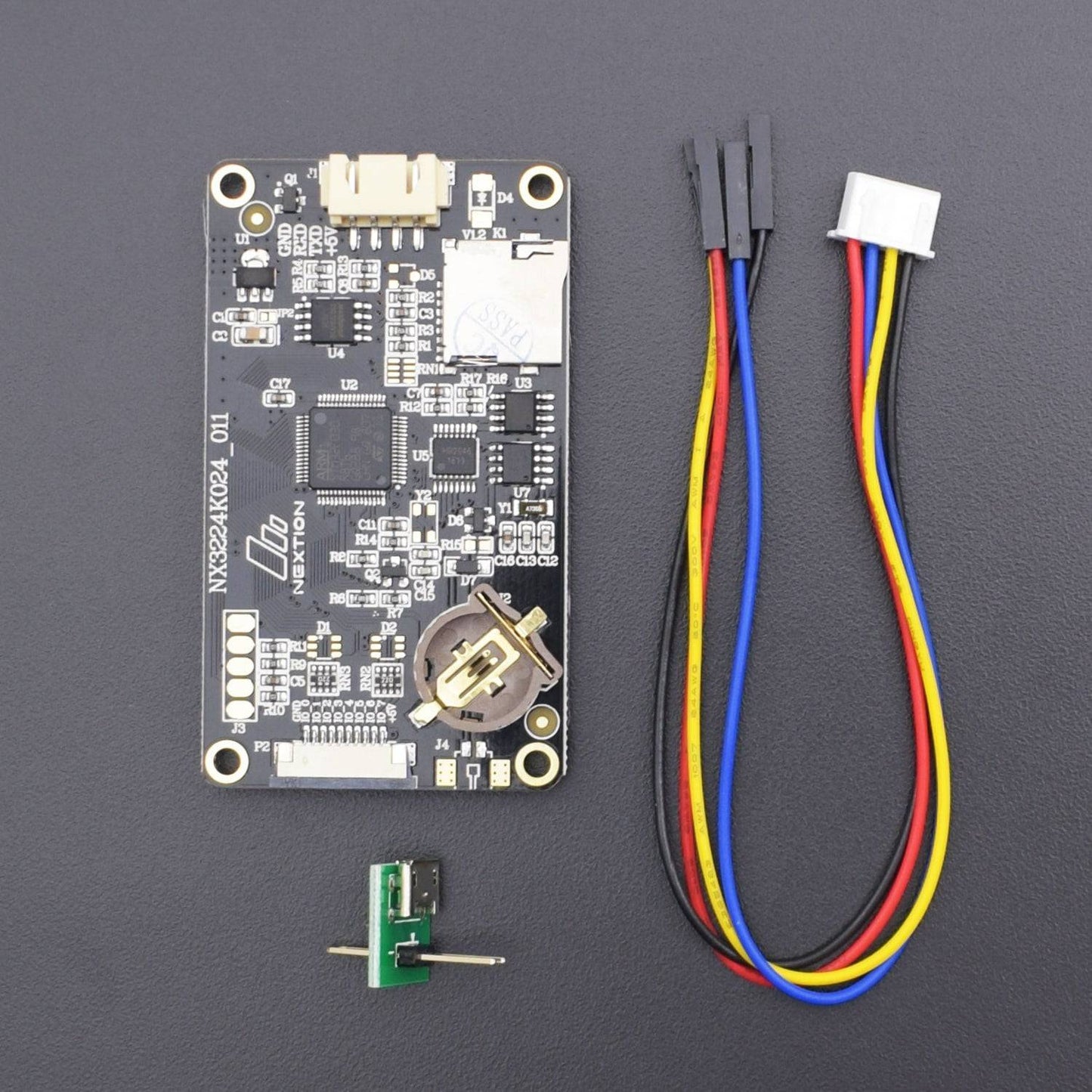

Package Included:

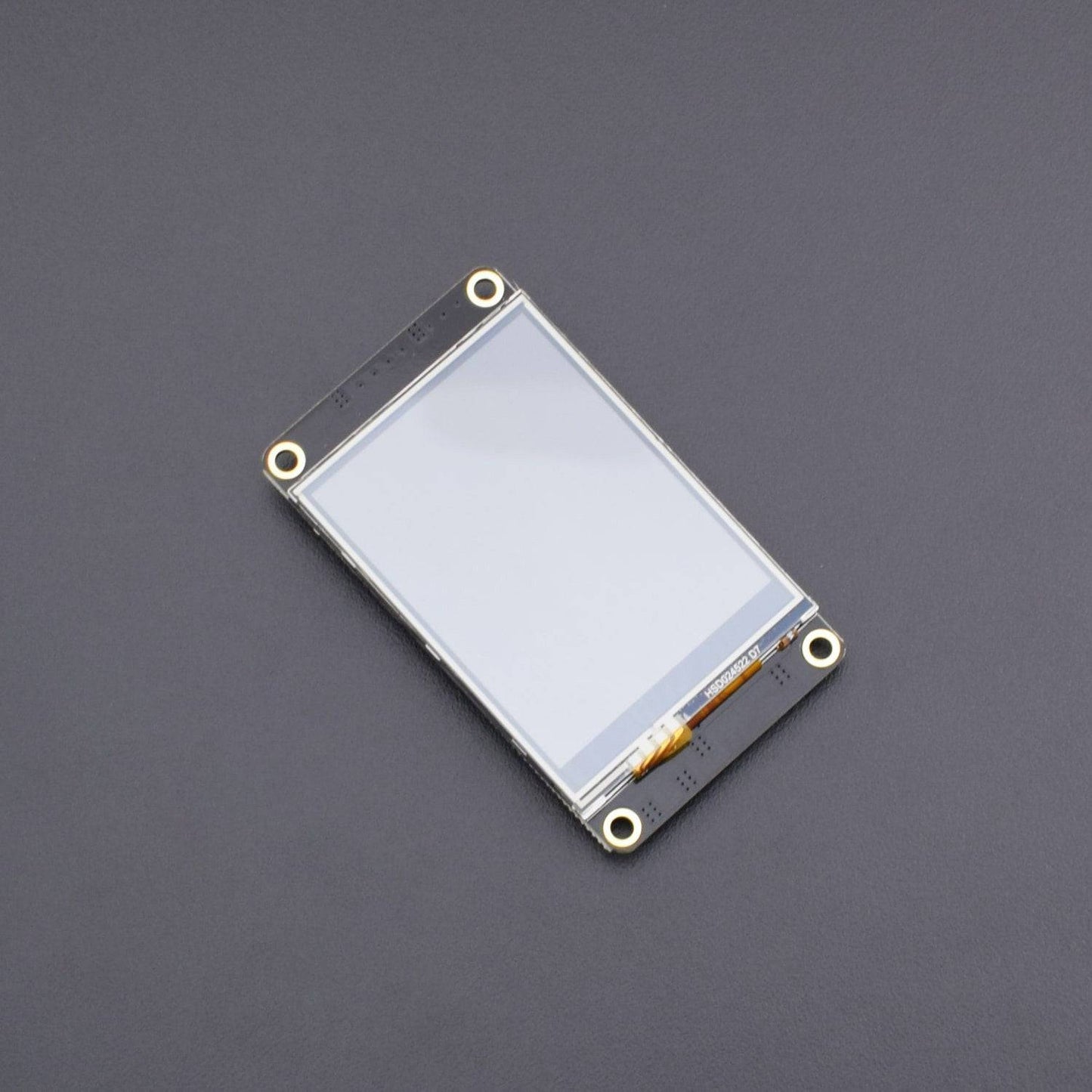

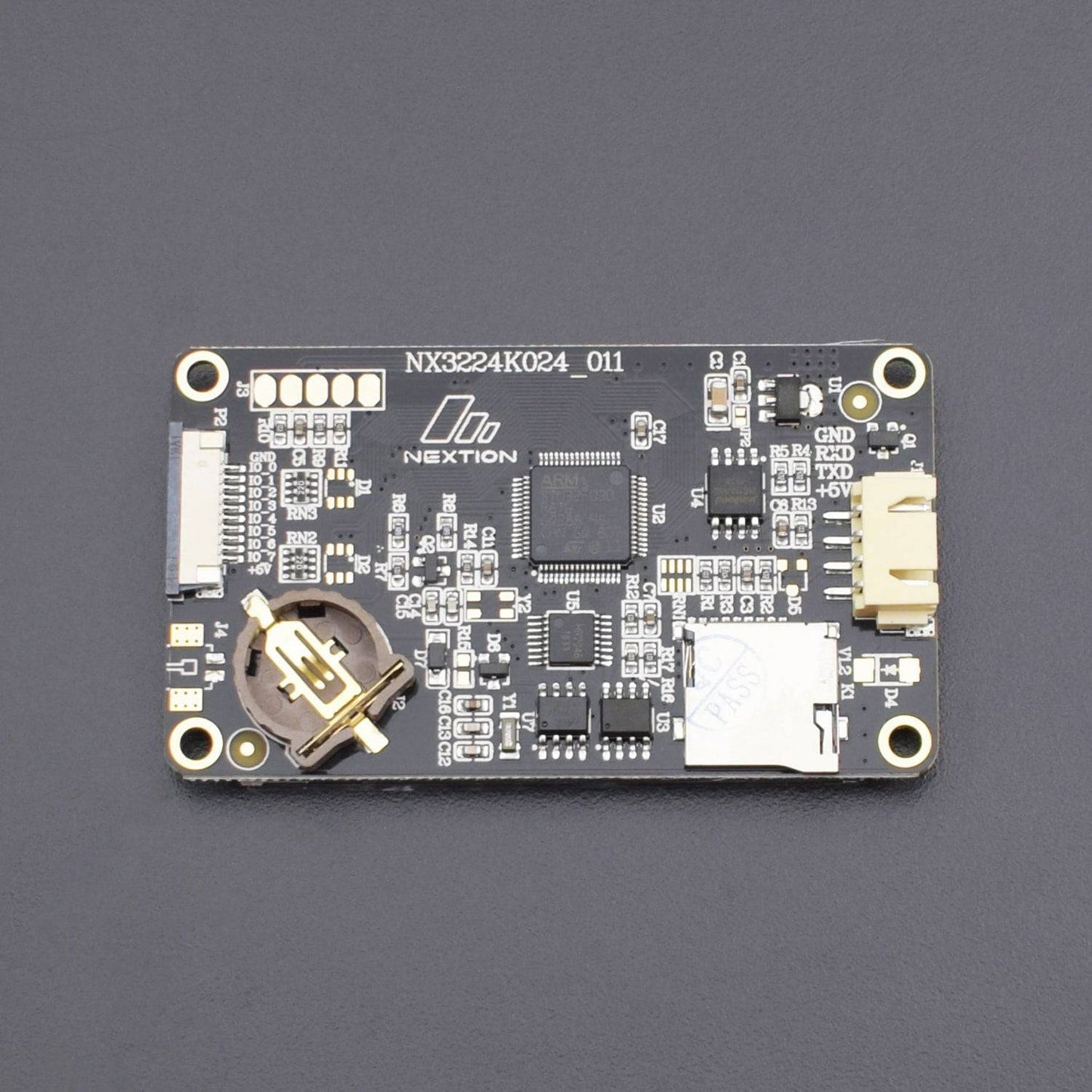

- 1 x Nextion NX3224K024 – Generic 2.4″ TFT Intelligent LCD Touch Display

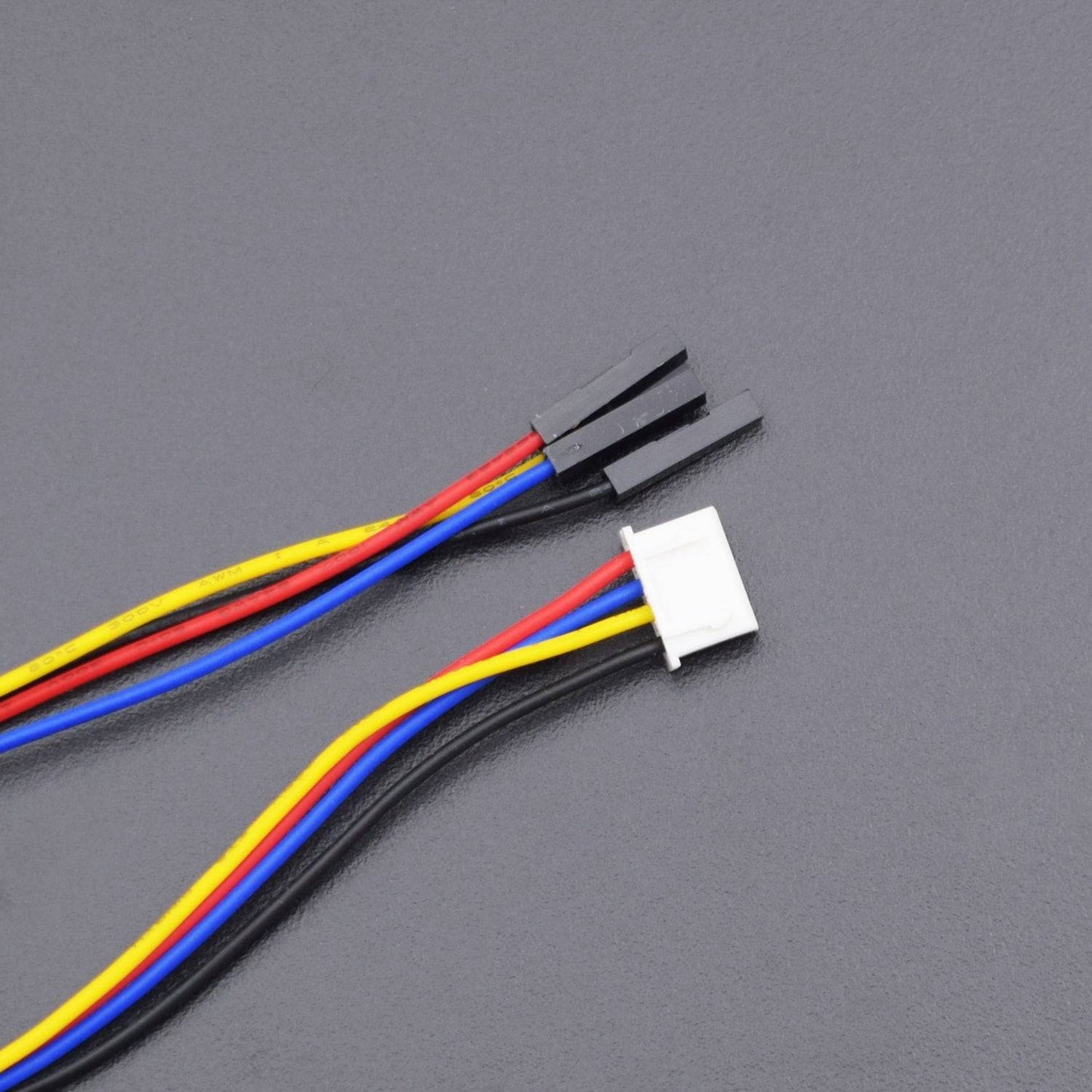

- 1 x Connecting Cable

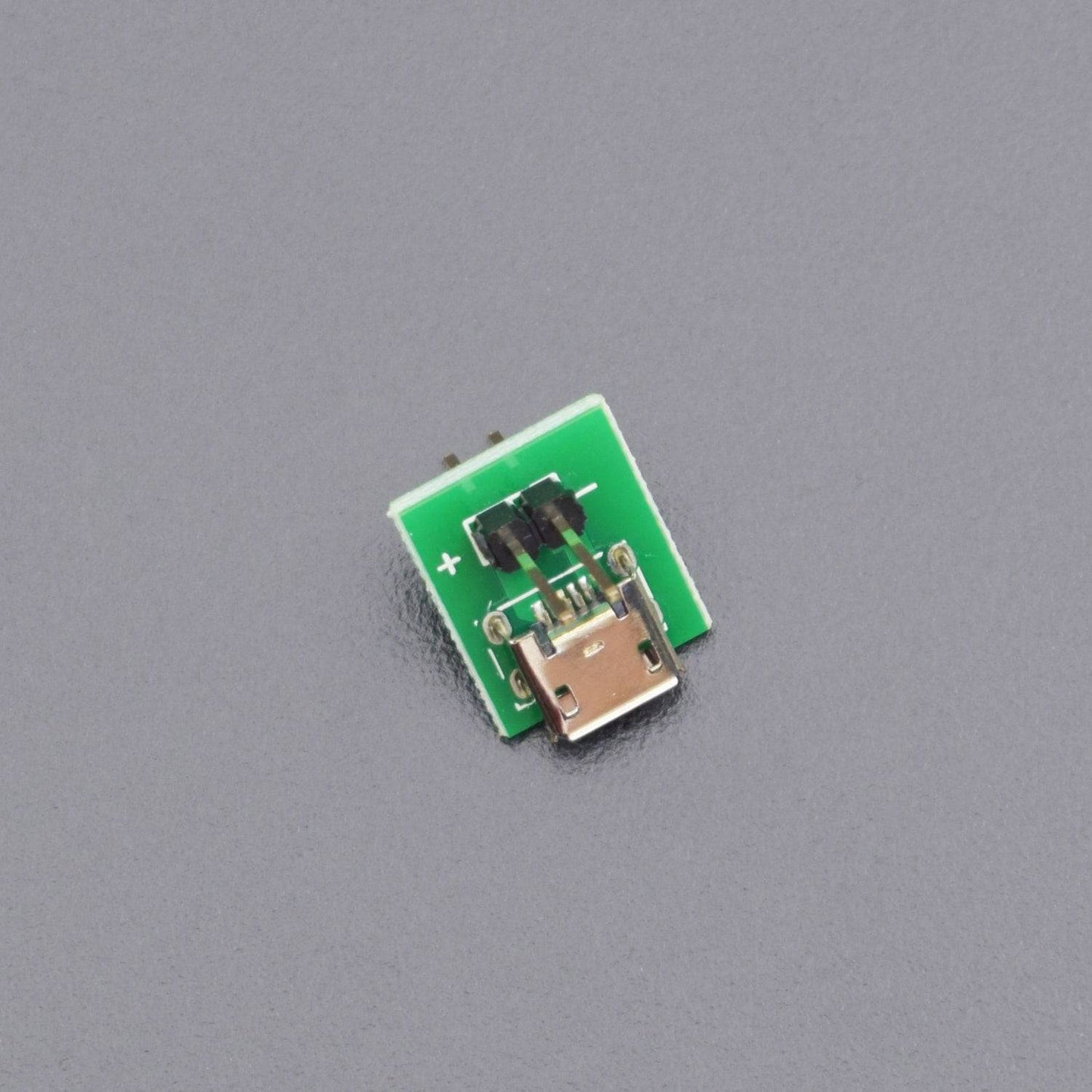

- 1 x Power Supply Test Board
