Description:
NEMA23 Hybrid Stepper Motor is a special choice for heavy-duty CNC machines. They overpass the NEMA17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds. This NEMA23 Hybrid Stepper Motor is a powerhouse when it comes to larger machines that require extra torque. The NEMA23 Hybrid Stepper Motor can provide 30.61 kg-cm of torque at 4A current per phase.
The NEMA23 Hybrid Stepper Motor move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA23 Hybrid Stepper Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver.
NEMA23 Hybrid Stepper Motor is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn't require complex electronic control circuitry.
The NEMA23 Hybrid Stepper Motor shaft has been machined for good grip with a pulley, drive gear etc. especially avoiding stall or slip.
Note:
- The NEMA 23 30.61 kg-cm Hybrid Stepper Motor dimensions and weight may have a 2% error.
- Resonances can occur because of improper instalment.
- Not easy to operate at extremely high speeds.
Features:
- Comparably more powerful than NEMA17 motors.
- The input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of the exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Specifications:
Step Angle |
1.8 degree |
Holding Torque |
30.61 kg-cm |
Operating Voltage |
3.6 V |
Supply Current |
4 A/Phase A |
No. of Leads |
4 |
Inductance |
3.6 mH/Phase |
Resistance |
1.13 ohms/Phase |
Rotor Inertia |
480 gm-cm2 |
Weight |
1690gm |
Dimension LxWxH |
112x57x57mm |
Detent Torque |
0.68kg-cm |
Frame Size |
57 x 57mm |
Inductance Accuracy |
±20% |
Resistance Accuracy |
±10% |
Shaft Diameter |
8mm |
Shaft Length |
20.6mm |
Step Angle Accuracy |
±5% |
Cable Length |
0.3 m (30 cm) |
Package Included:

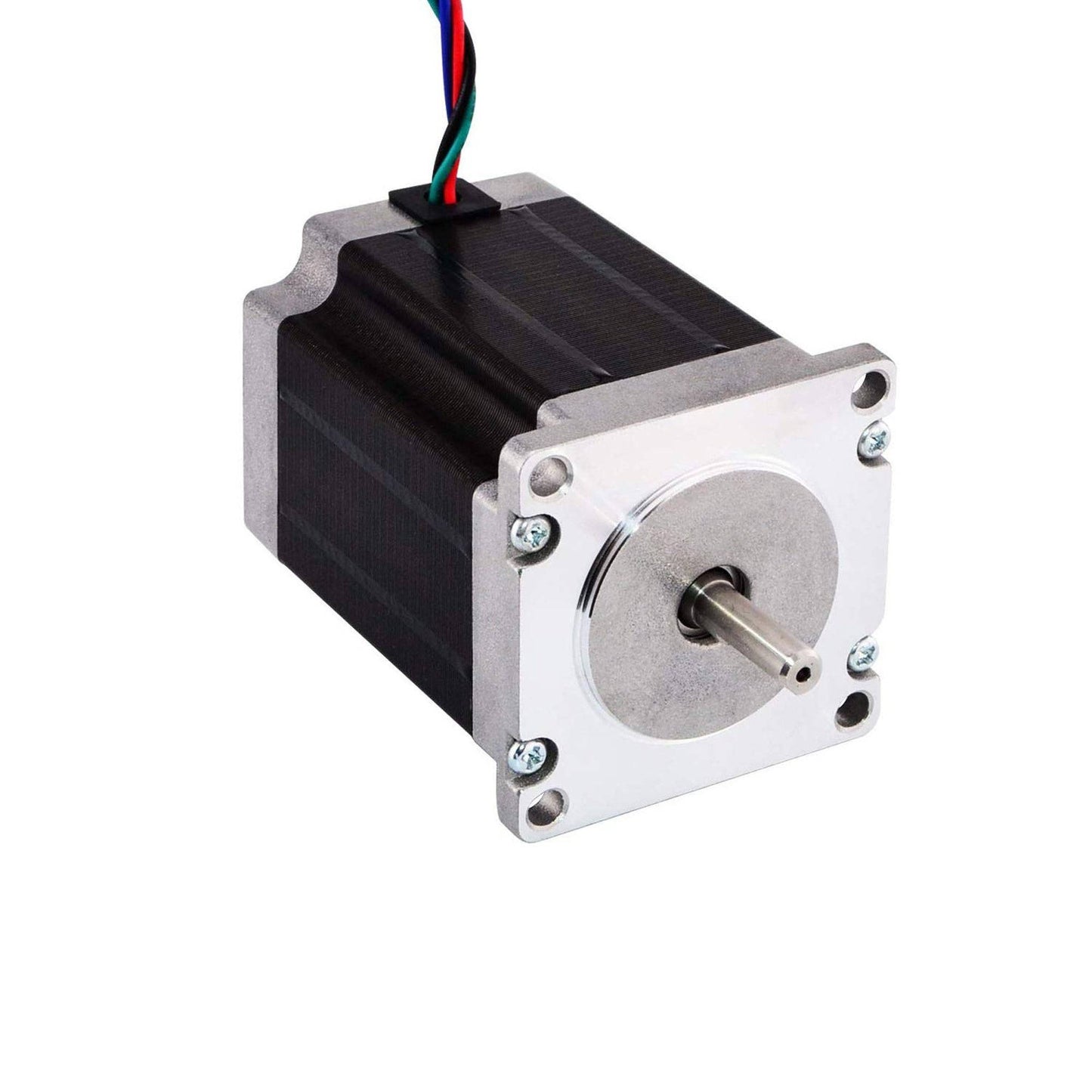

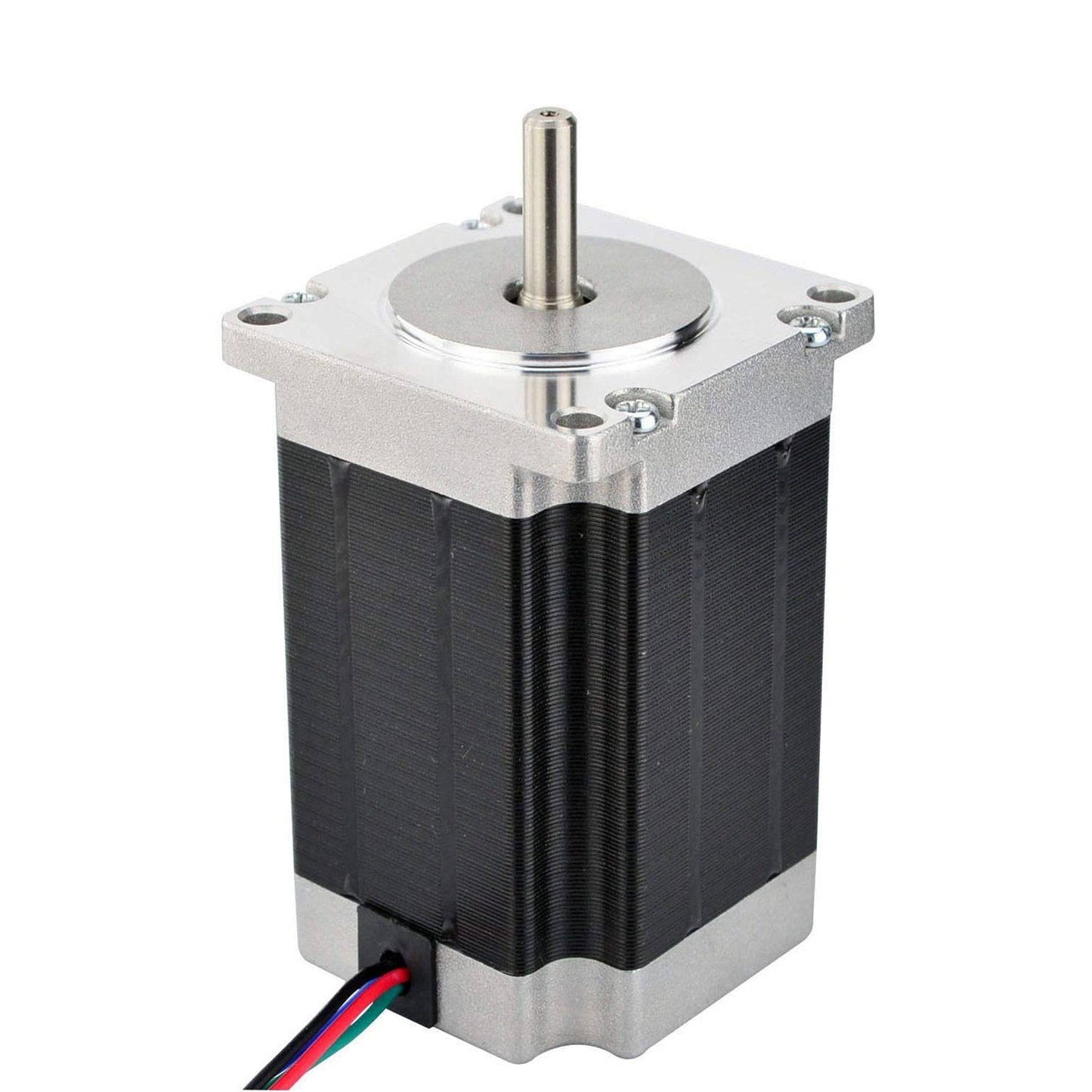

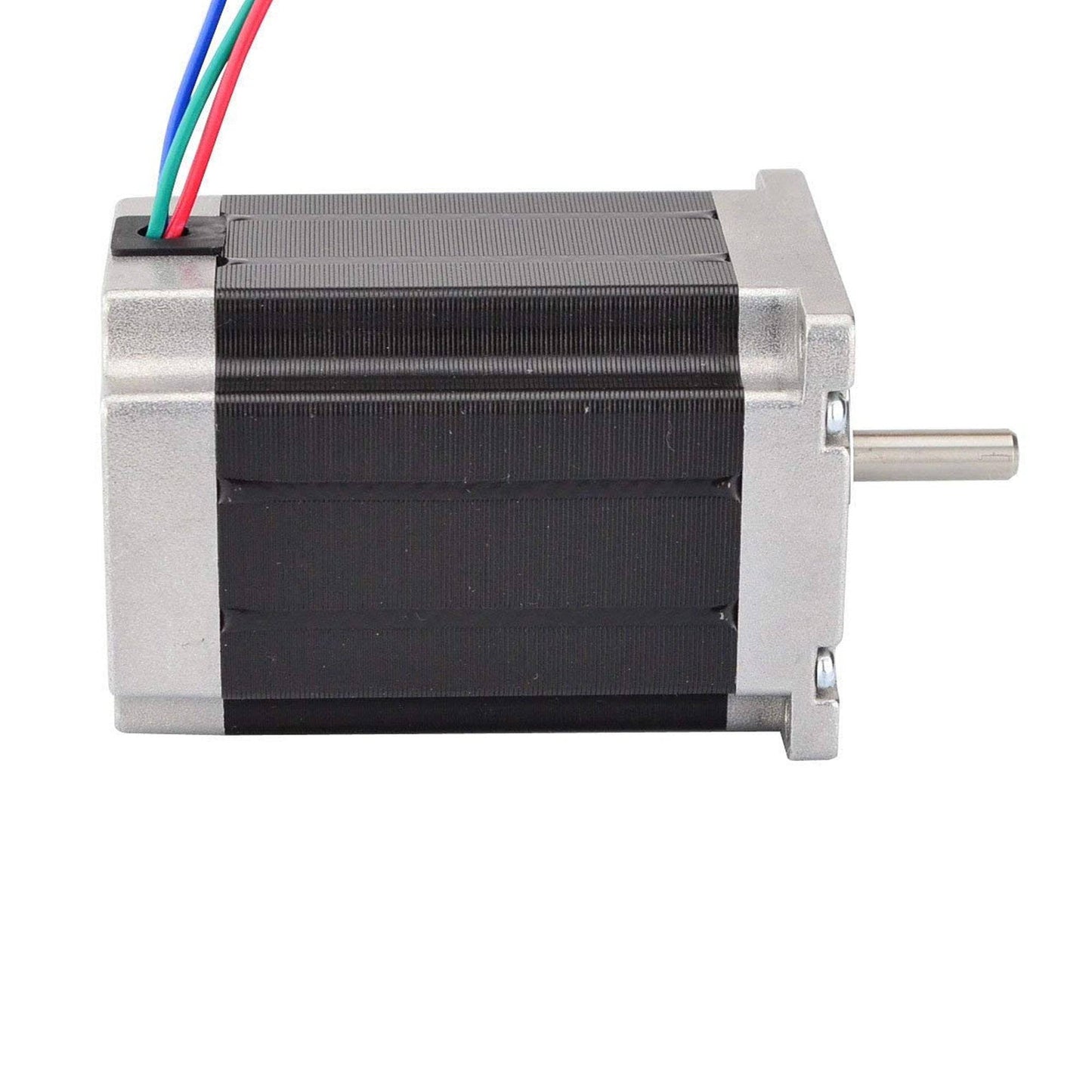

1 x NEMA23 Hybrid Stepper Motor 30.61 kg-cm Single Shaft 1.8 Degree Hybrid Stepper Motor Shaft Diameter 8mm
