Nema 14 Bipolar 1.8deg 18Ncm (25.5oz.in) 0.8A 5.4V 35x35x34mm - RS2190

Nema 14 Bipolar 1.8deg 18Ncm (25.5oz.in) 0.8A 5.4V 35x35x34mm - RS2190

RS2190

In stock

Rs. 1,014.00
Rs. 1,014.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 18Ncm(25.5oz.in)
  • Rated Current/phase: 0.8A

Description:

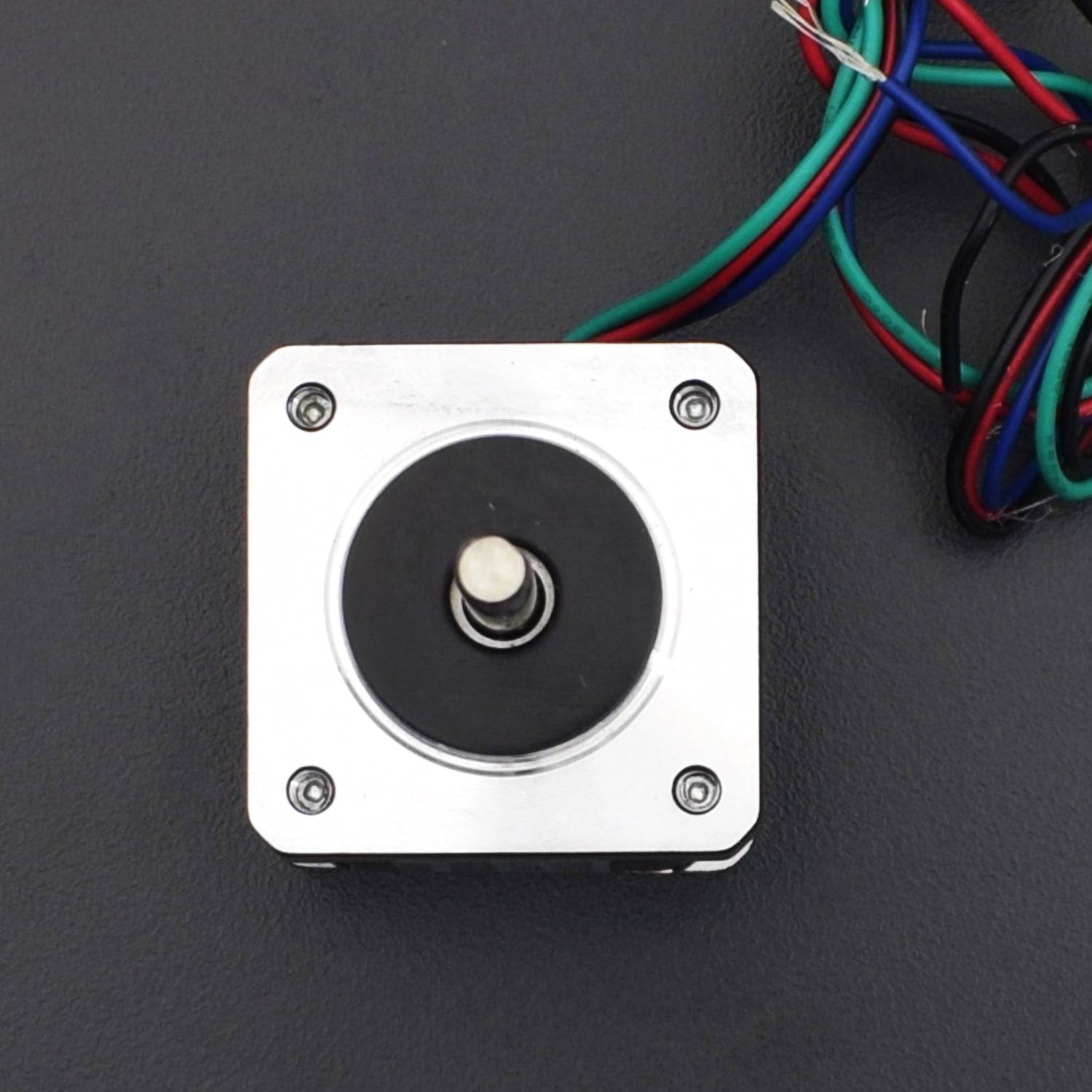

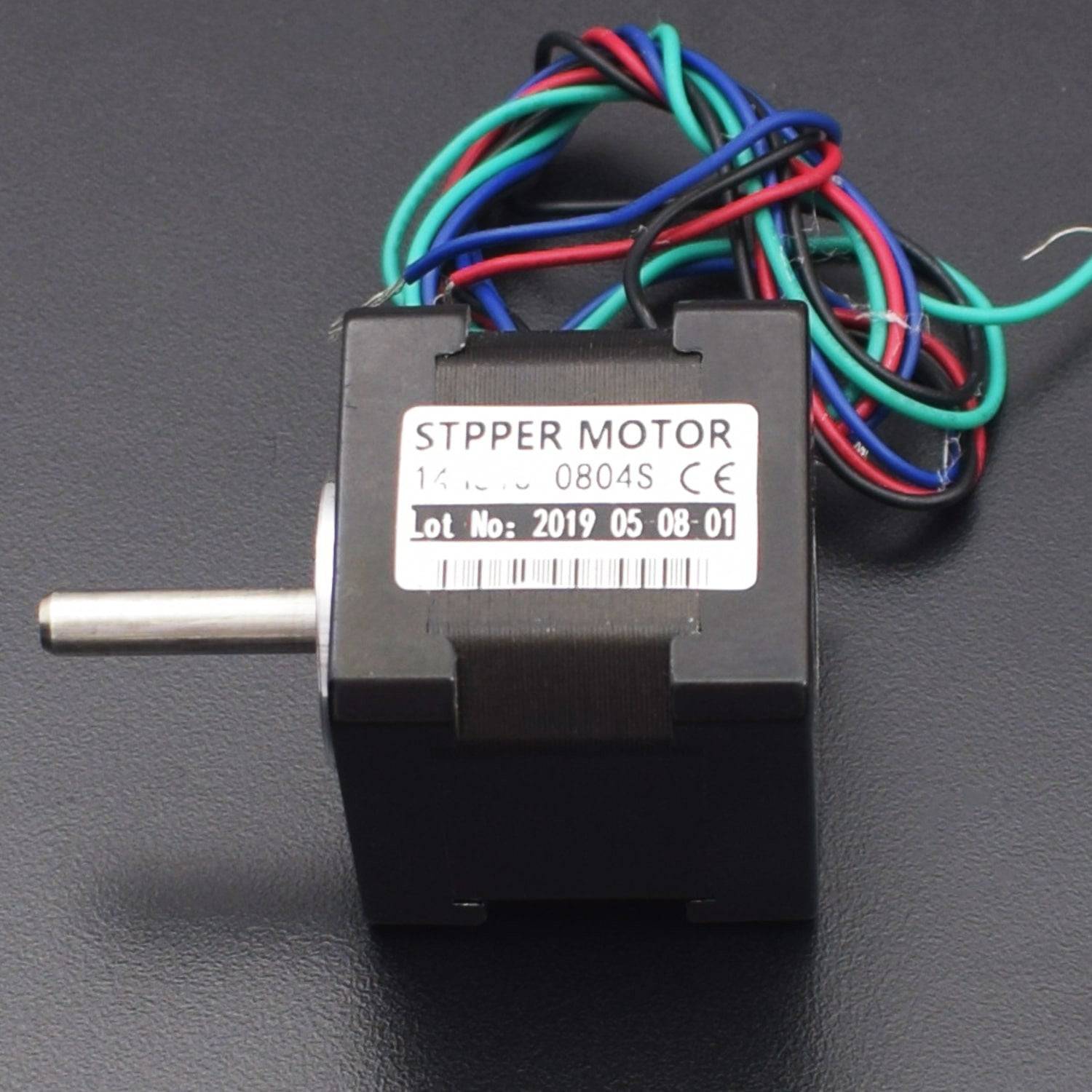

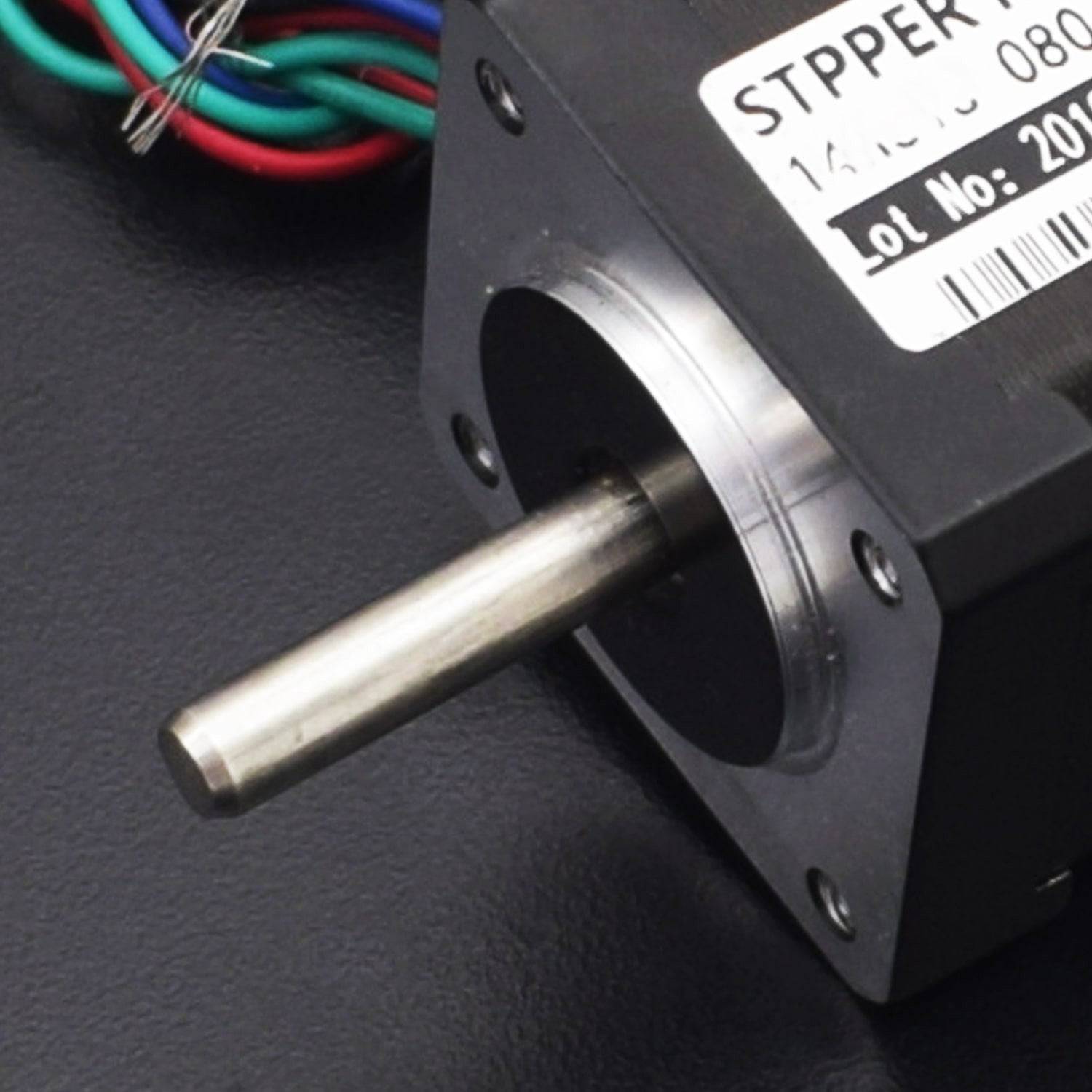

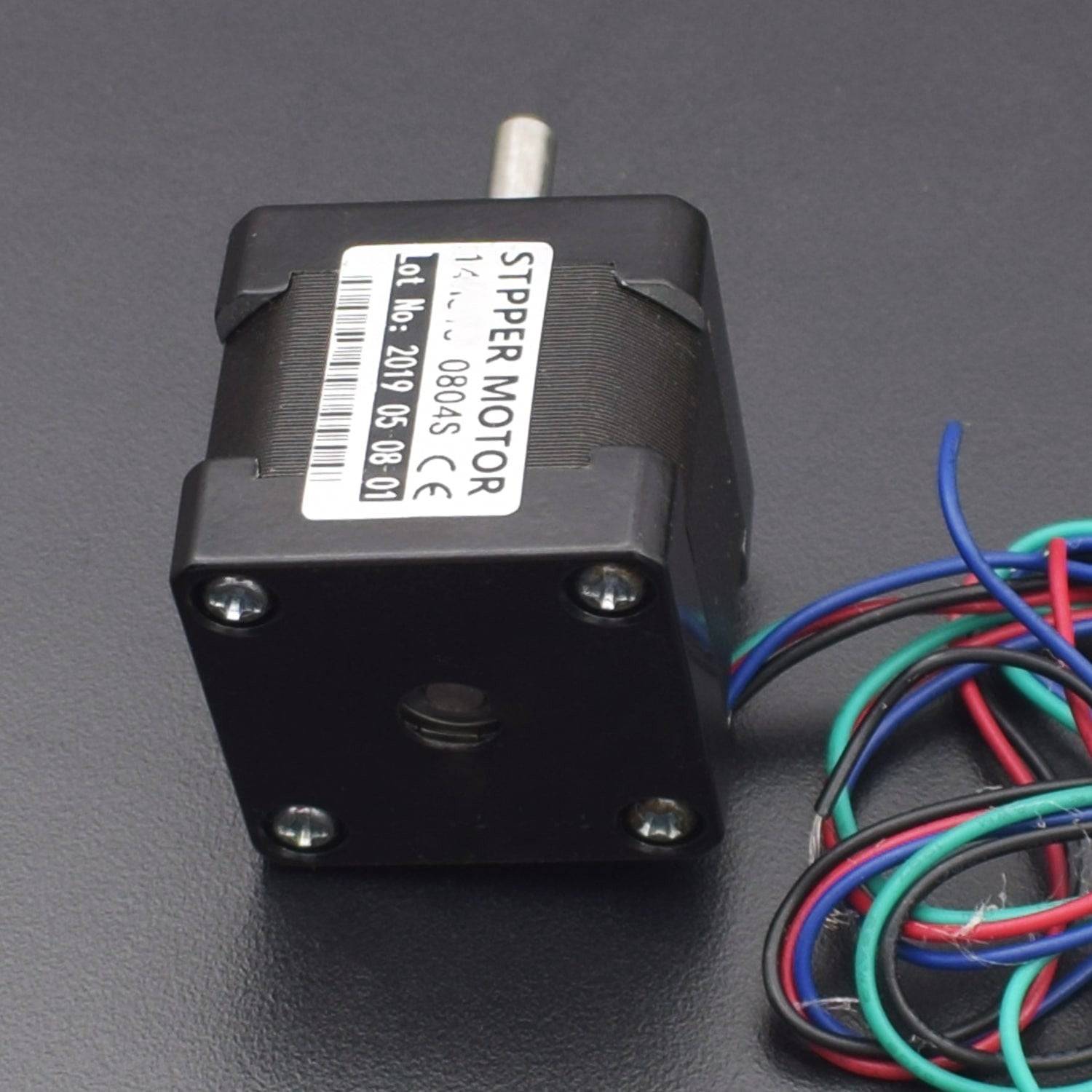

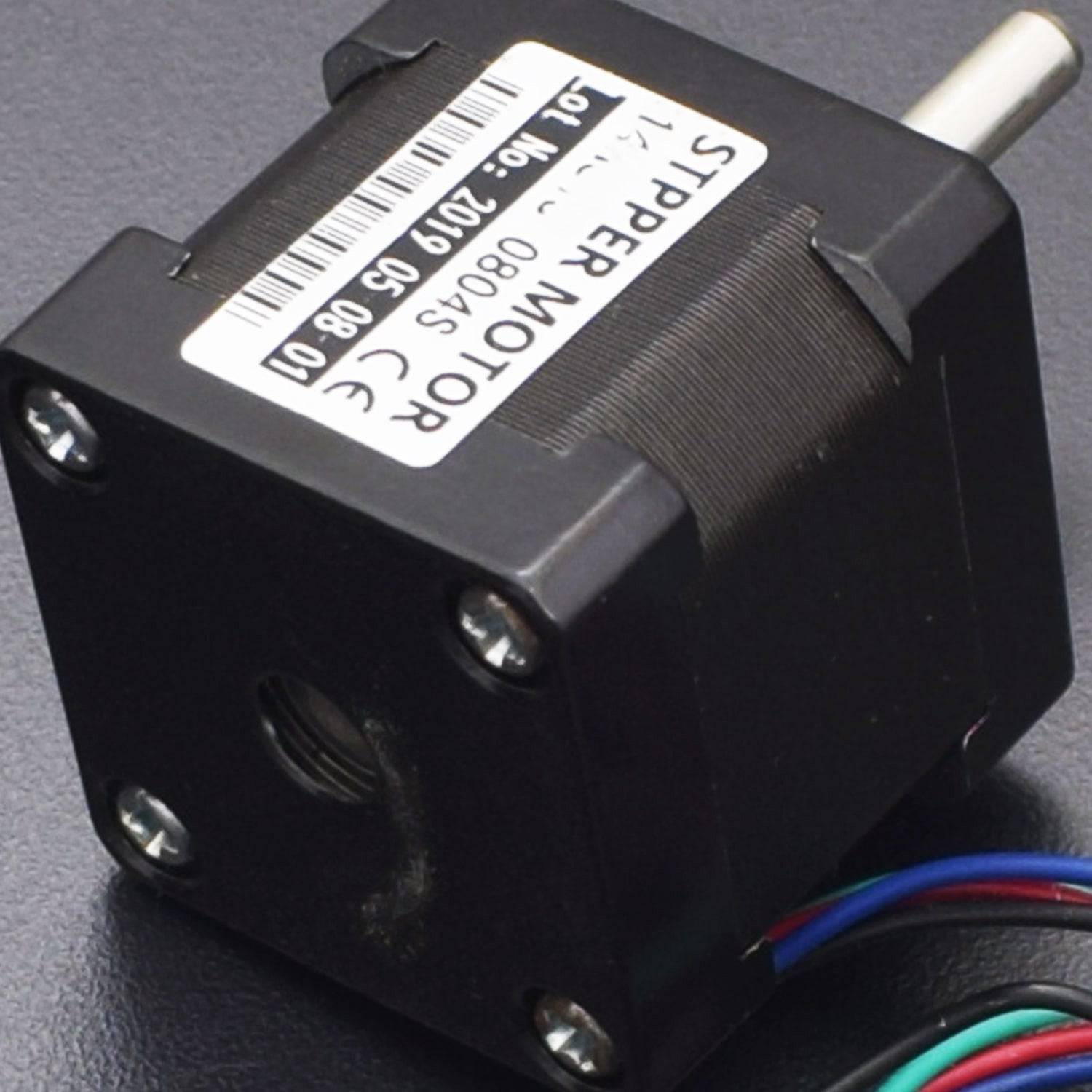

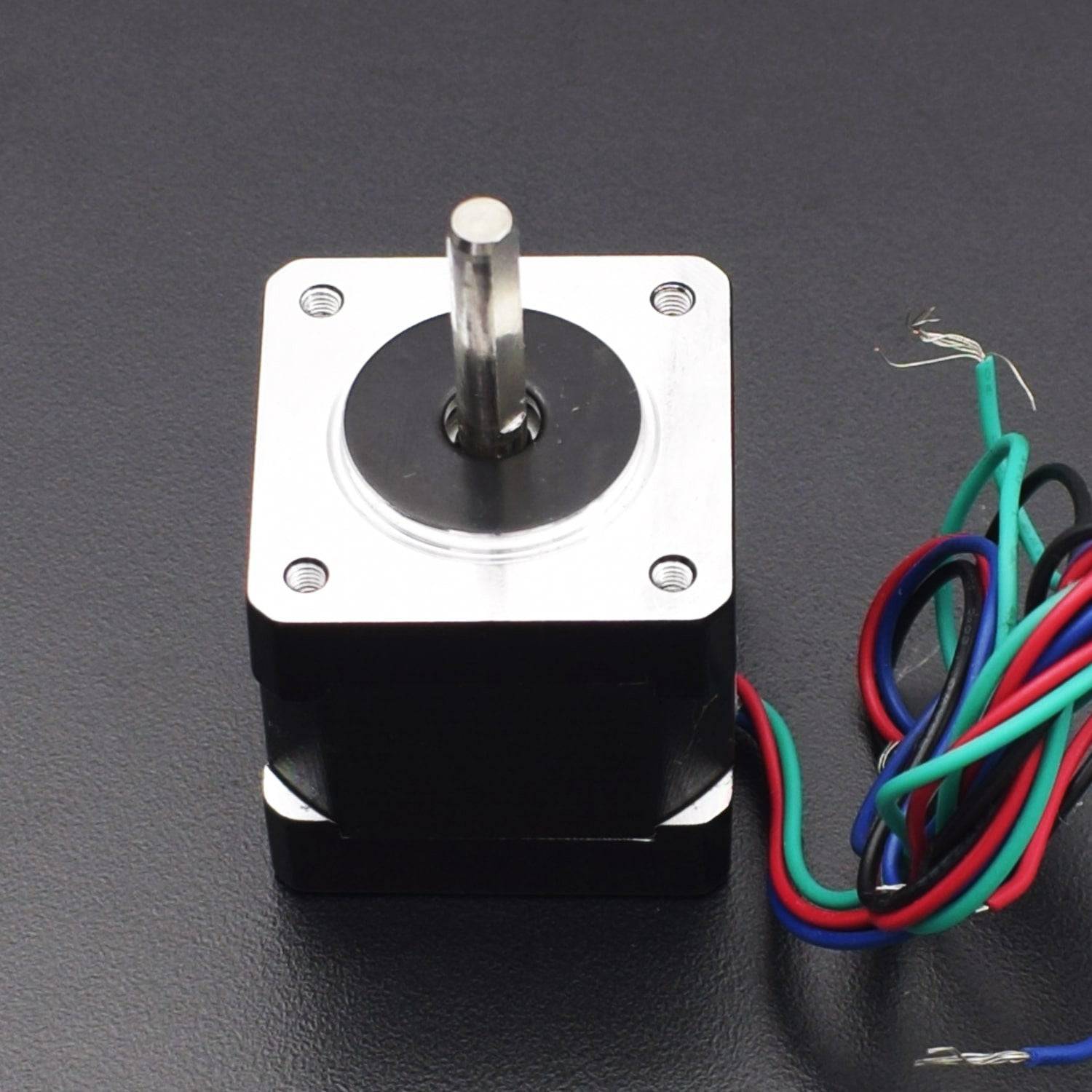

This bipolar Nema 14 stepper motor with a step angle of 1.8deg and a size of 35x35x34mm. It has 4 wires, and each phase draws 0.8A at 5.4V, with a holding torque 18Ncm (25.5oz. in). This stepper motor is very valuable in motion applications that require maximum torque at low speeds. This will aid in great positioning and precise control for devices like 3D printers, CNCs and more. The biggest advantage of a stepper motor over other normal DC motors is, you can achieve maximum torque at low operating speeds. This stepper motor can be mounted in both horizontal and vertical directions.

Specification:

  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 18Ncm(25.5oz.in)
  • Rated Current/phase: 0.8A
  • Voltage: 5.4V
  • Phase Resistance: 6.8ohms
  • Inductance : 10mH ± 20%(1KHz)

Package Included:

1 x Nema 14 Bipolar 1.8deg 18Ncm (25.5oz.in) 0.8A 5.4V 35x35x34mm
