Description:
The NB-IoT and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies that evolved from LTE (4G), with advantages including low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. At the same time, the GSM/GPRS and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications. Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies or simply communicating/positioning via multiple ways.
Specifications:
- Power Supply: 5V
- Operating Voltage: 5V/3.3V (3.3V by default)
- Sleep Mode Current: 1.2mA(@DRX=2.56s)
- Power Save Mode Current: 9uA
- Operating Temperature: -40°C ~ 85°C
- Storage Temperature: -45°C ~ 90°C
-
Sensitivity:
- Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
- Cold starts: -148 dBm
-
Time-To-First-Fix:
- Cold starts: <35s
- Hot starts: <1s
-
Accuracy:
- Position: <2.5m CEP
Features:
- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, GLONASS, BeiDou and Galileo)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- The onboard voltage translator, 3.3V by default, allows it to be switched to 5V via 0Ω resistor
- SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps~3686400bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

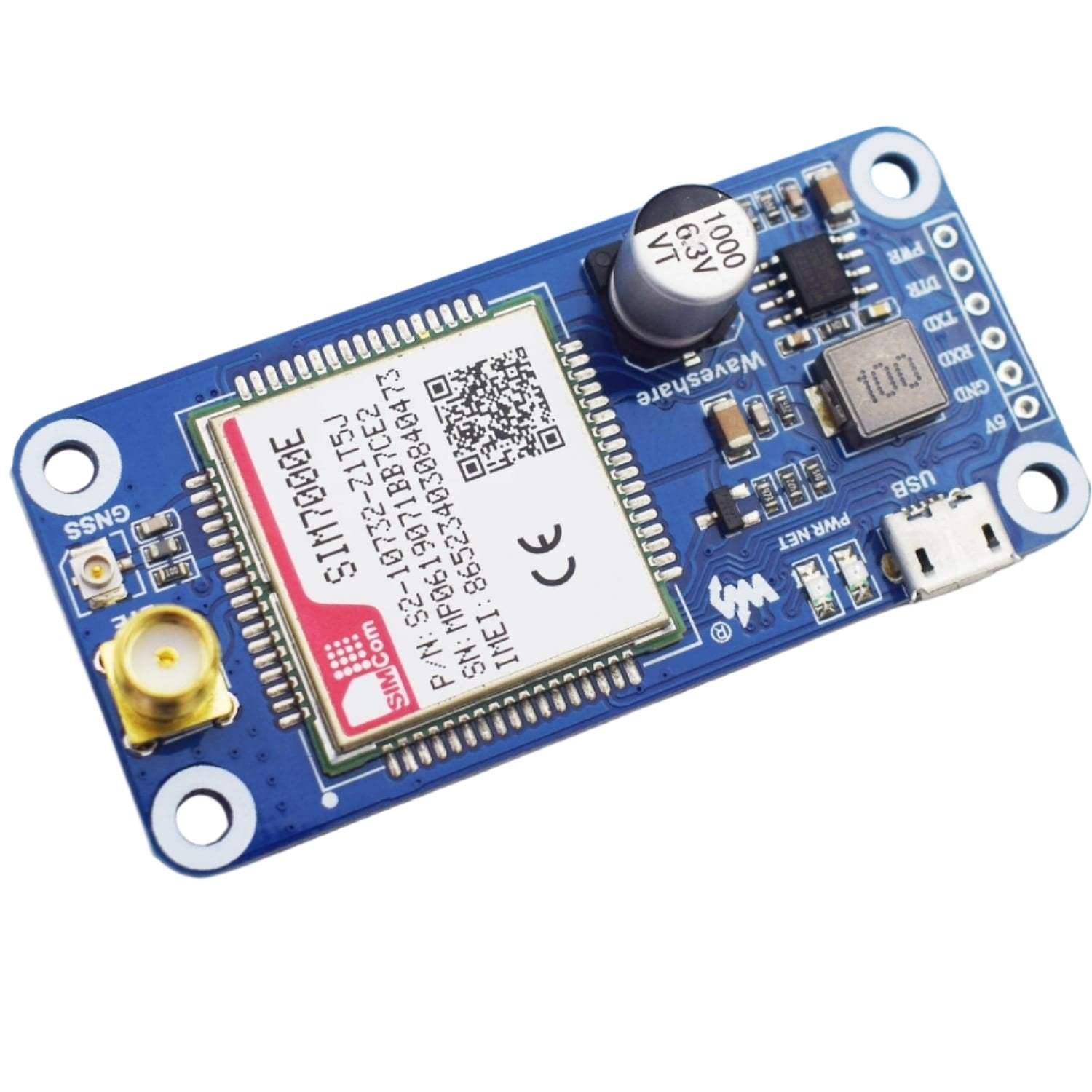

Pin Description:
- SIM7000E
- SPX29302 power chip
- RT9193-33 power chip
-
Raspberry Pi GPIO header
for connecting with Raspberry Pi -
USB interface
for testing AT Commands, getting GPS positioning data, etc. -
SIM7000E control interface
for connecting with host boards like Arduino/STM32 -

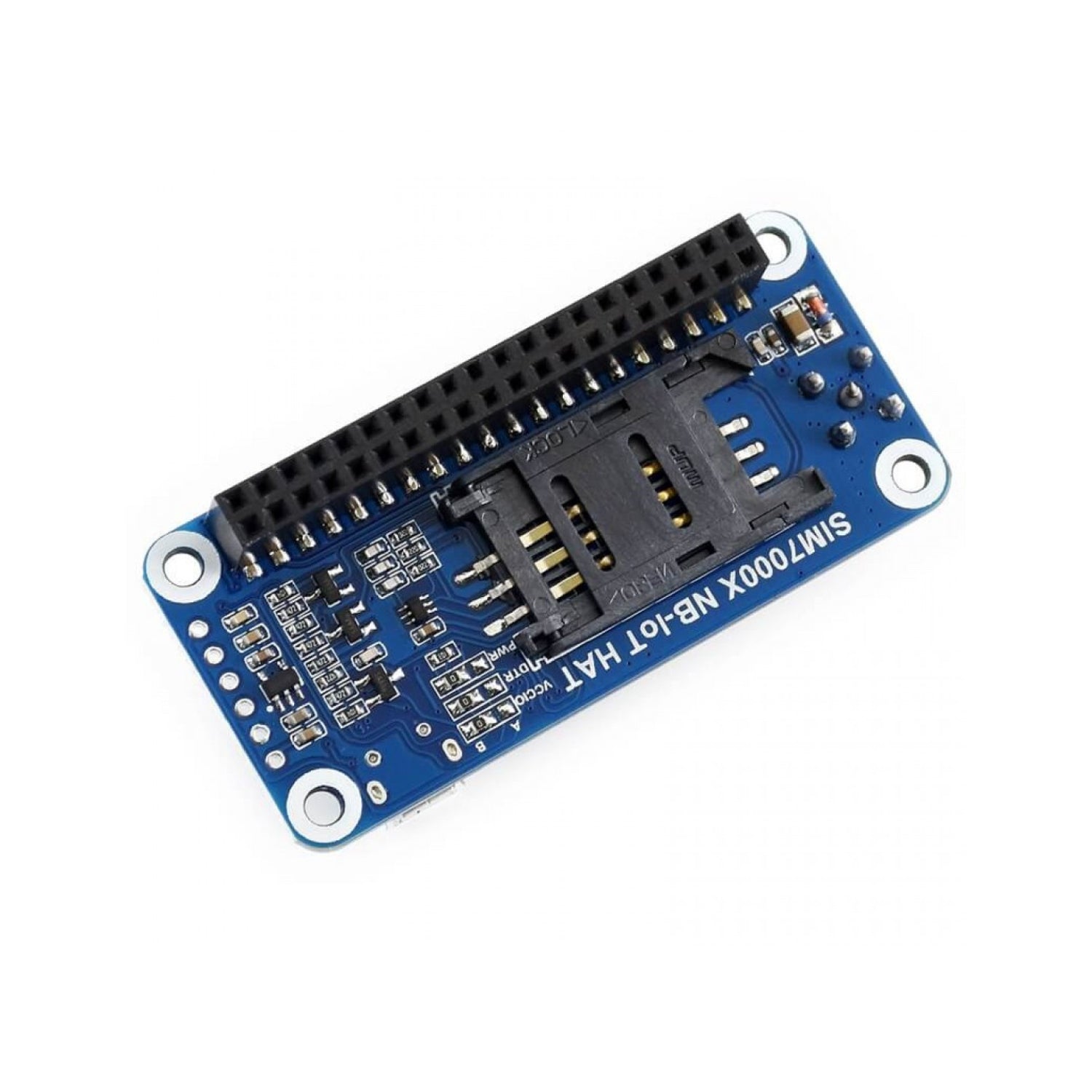

SIM card slot
supports 1.8V/3V SIM card - GNSS antenna connector
- LTE antenna connector
- Network status indicator
- Power indicator
-
Operating voltage selection jumper
configured via 0Ω resistor jumper
A: set operating voltage as 5V
B: set operating voltage as 3.3V (default) -
DTR configuration jumper
configured via 0Ω resistor jumper
A: DTR is controlled by the Raspberry Pi P26 pin
B: NC (default) -
PWR configuration jumper
configured via 0Ω resistor jumper
A: startup/shutdown by the Raspberry Pi P4 pin
B: auto startup on power-up (default)
Usefull Link:

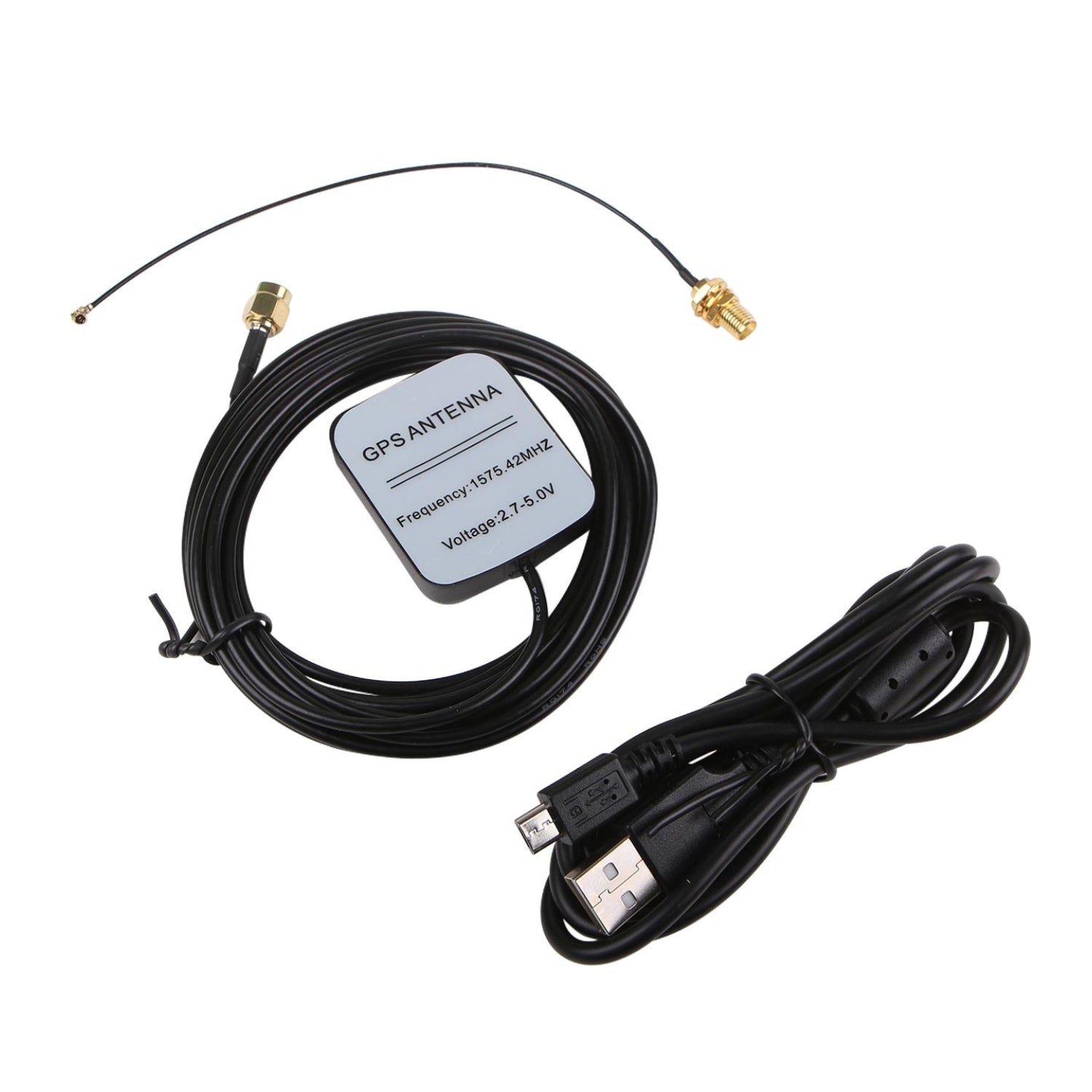

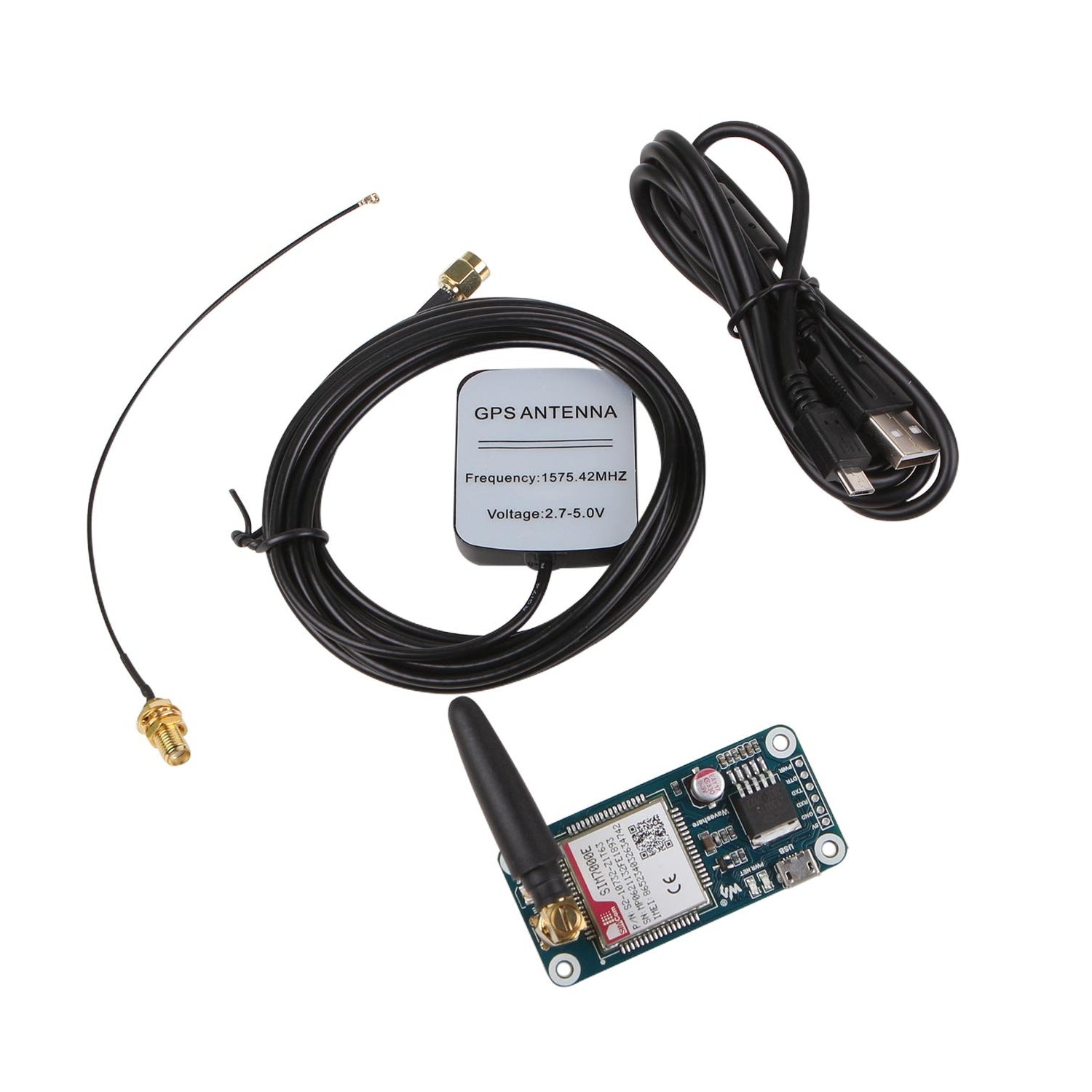

Package Included:

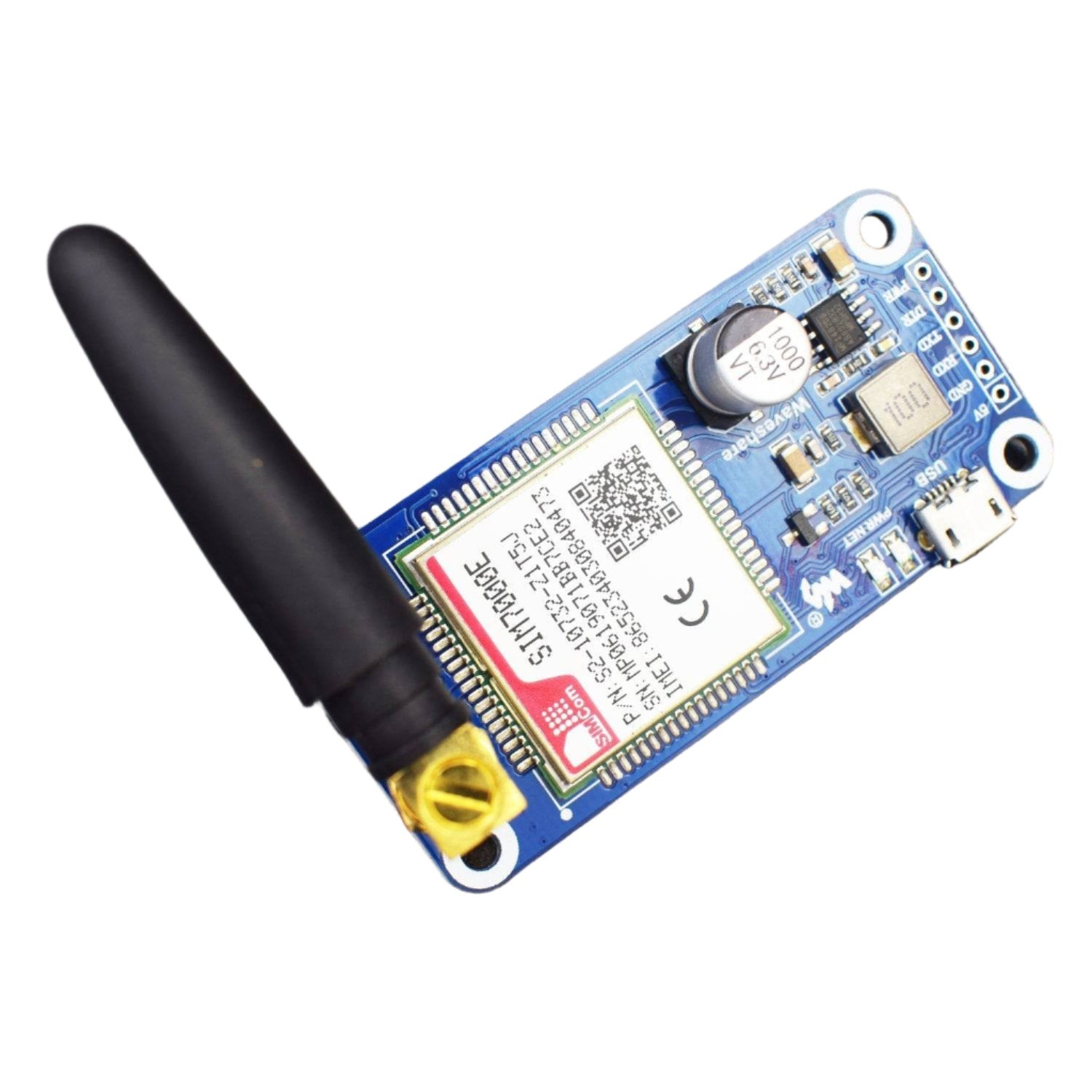

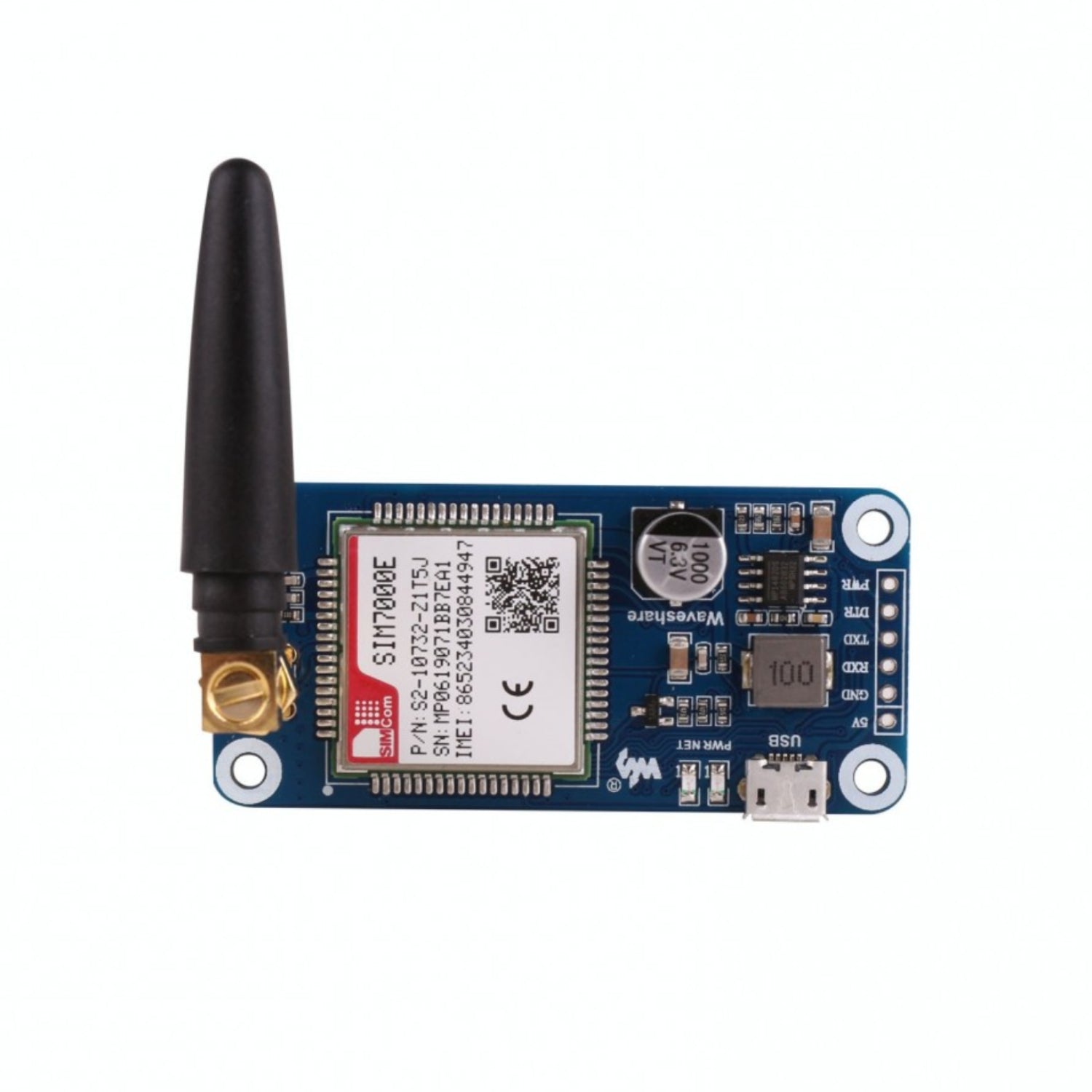

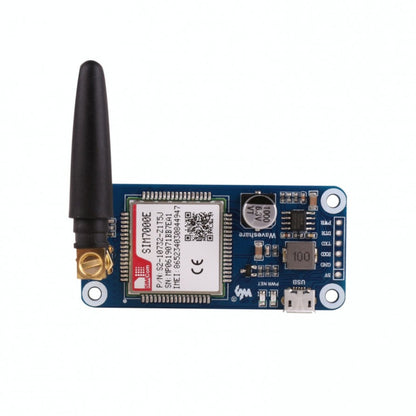

- 1 x SIM7000E NB-IoT HAT
- 1 x GSM Antenna

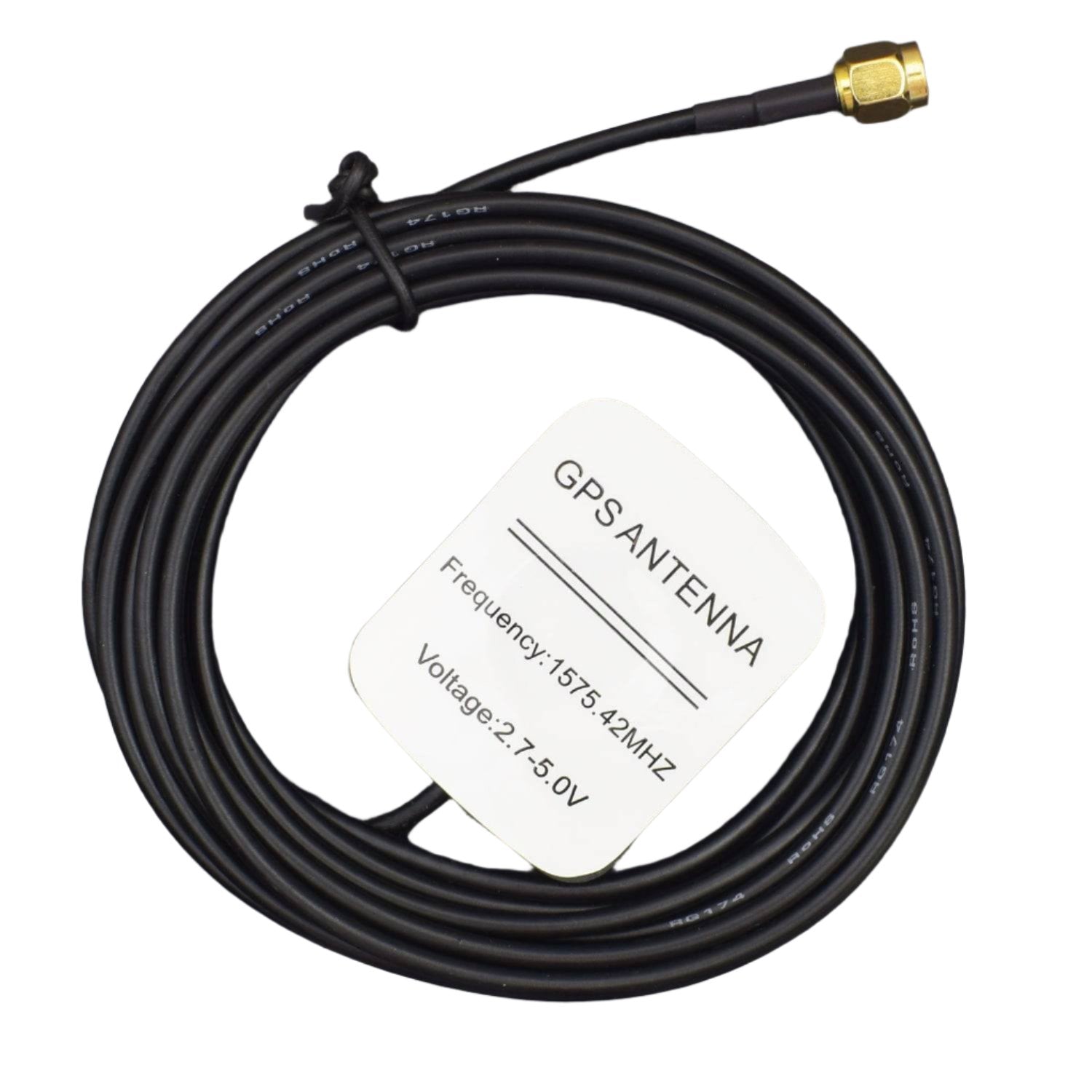

- 1 x GPS External Antenna (B)
- 1 x USB type A plug to micro plug cable
