Description:

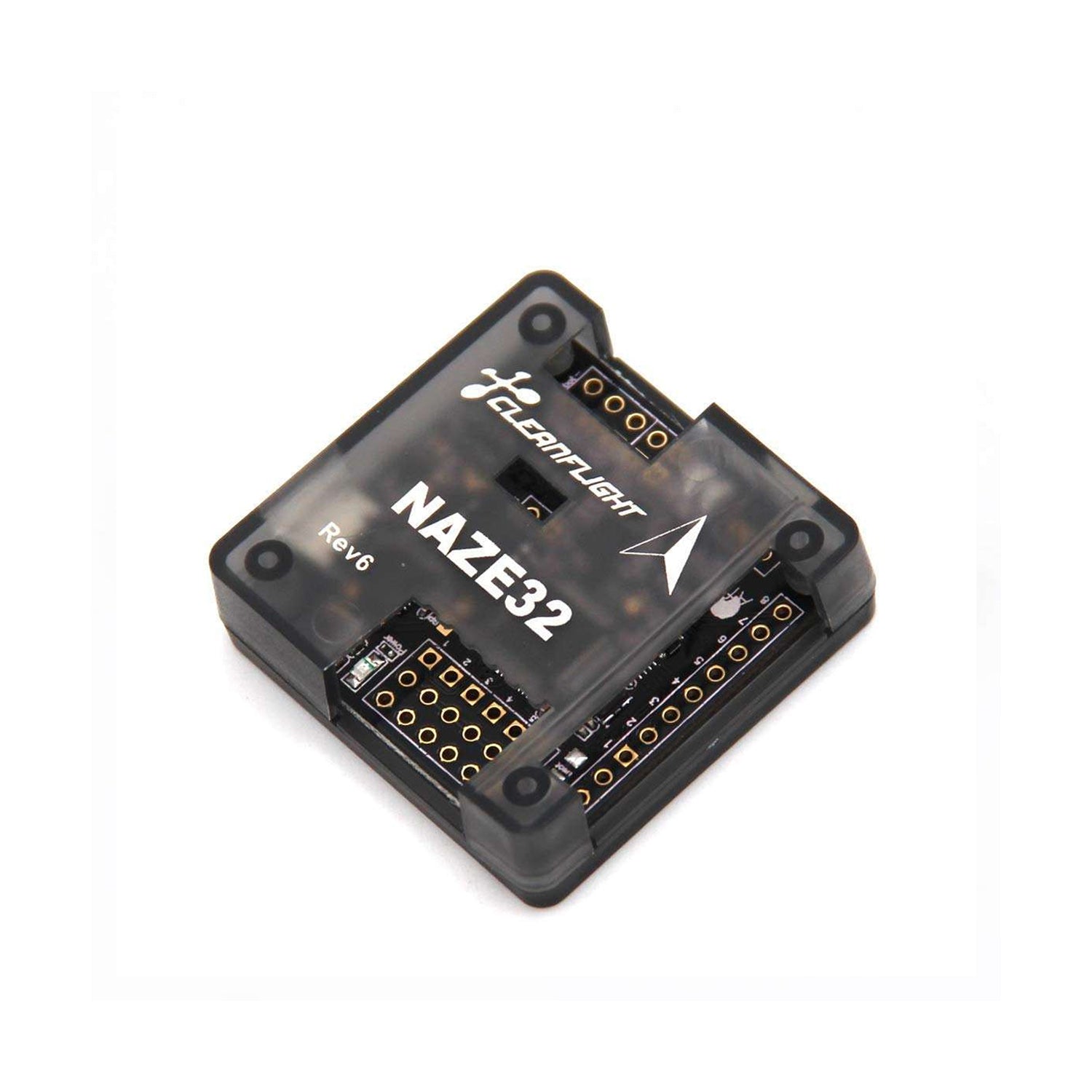

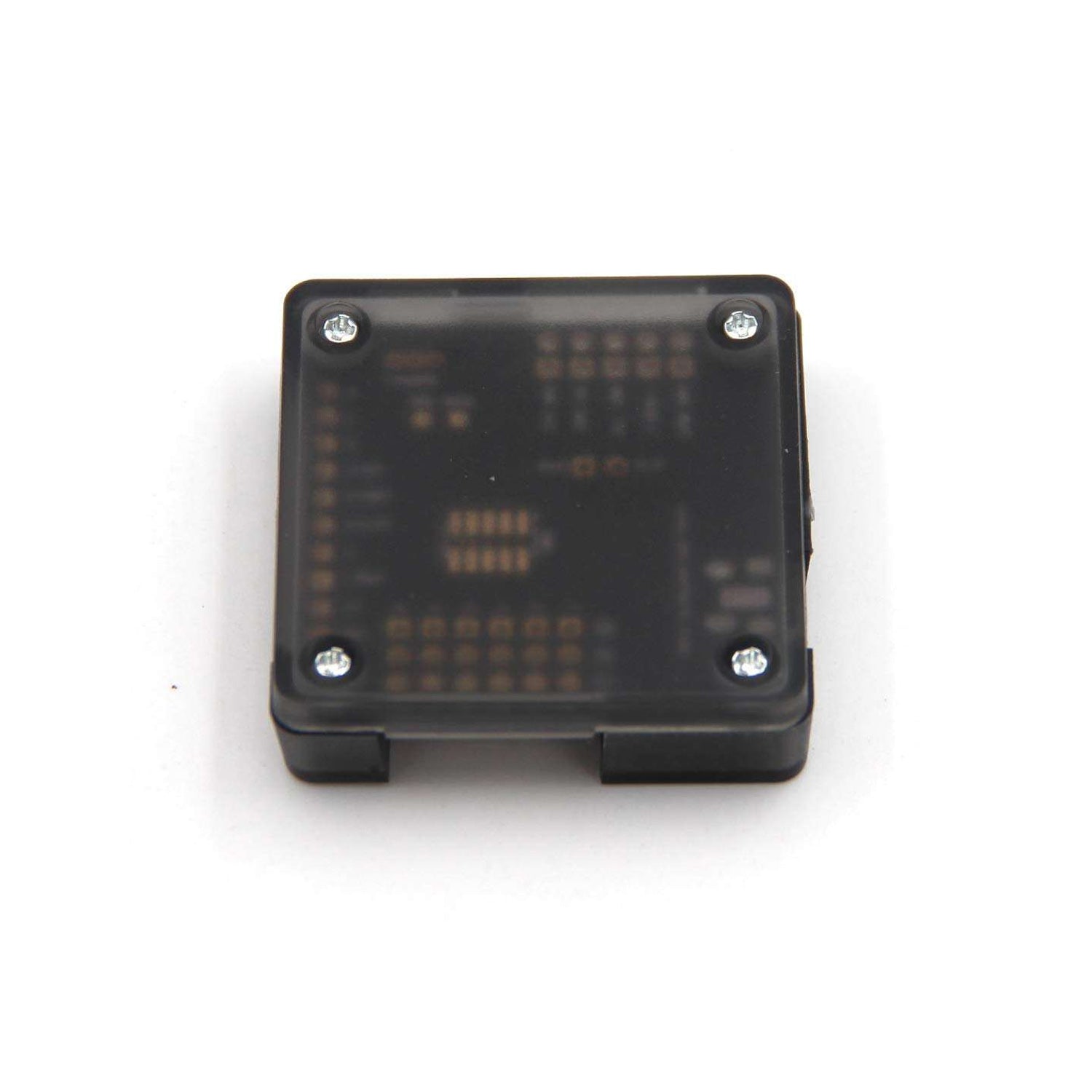

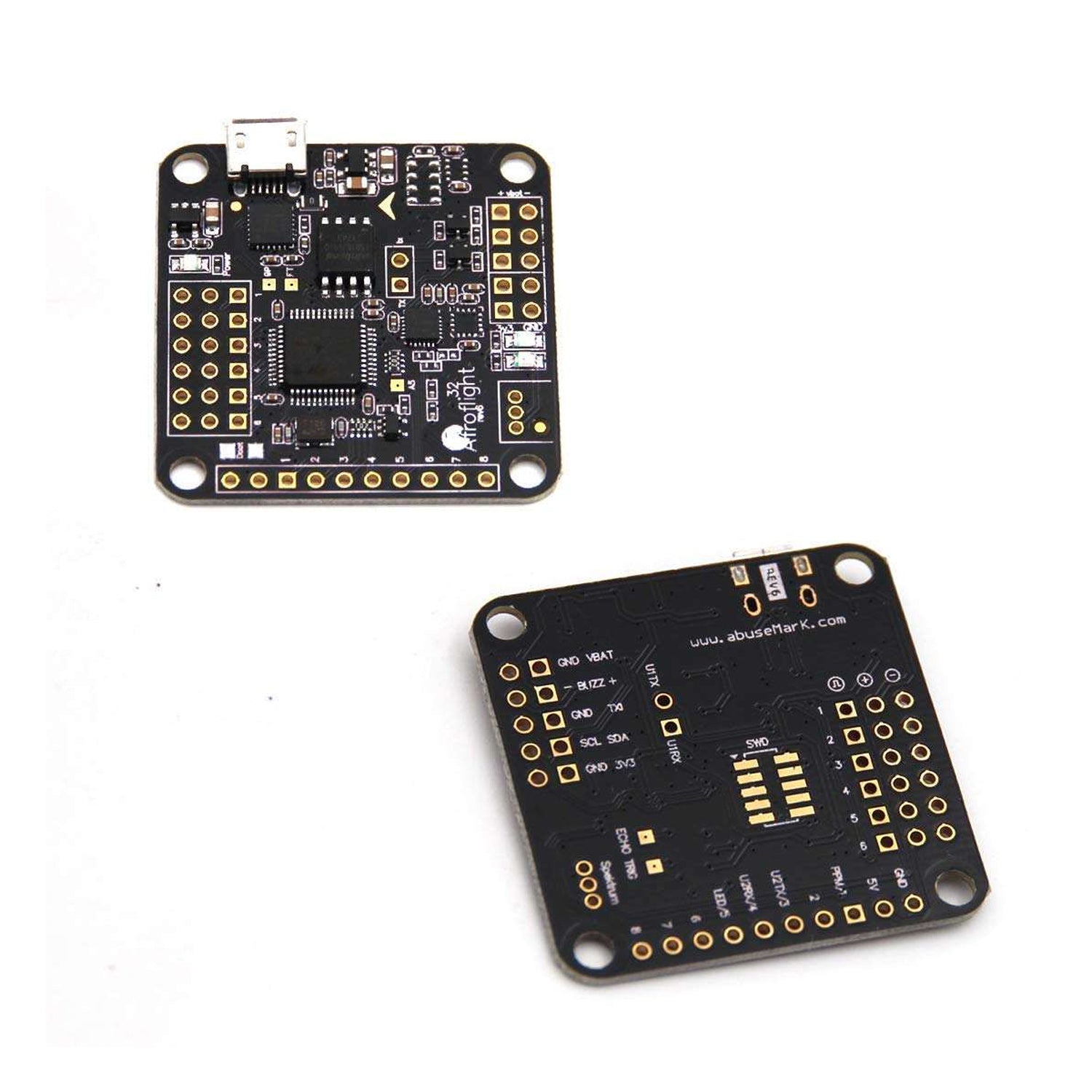

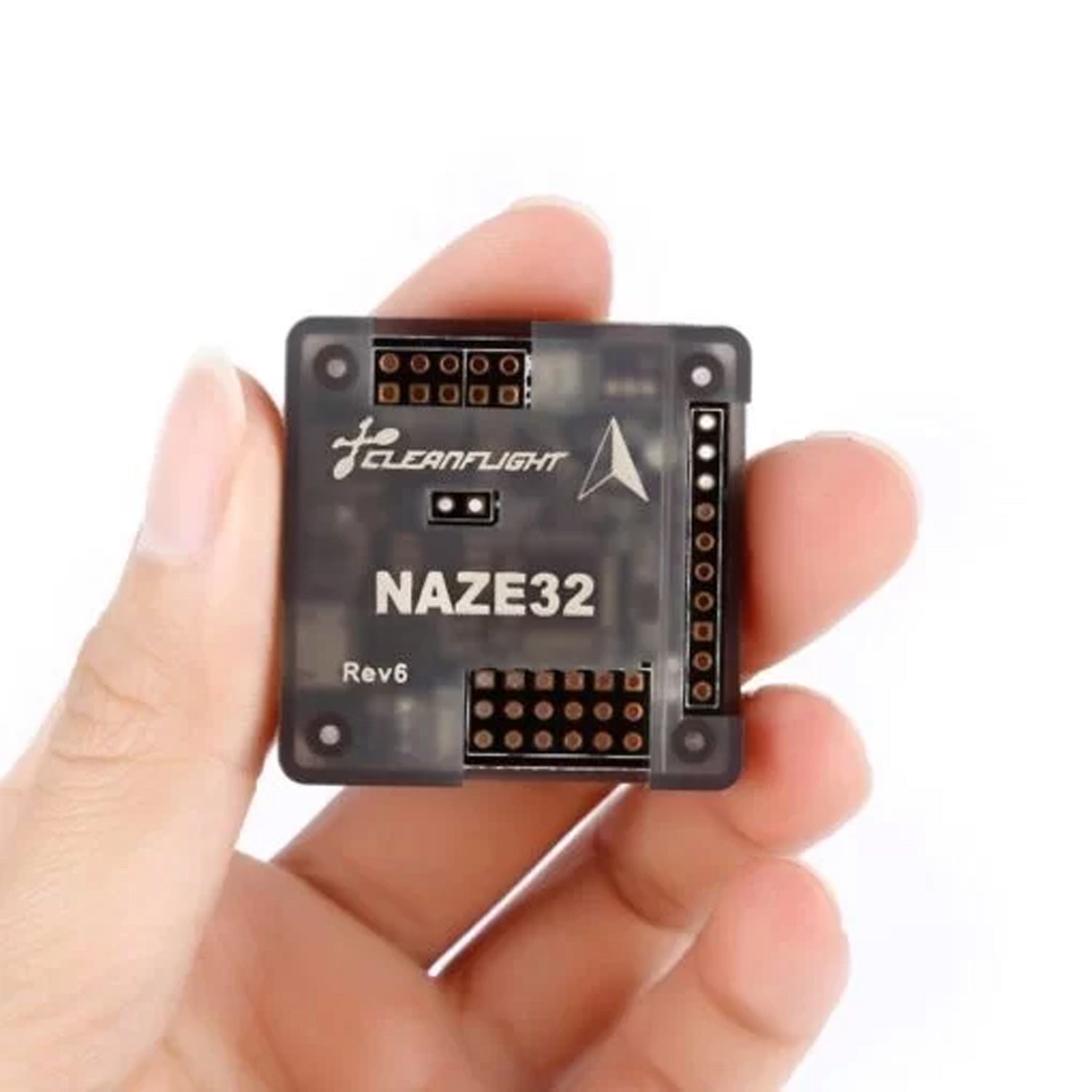

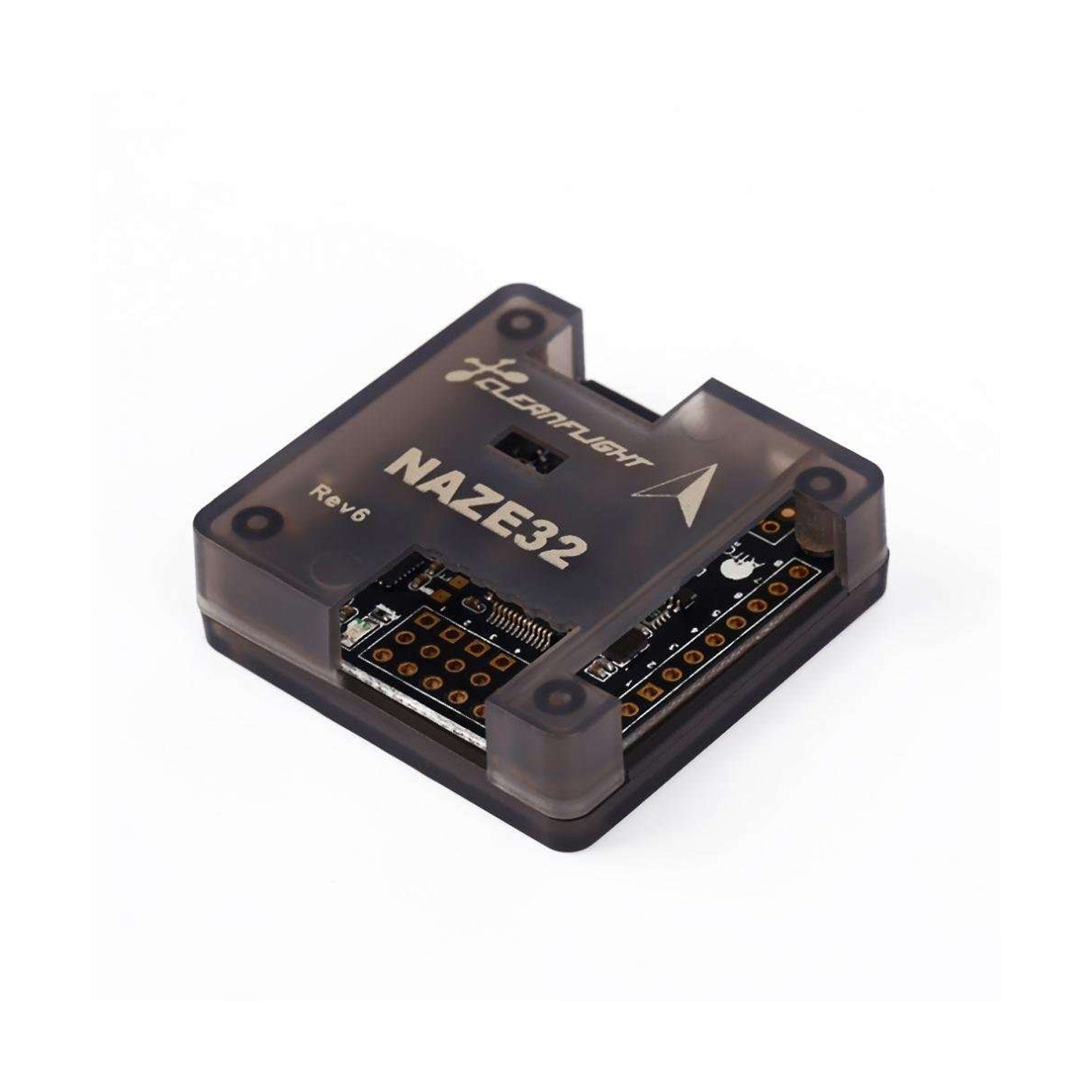

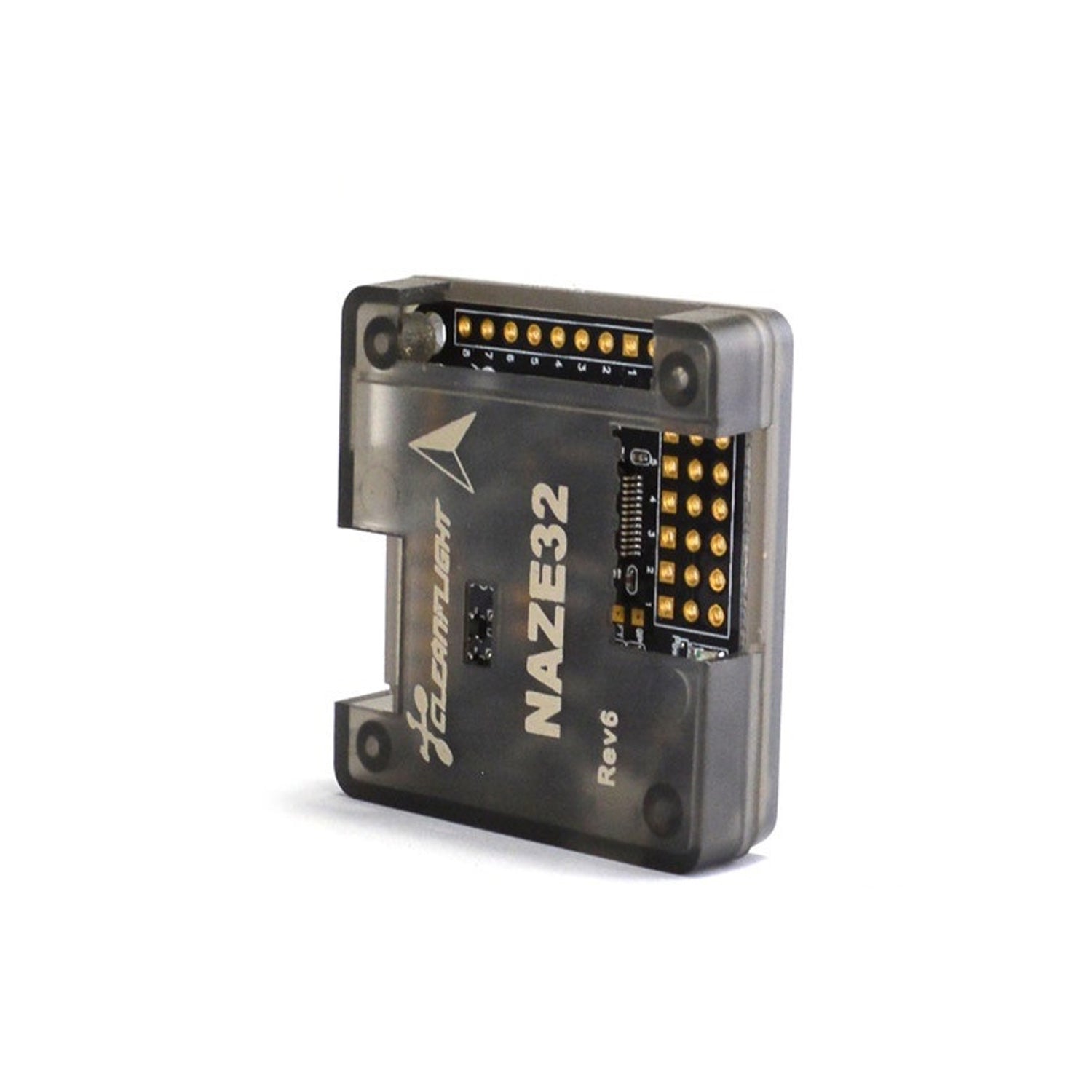

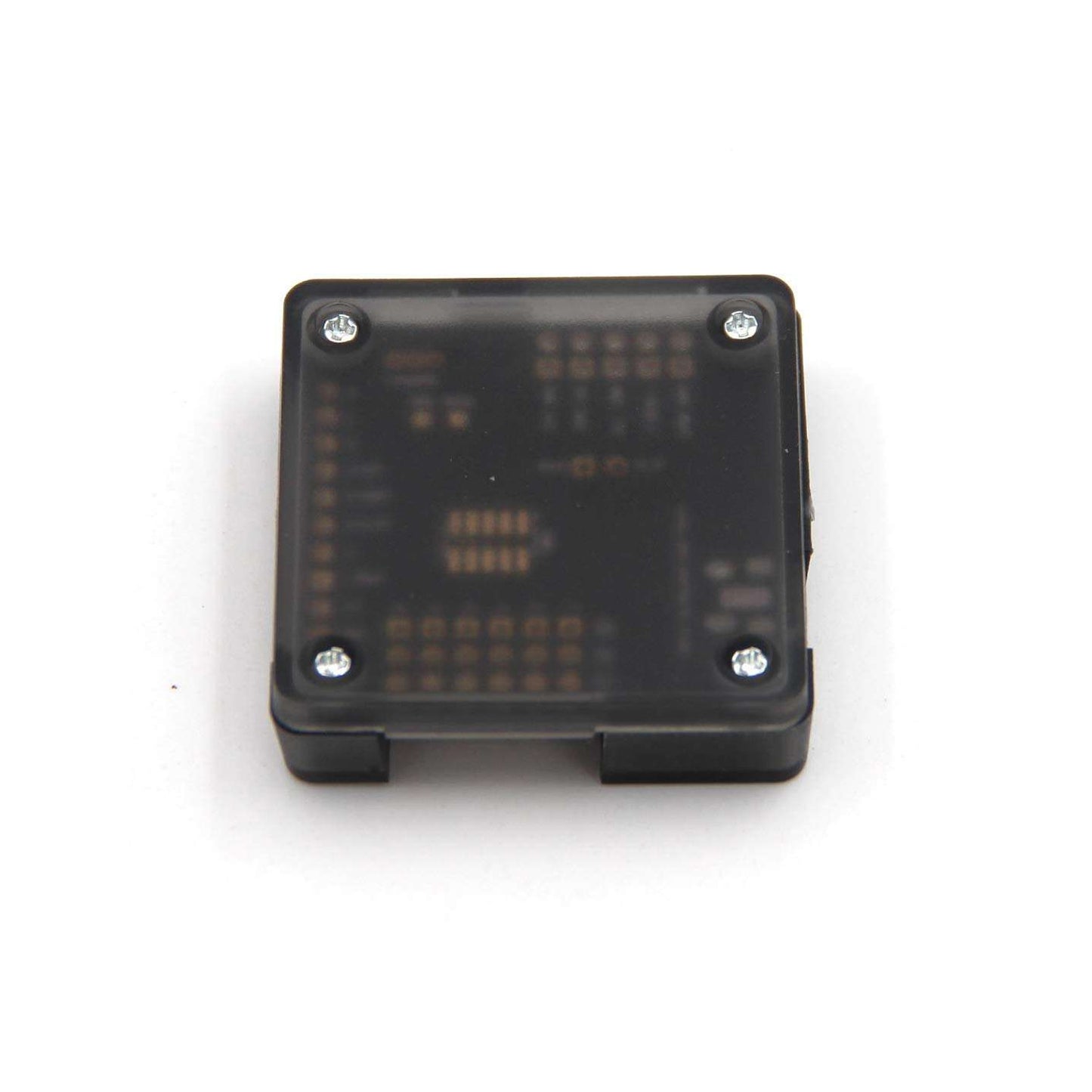

The Naze32 Full REV6 Flight Controller most recent iteration of Abuse Mark’s well-liked Full Naze32 flight controller board, made in Japan, is the Naze32 Full REV6 Flight Controller with Compass Barometer. A 32-bit ST micro workhorse processor with untapped memory and CPU capability, along with a slew of equally outstanding sensors, powers the Naze32. The best GUI applications are also paired with the Naze. additional features to maximize your configuration’s potential.
This multirotor flight controller is fantastic. This “Full” version is identical to the Acro Naze32 Full REV6 with Compass & Barometer, except it has a magnetometer and an MS5611 barometer, which are features not found in the Acro version. If you want to use GPS features like hold, speed indication via telemetry or OSD, heading and altitude information in an on-screen display, and coordinates, RTH arrow, and return to home, you should use this flight controller.
It’s fantastic that all revision 6 boards have a built-in black box flight data recorder. The 16Mbit onboard SPI flash is found on the 6DOF, Acro, and 10 DOF naze boards. You can keep more flight records on the entire board, though, because the Full version comes with 128Mbit of onboard SPI flash.
Specifications:
- Item Type: Flight Controller
- Input Voltage (V): 5 VDC
- Sensor: 3-axis Gyrometer, Accelerometer, Compass Barometer
- Processor: MPU6050, STM32 F103
- Micro SD Card Slot (Y/N): Yes
Features:

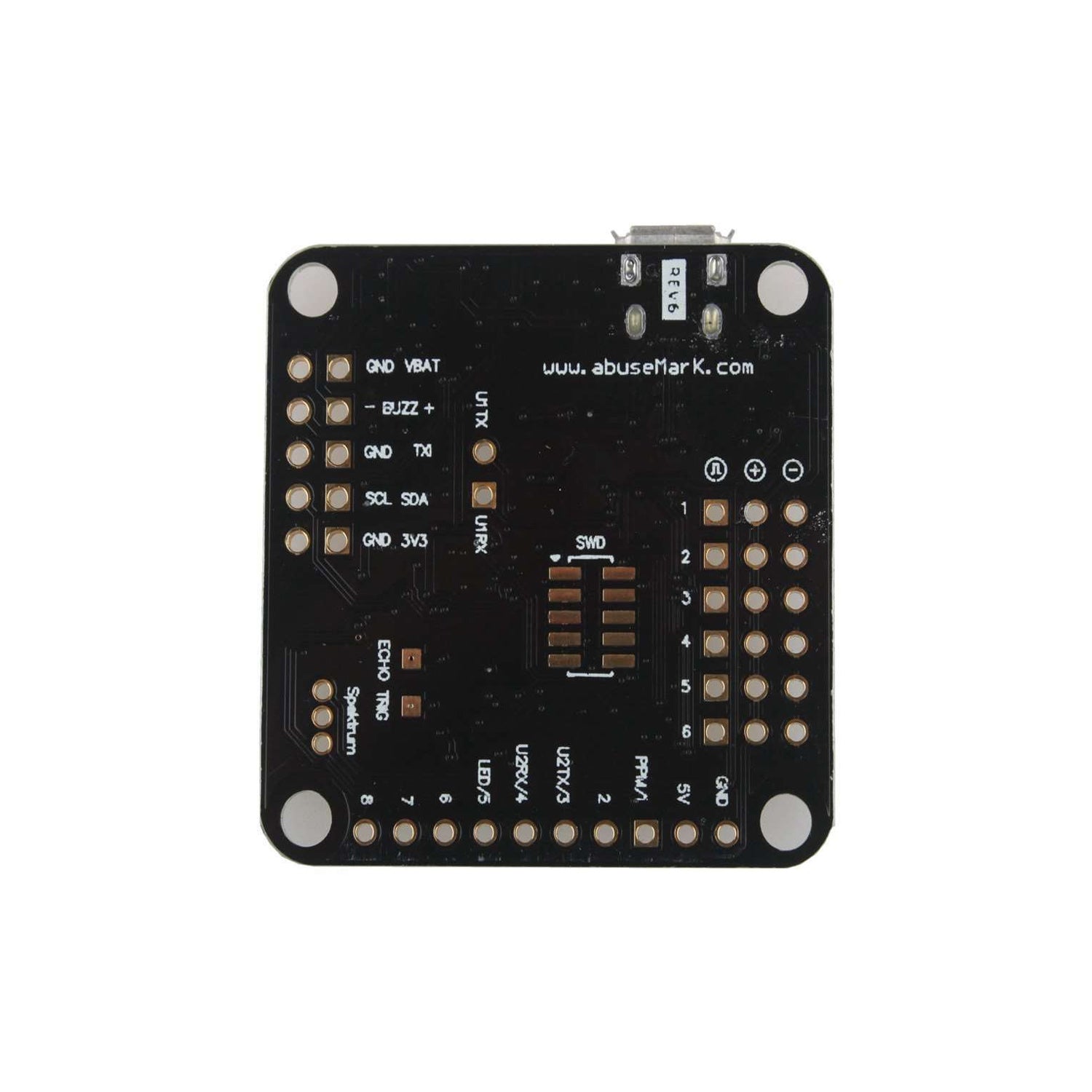

- PPM/PWM input as through-hole
- 3.3V, I2C on standard-size headers
- Fully pinout compatible with rev5 accessories (OSDoge etc)
- SBUS Inverter
- Spectrum satellite
- Sonar pads w/resistors added for direct connection to 5V sonar
- All extra pads (FT, GP, A5) on top, only sonar on bottom
- MS5611 barometer
- 128mbit flash
- 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
- Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line

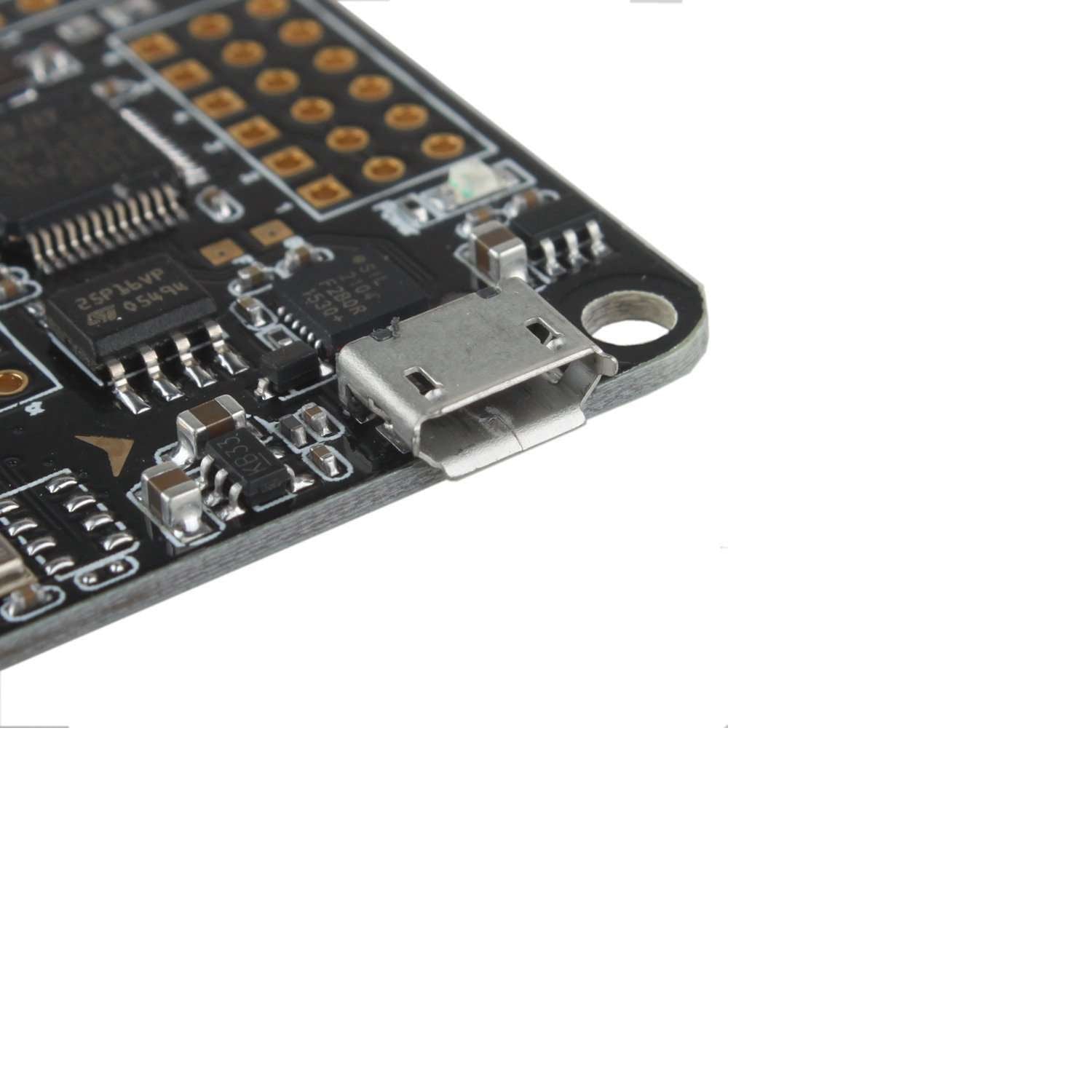

- USB on the right side

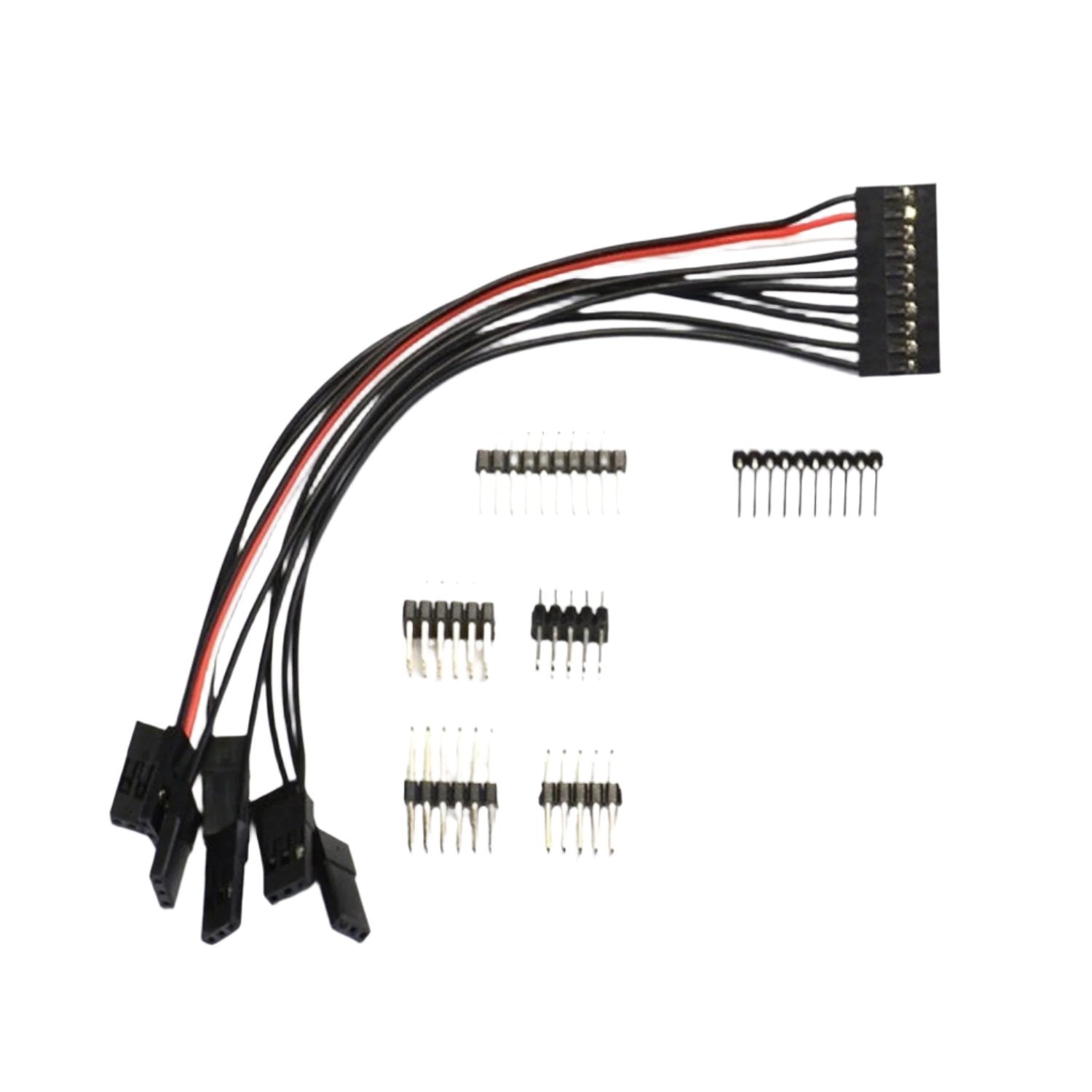

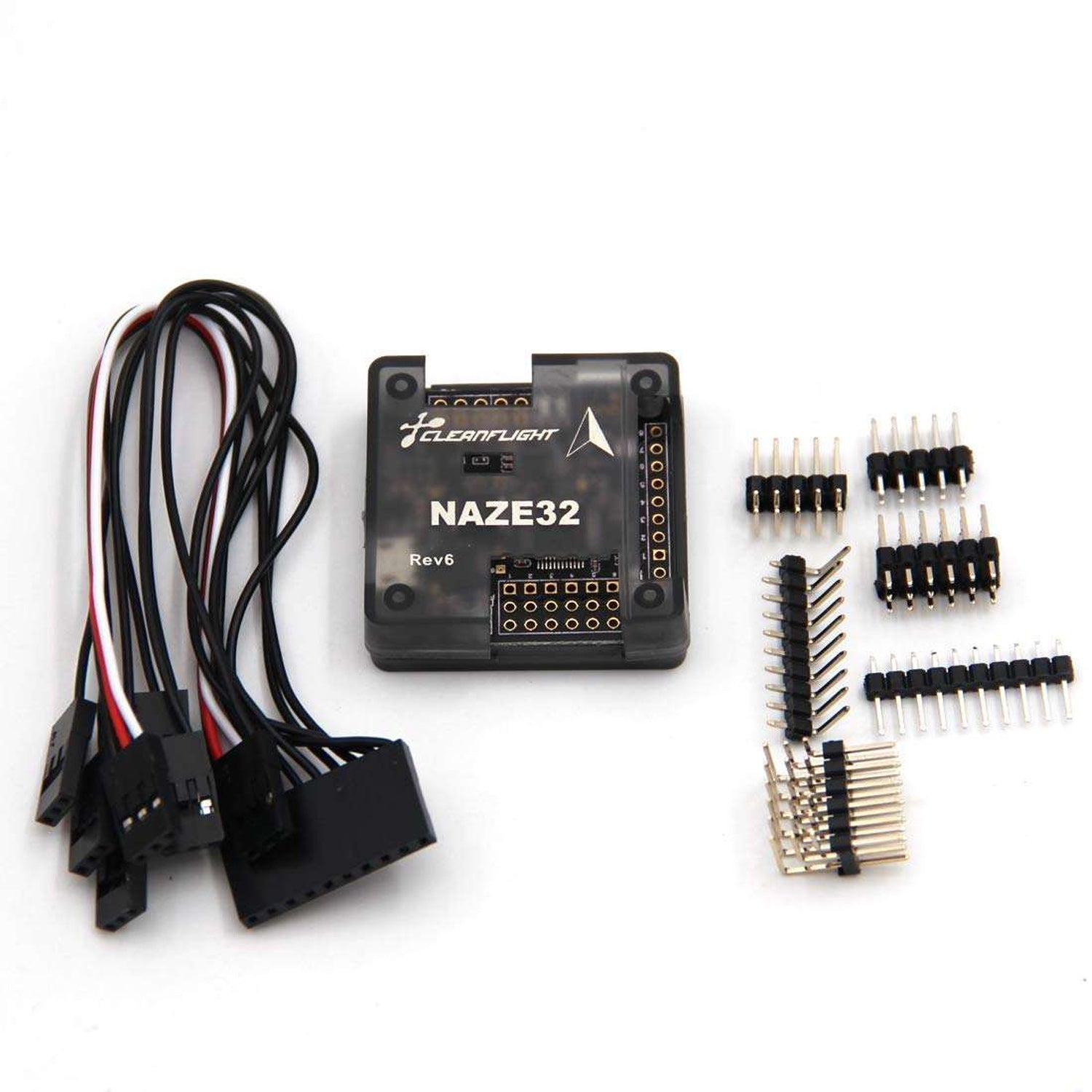

Package Included:

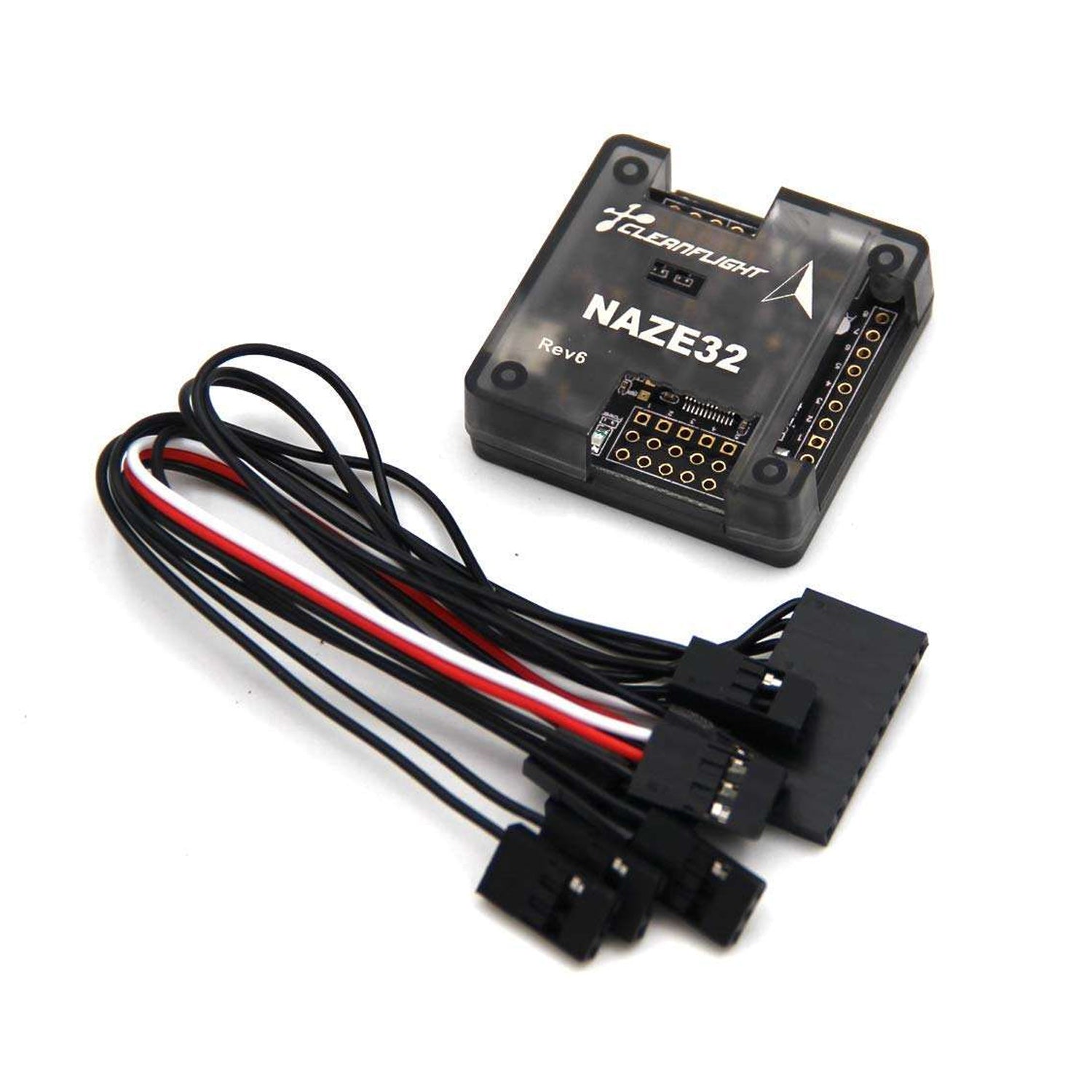

1 x Naze32 Full REV6 Flight Controller Board Naze32 Full REV6 With Compass & Barometer High Performance Flight Controller Powerful Flight Controller For Quadcopter Drone Multicopters Accurate Flight Control With Built-in Sensors
