Description:

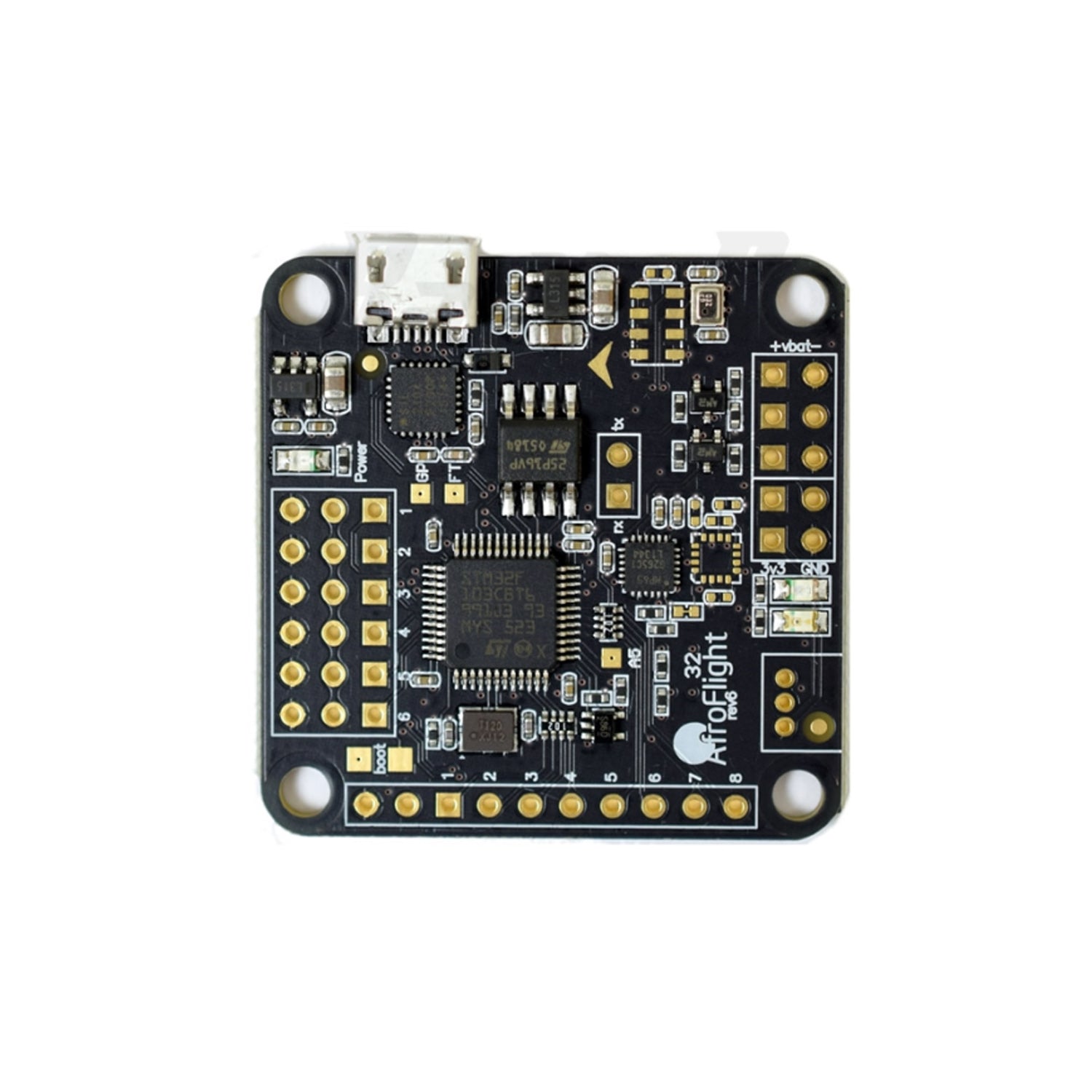

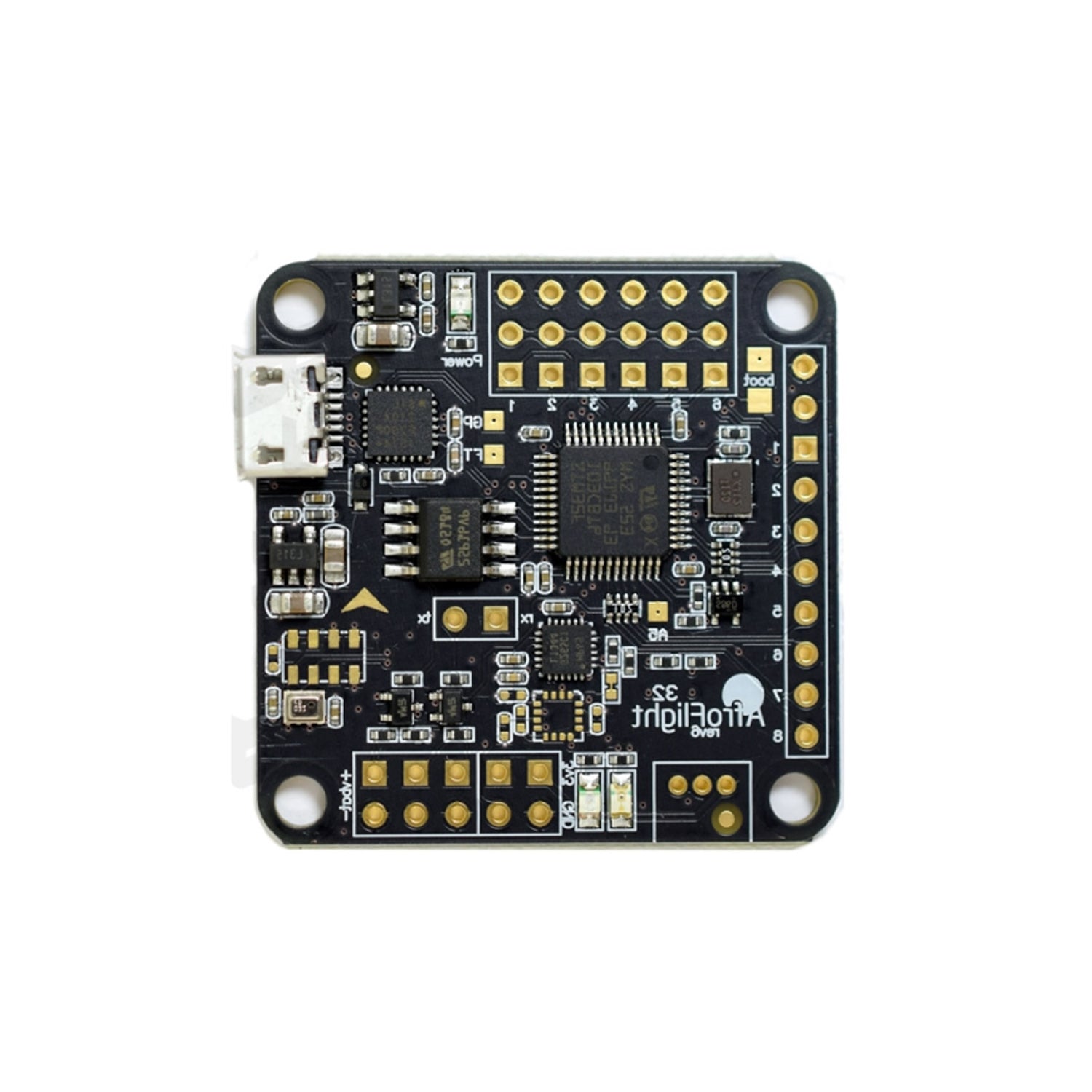

The Naze32 Rev6 Flight Controller Board features a built-in barometer and compass, providing accurate altitude and directional readings for stable and precise flight control It flies extremely well and offers stunt mode (no auto-level), Horizon Mode (auto level when sticks near the center, so you can still flip, etc), and Angle mode (always auto level and limit bank and pitch to 45 degrees).
The plus version includes a Magnetometer and Barometer required for GPS functionality and heads-free modes. Designed for standard servo connectors (no special cables), and vertical pins to reduce overall footprint.
32-bit port of the MultiWii RC flight controller firmware, running an ATmega32u4. Adding a compass sensor helps with getting better aircraft heading measurements while you are flying, but most importantly it allows you to add a GPS module to enable position hold flight mode with your drone.
Specifications:
- Item Type: Flight Controller
- Model: Naze32 10DOF
- Input Voltage (V): 3.3 ~ 5 VDC
- Firmware: Naze Firmware
- Sensor: MPU6500
- Processor: Morden 32-bit STM32F103CB
- Micro SD Card Slot (Y/N): No
Features:
- Version: 10 DOF.
- Flexible motor outputs, support various airframe types: Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X).
- Up to 8 ch RC input – supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum satellite receivers.
- Built-in FrSky telemetry inverter (shared w/main port).
- Axis: 2000 degrees/second 3-axis MEMS gyro.
- Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line.
- Battery voltage monitoring.
- A modern 32-bit processor running at 3.3V/72MHz (STM32F103CB).
- Onboard MicroUSB for setup and configuration.
- LEDs so bright, that they could blind you.
- Multi WiFi-based configuration software for easy setup.
Installation Process:
- Clone the repo to any local directory or download the ZIP file in Attachments
- Start Chromium or Google Chrome browser and go to tools -Extension
- Check the “Developer mode” checkbox (ON the developer mode)
- Click on the “Load Unpacked”button on the upper right corner of the extension page and
- Browse and Select the Downloaded ZIP file from your computer.
Note:
- Flashing/Updating the Default firmware may cause a problem of connectivity with the PC/Laptop.
- The Magnetometer of this board works only with Clean Flite Version V1.2.3
Package Included

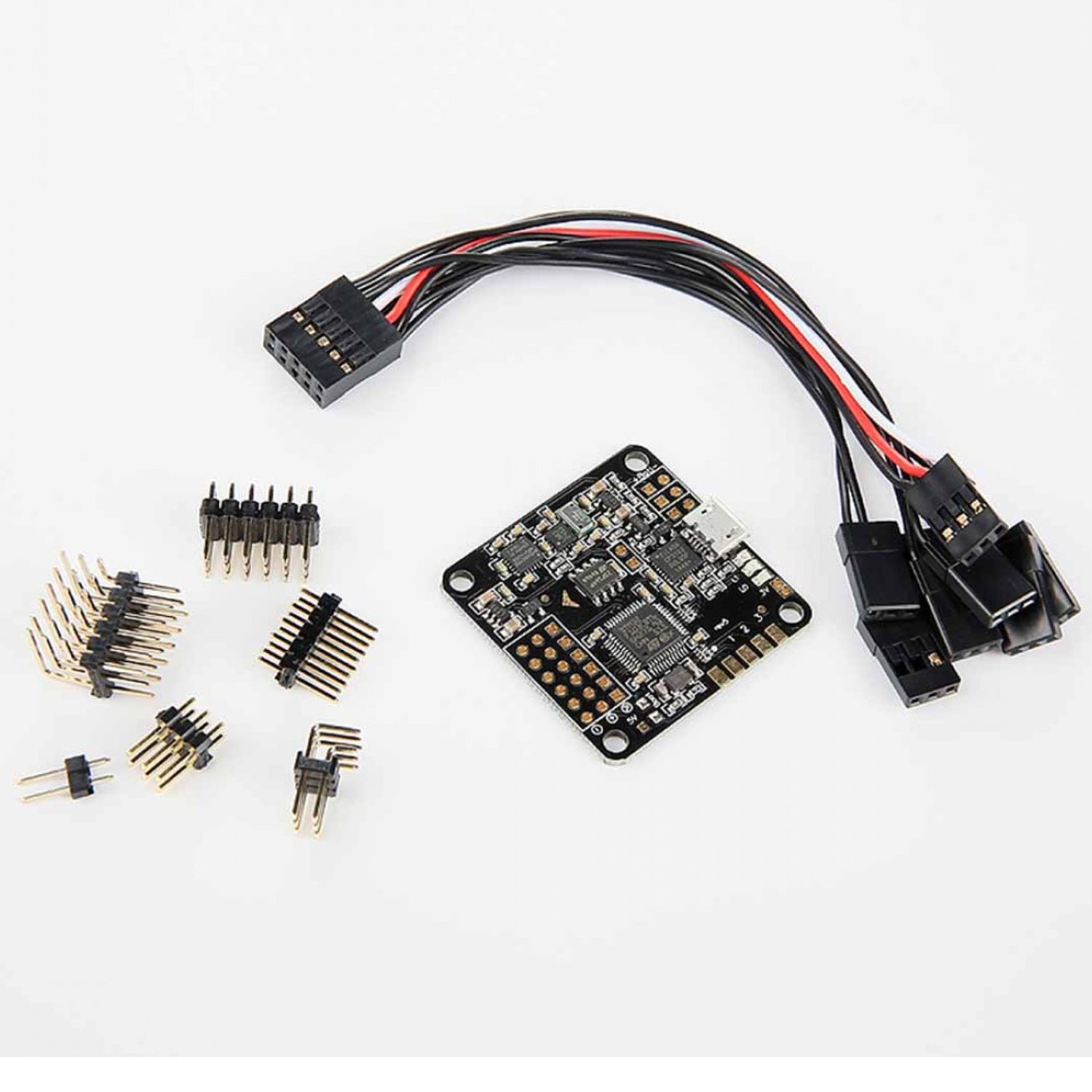

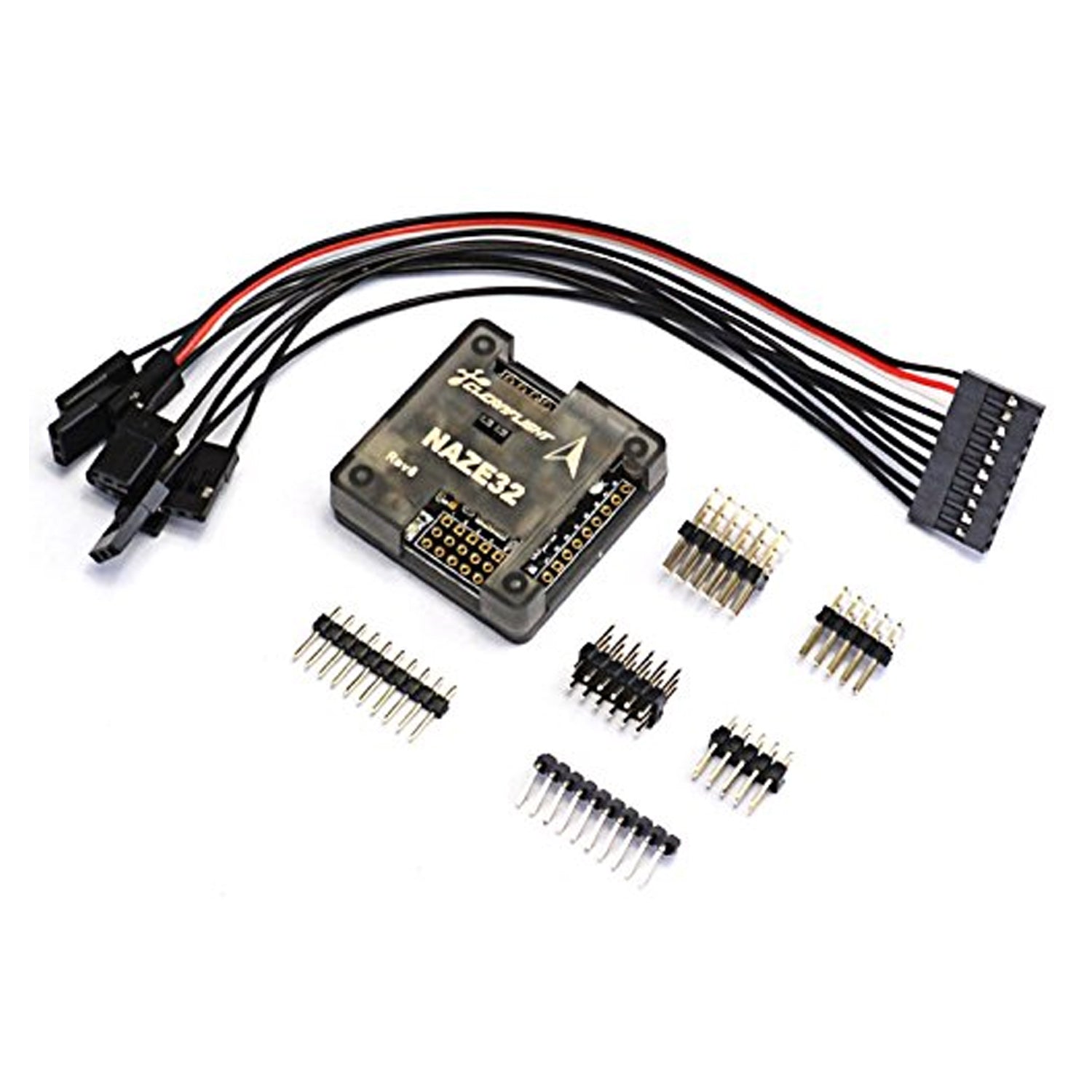

1 x Naze32 10DOF Flight Controller 10DOF Flight Controller Board RC Flight Controller For Quadcopter Drone Multirotor Flight Controller FPV Flight Controller
