Description:

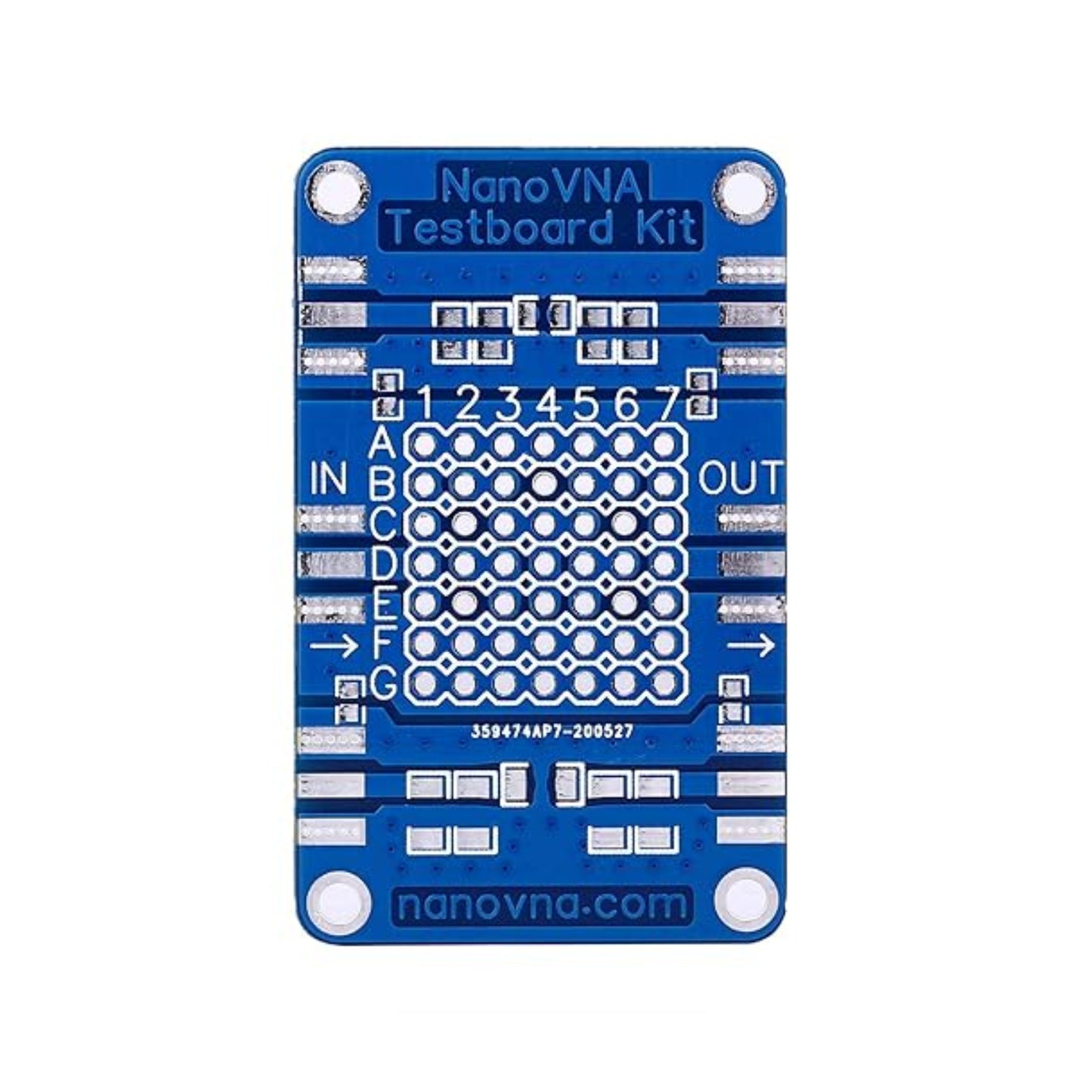

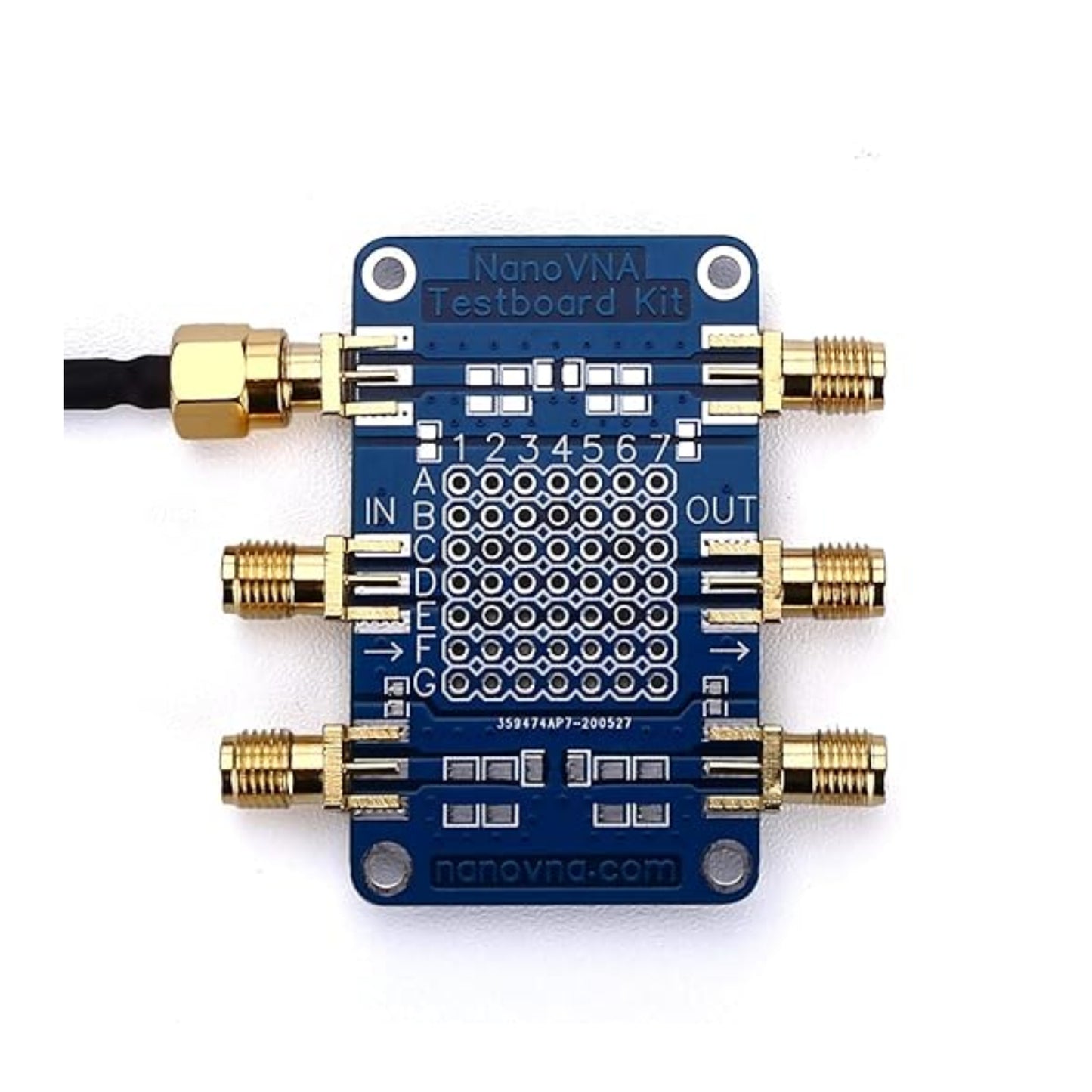

The Nanovna Testboard Kit is assembled with useful component accessories to quickly assemble simple RF circuits and evaluate their performance. This test board contains a DIP test circuit compatible with the VNWA test board, and a set of 0805 and 1206 test circuits have been added.
The SMT circuit cannot fully consider various test conditions. This circuit board is not soldered before delivery, please bring your own soldering tools, and build a test circuit according to your test needs.
Specifications:
- Type: NanoVNA Testing Board
- Colour: Blue
Features:
- The Vector Network Analyzer Testboard is used for NanoVNA and other analyzers easy-to-use measurement DIP and SMT devices
- The Demo Board allows NanoVNA users to assemble useful component fixtures to quickly assemble simple RF circuits and evaluate their performance.
- The SMD electronic components have been soldered. But it also needs some welding ability to connect the test board and nanovna.
Package Included:

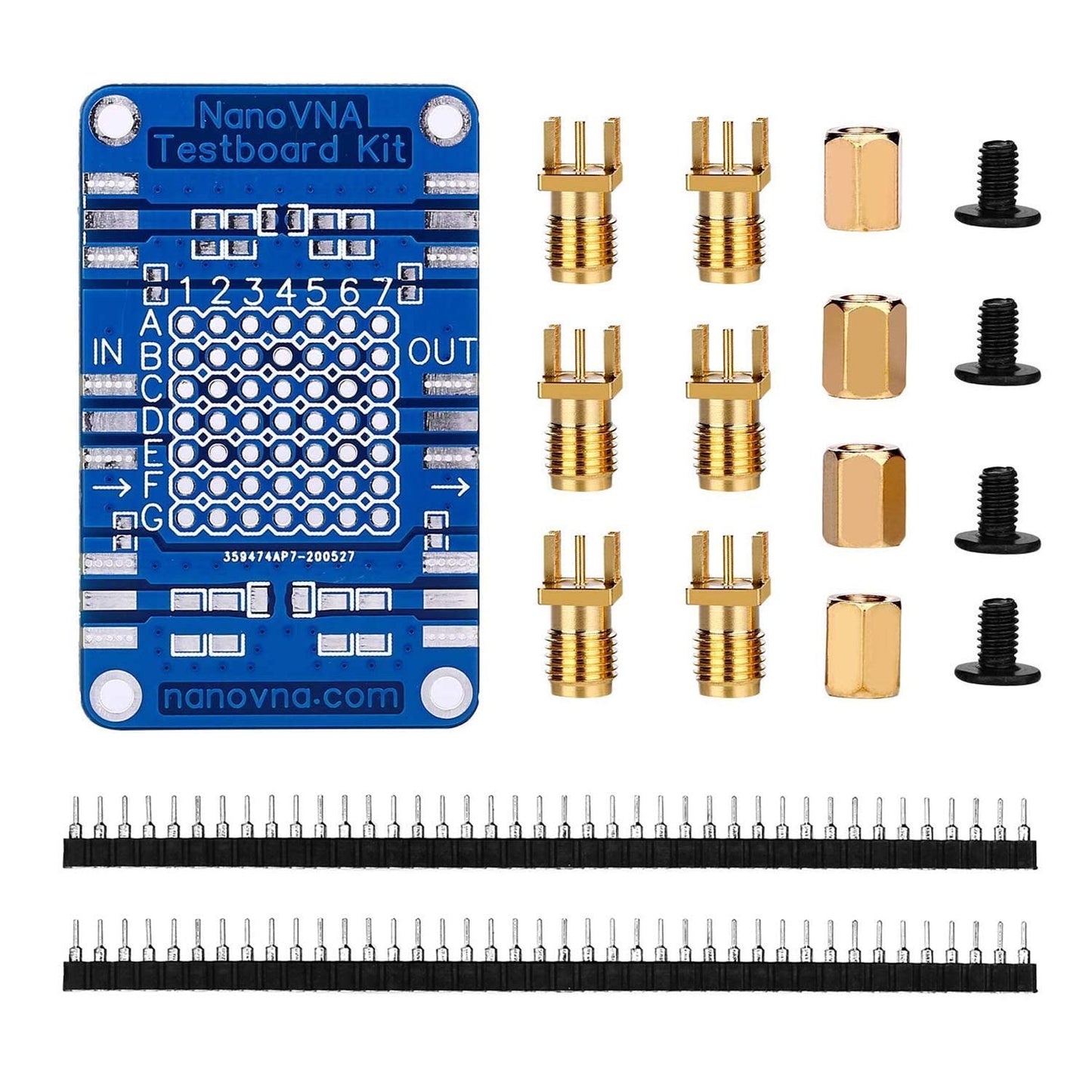

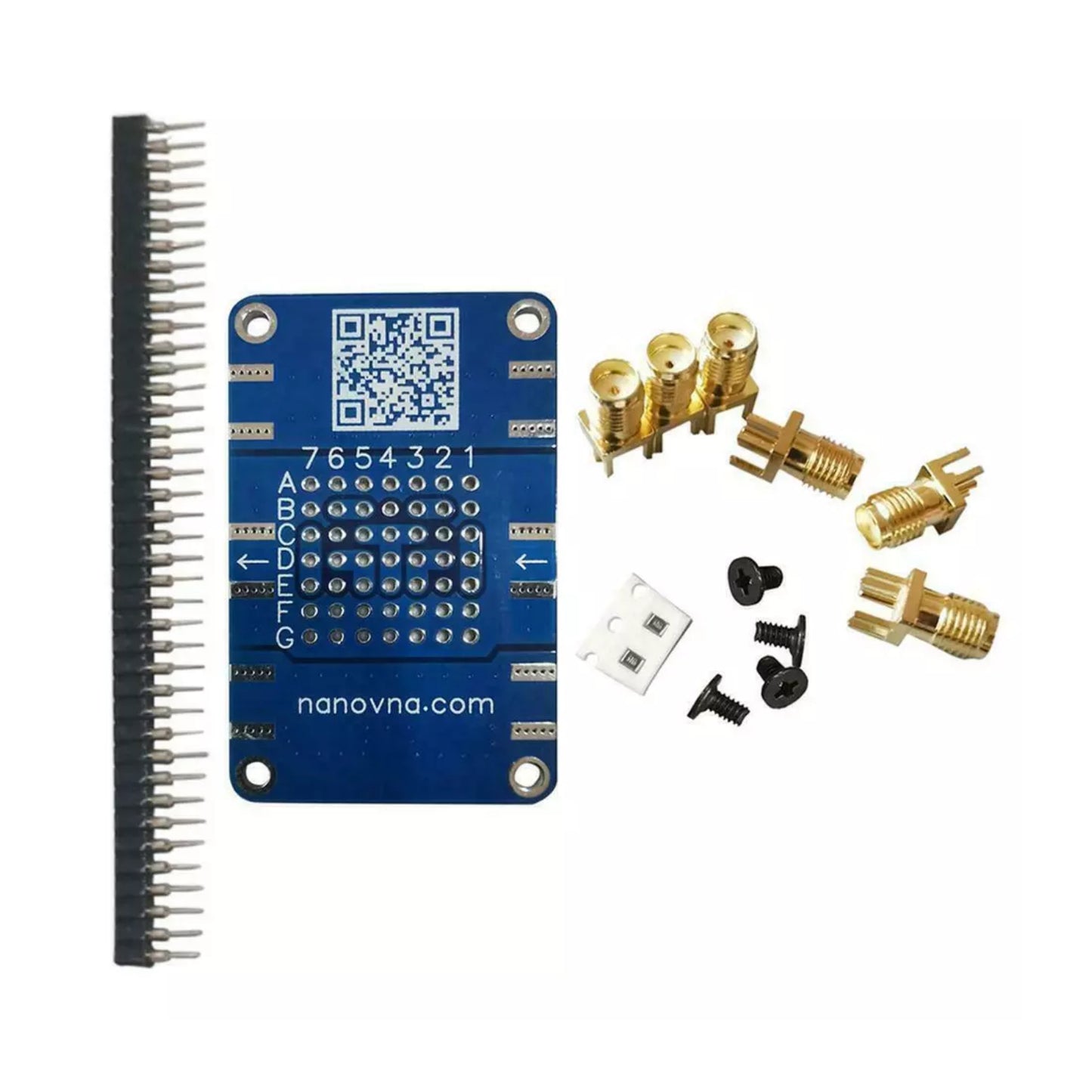

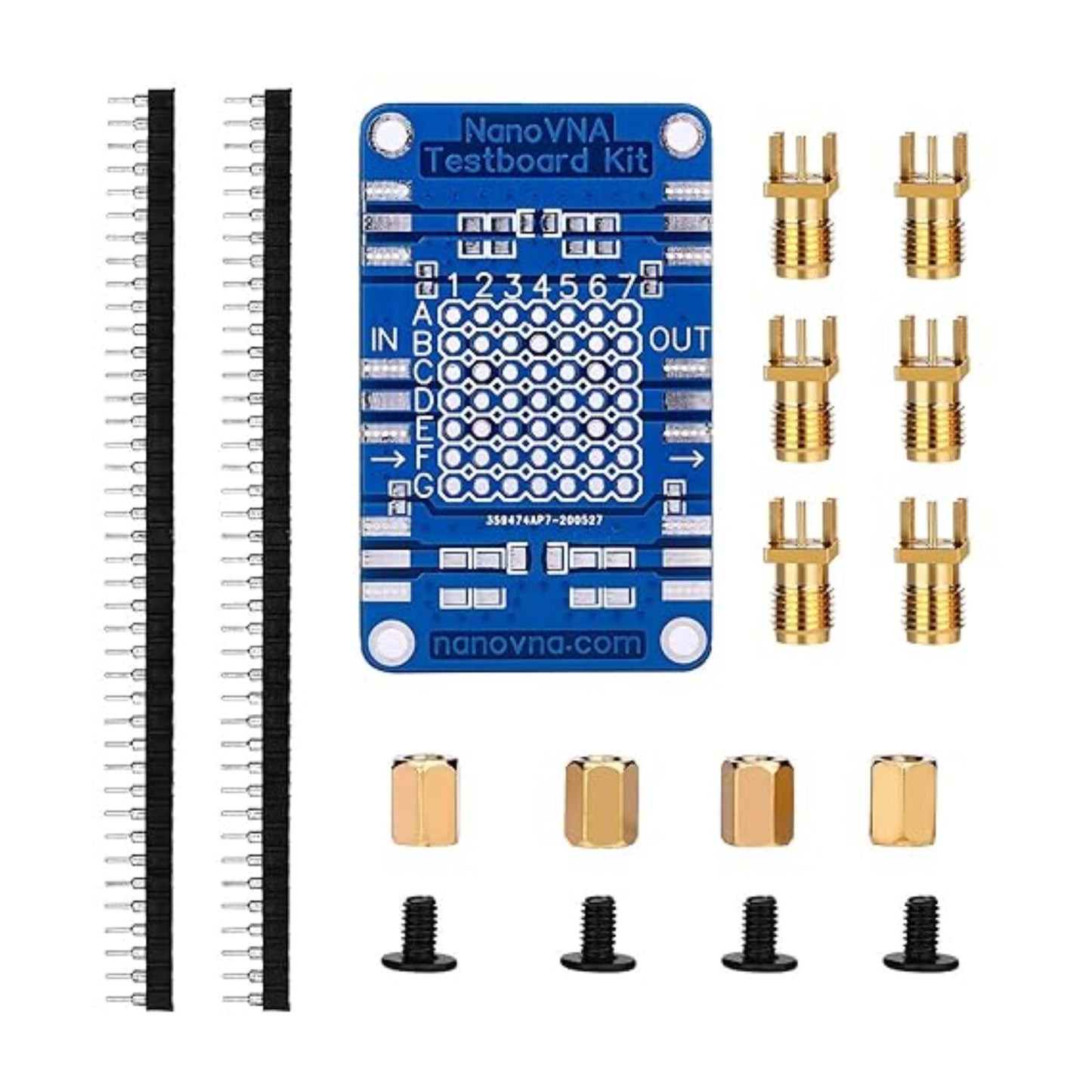

1 x Nanovna Testboard Kit Vector Network Analyzer Testboard Demo Board For RF Measurement Impedance Matching and Antenna Analysis
