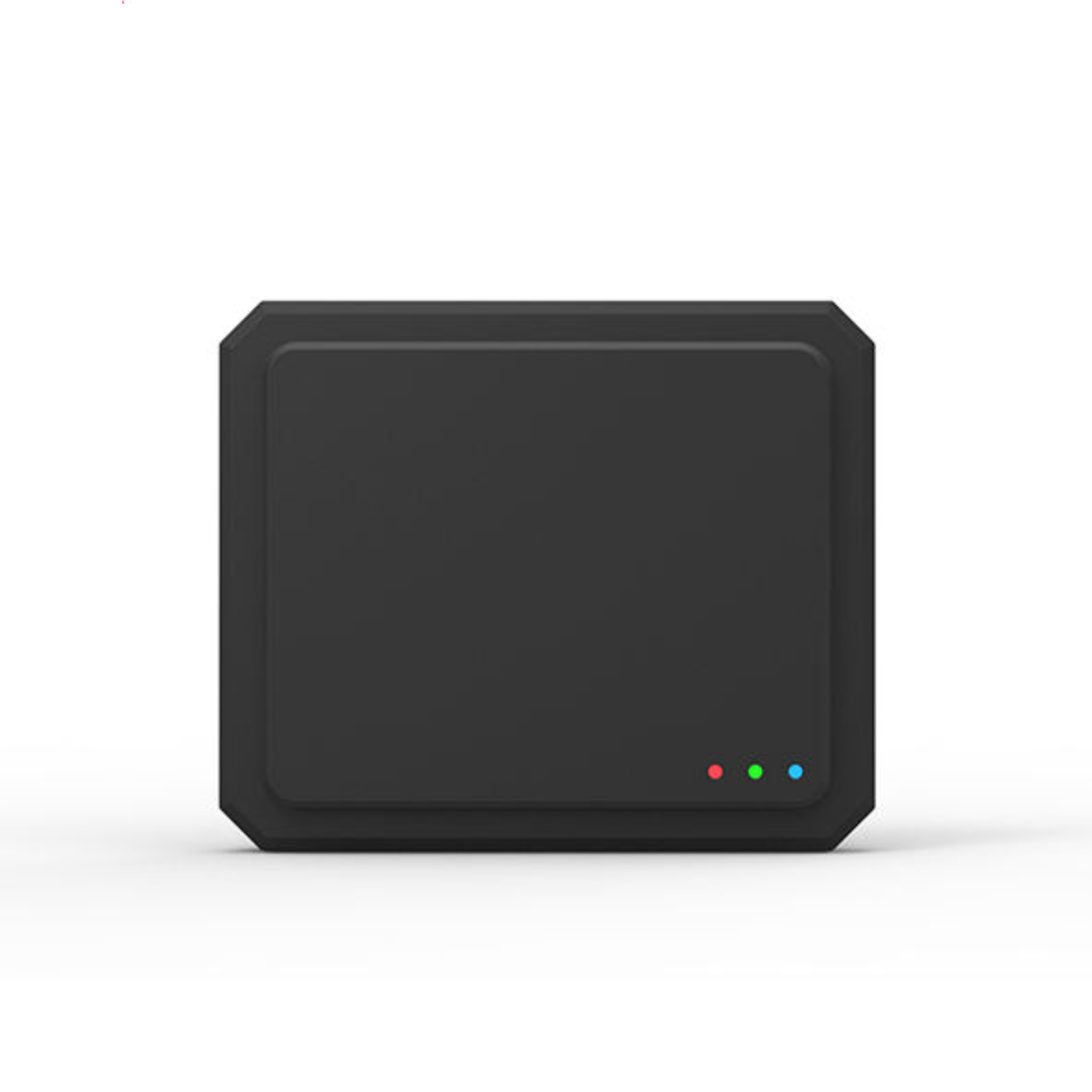

• Multi-Lane Speed Radar

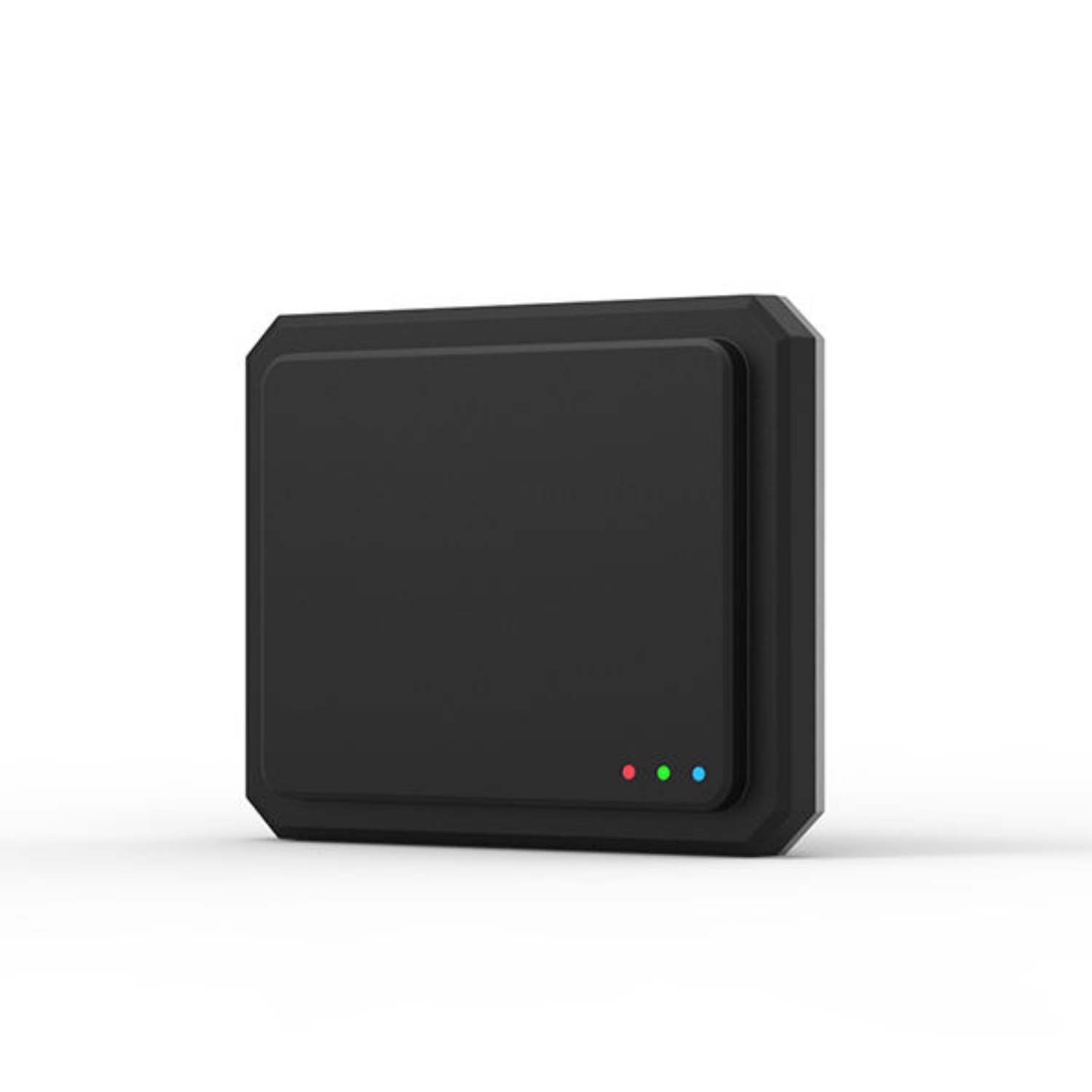

  • Millimeter Wave Radar

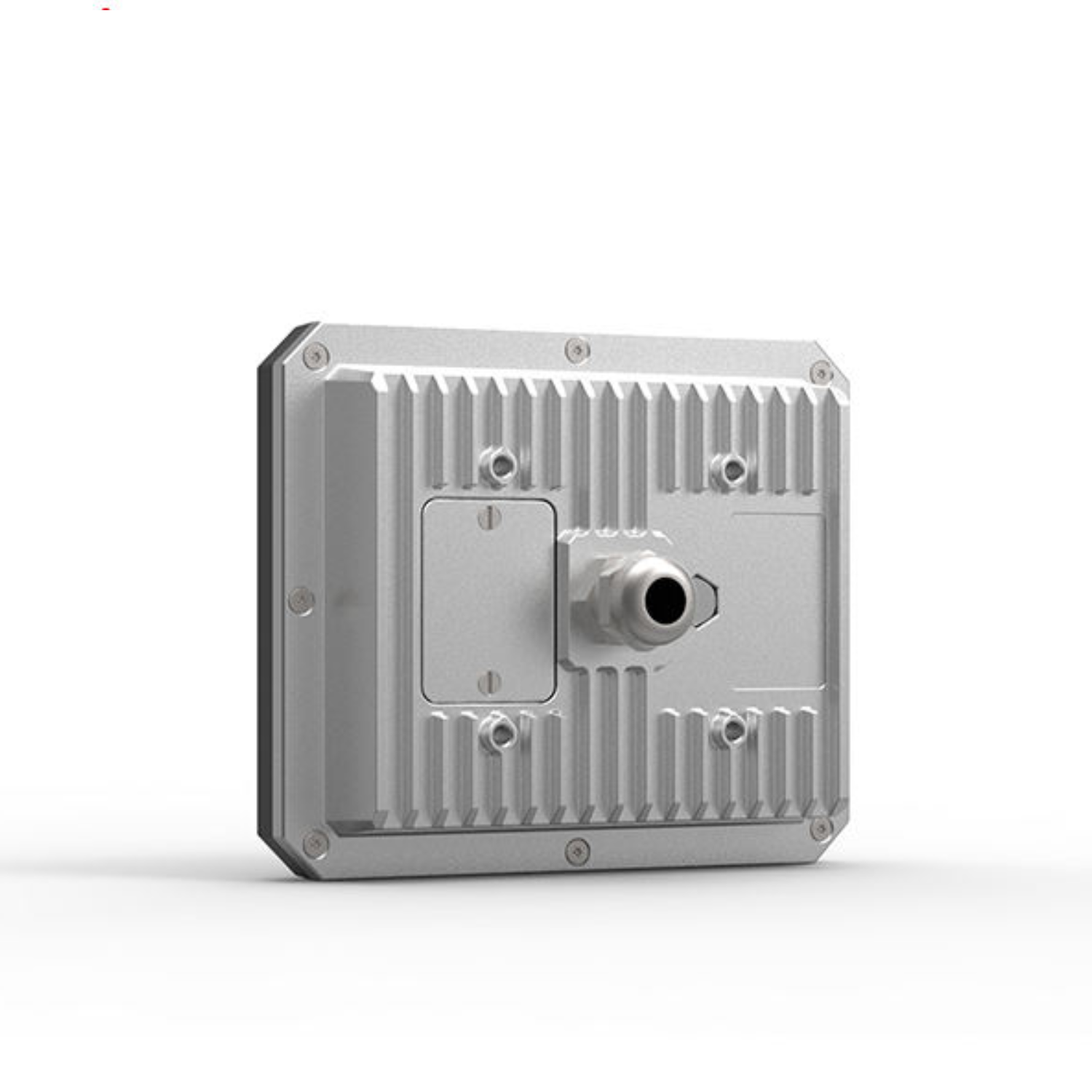

  • Low Power Radar
1 3

NANORADAR

NANORADAR TSR40 Multi-lane Speed Radar – High Precision Traffic Monitoring Radar for Law Enforcement & Vehicle Detection"

NANORADAR TSR40 Multi-lane Speed Radar – High Precision Traffic Monitoring Radar for Law Enforcement & Vehicle Detection"

In stock

Rs. 55,050.00
Rs. 55,050.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The NANORADAR TSR40 uses MIMO+DBF technology to track multiple vehicles across 4 lanes in real-time, making it ideal for speed enforcement in areas with high traffic concerns like school zones, construction zones, and residential areas. With up to a 90-meter detection range and the ability to track 32 targets simultaneously, this radar provides precise vehicle data, including speed, distance, angle, and direction.

Its compact design and low power consumption ensure versatility for various applications, while the automatic angle calibration feature minimizes setup time for optimal performance. The TSR40 is a robust, efficient solution for traffic monitoring and data collection in real-time, offering invaluable insights for authorities to enhance traffic control measures.

Specifications:

  • Item Type: Radar Module
  • Model: Speed Measuring Radar
  • Model No: TSR40
  • Good Capture Range: 15~40  (m)
  • Power Supply: 12.0V DC
  • Distance Measuring Range: ~2~90 M
  • Power Consumption: ≤4 W
  • Operating Temperature: -40 to +70 (°C)
  • Transmitting frequency: 61-61.25 GHz
  • Modulation Mode: FMCW

Features:

  • 60 GHz ISM band for precise tracking.
  • 1–4 lane horizontal & 90-meter vertical tracking range.
  • Monitors up to 32 targets with speeds from 5 to 200 km/h.
  • All-weather, 24/7 operation for year-round reliability.
  • Supports RS-485 & Network Port for easy integration.
  • Lightweight design for forward & lateral installation.
  • Web-based debugging for quick setup and configuration.

Application:

  • It can be widely used in multi-lane speed detection and traffic flow statistics.

Package Included:

 1 x NANORADAR TSR40 Multi-lane Speed Radar
