Descriptions:

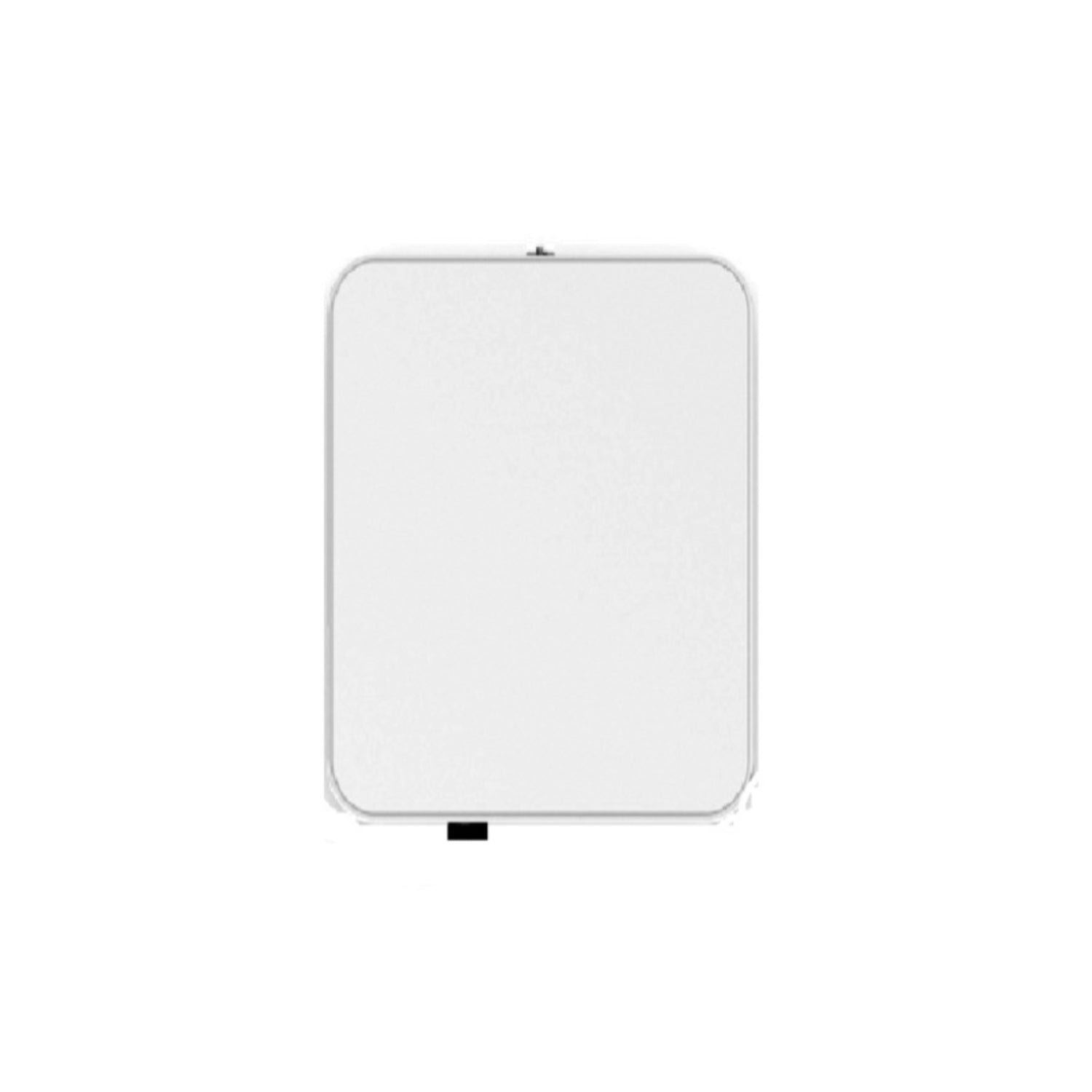

The NANORADAR TCM873 Traffic Flow Radar is an advanced 80GHz millimeter-wave radar designed to provide precise and real-time traffic flow analysis. Capable of tracking a wide range of targets, including large, medium, and small vehicles, non-motorized vehicles, and pedestrians, the TCM873 offers highly accurate data within a 500-meter range.
It provides essential information such as vehicle IDs, speed, distance, azimuth, and status, making it an ideal solution for modern traffic management systems. In addition, the radar module supports comprehensive traffic flow statistics, including vehicle spacing, occupancy, queue length, and congestion. The accuracy of congestion flow statistics reaches up to 90%, while flat peak flow statistics are accurate to 95%, enabling highly effective traffic control and monitoring.
Specifications:
- Model: TCM873
- Type: Traffic Flow Radar
- Max. Working Voltage (V): 32
- Protection Class: IP67
Features:

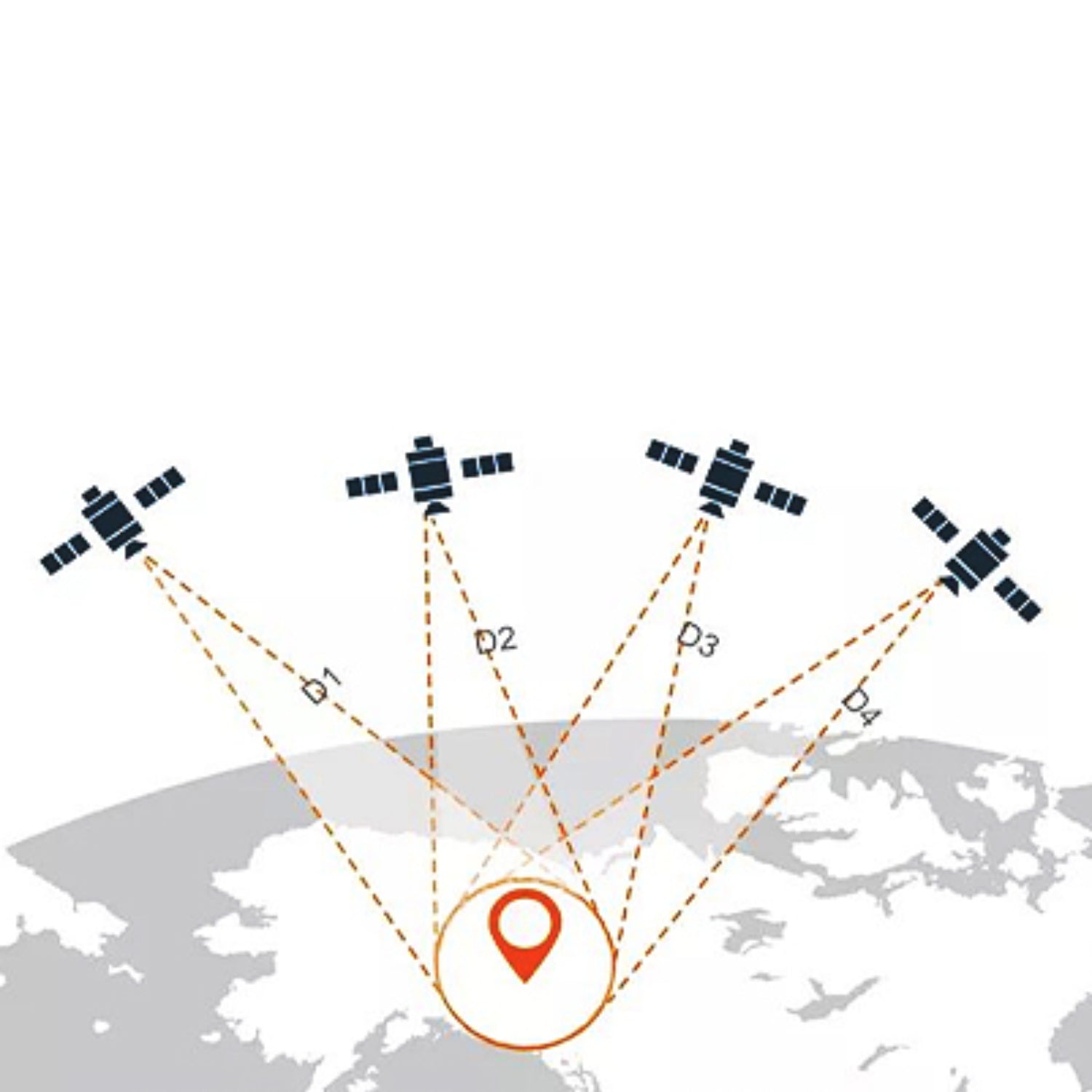

- Radar vision integration, supports two levels of data depth fitting, space-time synchronization, support GPS, and PTP timing.
- Software-defined radar, flexible adaptation of intersection, road section, and high-speed three modes.
- Simulate the real scene, close to the actual application, configured with channelization, green isolation belt, and live function.

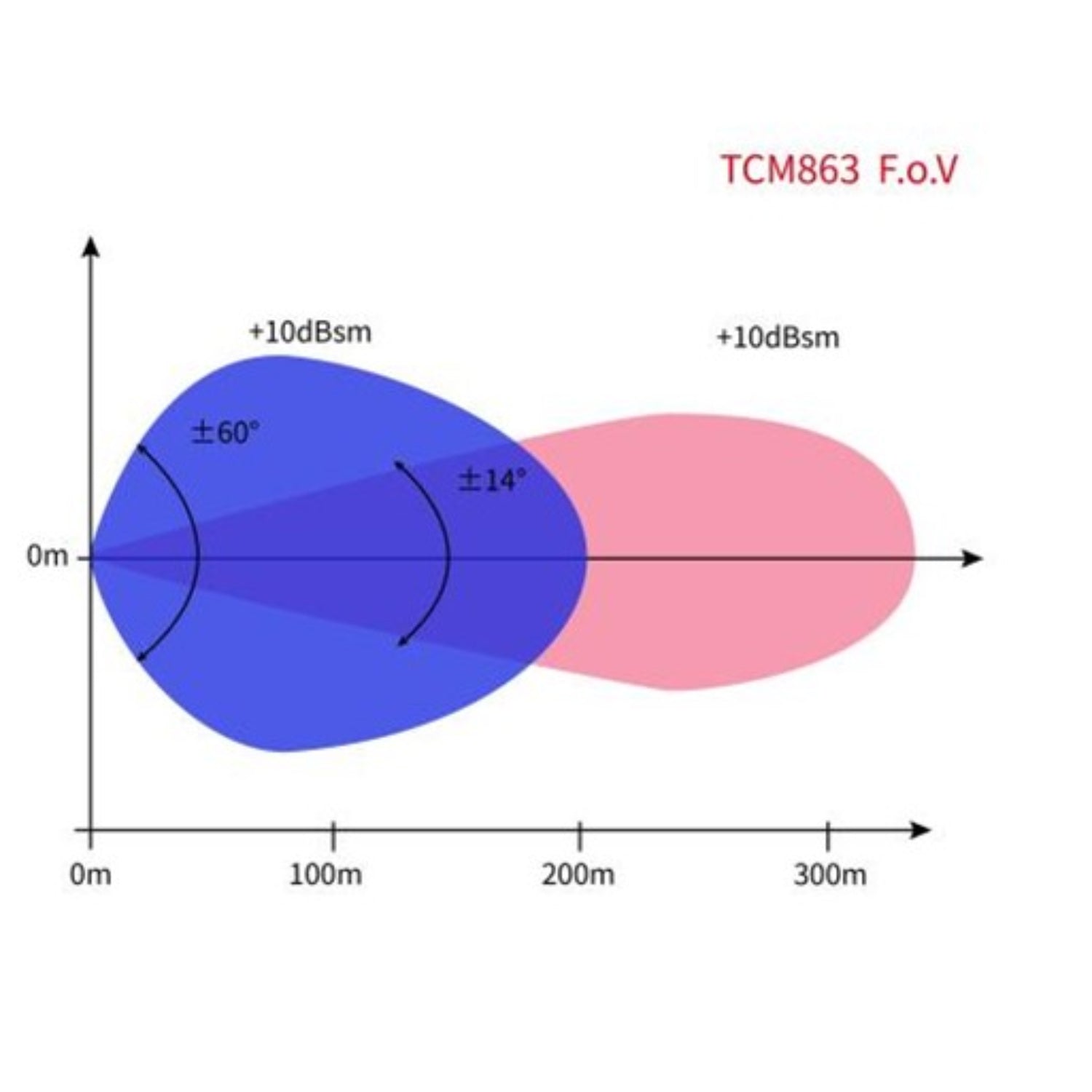

- Super sensing, stable and accurate, 80GHz frequency band, stable detection distance of 500m, 80 ° wide beam, covering 10 lanes, can detect 512 targets.
- Strong adaptability, easy to deal with a complex environment, four levels of sensitivity can be adjusted to reduce the false alarm rate; wrong frequency design can avoid interference between radars, 7 × 24h all-weather real-time protection, adapt to rain, snow, fog, haze, dust, and other bad weather.
Package Included:
1 x NANORADAR TCM873 Traffic Flow Radar High-Resolution 80GHz MMW Radar Millimeter-Wave Radar For Accurate Traffic Flow Measurement
