Descriptions:

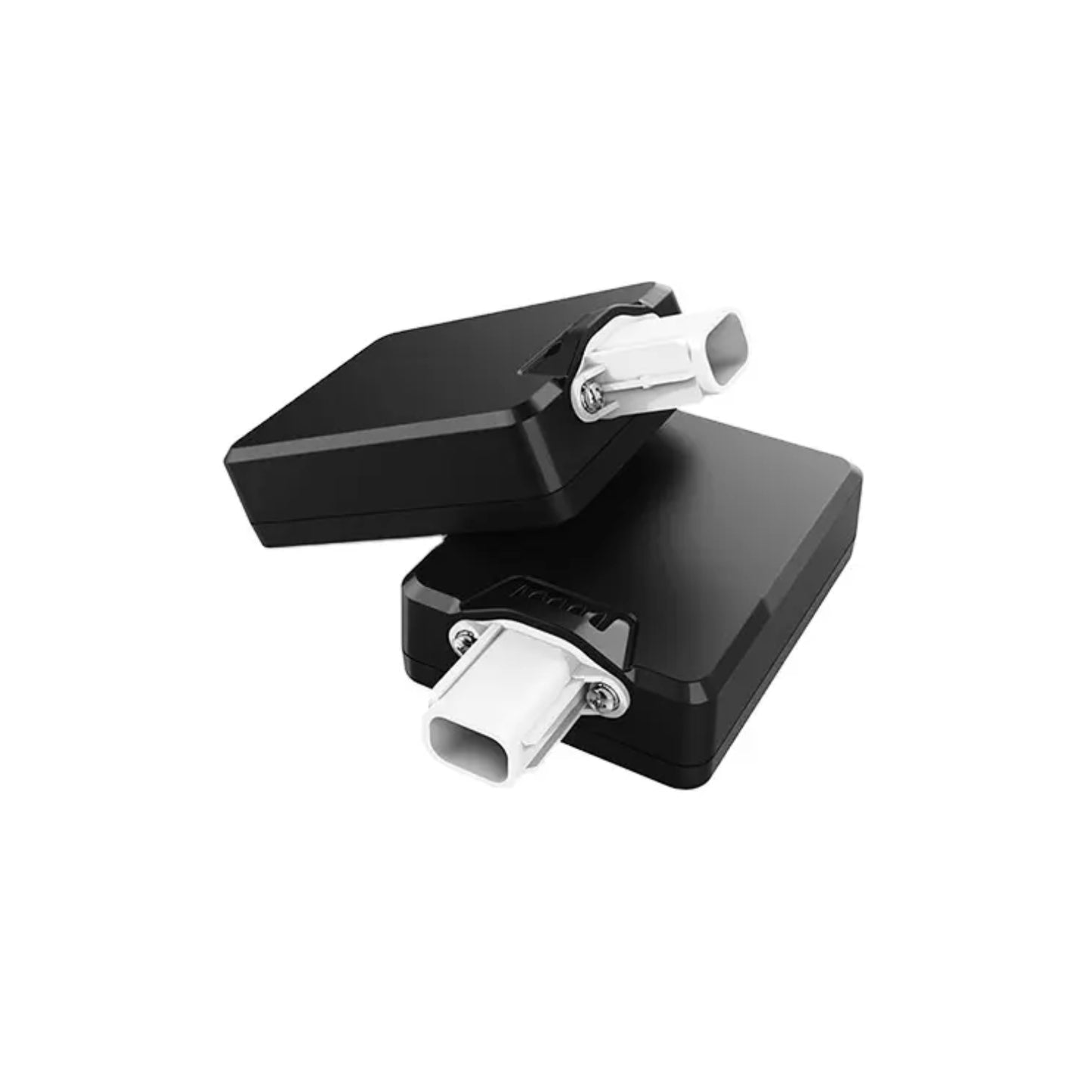

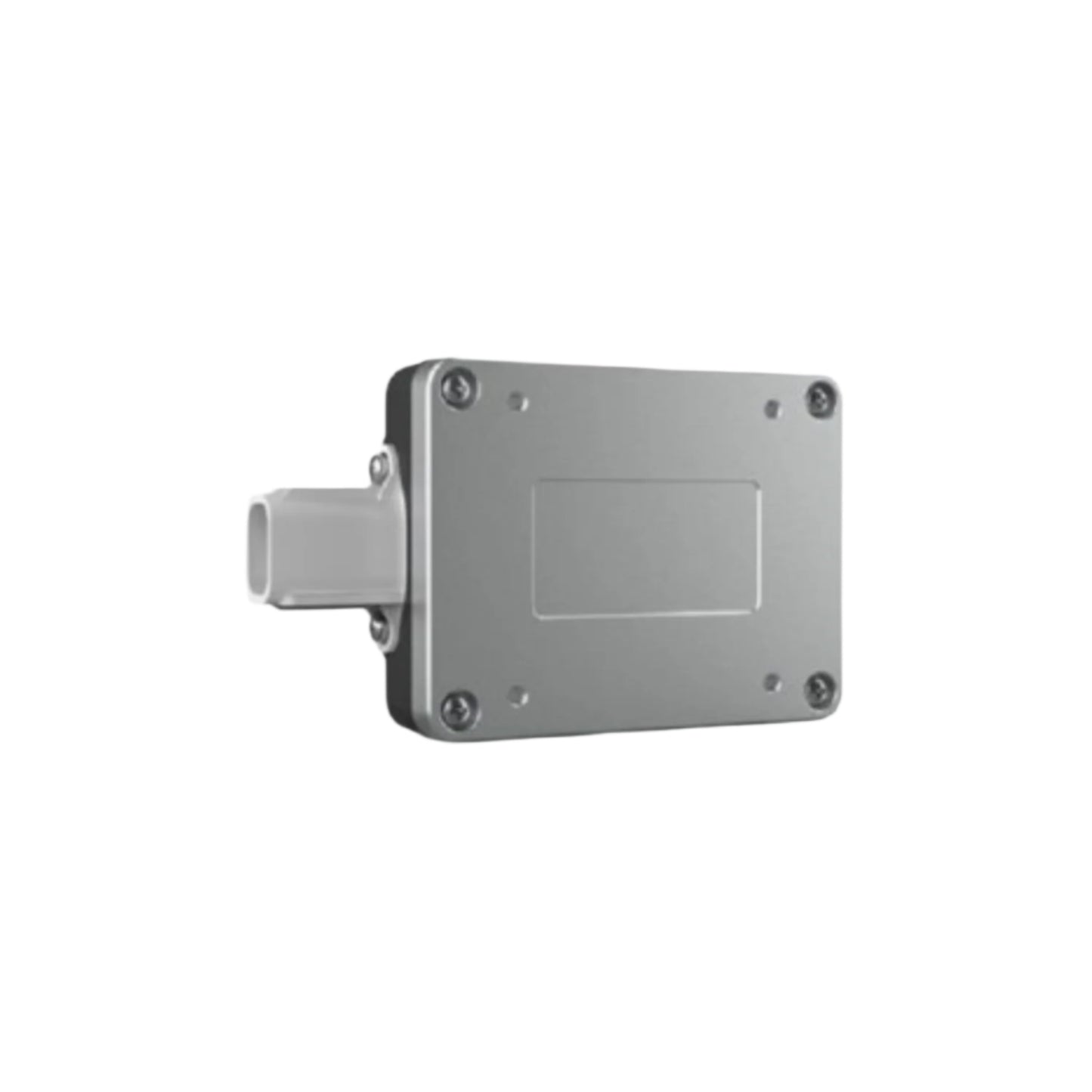

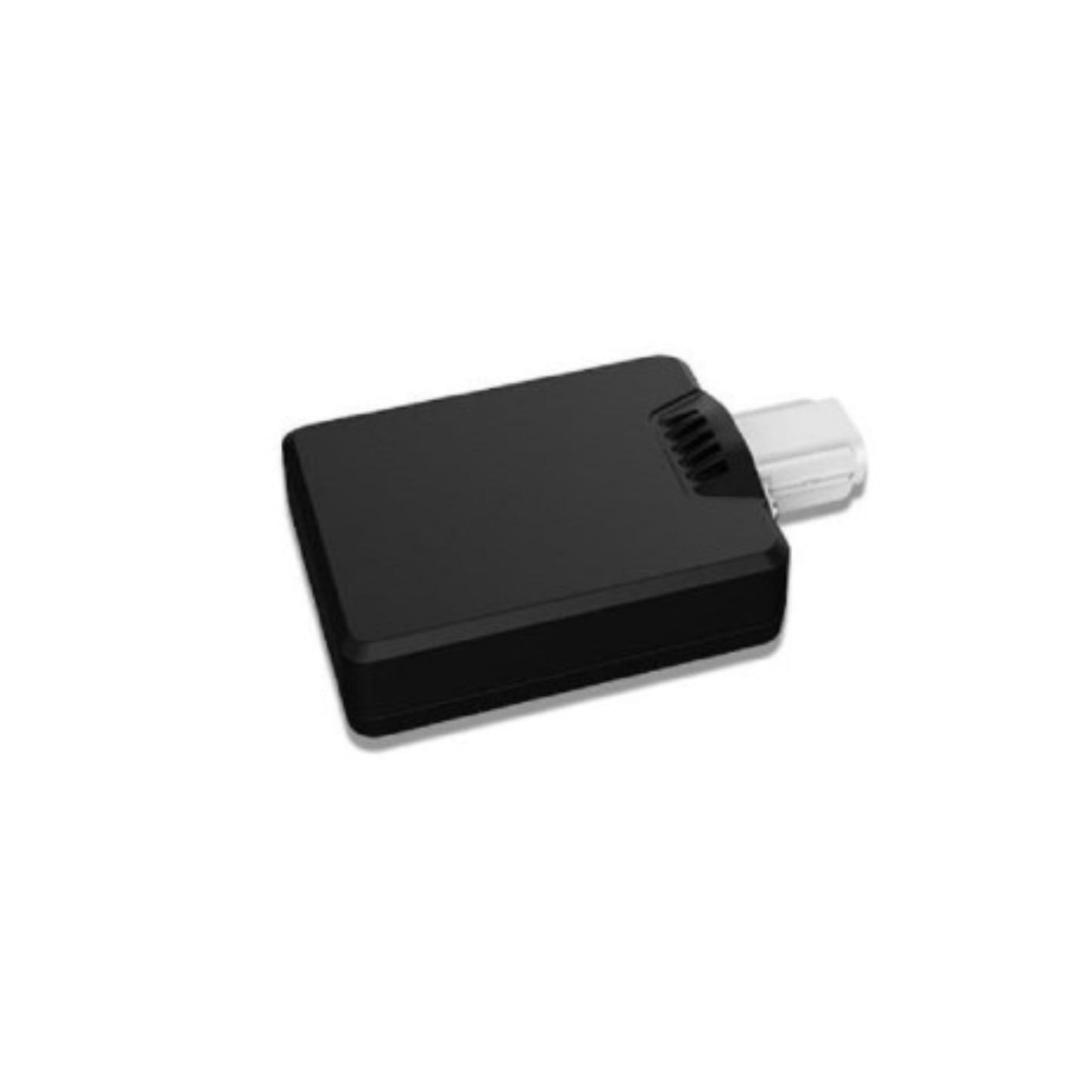

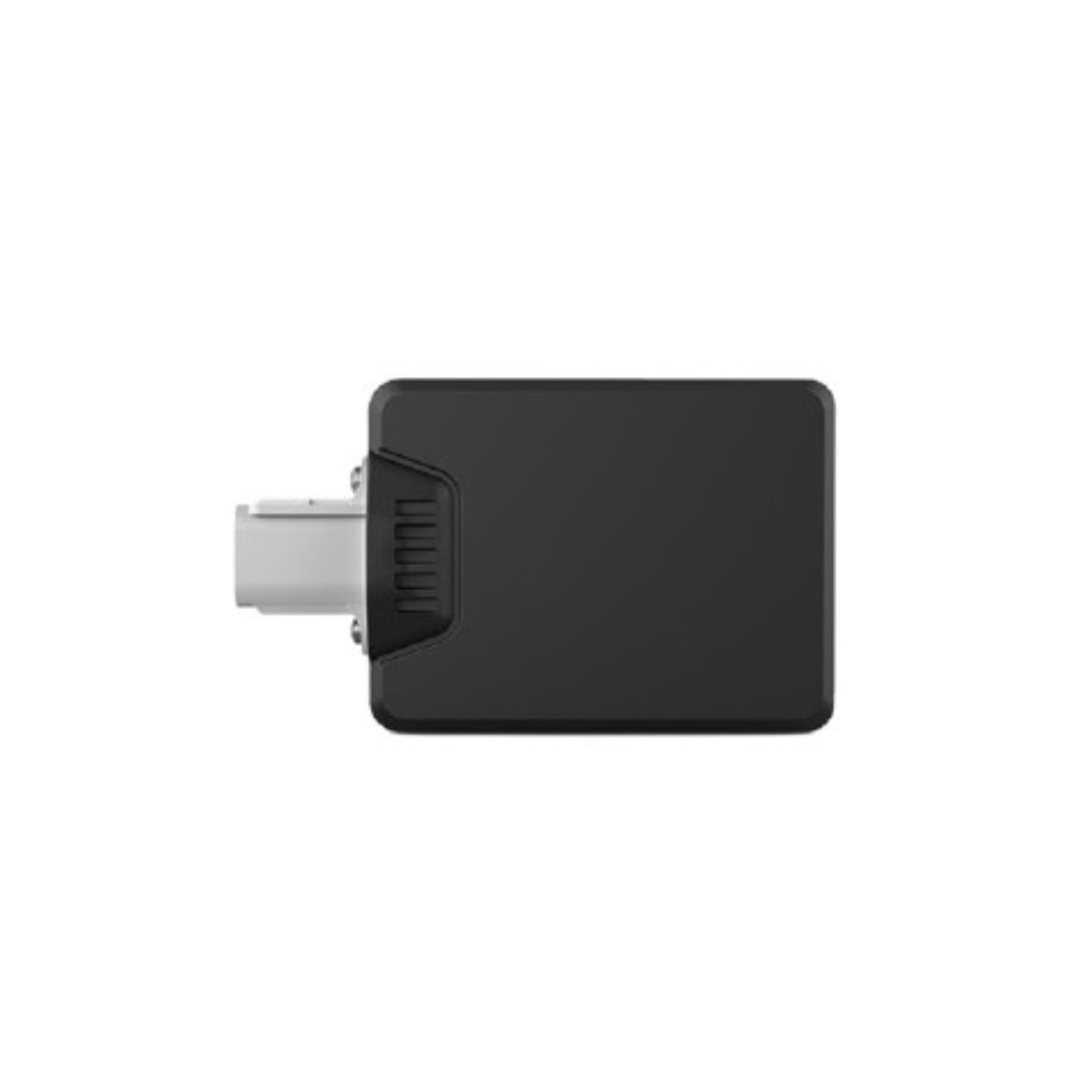

The SR73 is a compact and reliable 77GHz radar designed to prevent collisions in heavy equipment. This advanced radar system utilizes dual-beam technology to accurately detect and track obstacles within a 0.2 to 40-meter range, providing timely alerts to operators. With its small size, light weight, and easy integration, the SR73 offers a seamless solution to enhance safety and improve operational efficiency for a wide range of heavy equipment applications.
Specifications:
- Model Type: Avoidance Radar Sensor
- Distance Measuring Range(M): 0.20 to 40
- Operating Power: +6.0V~32VDC
- Power Consumption (W): 2.5W
- Operating Temperature (°C): -40°C to +85°C
- Storage Temperature (°C): -40℃ to +90℃
- Series: 77GHz MMW Radar
- Protection: IP66
Features:
- Accurately measures the direction, range, velocity and angle of moving targets.
- Work in 77GHz Band for the detection of moving objects.
- Protection class IP66 for outdoor use.
- Compact size. (58x96x24mm)
- Hige detection rate.
- Easy to use & install.
- Good quality product.
Package Included:
1 x NANORADAR SR73 77GHz Radar High-Precision 77GHz FCW Collision Avoidance Radar System For Advanced Automotive Safety and Autonomous Driving Applications
