Descriptions:

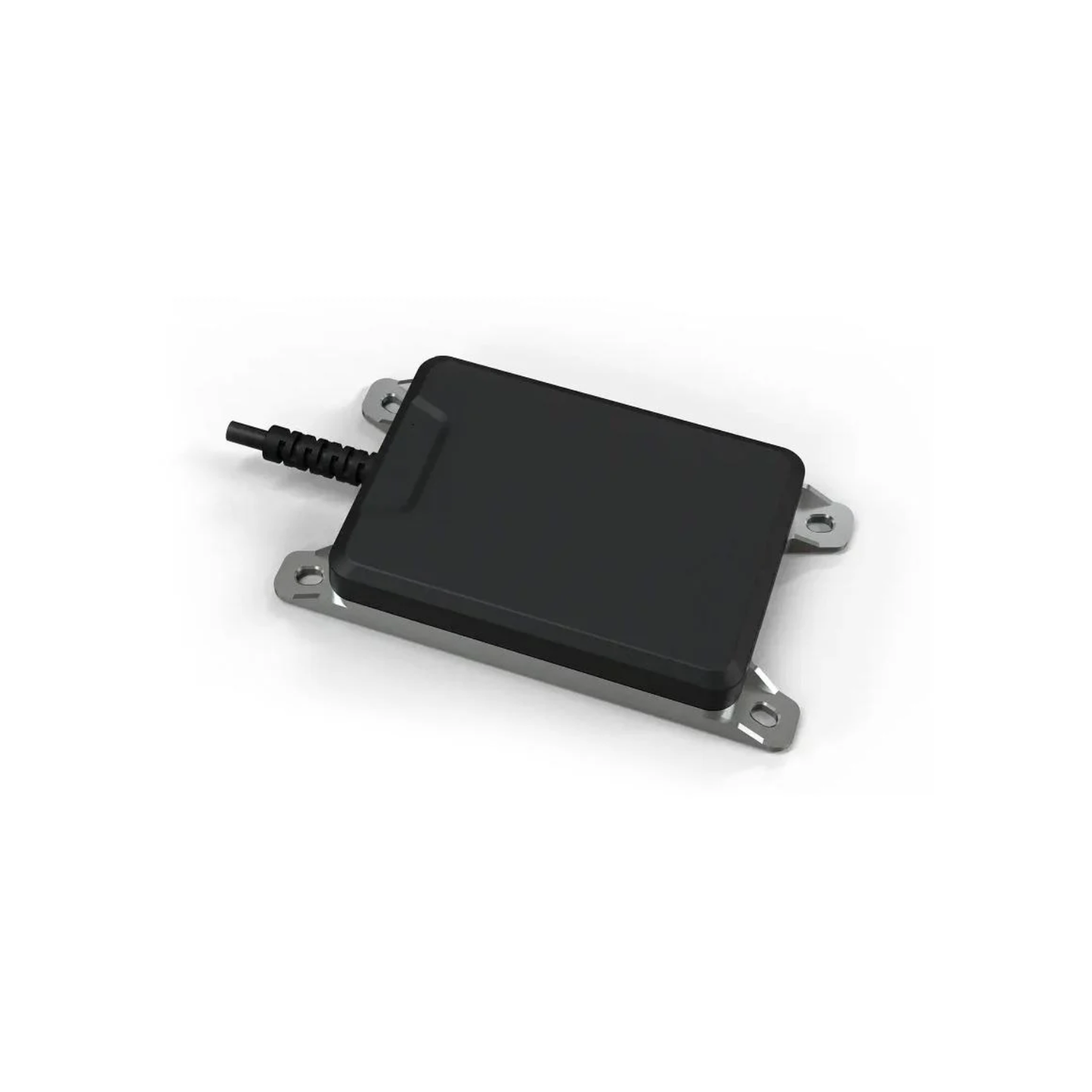

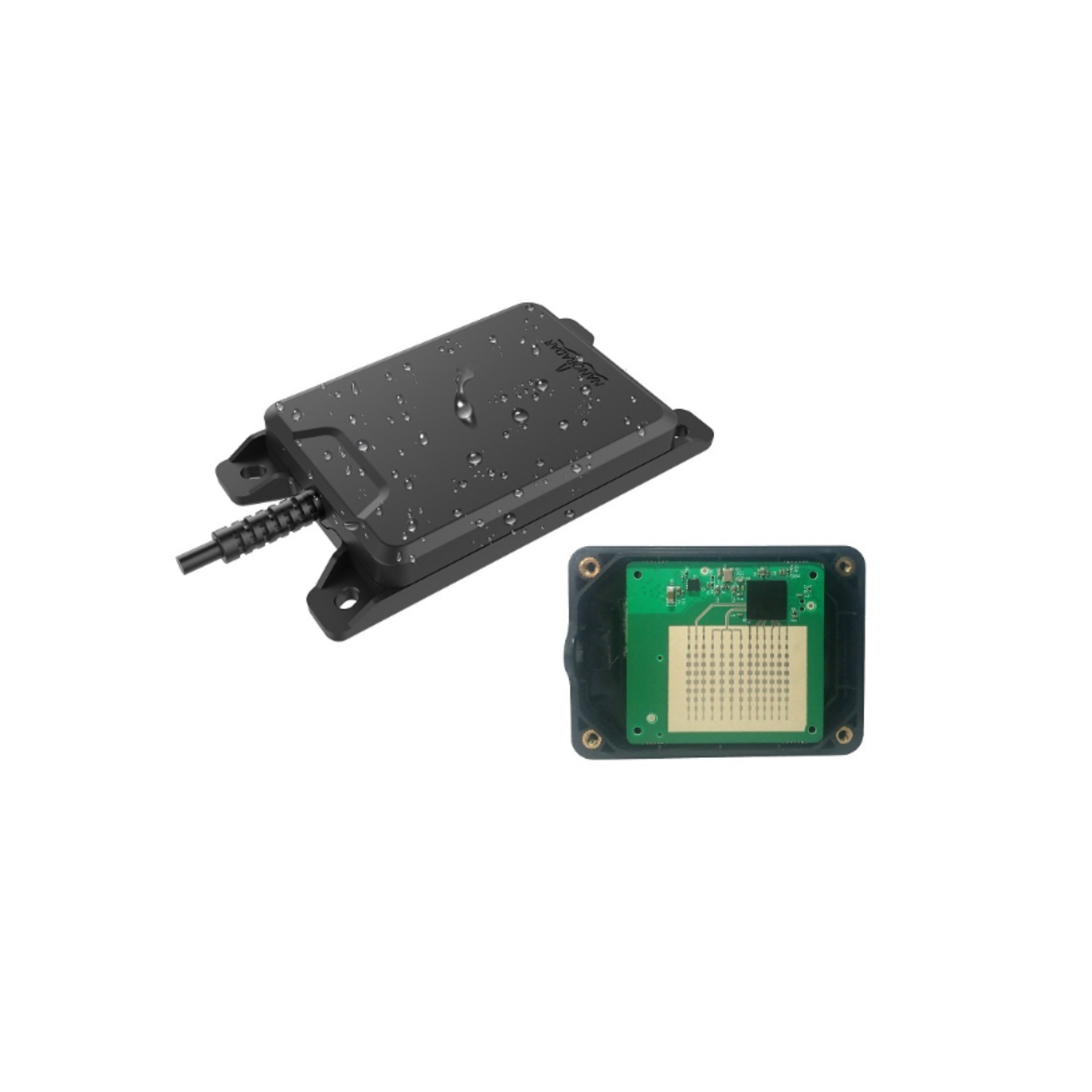

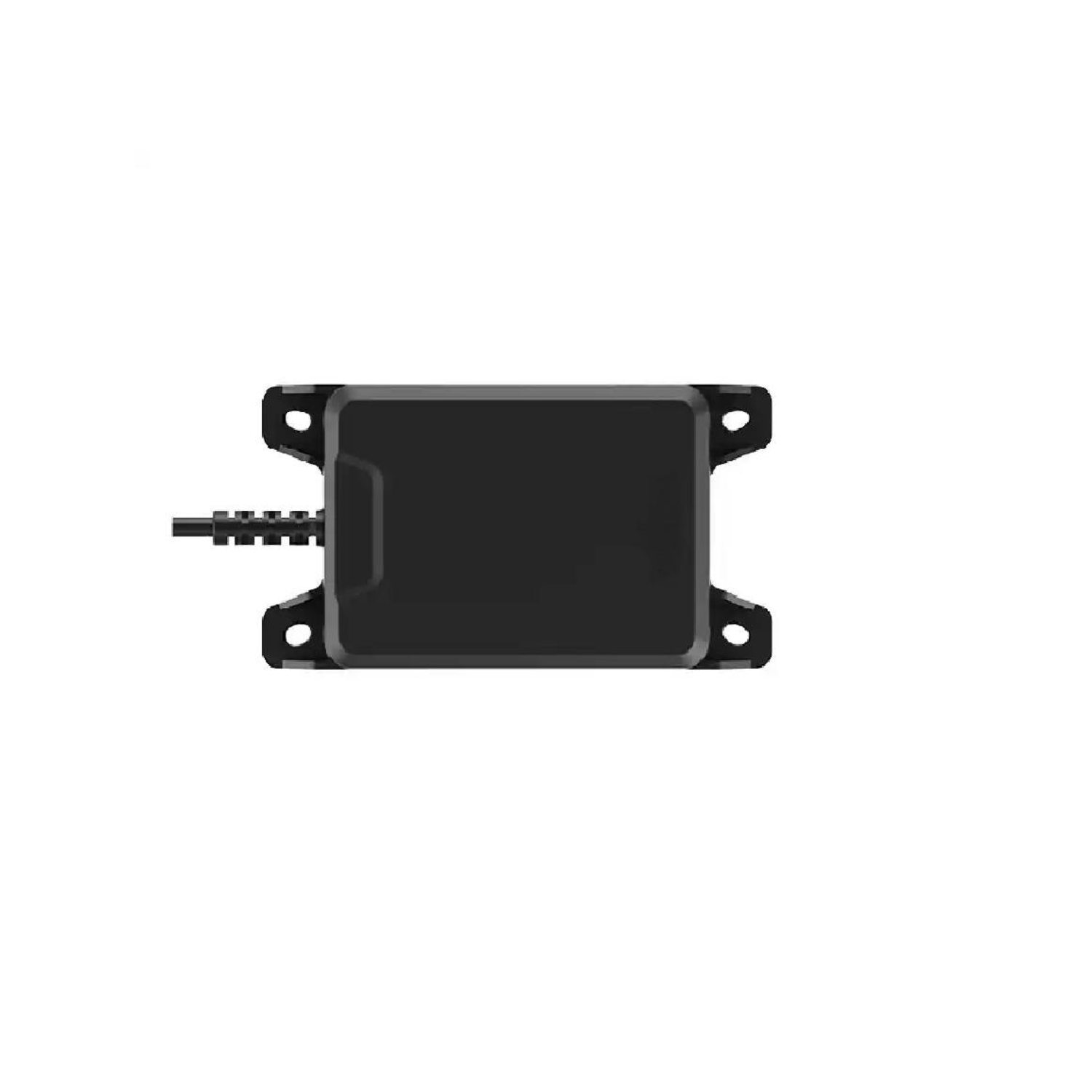

The MR72 is a compact 77GHz distance measurement radar designed for precise obstacle detection and avoidance in UAVs. It utilizes a dual-beam, fan-shaped microwave transmission system to detect obstacles in real-time by analyzing the reflected microwaves. With a measurement range of 0.2 to 80 meters.
it accurately calculates the relative distance between obstacles and the radar. Known for its small size, high sensitivity, and stable performance, the MR72 is lightweight and easy to integrate into various systems. Its proven reliability makes it ideal for applications such as plant protection, power inspection, and industrial exploration.
Specifications:
- Type: Radar Module
- Material: PC
- Series：77GHz MMW Radar
- Frequency: 76–77 GHz (ETSI FCC)
- Transmit Power (dBm): Average/Peak 29.8dBm EIRP
- Storage Temperature (°C): -40℃ to +90℃
- Operating Temperature (°C): -40°C to +85°C
- Power Supply: +5.0V to +32V DC
- Power Consumption: 2.5W
- Interface: 1xCAN, High-Speed 500kbit/s
Features:
- Long detection distance: up to 90 meters.
- Strong anti-interference ability: not affected by light, weather, environmental noise, and electromagnetic interference from drone.
- Smaller size: Compared with 24GHz MMW radar, it is smaller and has wider applicability.
- High detection accuracy: Compared with 24GHz radar, 77GHz MMW radar has High-precision and a better ability to identify obstacles.
Applications:
- Logistics.
- Fire fighting.
- Police security.
- Electricity inspection.
- Unmanned agriculture.
- Surveying and mapping.
- Oil and gas infrastructure inspection.
- Highway and Railway Infrastructure Inspection.
Package Included:

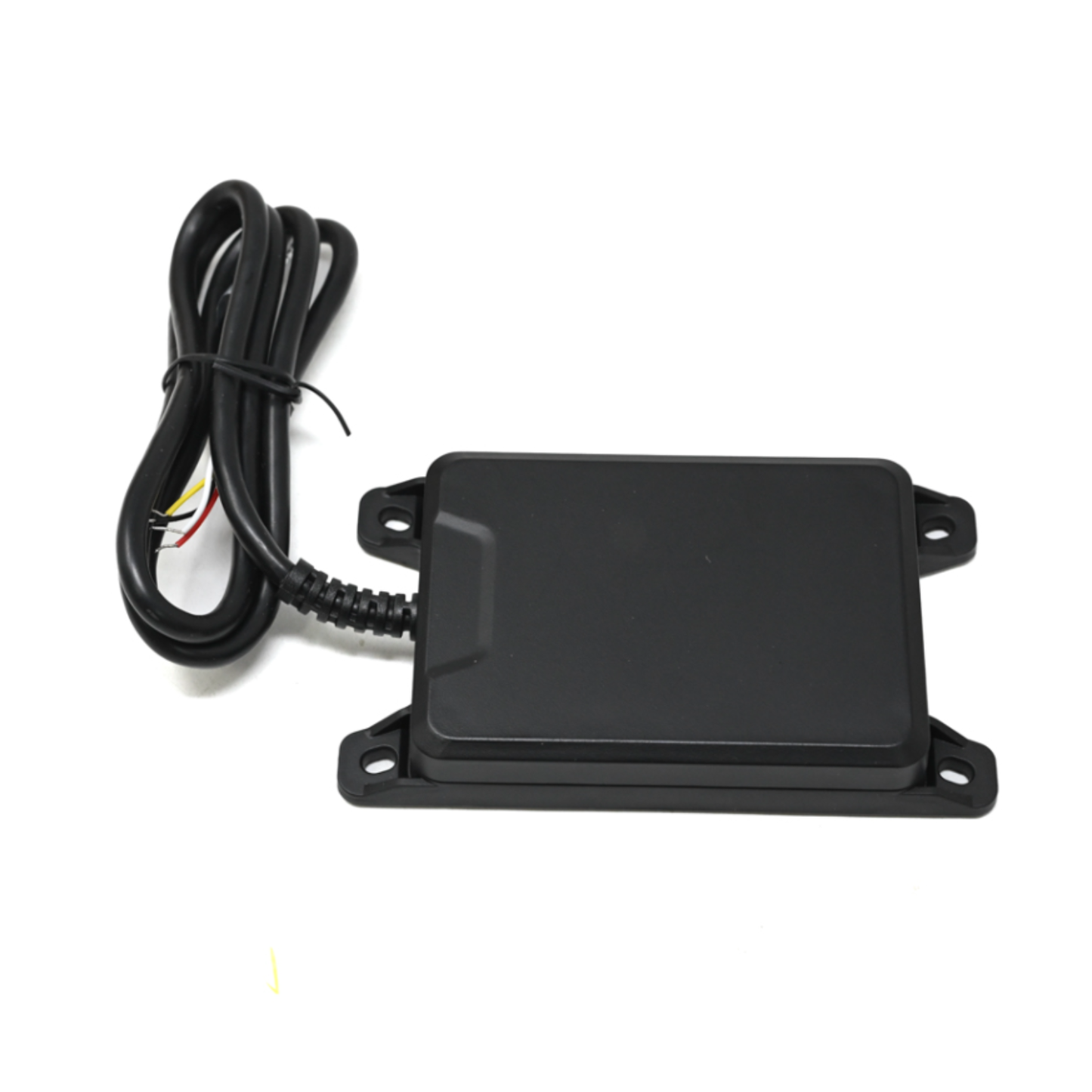

1 x NANORADAR MR72 Radar 77GHz Collision Avoidance Radar With UART Interface For Automotive Safety Systems
