Description:

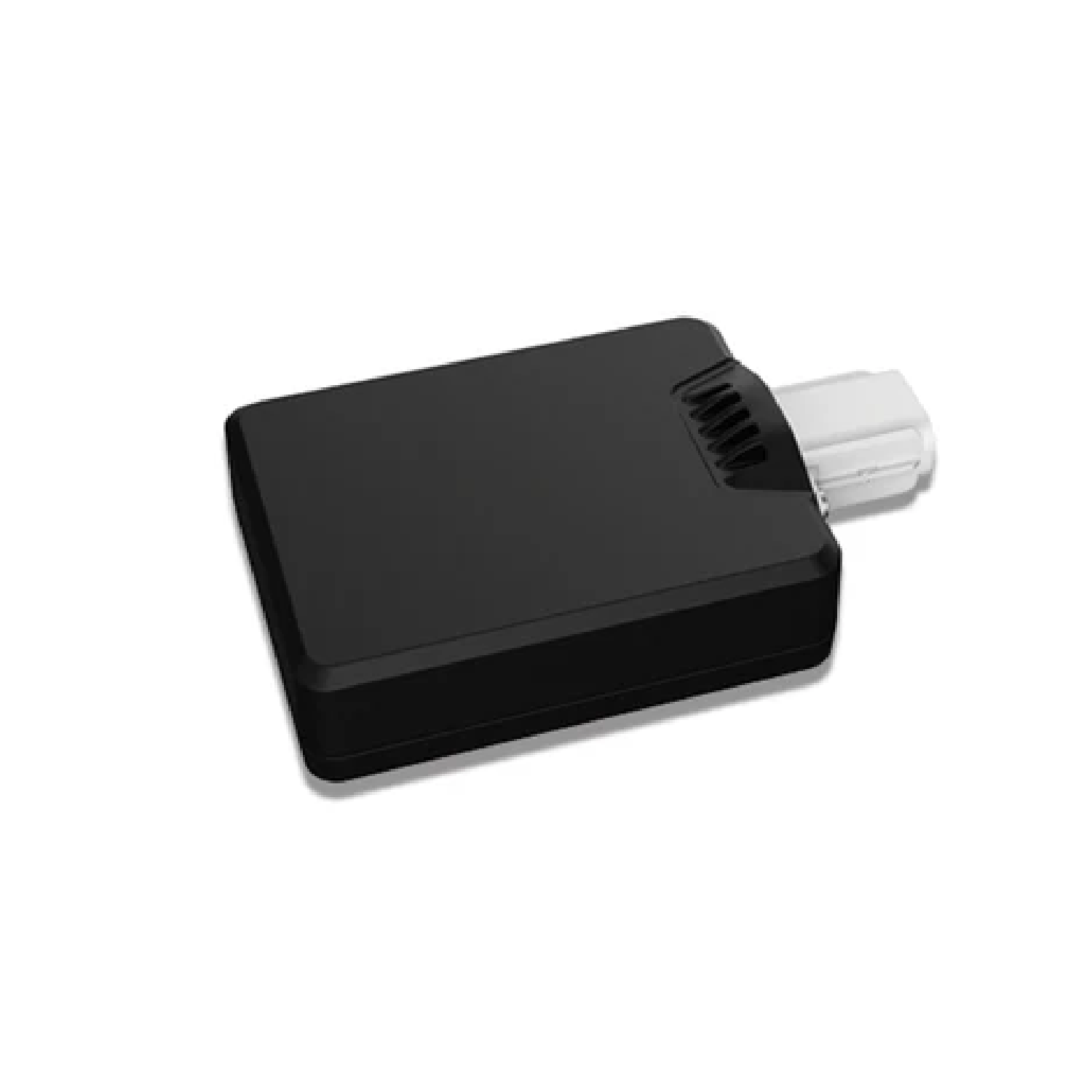

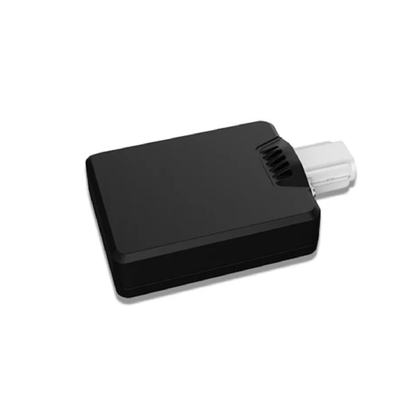

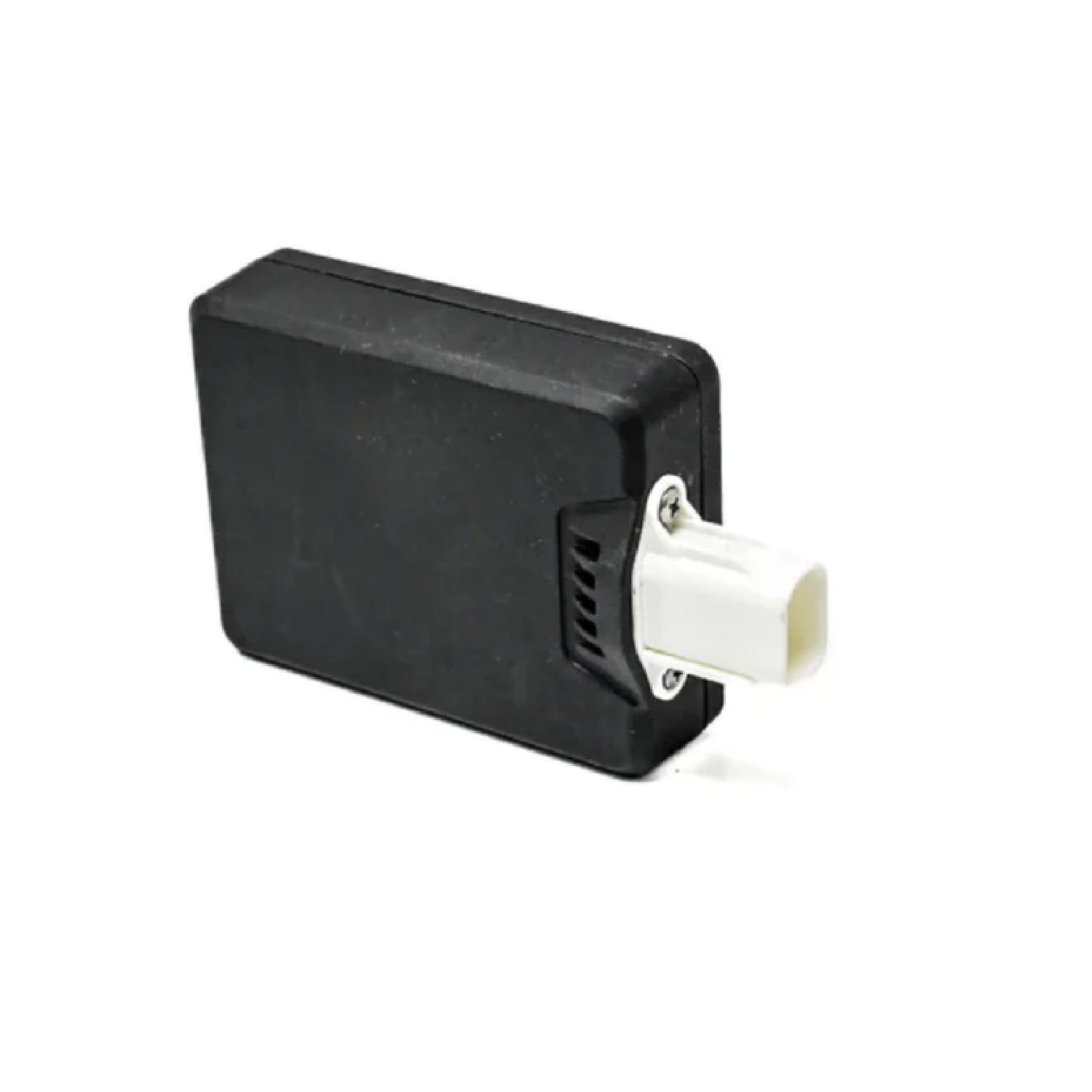

The NANORADAR CAR28F is a high-performance 24 GHz vehicle-mounted short-range radar designed to provide precise obstacle detection at a range of up to 30 meters. This advanced millimeter-wave radar works by measuring the difference between the transmitted radio wave and its echo, accurately determining distance, speed, and angle of obstacles in the radar's path.
Built for low-velocity vehicles, this radar offers anti-collision functionality, making it an ideal solution for enhancing safety-assisted driving. It meets the growing demands for automotive safety systems, offering superior performance in obstacle detection to improve overall vehicle safety.
Specifications:
- Item Type: Radar Module
- Model No: CAR28F
- Power Consumption: 1.65 (W)
- Output Power: 24 dBm
- Supply Voltage: 12 (VDC)
Features:
- Work in the 24 GHz band for the detection of moving objects;
- Compact size (96x58x24 mm);
- Accurately measure the direction, range, velocity, and angle of moving targets.
- Protection class IP66 for outdoor use
- Able to detect 8 moving targets simultaneously;
- High detection rate
Applications:
- FCW
- RCW
- Multisensory fusion
- Research & Study

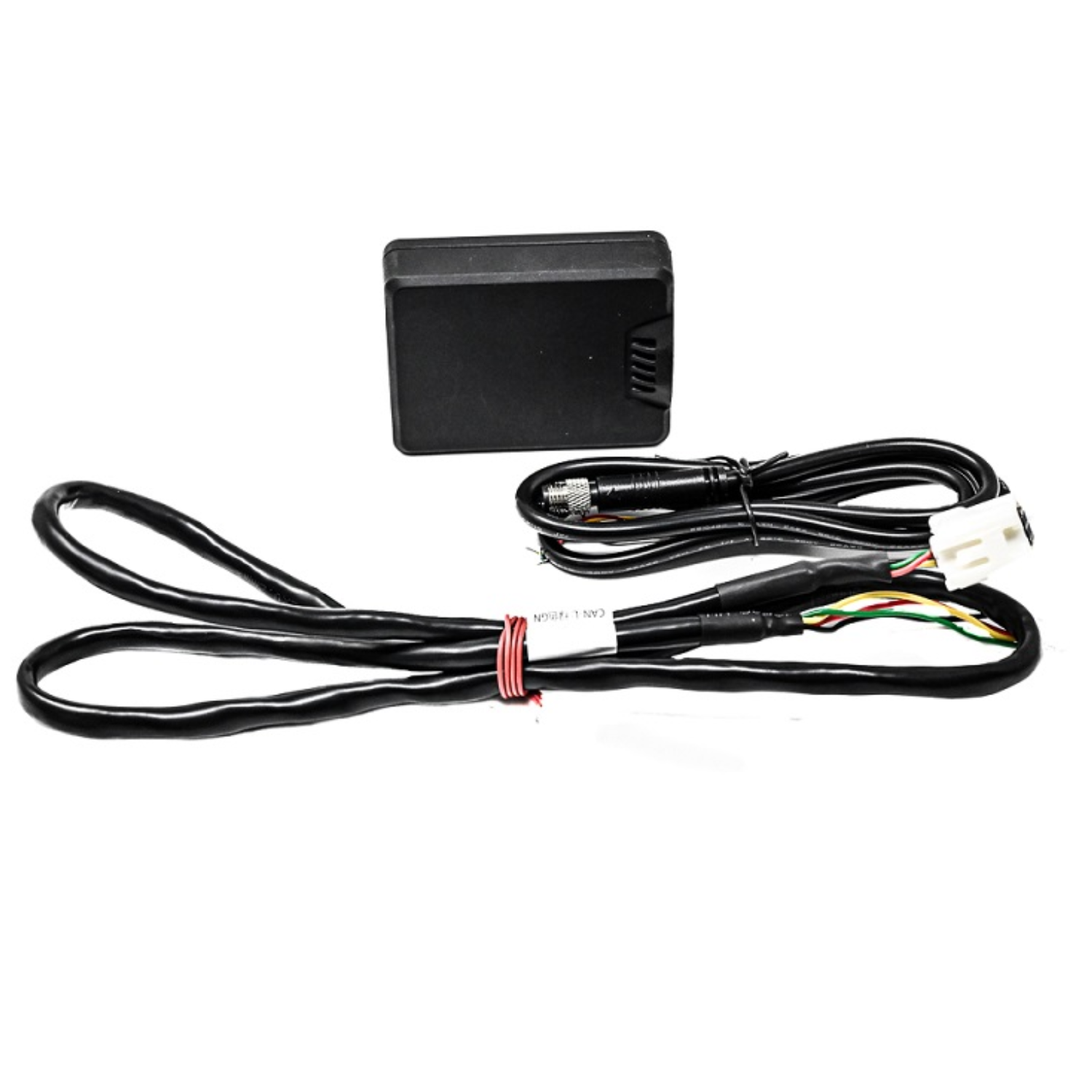

Package Included:
- 1 x CAR28F vehicle-mounted short-range radar
- 1 x CAN box
- 1 x Power supply
- 1 x CAN box Harness
- 1 x Radar Harness
