Description:

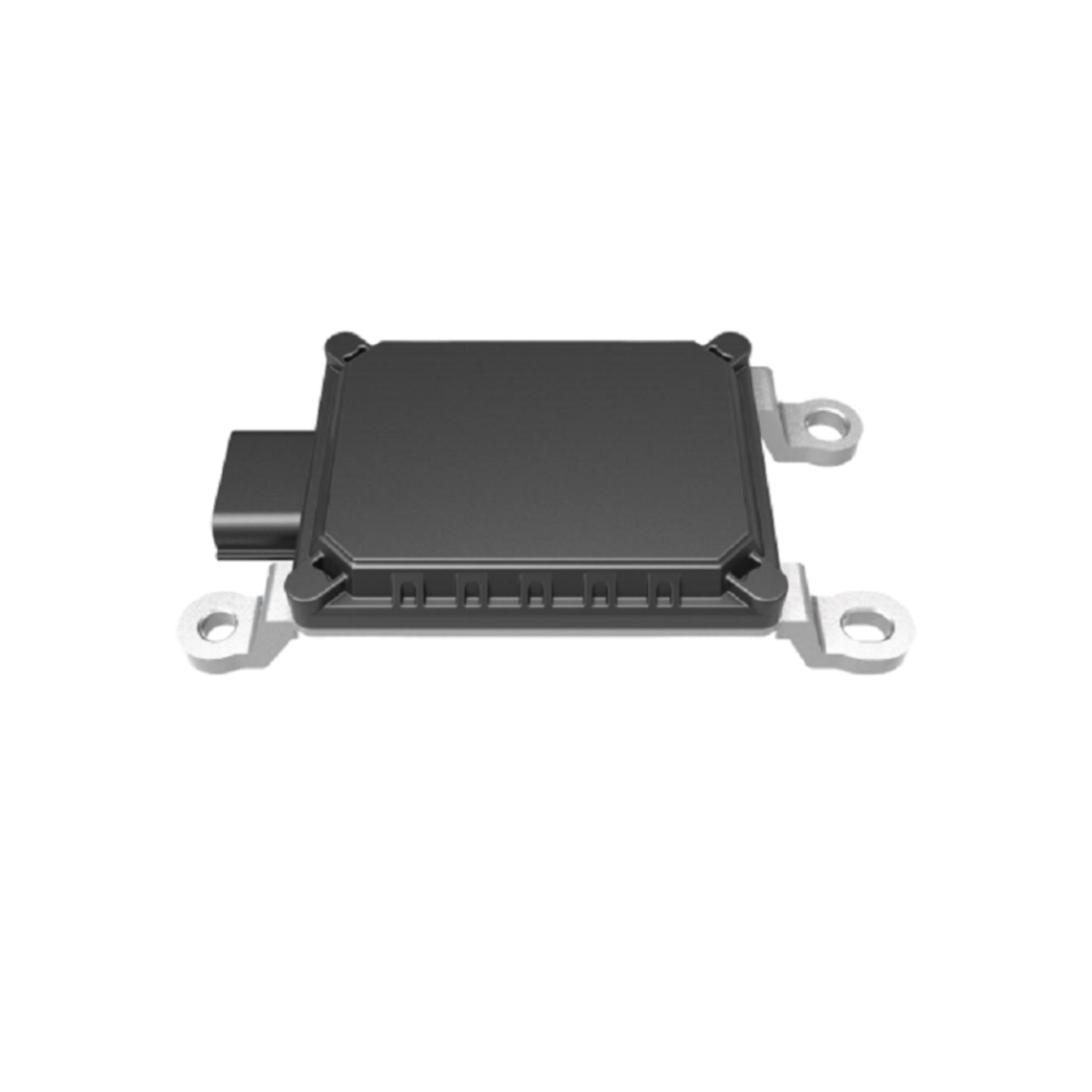

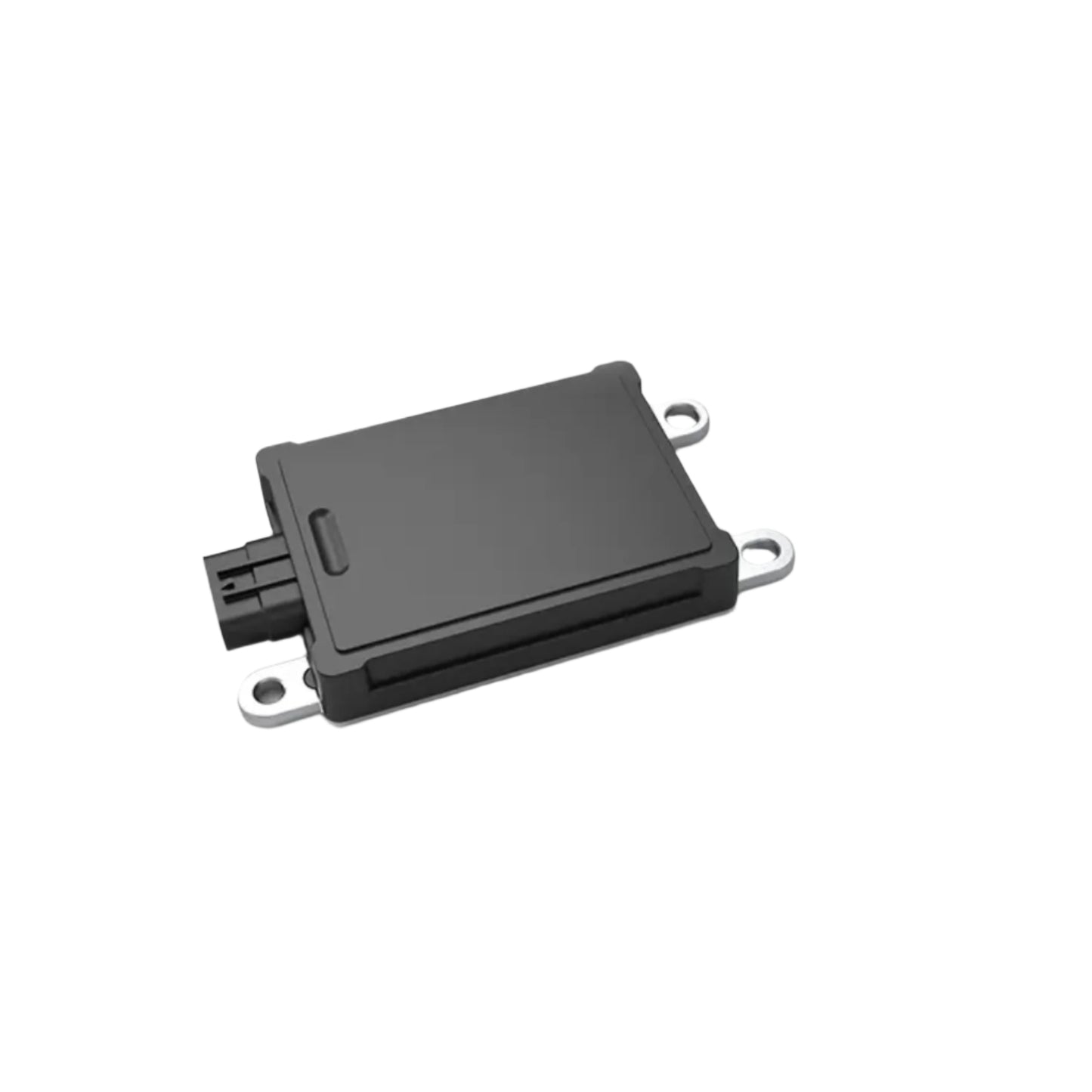

The NANORADAR MR76S Traffic Flow Radar is a compact, advanced millimeter-wave radar from the 77GHz MMW radar series. It uses forward-launched 77GHz millimeter waves to detect the reflection of objects, providing real-time data on the relative distance, speed, and angle of obstacles such as vehicles and e-bikes on the road.
Featuring cutting-edge technologies like DBF digital wave beam combination, MIMO, and advanced beam-forming, the MR76S can measure distances from 1.2 to 300 meters and detect up to 128 objects simultaneously. With its small size, high sensitivity, stable performance, and ease of integration, the MR76S is an ideal solution for traffic flow monitoring and intelligent transportation systems.
Specifications:
- Model: MR76S
- Distance Measuring Range(M): 1.2 to 300
- Power Consumption (W): Under 12V/24V 2.5W
- Range: 1. 1.2~300m@0° & 1.2-200m@±11° for LRR 2. 1.2~50m@±45° for MRR
- Operating Temperature (°C): -40°C to +70°C
- Storage Temperature (°C): -40°C to +85°C
- Power Supply (V): 12V DC
- Working Current (A): 0.13 A
- Protection Class: IP67
Features:
- It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-8 lanes, and longitudinal 300 meters.
- It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h.
- It supports multi-row virtual coil setting, coil size, and position software can be adjusted, and real-time output of vehicle presence information;
- It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc;
- It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc.
- It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc.
- It supports customized data output.
- Easy to use install.
- Good quality product.
Package Included:

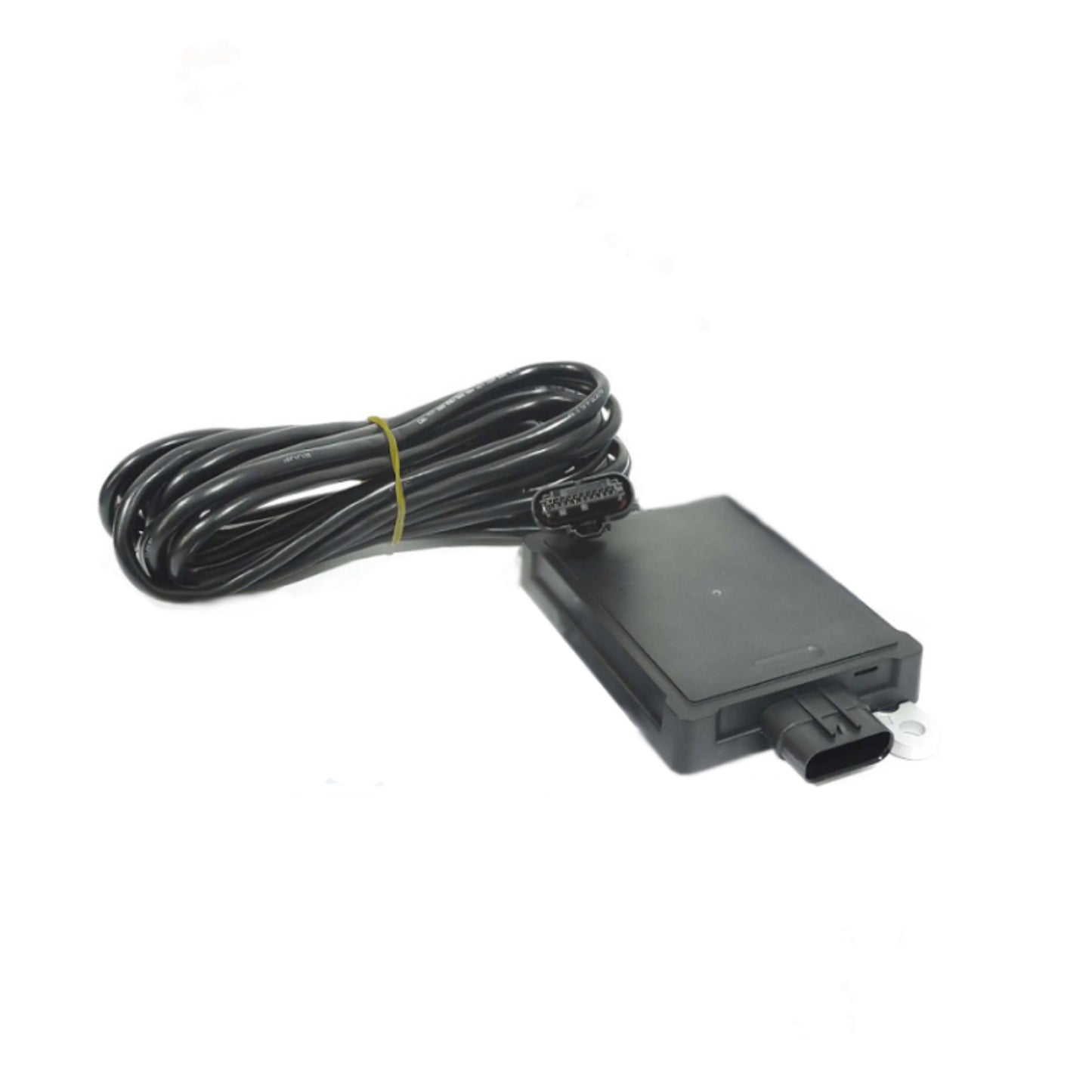

1 X NANORADAR MR76S Traffic Flow Radar 77GHz Radar Sensor High-Speed Traffic Flow Radar For Traffic Monitoring
