Description:

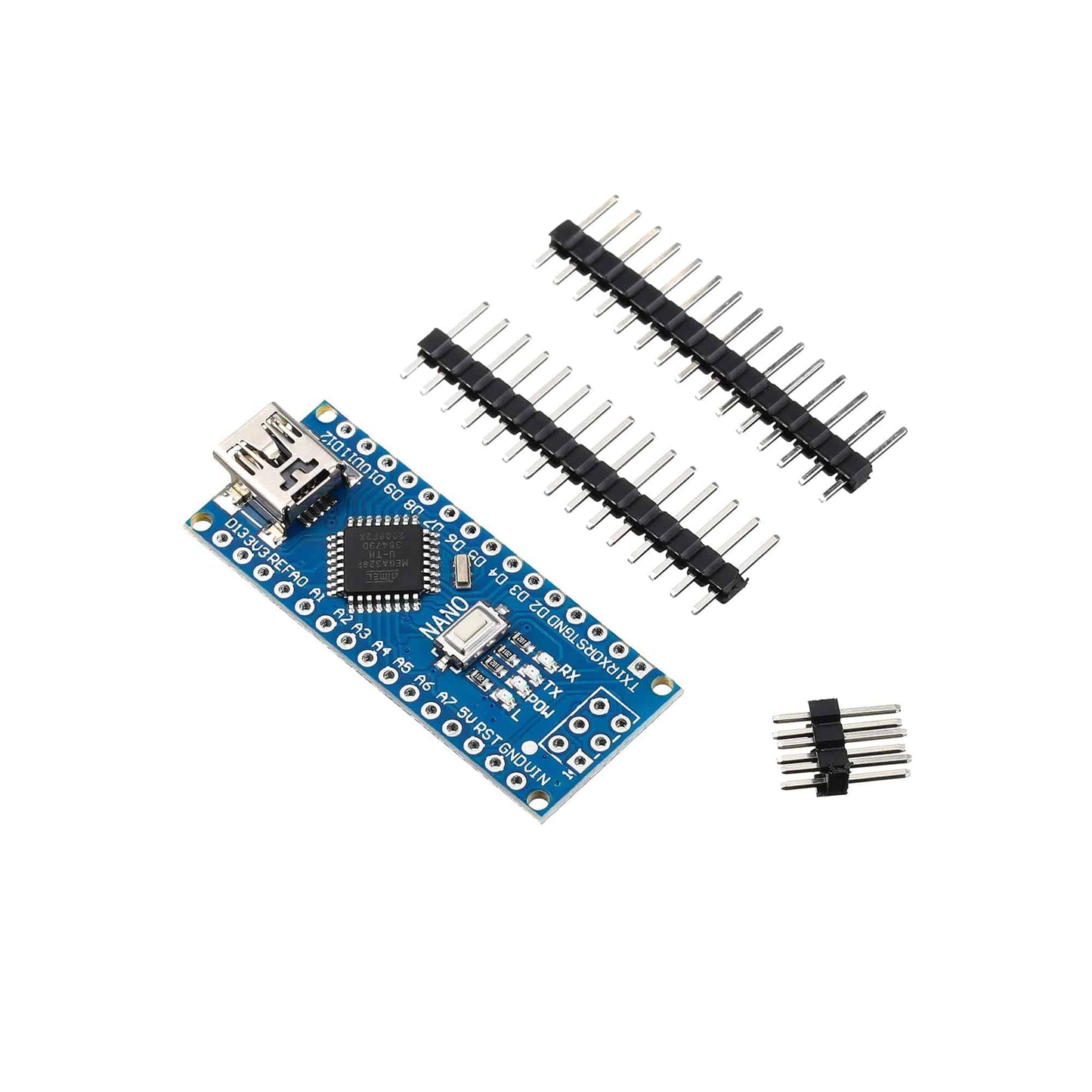

This compact Nano R3 board, based on the Arduino platform and featuring the CH340 chip, offers the functionality of an Uno in a smaller form factor. Ideal for space-constrained projects, it uses a cost-effective Mini-USB connection and ATmega328 microcontroller. This breadboard-friendly board is a budget-friendly alternative to the FTDI-equipped Nano.
The Nano board accepts a wide range of power inputs: 5V via Mini-USB or regulated supply, and 6-20V unregulated. Automatic voltage selection ensures stable operation from the highest available source.

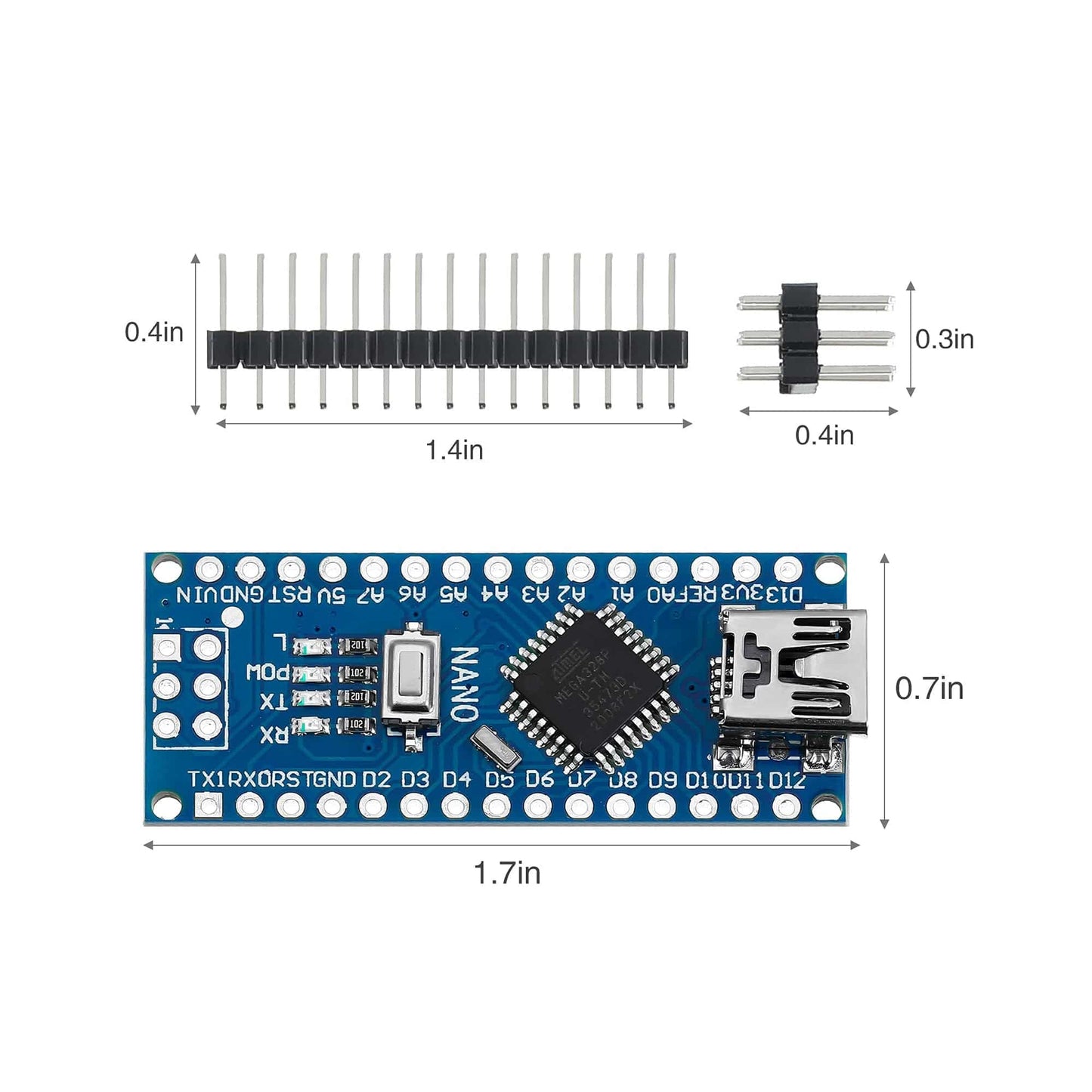

The compact Nano V3.0 (CH340) measures just 43x18mm, offering 14 digital I/O (6 PWM), 8 analog inputs, 16MHz clock speed, and 32kB flash memory.
Specifications:
| Microcontroller |
ATmega328 |
| Operating Voltage |
5VDC |
| Input Voltage |
7 to 12V |
| Digital I/O Pins |
14 |
| Analog I/O Pins |
8 |
| DC Current per I/O Pin |
40mA |
| Flash Memory |
32 KB |
| SRAM |
2 |
| EEPROM |
1 KB |
| Clock Speed |
16 MHz |
Features:
- Serial Communication: TTL RX/TX ports for easy serial data transfer.

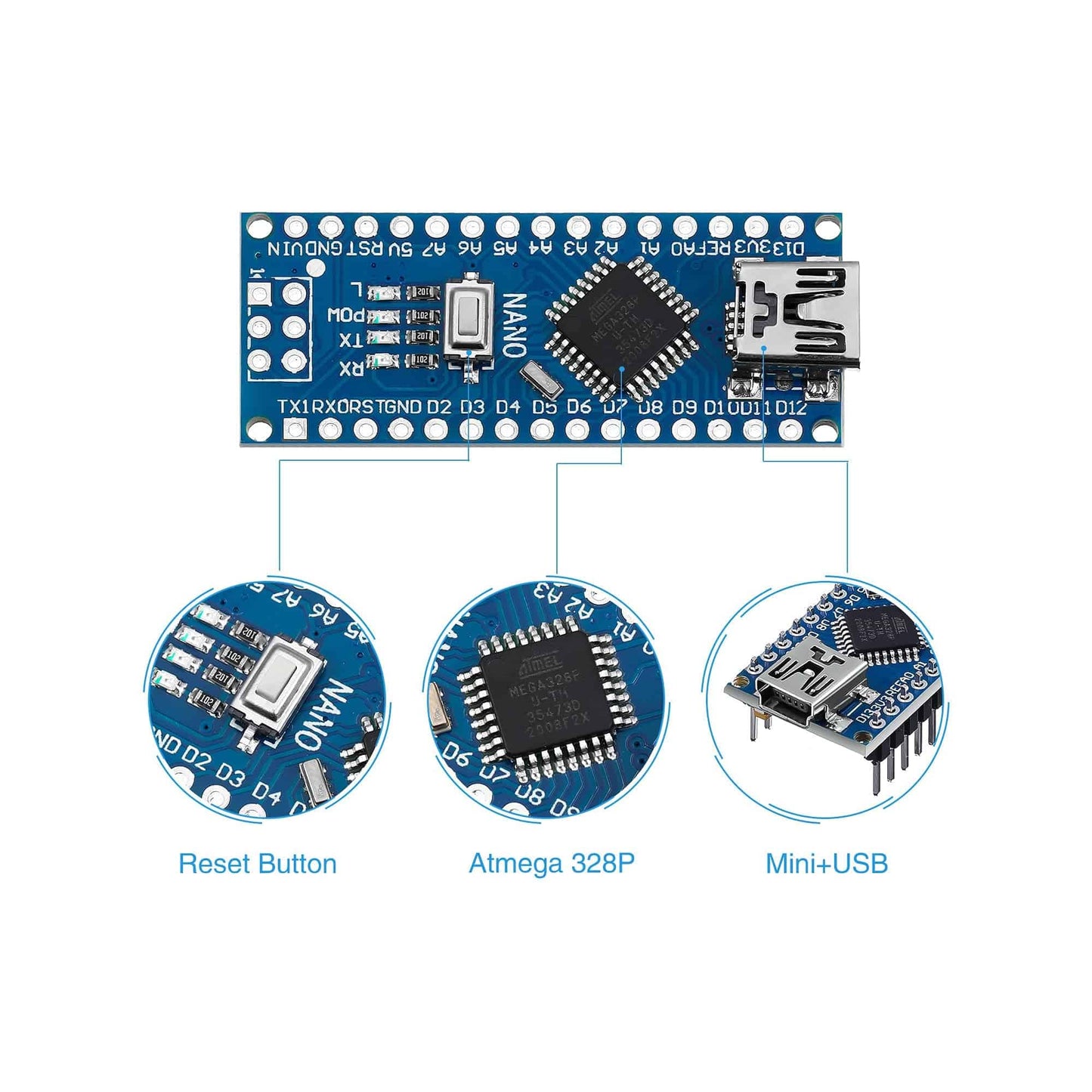

- Atmega328P-AU MCU: Reliable Atmel microcontroller for robust performance.
- Pre-Loaded Bootloader: Simplifies code uploads via USB.
- USB Power & Programming: Convenient USB connection for power and code uploads.
- Flexible Power Options: Supports 5-12V DC, 9V battery, and USB power.
- ISP Programming: ICSP header for direct firmware programming.
- Auto-Reset: Automatic reset during code upload.
- Status LEDs: Power, TX, RX, and user-programmable LEDs for visual feedback.
- AREF Jumper: Selectable +5V reference voltage.
- Auto Power Selection: Seamless switching between power sources.
- Mini-B USB: Compact USB port for programming and serial monitoring.
- Breadboard Friendly: Standard 0.1" DIP spacing for easy prototyping.
- Manual Reset: Dedicated reset switch for manual control.
Package Included:
1 x Nano R3 with CH340 Arduino Nano Compatible
