Description:

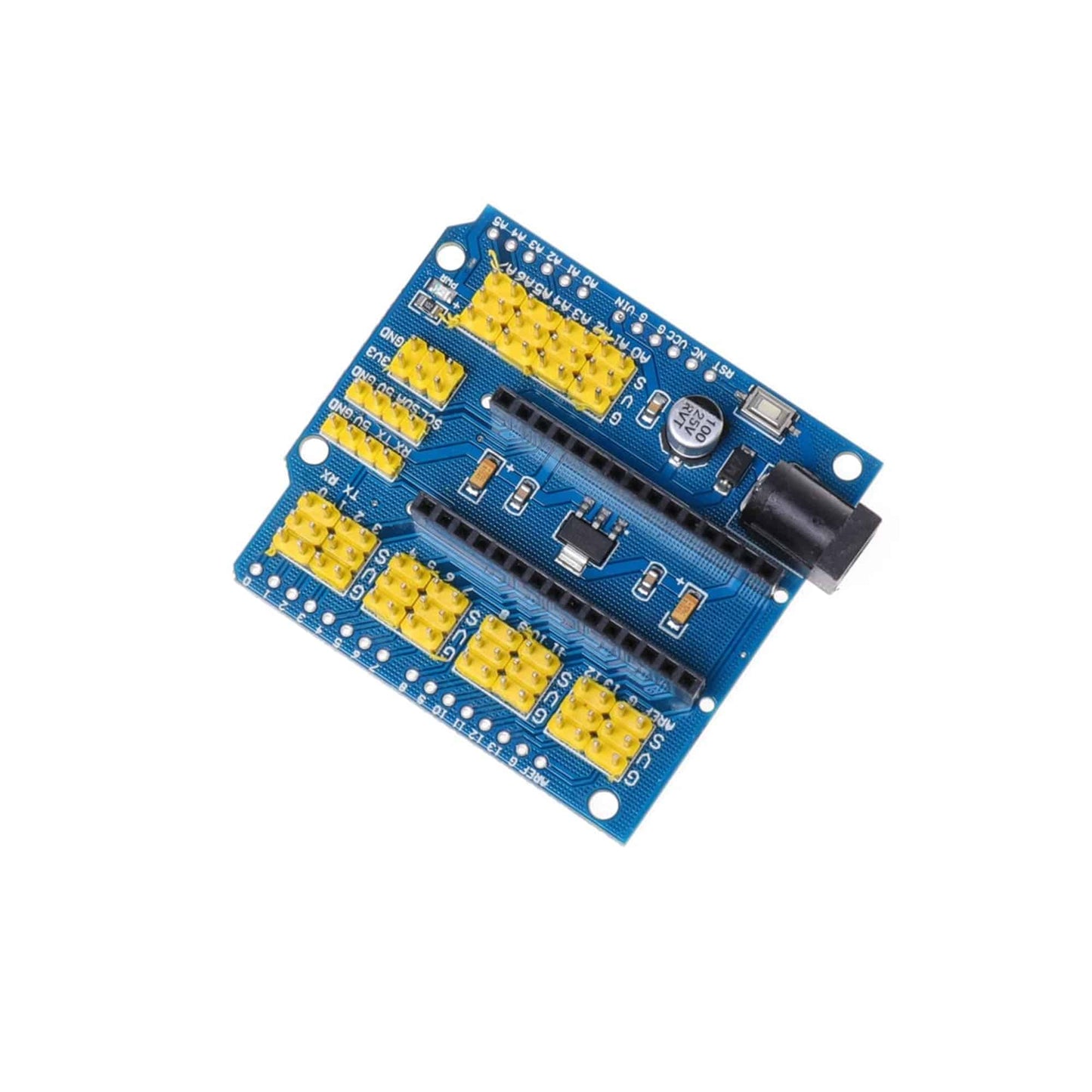

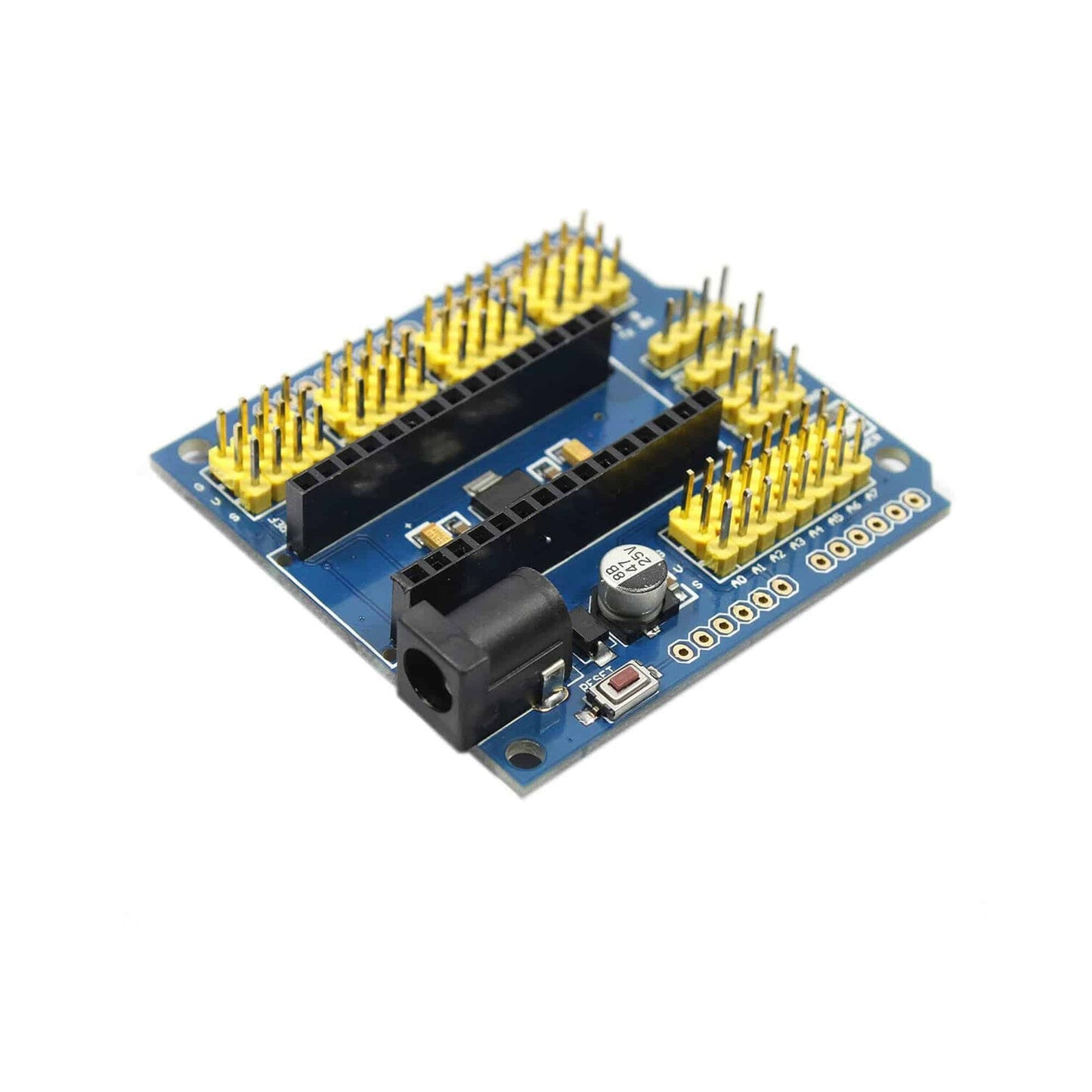

The Nano Expansion Shield acts as a breakout board for the Arduino Nano microcontroller. There are several different options for power input and the footprint of this board is the same as the Arduino Duemilanove. In addition, each pinout includes 5V and GND pins for easy connection to sensors or servos. The unit comes fully assembled.
Nano Expansion Shield is specifically designed to facilitate an easy connection between Arduino Nano and many other devices. In essence, it expands the Arduino Nano controller to link those devices in a simple and trouble-free manner.
Nano Expansion Shield is a perfect companion to the Nano breadboard and compatible with both Arduino Nano v2.x and v3.x.
Specifications:
- Input Voltage: 3.3 ~ 5V
- No. of Analog Pins: 8
- No. of PWM Pin: 6
Features:
- Nano Expansion Shield is compatible with Arduino NANO.
- All digital and analogue pins break out.
- External power supply current support.
- Leads all pins out, which is convenient for wiring and doing experiments.
Pin Description:
- 14 I/O Pin (servo type with GND, power, and signal).
- 8 analogue PIN with power output and GND.
- 6 PWM Pin.
- 1 Servo power input.
- 5 I2C expansion Pin.
- 1 AREF output.
- 1 3.3V output.
You can use this module with Arduino Nano.
Package Included:
1 x Nano Expansion Shield Nano 328P Expansion Adapter Breakout Board IO Shield
