- Output Voltage: 3.3V
- I/O Pin-14 I/O Pin (servo type with GND, power, and signal)
- Analog Pin-8 Pins with power output and GND
- PWM Pin-6 Pins
- Expansion Pin-5 I2C Expansion Pins
- 7-12V external power supply
Description:

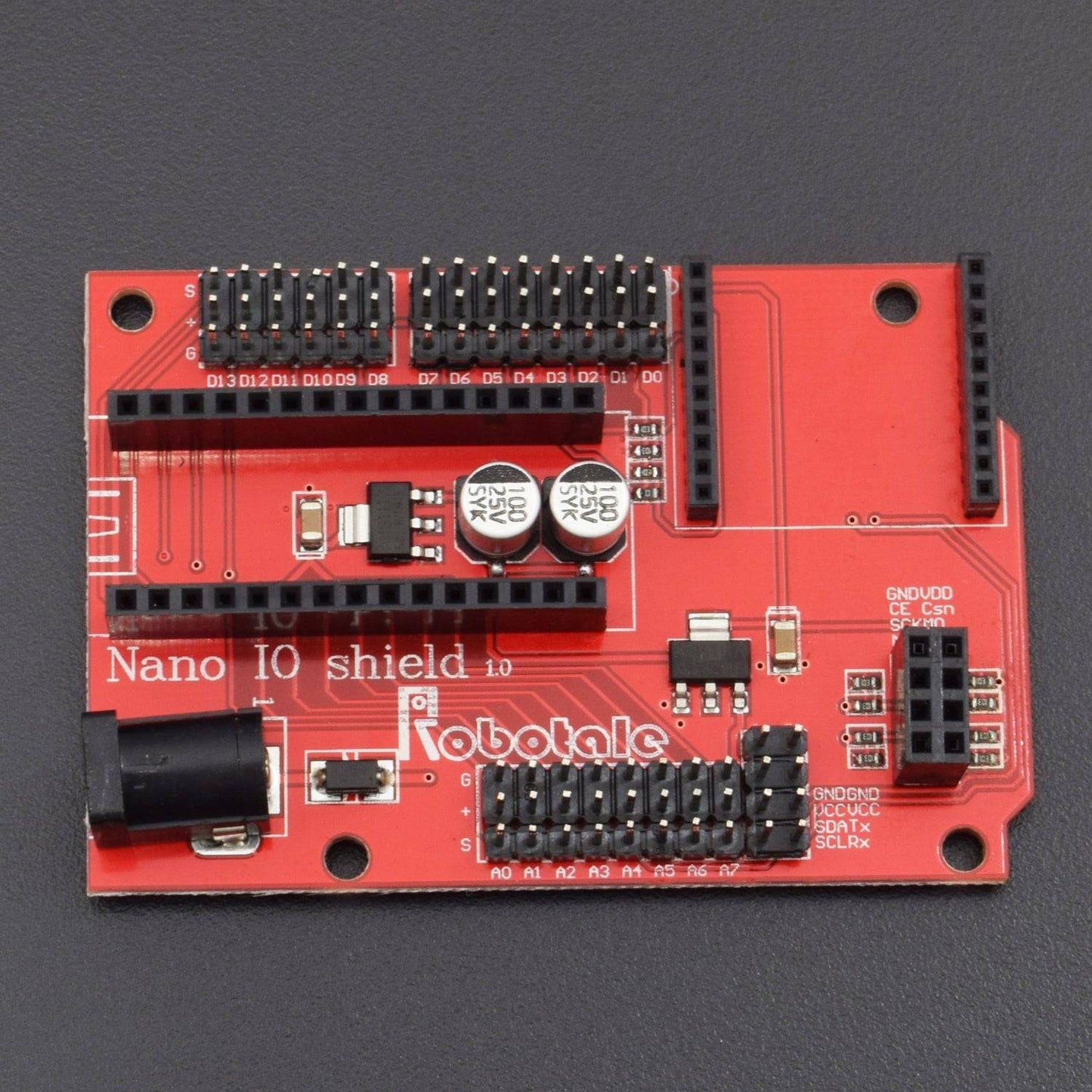

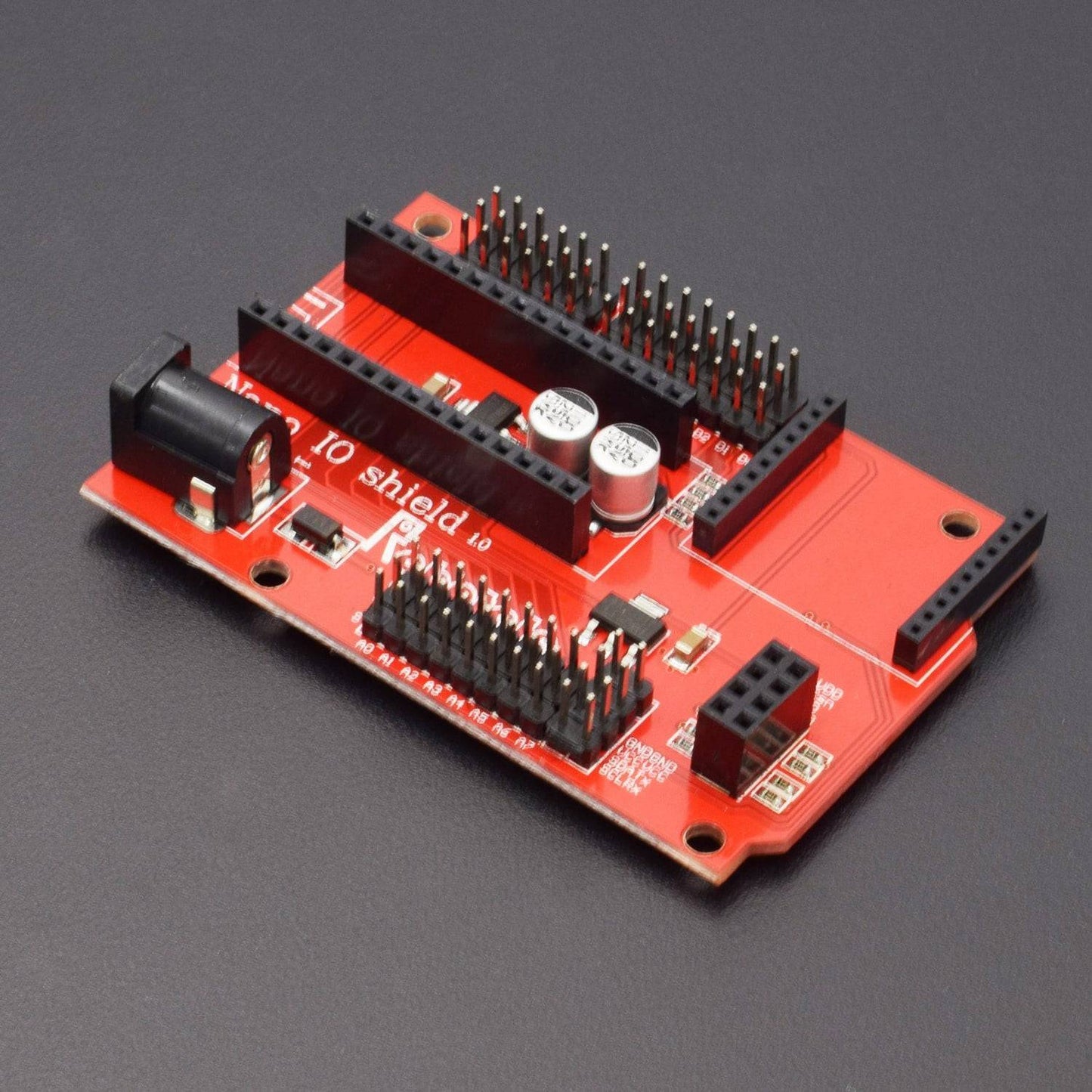

Nano IO shield is a breakout board for Arduino Nano. It breaks out all pins as Electronic brick 3pin interface, the Zigbee XBee Series Modules, and the nRF24L01 wireless interface. And it supports 7-12V external power supply.
Specification:
- Output Voltage: 3.3V
- I/O Pin-14 I/O Pin (servo type with GND, power, and signal)
- Analog Pin-8 Pins with power output and GND
- PWM Pin-6 Pins
- Expansion Pin-5 I2C Expansion Pins
- 7-12V external power supply
Features:
- All digital and analog pins breakout
- XBee and nRF24L01+ module interface
- External power supply current support
- Compatible pin map for electronic brick
Package Included:
1 x Nano 328P IO Shield Expansion Board
