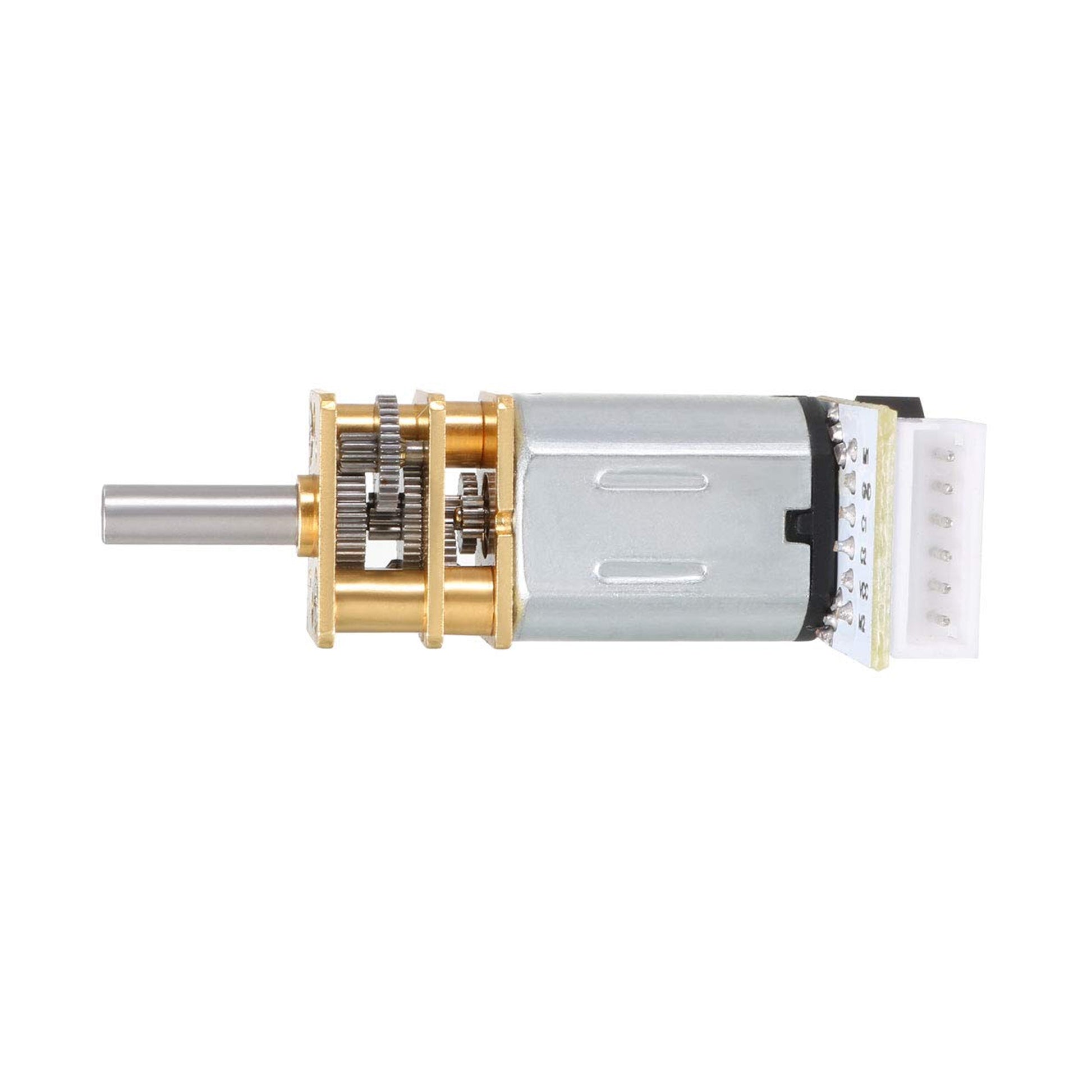

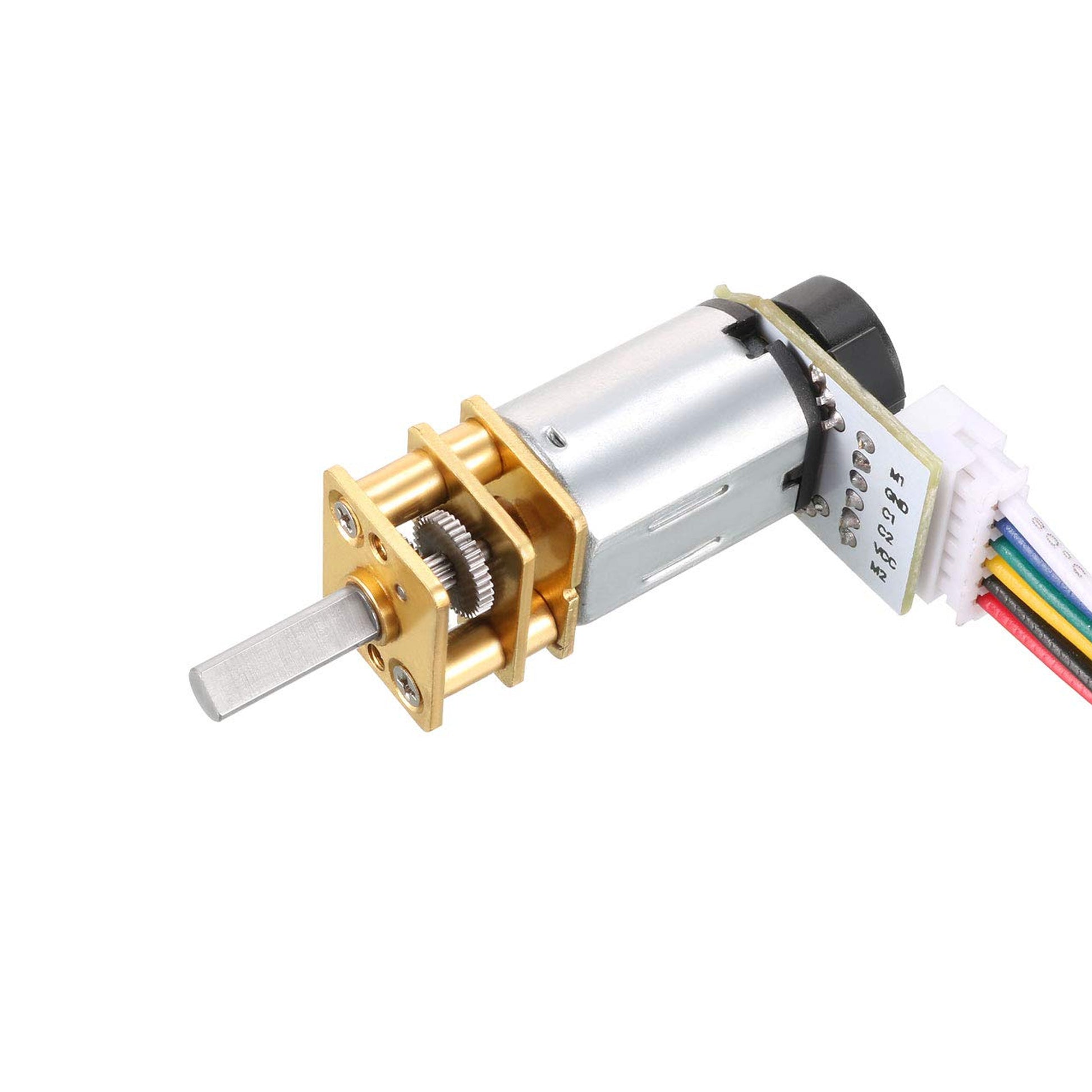

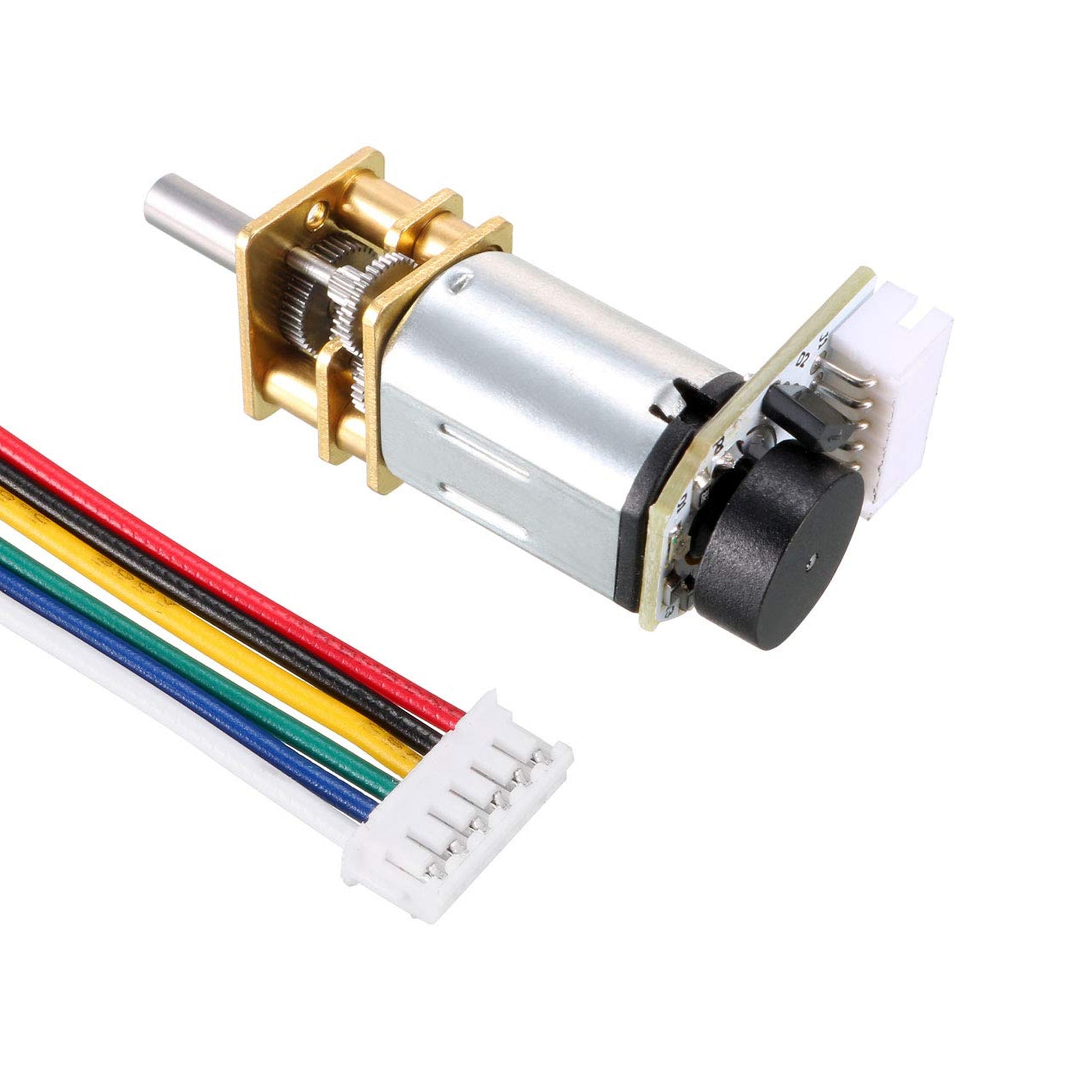

Description:
This is an N20 Gear Motor N20 3V 35 RPM Micro Metal Gear Motor With Encoder N20 Motor. These N20 3V 35RPM Micro Metal Gear Motor With Encoder is intended for use at 3V. Though in general, these kinds of motors can run at voltages above and below this nominal voltage; so they should comfortably operate till the 3V (rotation can start at voltages as low as 0.5 V).
Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor. The micro metal gear motors are available in a wide range of gear ratios—from 5:1 up to 1000:1. Except 1000:1 gear ratio versions, all of the micro metal gear motors have the same physical dimensions; so one version can be easily swapped for another if your design requirements change.
Specifications:
- Model No.: GA12 N20
- No Load Current: 10mA
- No load Speed: 35RPM
- Rated Speed: 30RPM
- Rated Current: 20mA
- Rated Torque: 0.24kg-cm
- Stall Current: 1A
- Stall Torque: 2.0kg-cm
- Gear Ratio: 298:1
- Shaft Type: D-type, Single Side
- Shaft Diameter: 3mm
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
- Count: 3PPR(Pulse per Revolutions).
- Motor Size: 15 x 12 x 10 mm.
Package Included:
1 x N20 Gear Motor N20 3V 35 RPM Micro Metal Gear Motor With Encoder N20 Motor
