- Motor Type: Center Shaft DC Geared Motor
- Rated Operating Voltage: 3 V
- No Load Current: 0.08 A
- Stall Current: 0.1 A
- Rated RPM: 300 RPM
Description:

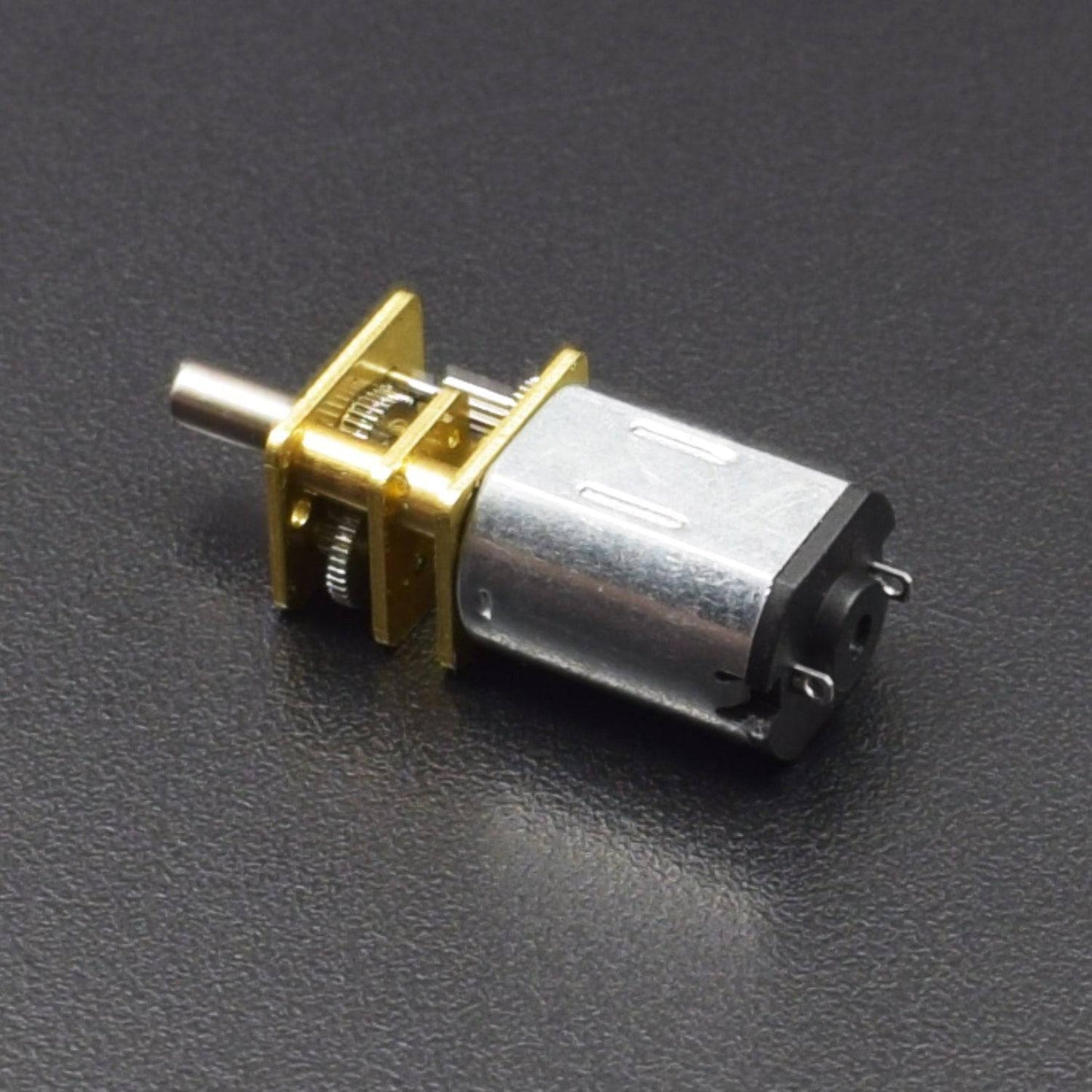

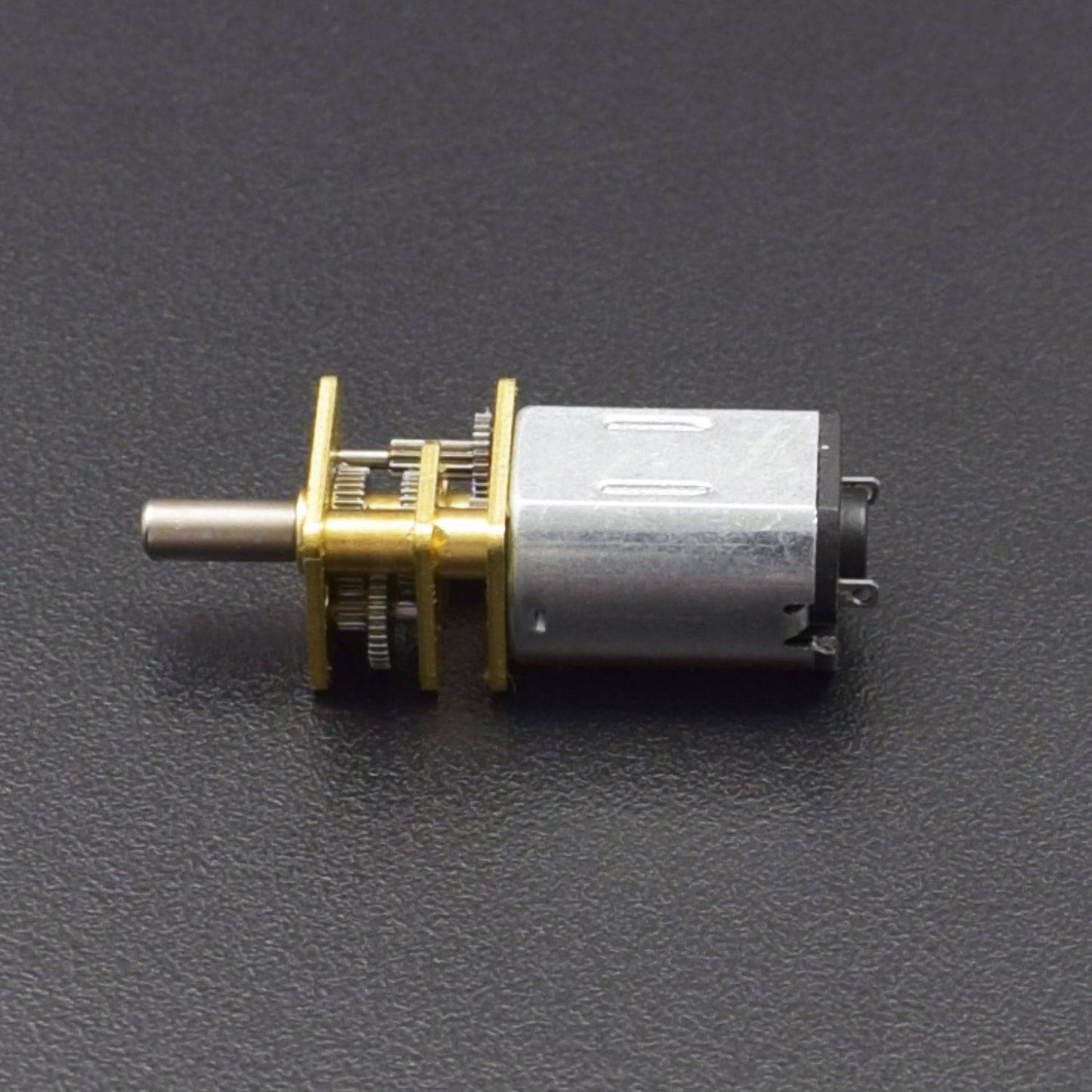

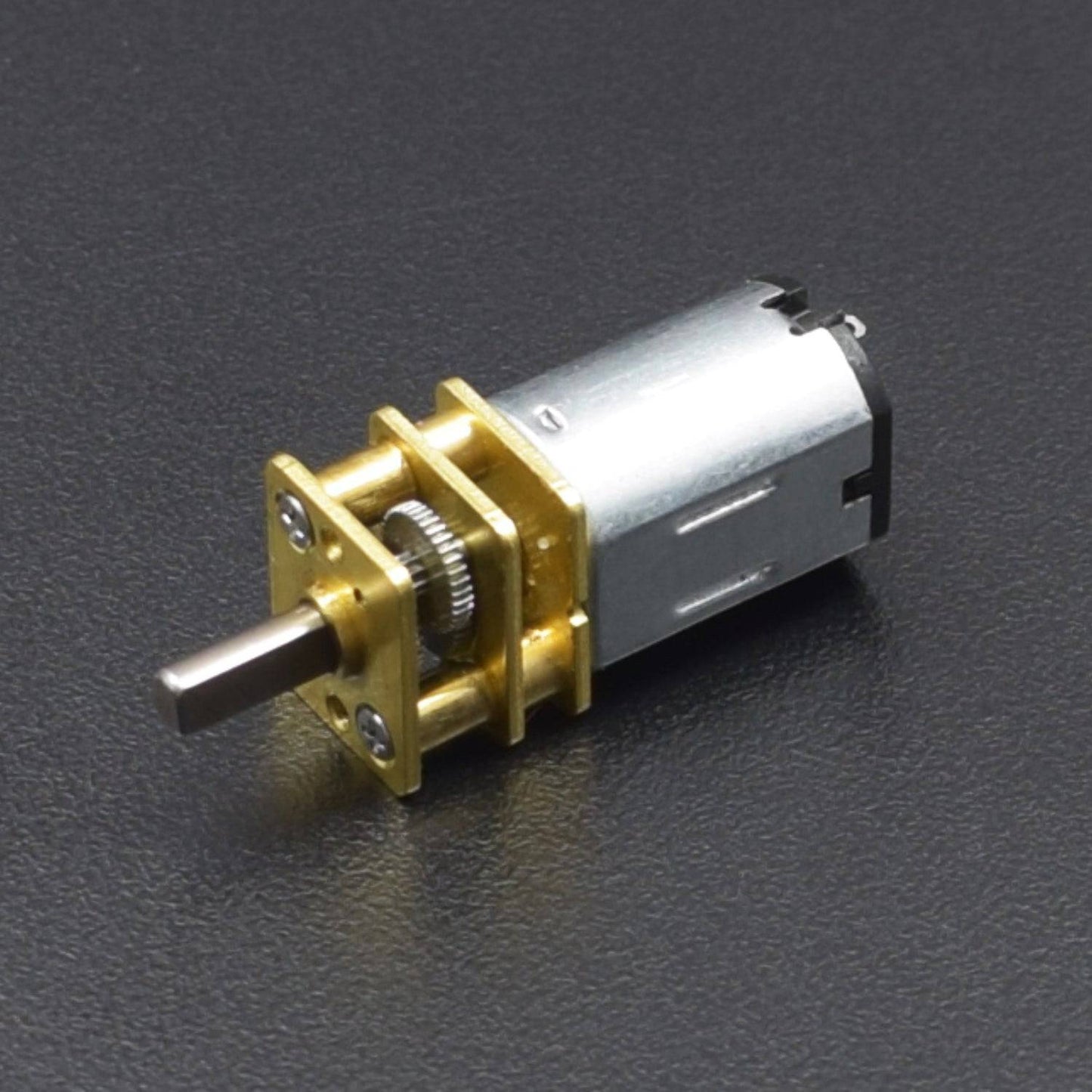

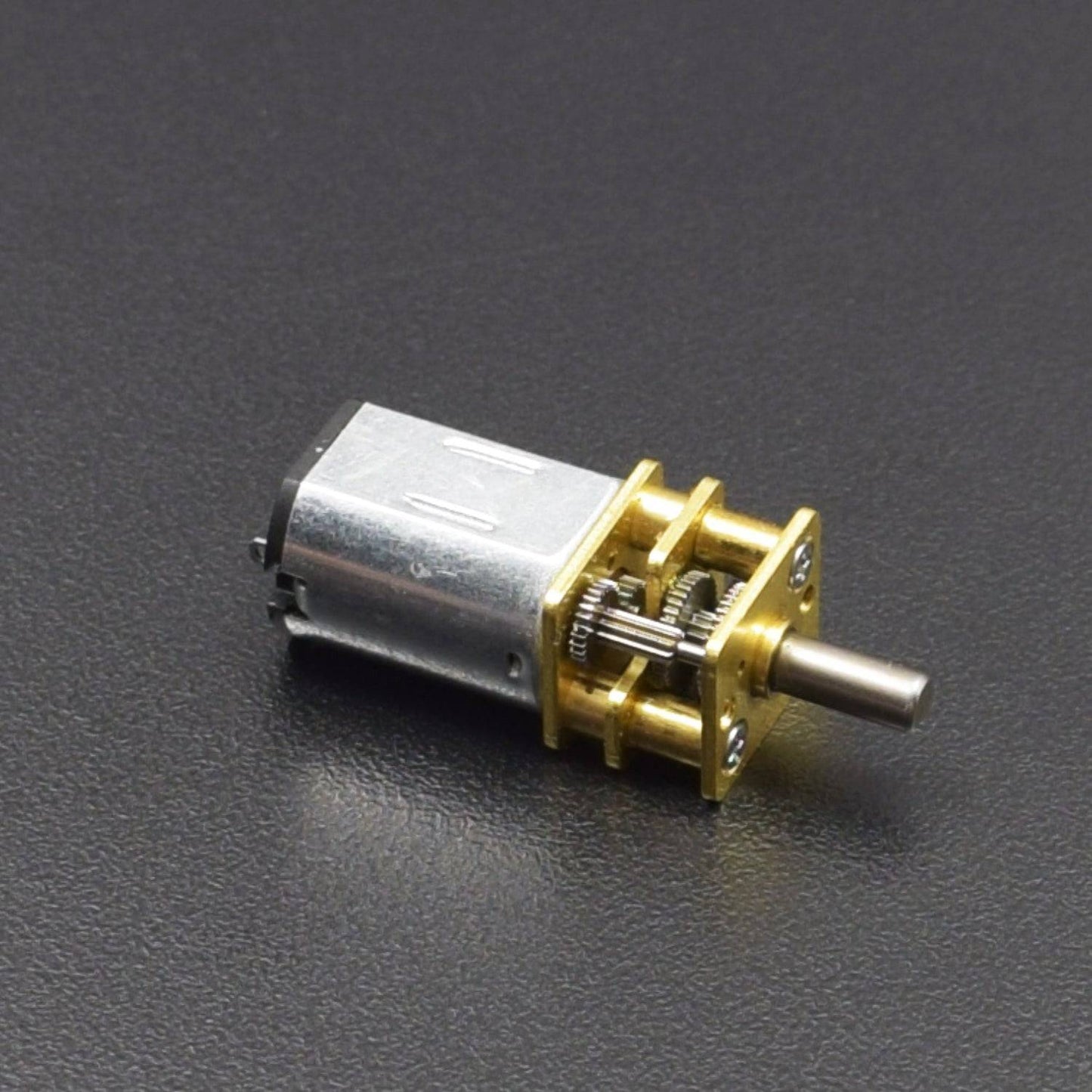

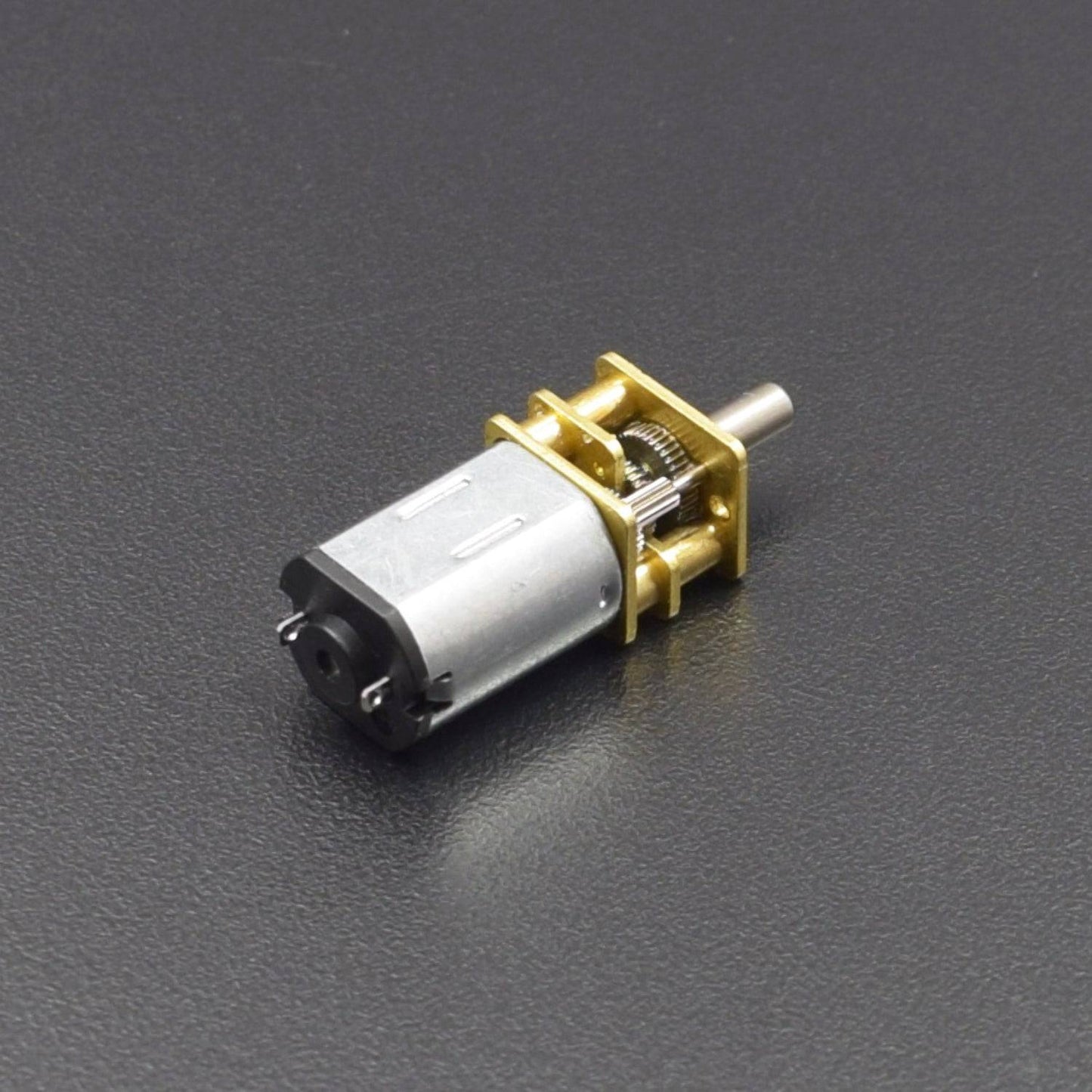

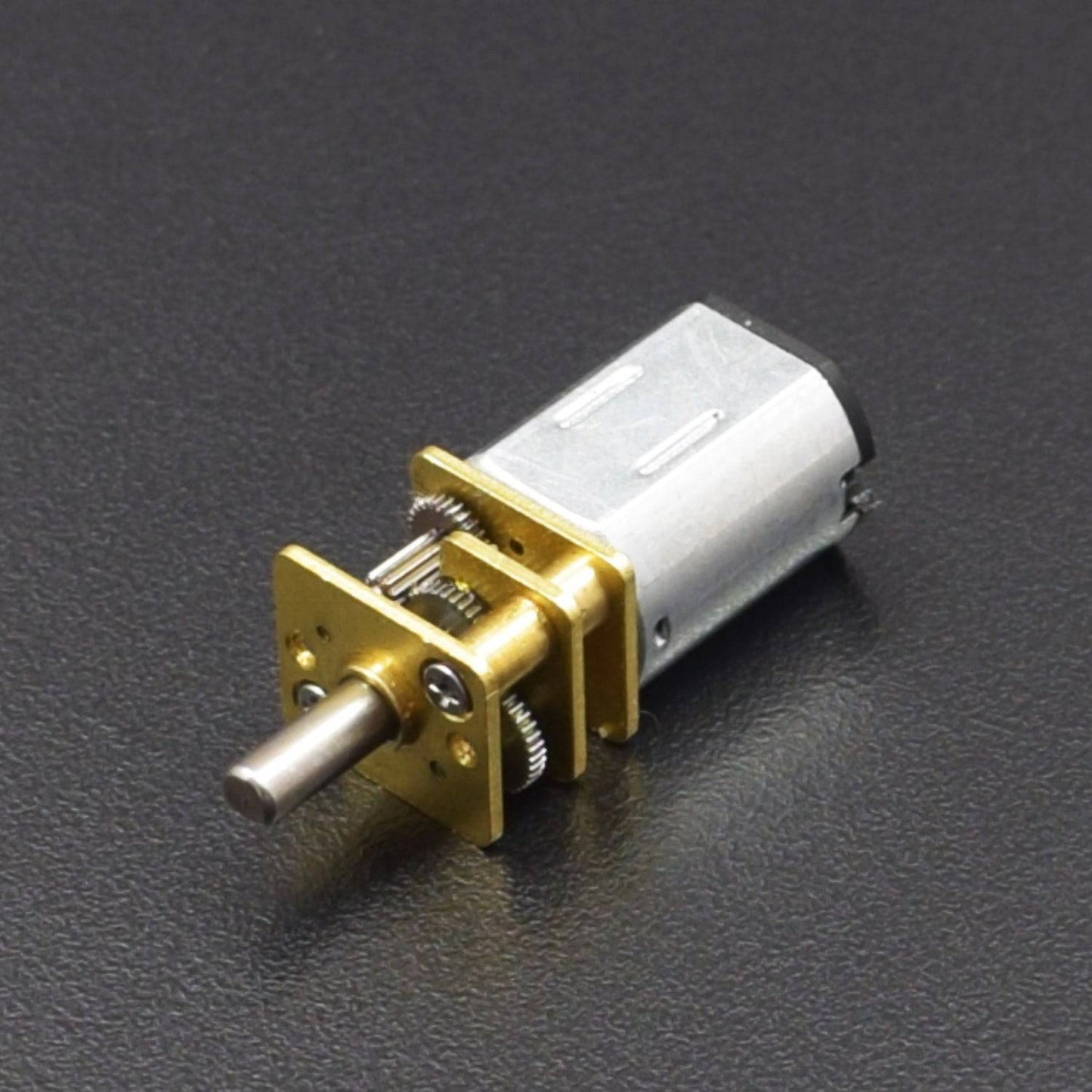

The N20 Micro Gear 3V 300 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. Because of its small size, the motor fits in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads. This N20 Micro Gear 300 RPM 3V DC Motor (High Torque) has a small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Specification:
| Model | N20-3V-300 RPM |
| Motor Type | Center Shaft DC Geared Motor |
| Rated Operating Voltage | 3V |
| No Load Current | 0.08 A |
| Stall Current | 0.1 A |
| Rated RPM | 280 RPM |
| Operating Voltage Range | 1.5~5 V |
| Rated Torque | 0.06 kg-cm |
| Stall Torque | 0.80 kg-cm |
| No load Speed | 300 RPM |
| Gear Ratio | 1:298 |
| Shaft Type | D-type Single Side |
| Motor Body Size (Diameter) | 12 mm |
| Shaft Diameter | 3 mm |
| Output Axial Length | 10 mm |
| Screw Size | M3 |
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Package Included:
1 x N20-3V-300 RPM Micro Metal Gear-Box DC Motor
