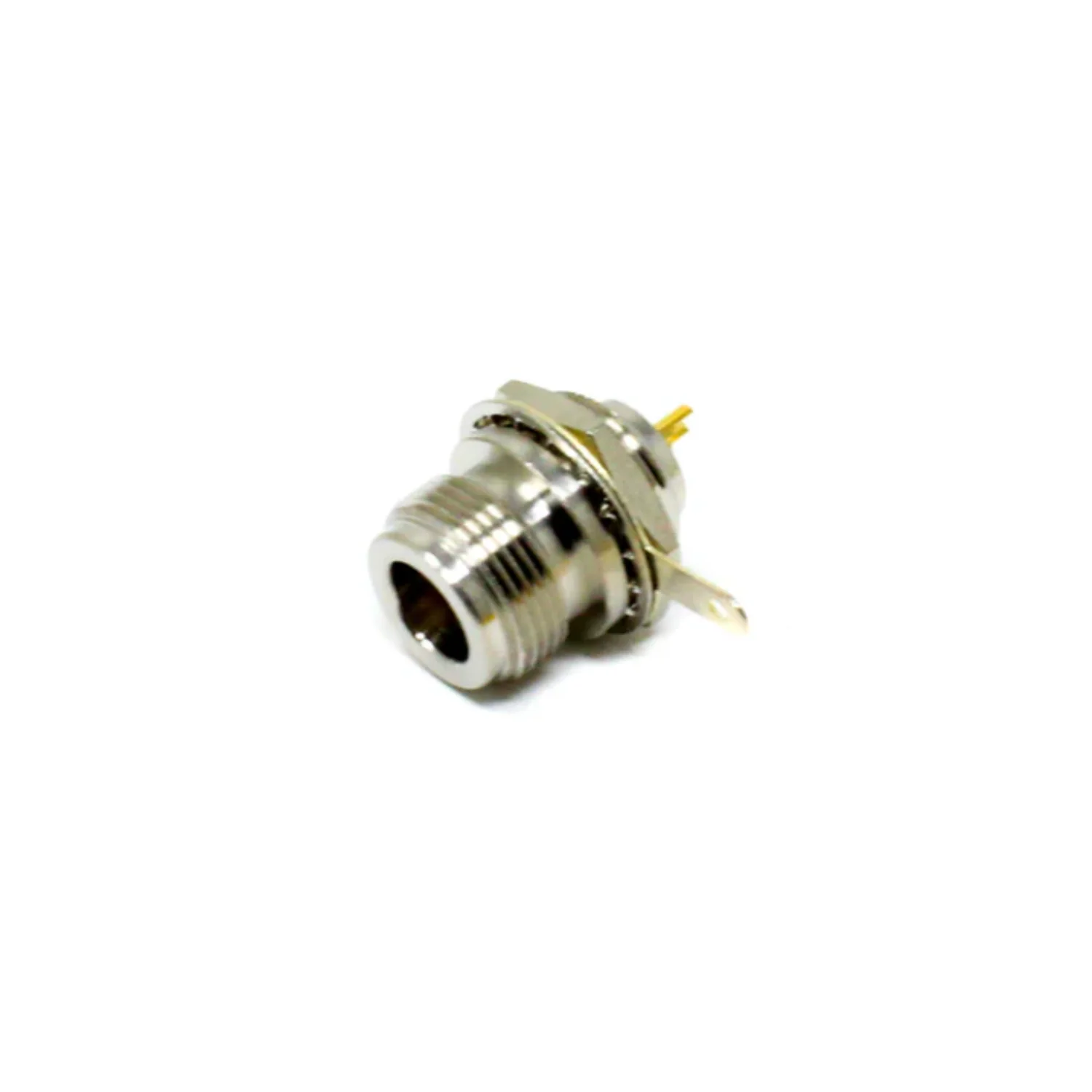

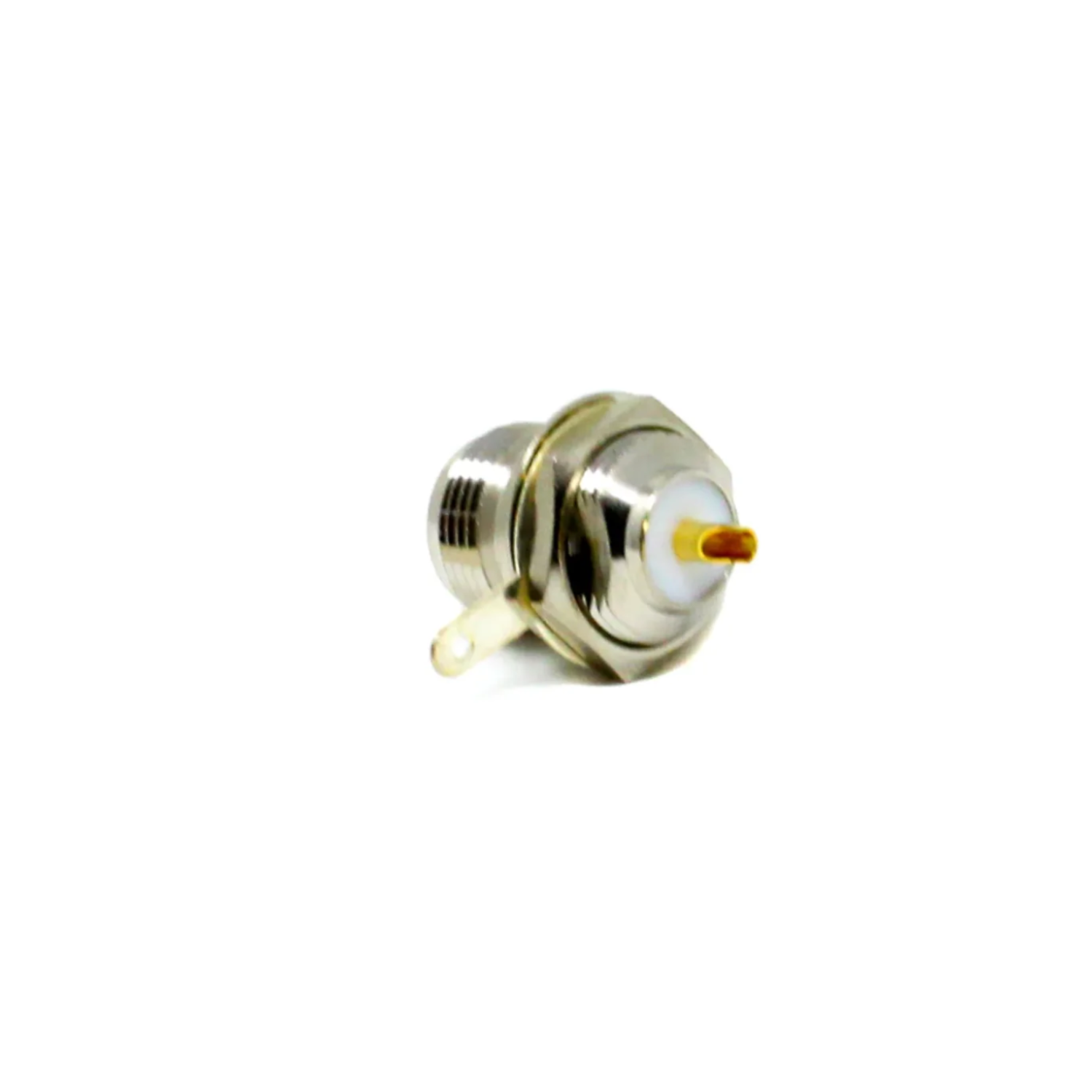

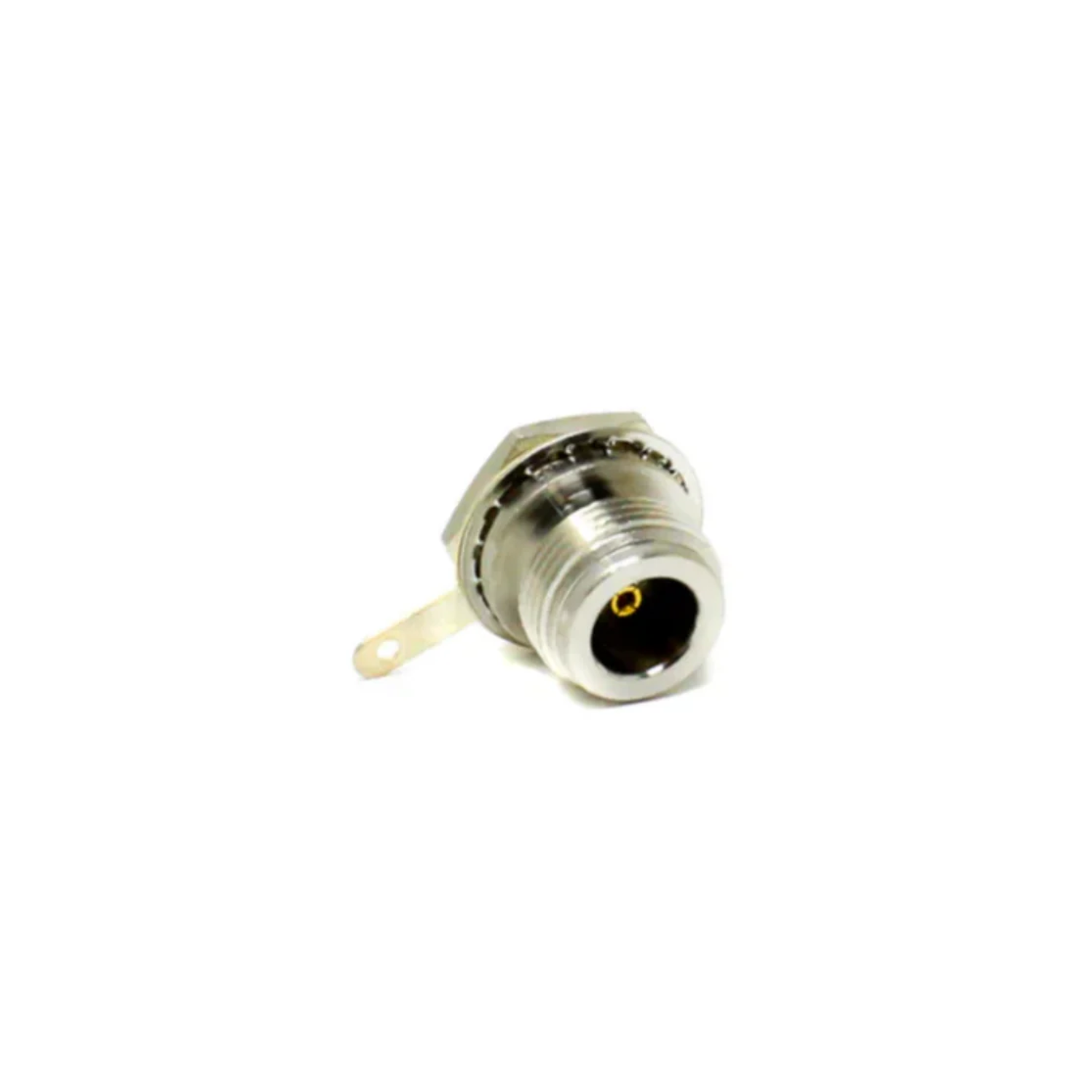

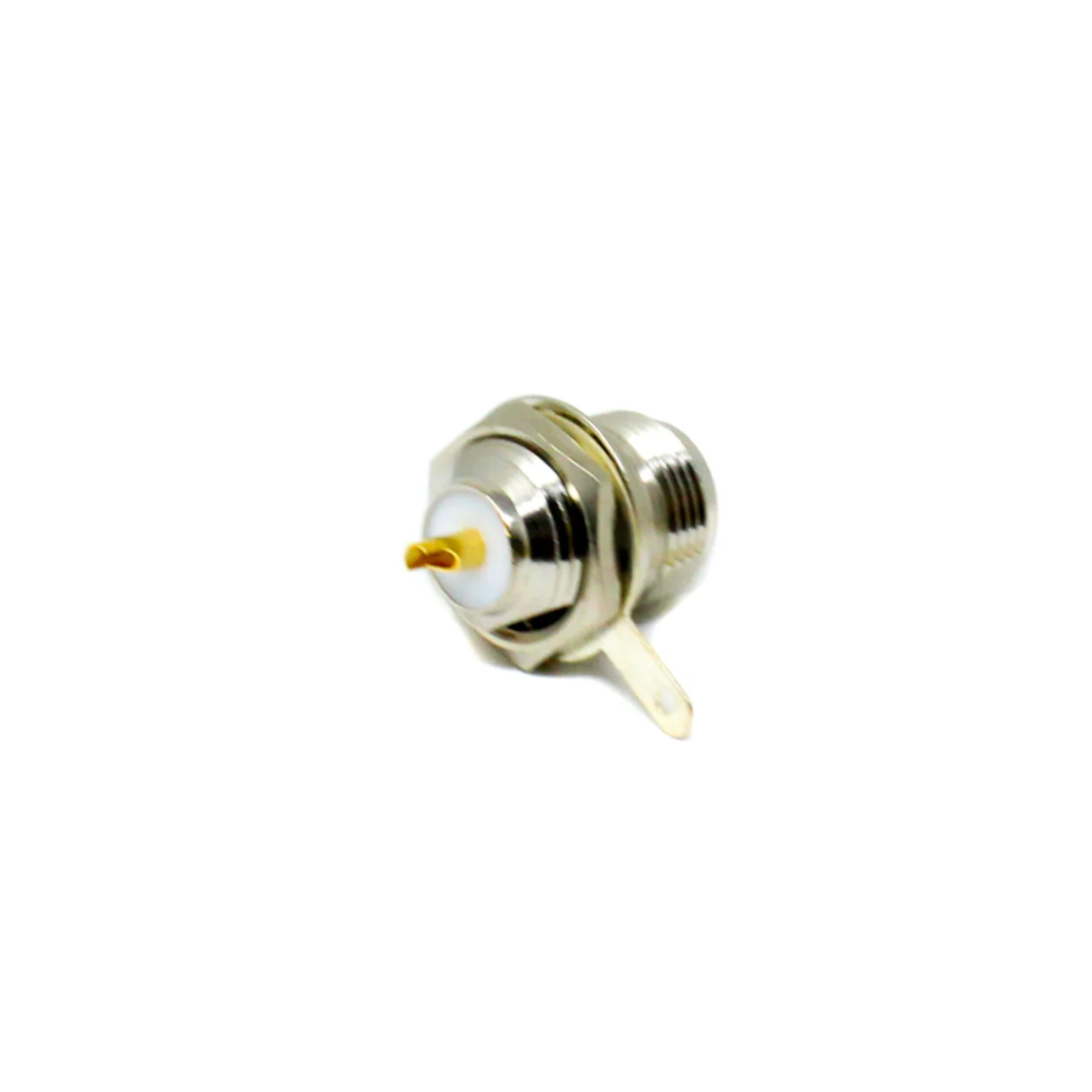

N-Type Female Bulkhead Connector 180 Degree Bulkhead Solder Panel Mount RF Coaxial Connector - RS3992

N-Type Female Bulkhead Connector 180 Degree Bulkhead Solder Panel Mount RF Coaxial Connector - RS3992

RS3992

In stock

Rs. 216.00
Rs. 216.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Descriptions:

N-Type Female Bulkhead Connector with 180-Degree Solder Termination for Secure Panel Integration: Engineered for demanding RF applications, this 50-ohm N-Type female connector provides a bulkhead mount, enabling secure and stable panel integration. The 180-degree (straight) solder termination ensures a reliable, high-performance connection, making it ideal for enclosures and test setups requiring a durable, fixed interface.

Specifications:

  • Mounting Type: Panel Mount / Cable
  • Termination Style: Solder Type
  • Mounting Feature: Bulkhead
  • Polarity: Standard
  • Body Material: Copper
  • Body Plating: Nickel Plating
  • Impedance: 50 Ohms
  • Shield Termination: Solder
  • Frequency Range: 0~13 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 2500 V rms
  • Working Voltage: 1000 V rms

Features:

  • Wide Frequency Range
  • Optimal Impedance
  • Secure Connection
  • Versatile Applications

Main Application of N Connectors:

  • Aerospace and Defense: Radar Equipment
  • Medical: Ablation equipment
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
  • Data/Communications: Broadcast Electronics, Wifi
  • Industrial: Machine-to-Machine Communications

Package Included:

1 x N-Type Connector
