MyServo CS-1257TG 10KG Torque Coreless Digital Servo With Titanium Gears & Aluminum Heat Sink For RC Helicopters, Cars & Aircraft
MyServo CS-1257TG 10KG Torque Coreless Digital Servo With Titanium Gears & Aluminum Heat Sink For RC Helicopters, Cars & Aircraft
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

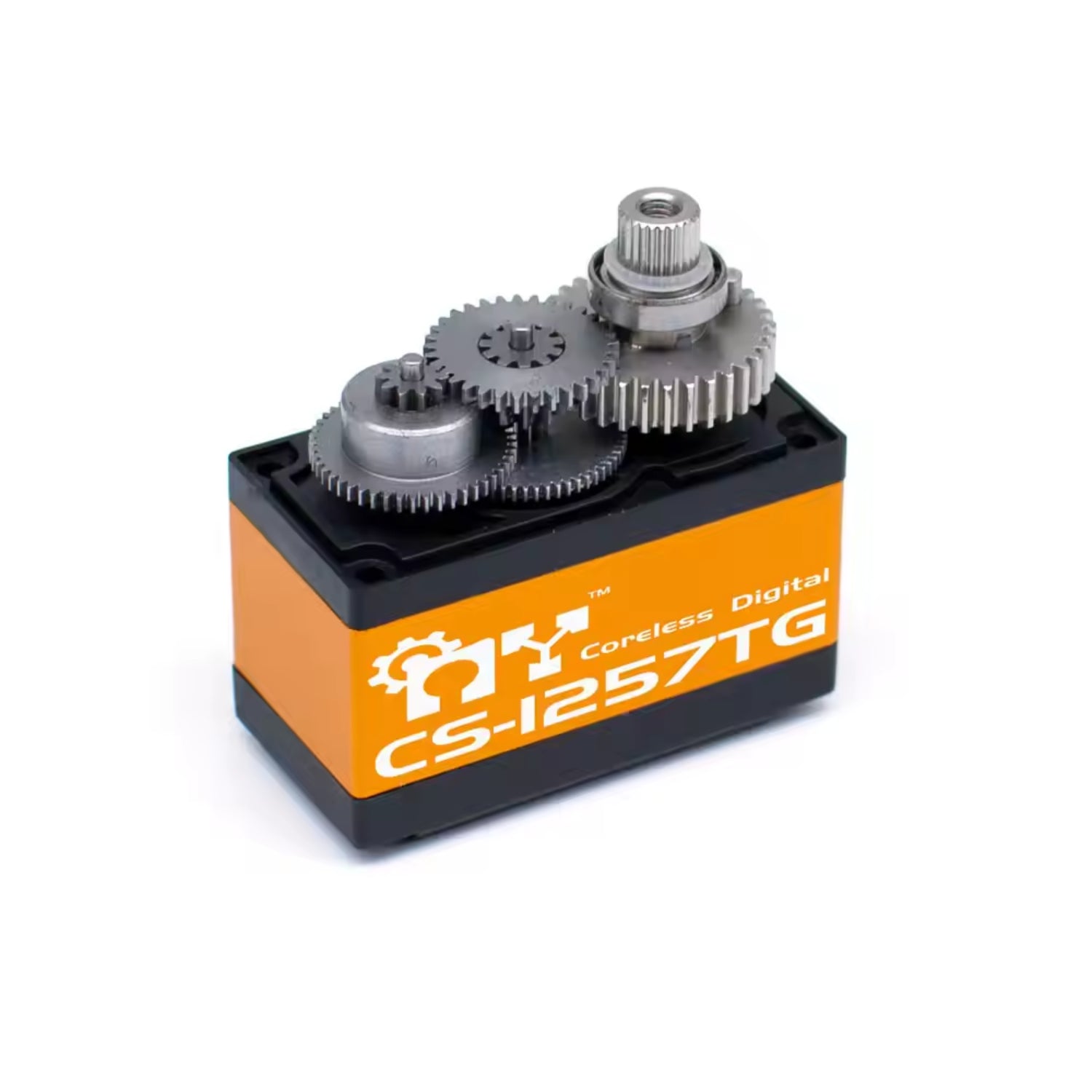

This 6.0V 10kg high-performance digital coreless standard servo. Engineered for rapid response, it boasts an impressive 0.07-second high-speed at 6V, making it ideal for the most demanding applications. Internally, a high-precision, Taiwan-made gear train, crafted from a durable titanium alloy and aluminum, ensures exceptional longevity and accuracy.
The robust aluminum medium case provides superior heat dissipation and structural integrity, while double ball bearings guarantee smooth, friction-free operation. Featuring an original JR plug for reliable connectivity, this servo delivers large torque, extended lifespan, and remarkably low noise. Further enhanced by its 32-bit programmable steering, it offers ultimate customization for your build.
Specifications:
- Dead band: 3μs
- Working frequency: 1520μs / 330Hz
- Motor: Coreless Motor
- Operating Speed (4.8V): 0.09sec/60°
- Operating Speed (6.0V): 0.07sec/60°
- Stall Torque (4.8V): 8.0kg.cm
- Stall Torque (6.0V): 10.0kg.cm
- Connector Wire Length: JR 265 mm
- Bearing: 2BB
- Output Gear Spline: 25T
Features:
- 6.0V 10kg high-performance digital coreless standard servo
- High-precision Taiwan-made titanium alloy and aluminum equipment
- 6V 0.07S high-speed standard digital servo
- Aluminum medium case
- Double ball bearings
- Original JR plug
- Large torque, Long life, Lower noise
-
32-bit programmable steering
Package Included:

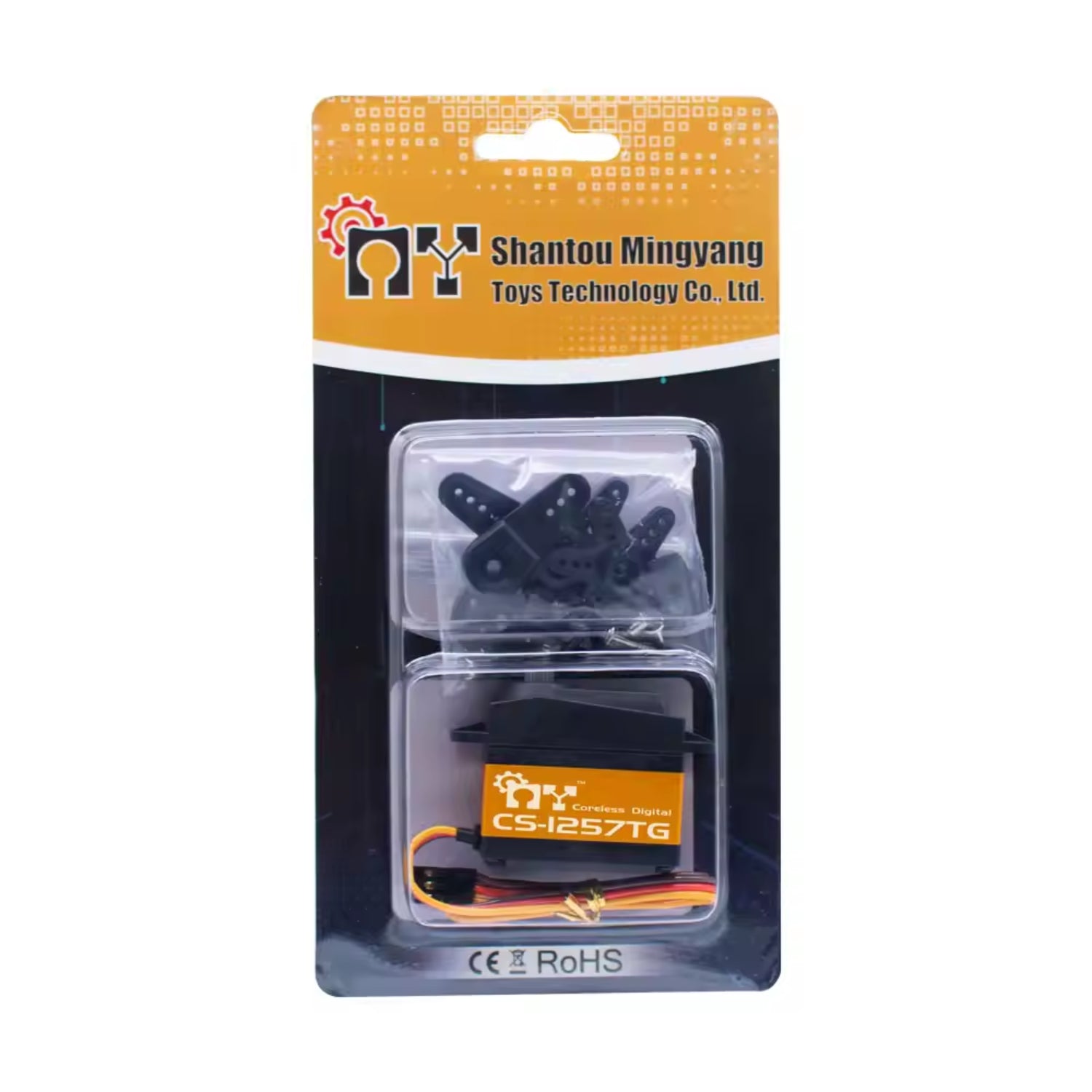

1 x MyServo CS-1257TG High-Speed 0.07s Coreless Digital Servo
