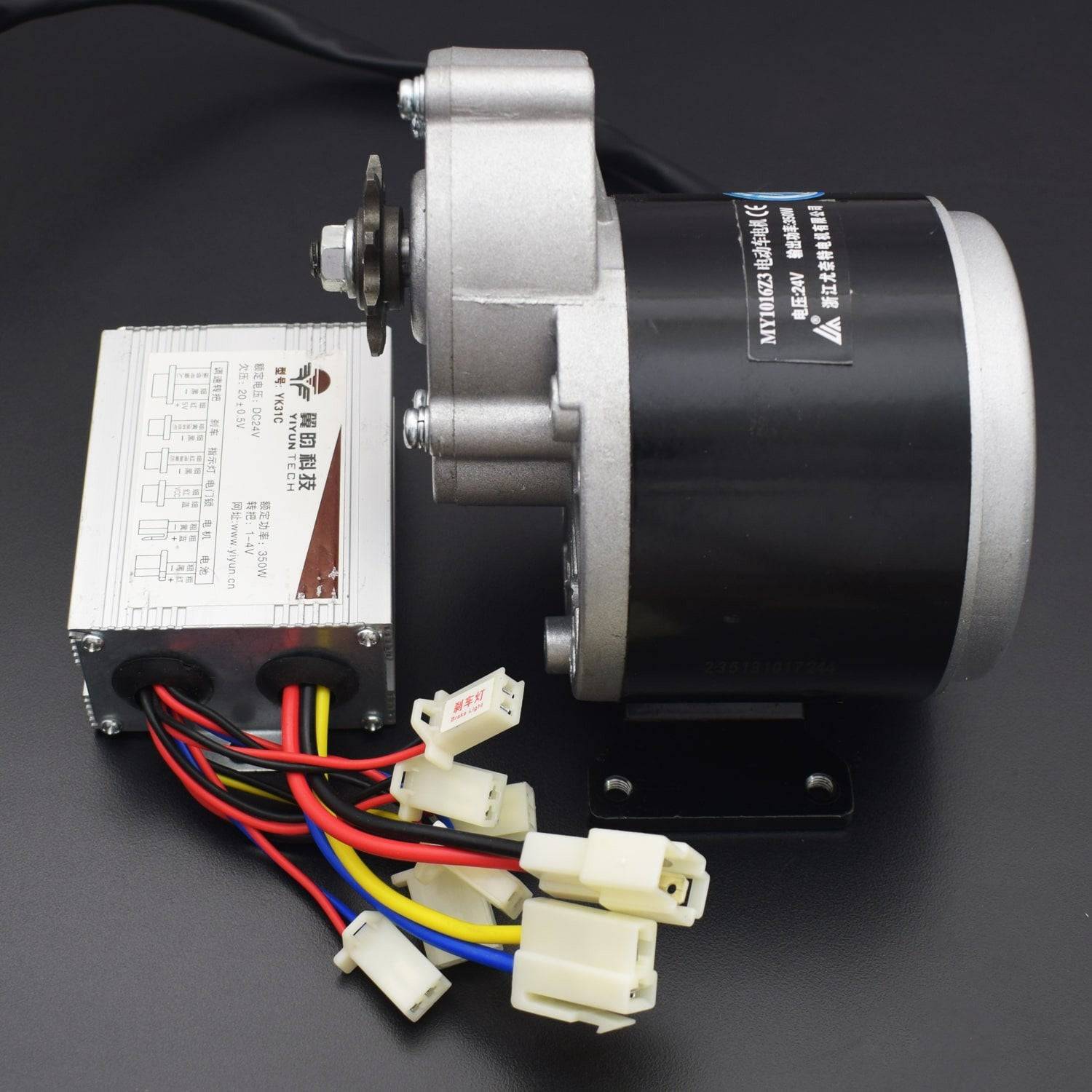

MY1016Z2 350w 24v Gear 3000 RPM Brush Motor Electric Tricycle & Bicycle DC Gear Brushed Motor - RS2187
MY1016Z2 350w 24v Gear 3000 RPM Brush Motor Electric Tricycle & Bicycle DC Gear Brushed Motor - RS2187
SKU:RS2187
Low stock: 8 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Model: MY1016Z2
- Voltage: 24 V
- Rated Amps: 18.4 A
- Current type: DC
- Power: 350 W
- Rated speed: 3000 RPM
Description:

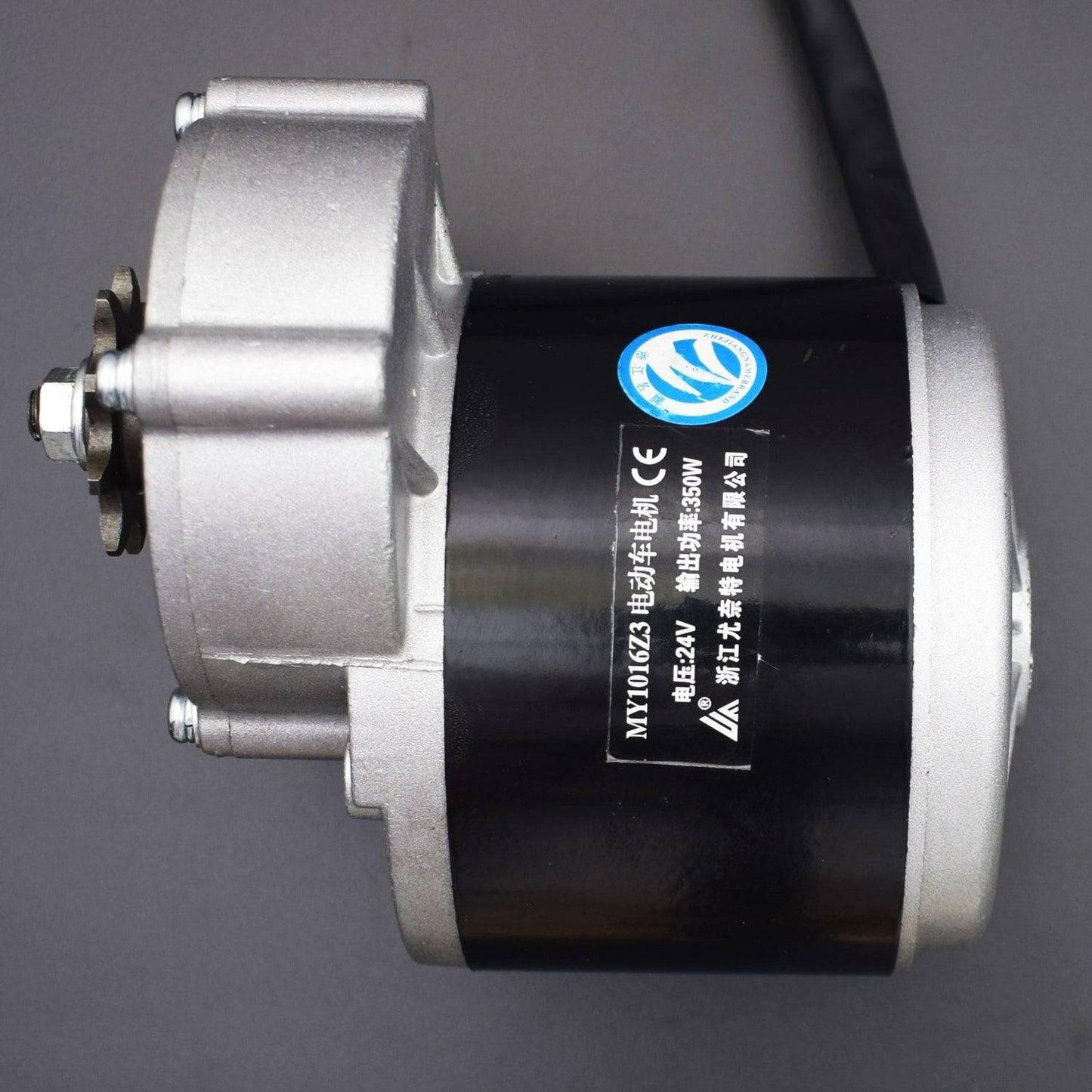

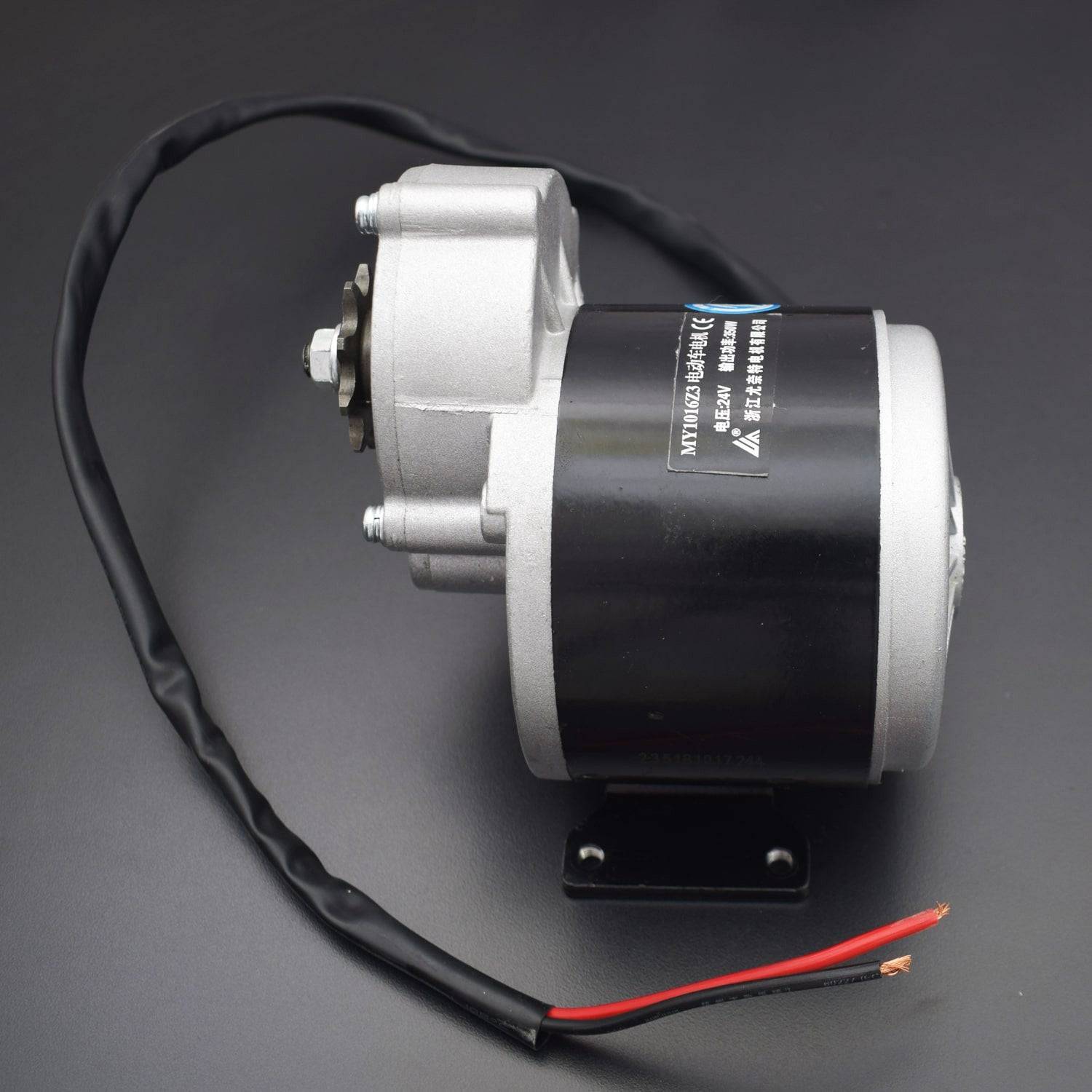

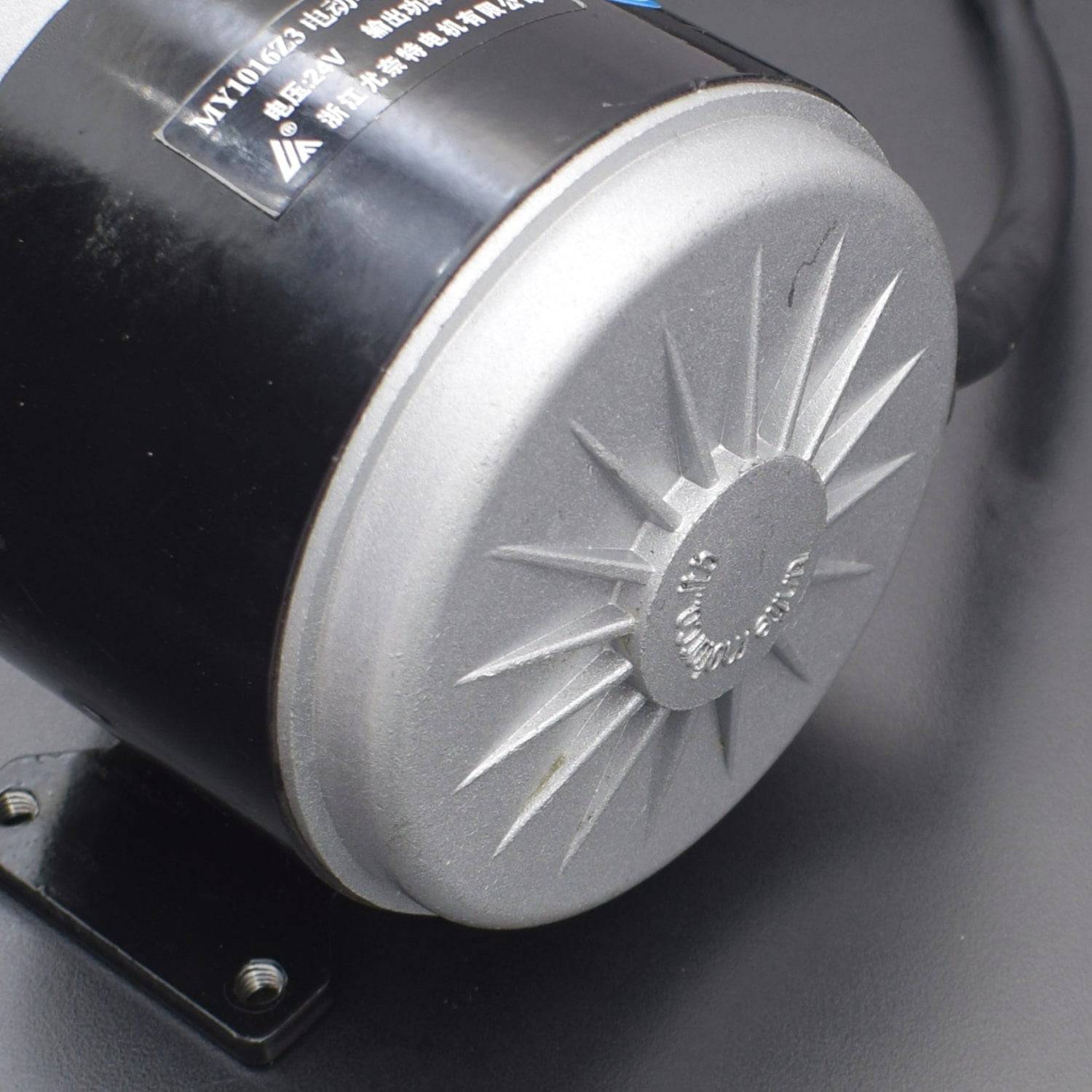

This is a MY1016Z2 350w 24v gear brush motor for electric tricycle & bicycle. This motor is great for those wanting to make their own custom electric vehicle, whether it’s a scooter, electric bicycle or something the world isn’t even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor. Motor direction can be changed to Left or right rotation by just reversing wires.
Specification:
- Model: MY 1016Z2
- Voltage: 24 V
- Rated Amps: 18.4 A
- Current type: DC
- Power: 350 W
- Rated speed: 3000 RPM
- Gear ratio: 9.7:1

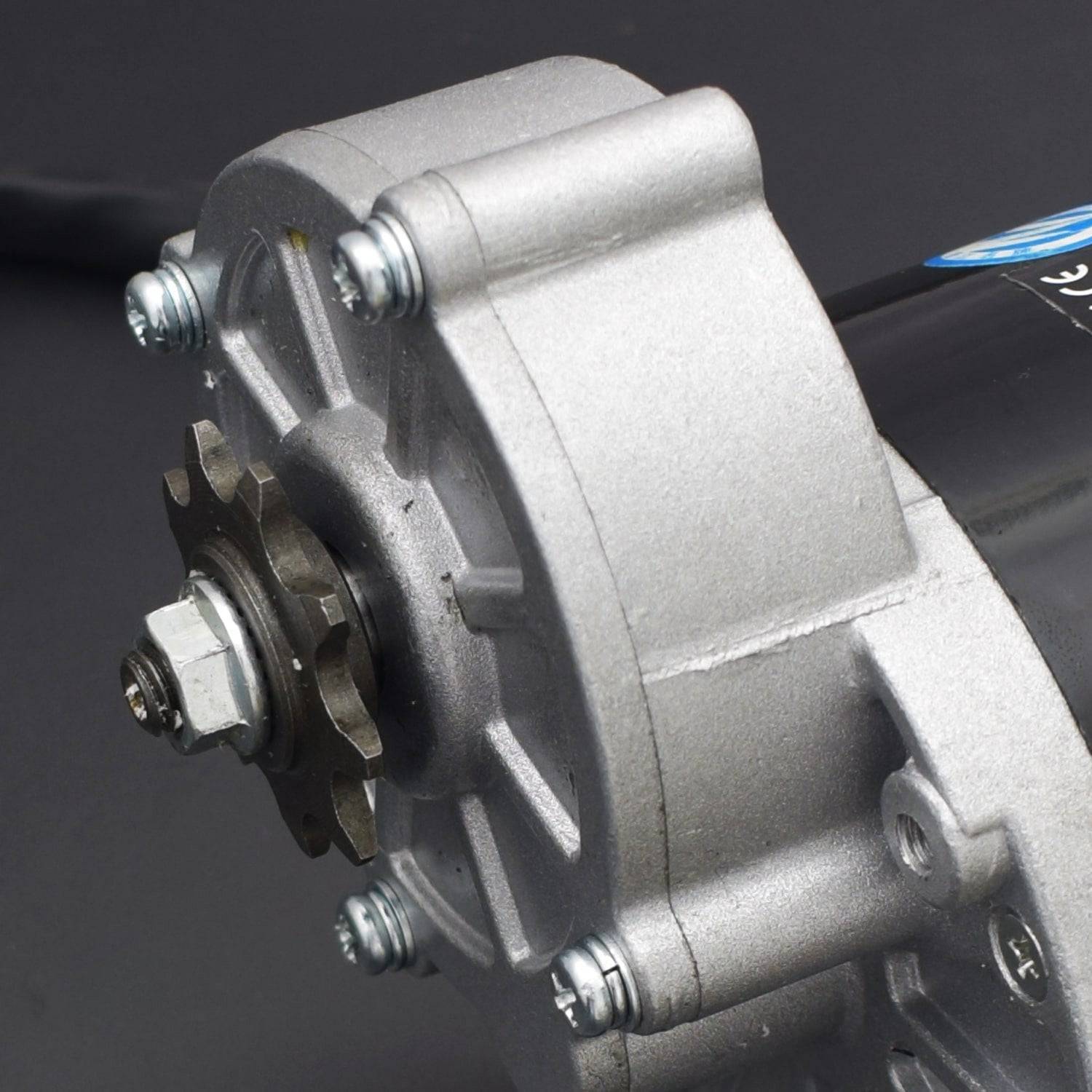

- Chain drive: (for 9 and 13 teeth sprocket,sprocket NOT included) 410 chain 1/2 inch (12.7 mm) pitch
- Reversible/Non-reversible: Reversible
- Rated/Full-Load torque: 9.84 lbf-ft
- Starting/Locked rotor torque: 13.30 N.m
- Rated load: 0.47 HP
Features:
- 24V 350W Gear Reduction Motor
- Permanent Magnet DC Brush Motor
- 12 Gauge leads
- Reversible by changing polarity
- Suitable for forward and reverse operations
- Compatible with standard bicycle chain
Package Included:
1 x MY1016Z2 350w 24v Gear Brush Motor Electric Tricycle & Bicycle DC Gear Brushed Motor
