- No Load RPM: 3850
- No Load Current: <2.2 Amps
- Rated Wattage: 250W (0.33 Horsepower)
- Rated Load RPM: 400
- Torque (NM): 22
Description:

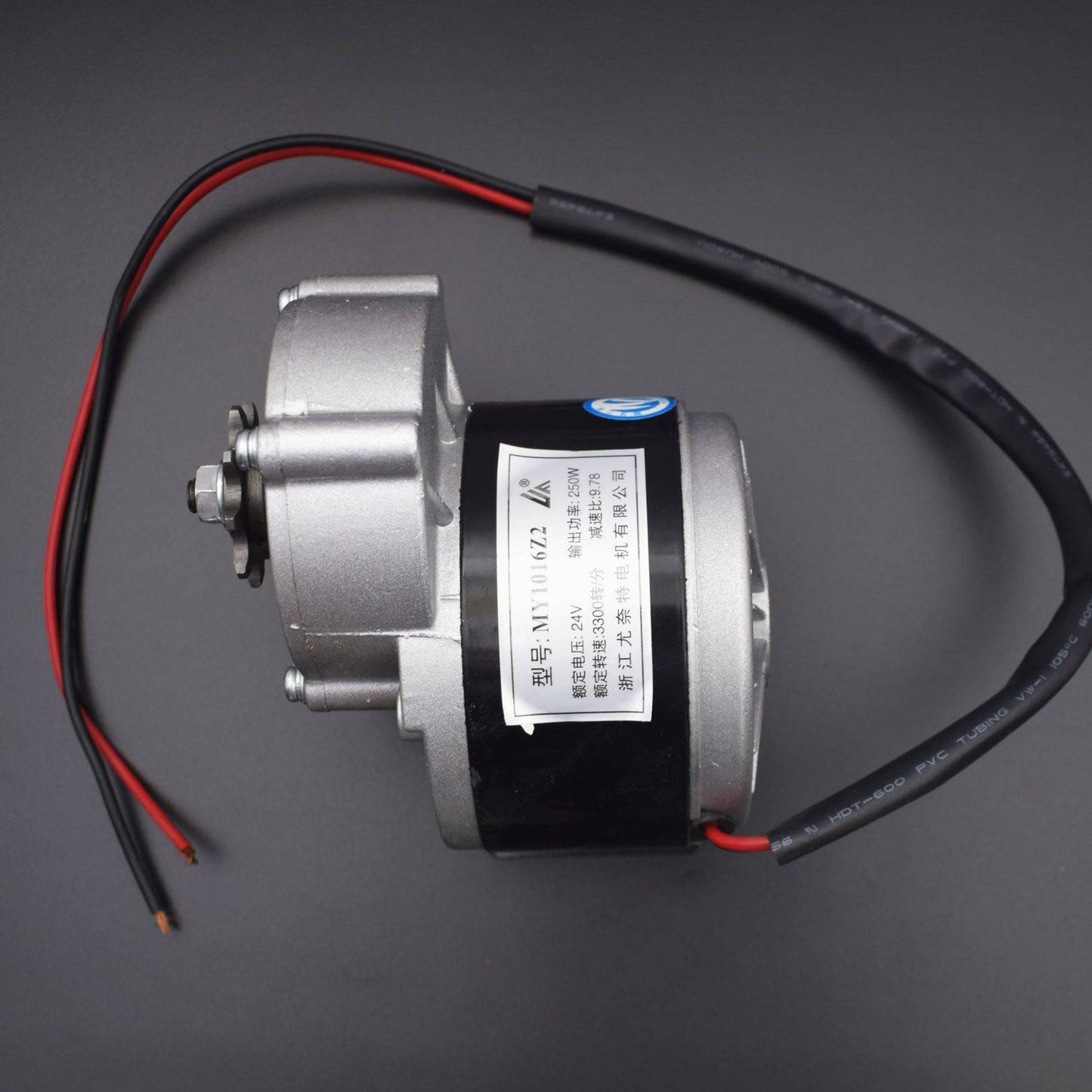

E-bike MY1016Z2 250W Geared DC motor is a popular reduction dc motor is simply the most commonly used motor for Scooters, Bikes, and quads available on is a popular reduction dc motor is simply the most commonly used motor for Scooters, Bikes and quad’s available on the market! also due to its robustness, it is also used in many DIY projects like Segway, e-cars, etc and in many robots like ATV robots, combat robots etc etc. It is normally found in the better quality quads and scooters on the market and is classed as a mid range combination. They are quite powerful for their small size and extremely reliable. This motor is capable of rotation in either clockwise or counter clockwise by reversing the motor's power wires.
Specification:
- No Load RPM: 3850
- No Load Current: <2.2 Amps
- Rated Voltage: 24V
- Rated Wattage: 250W (0.33 Horsepower)
- Rated Load RPM: 400
- Torque (NM): 22
- Rated Current: 13.4 Amps
- Efficiency: 78%
- Reduction Ratio: 9.78:1
- For Chain Size: Pitch 0.5in
- Roller Diameter 0.3in
- Roller Width 0.16in
Features:
- Direct Drive (No Free Spooling)
- Suitable for Forward and Reverse Operations

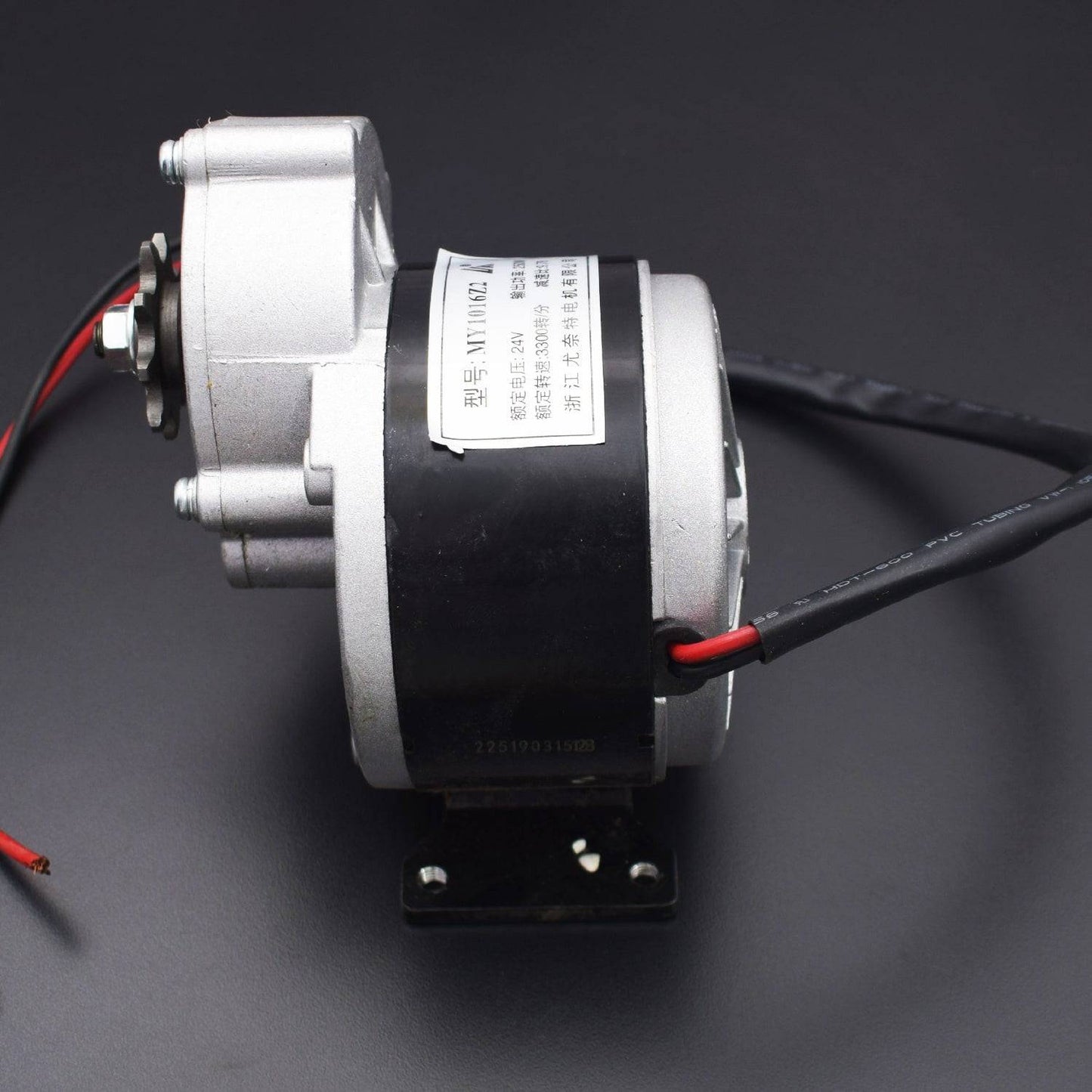

- Base Mount Model

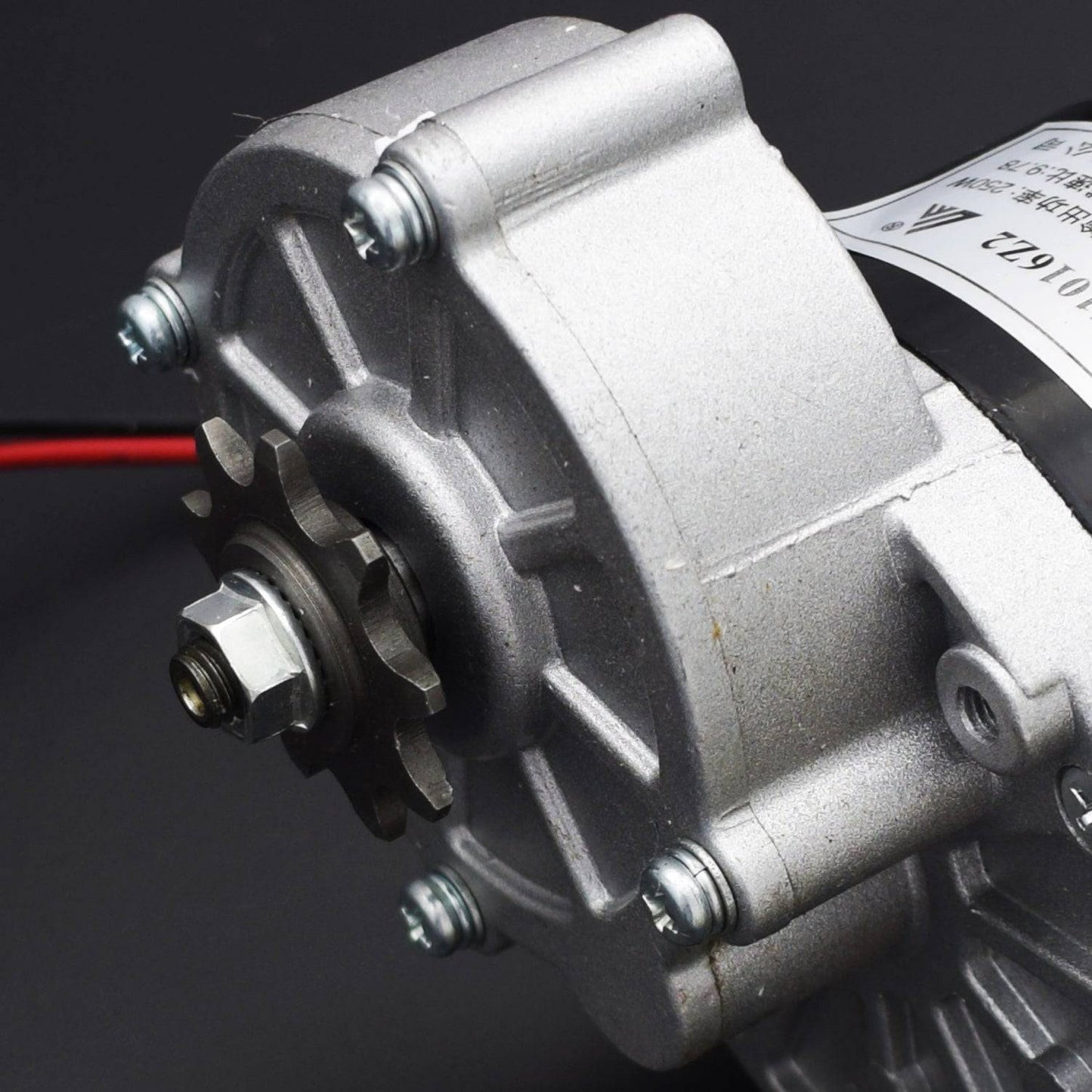

- 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
Package Included:
1 x MY1016Z2 250w 24v Gear Brush Motor Electric Tricycle & Bicycle DC Gear Brushed Motor
