- Electric Bicycle permanent Magnet DC Motor MY1016.
- 24 volt 250 watt output electric scooter and bike motor.
- Rated speed (rpm) :2650 +/- 5 %
- Rated current : ≤ 13.7A;
- Current without load :0.7 - 1.4 A
- Rated torque :0.87 Nm
Description:
MY1016Z2 24V 250W DIY Electric Bicycle Kit is the complete set of e-Bike Motor, Motor controller, Twist throttle gear and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project. It's popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quad’s available on the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. We’ve sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc.
Specification:
- Electric Bicycle permanent Magnet DC Motor MY1016.
- 24 volt 250 watt output electric scooter and bike motor.
- Rated speed (rpm) :2650 +/- 5 %
- Rated current : ≤ 13.7A;
- Current without load :0.7 - 1.4 A
- Rated torque :0.87 Nm
- Transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm)
- Fixation nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)
Features:
- Direct Drive (No Free Spooling)
- Suitable for Forwarding and Reverse Operations

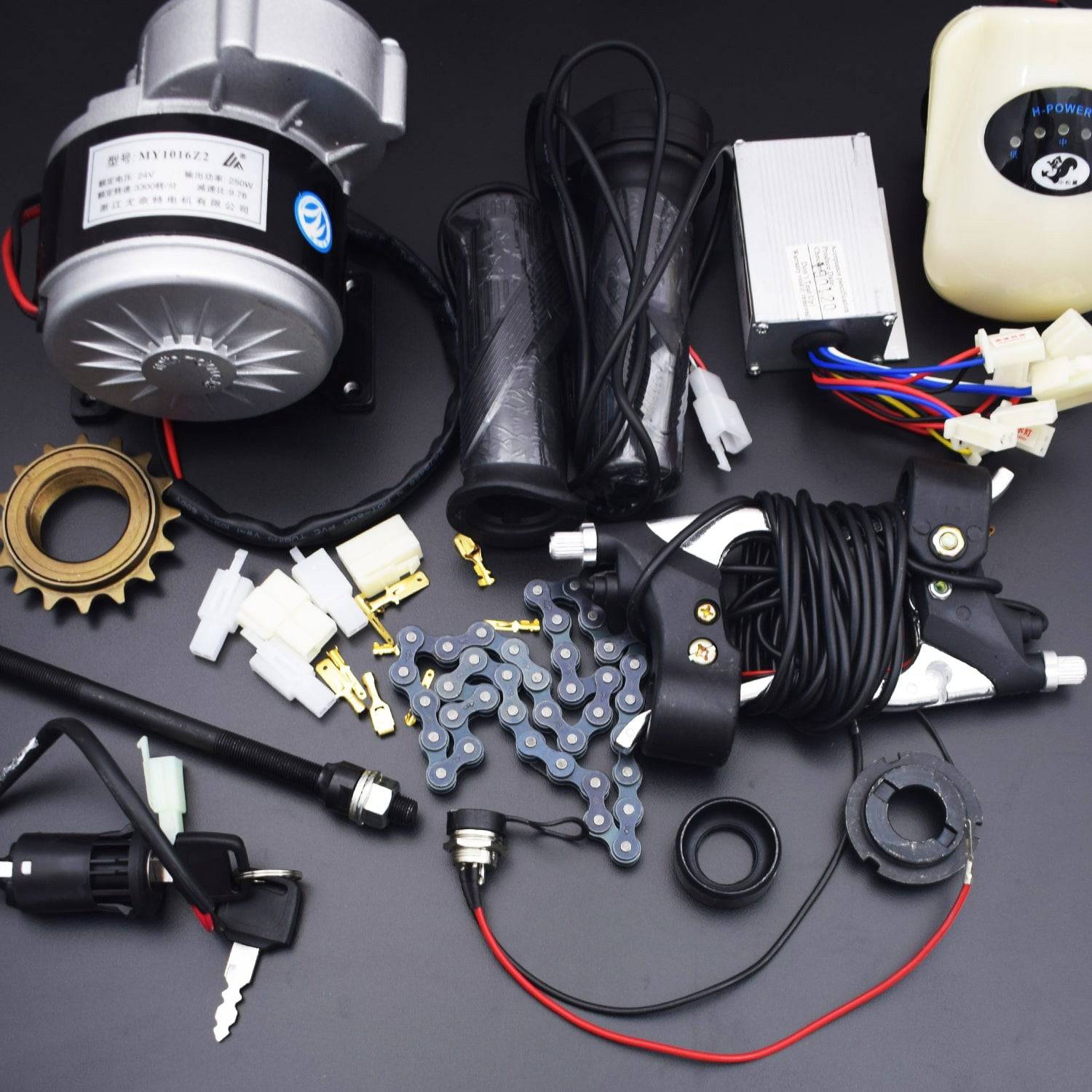

Package Included:

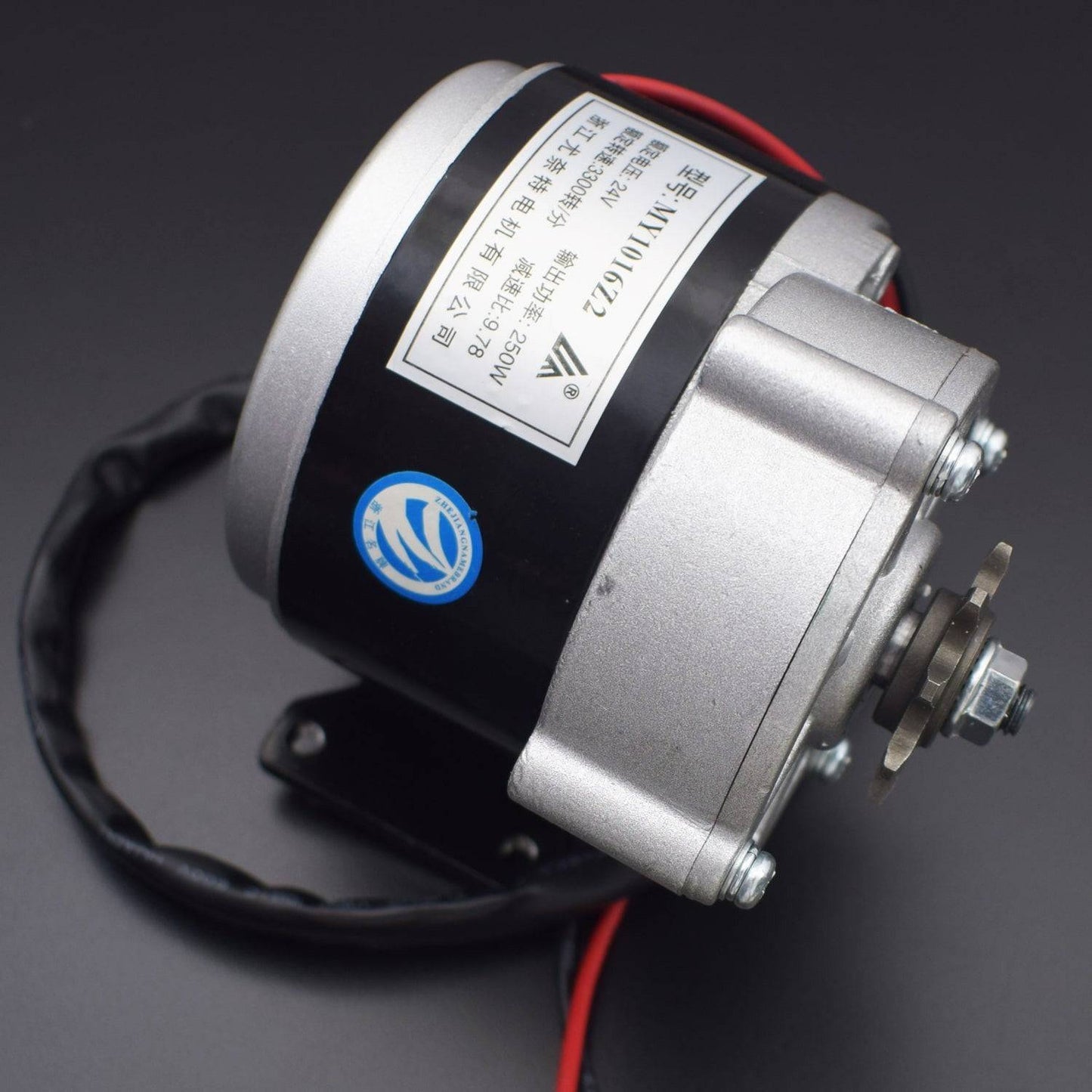

- 1 x MY1016Z3 24V 350W Geared DC eBike Motor

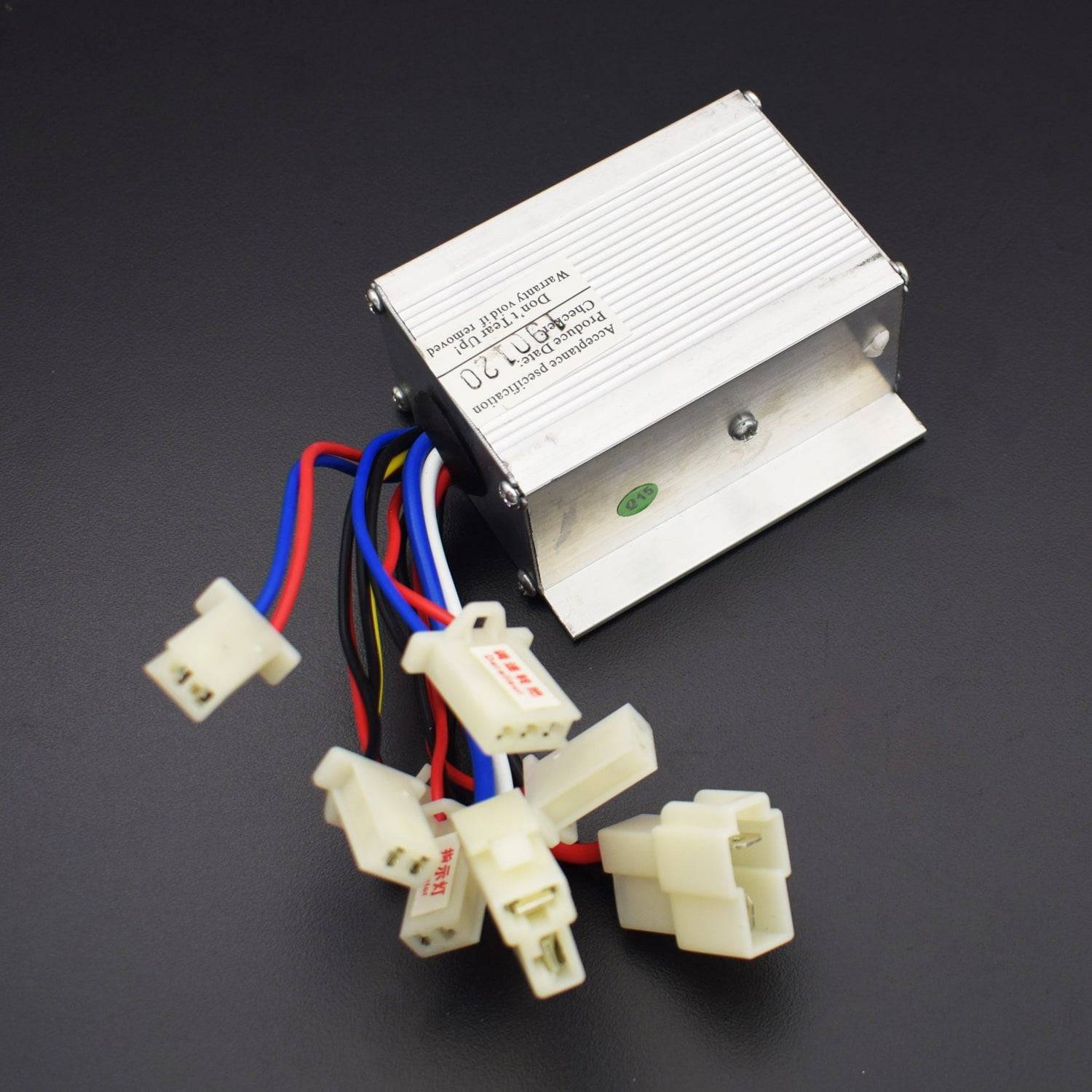

- 1 x 24v 350w controller

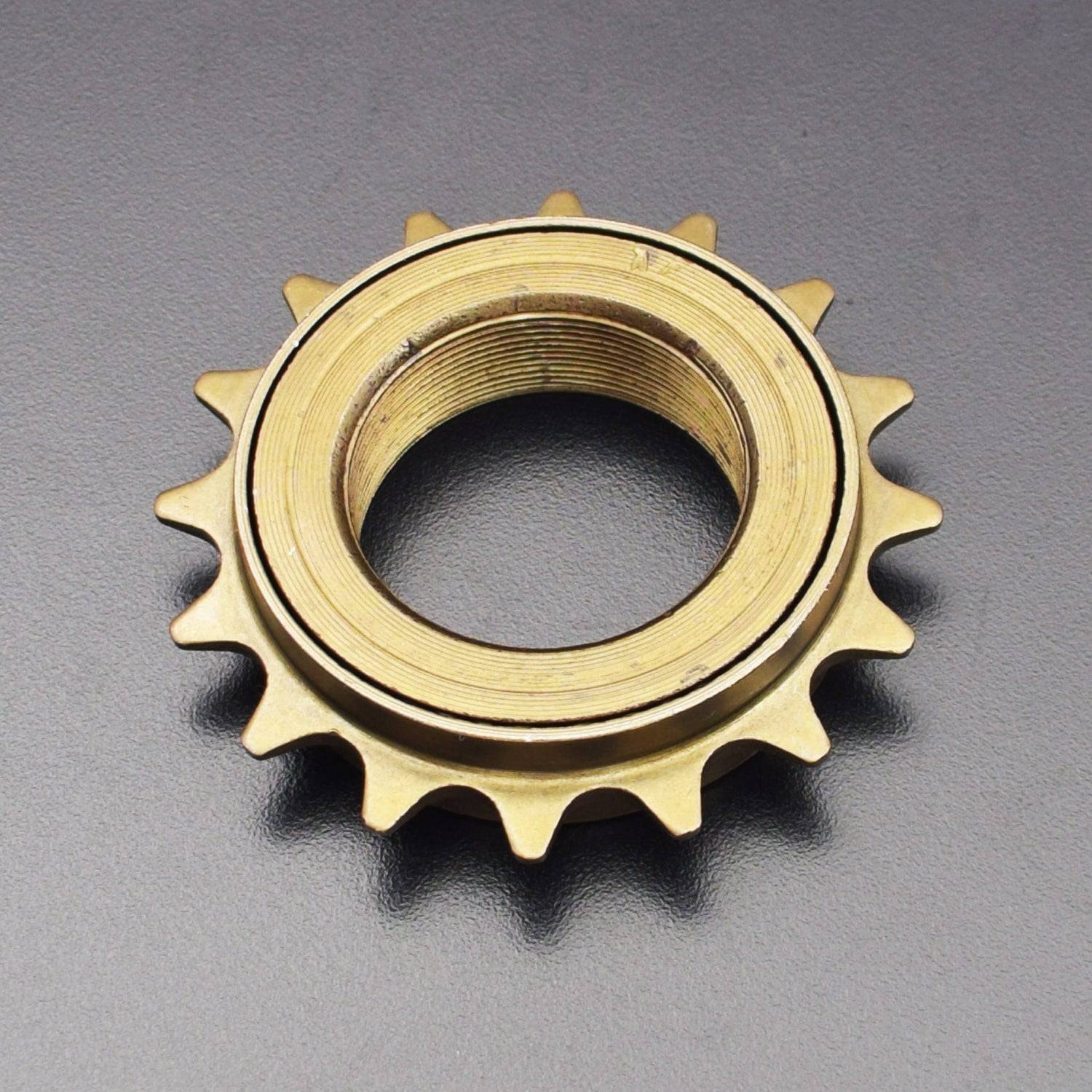

- 1 x Freewheel
- 2 x Freewheel Adapter

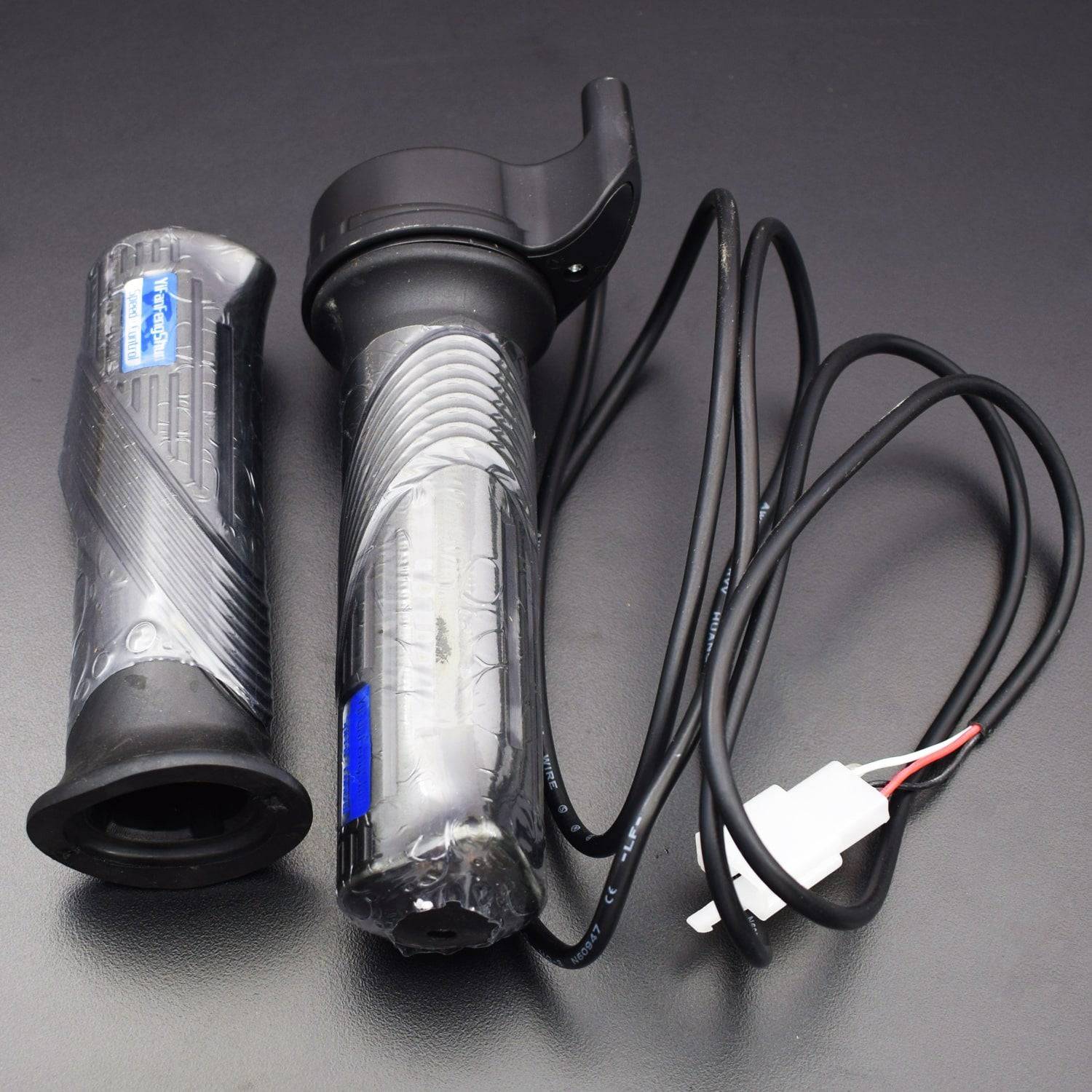

- 1 x Pair of Throttles(L+R)

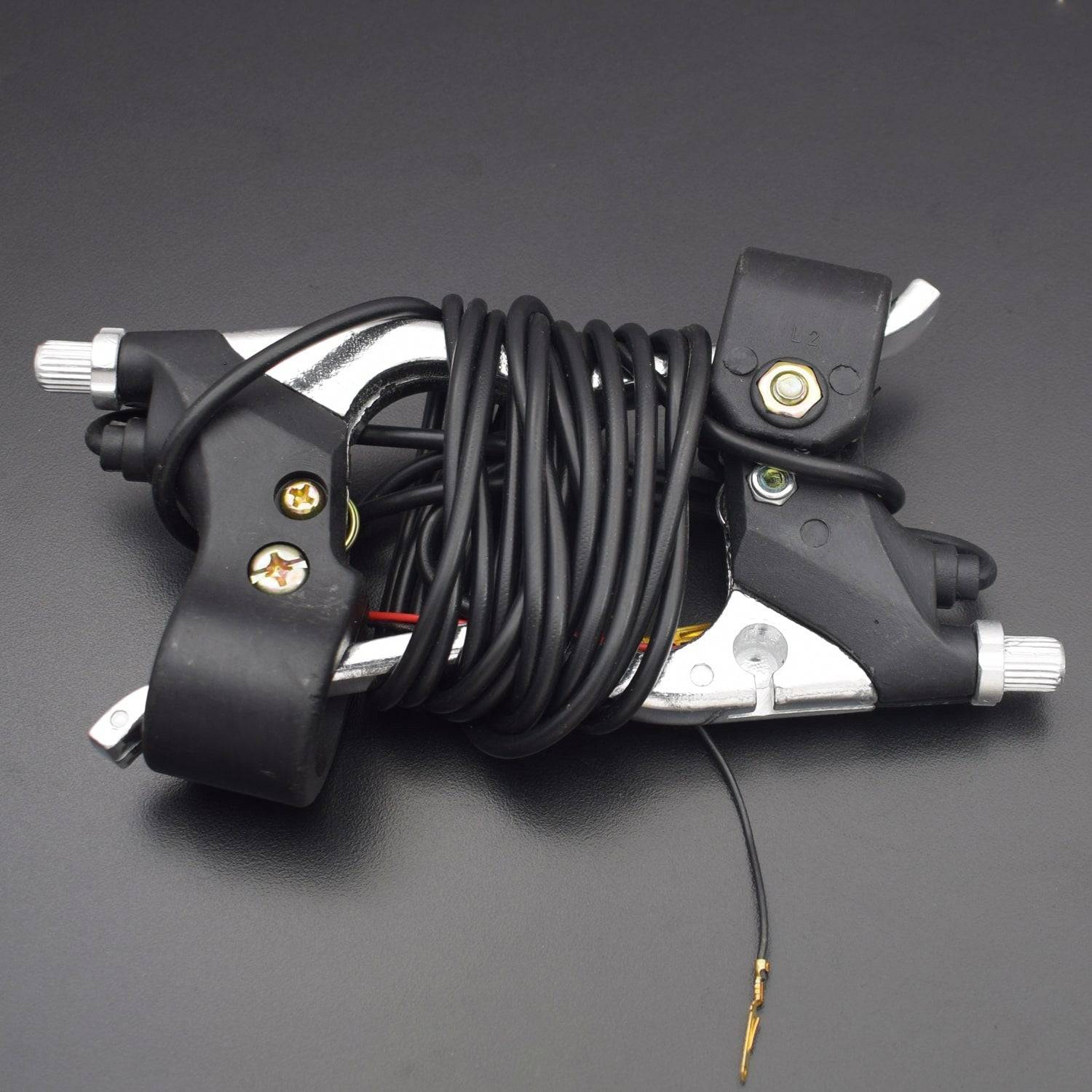

- 1 x Pair of Break Lever(L+R)

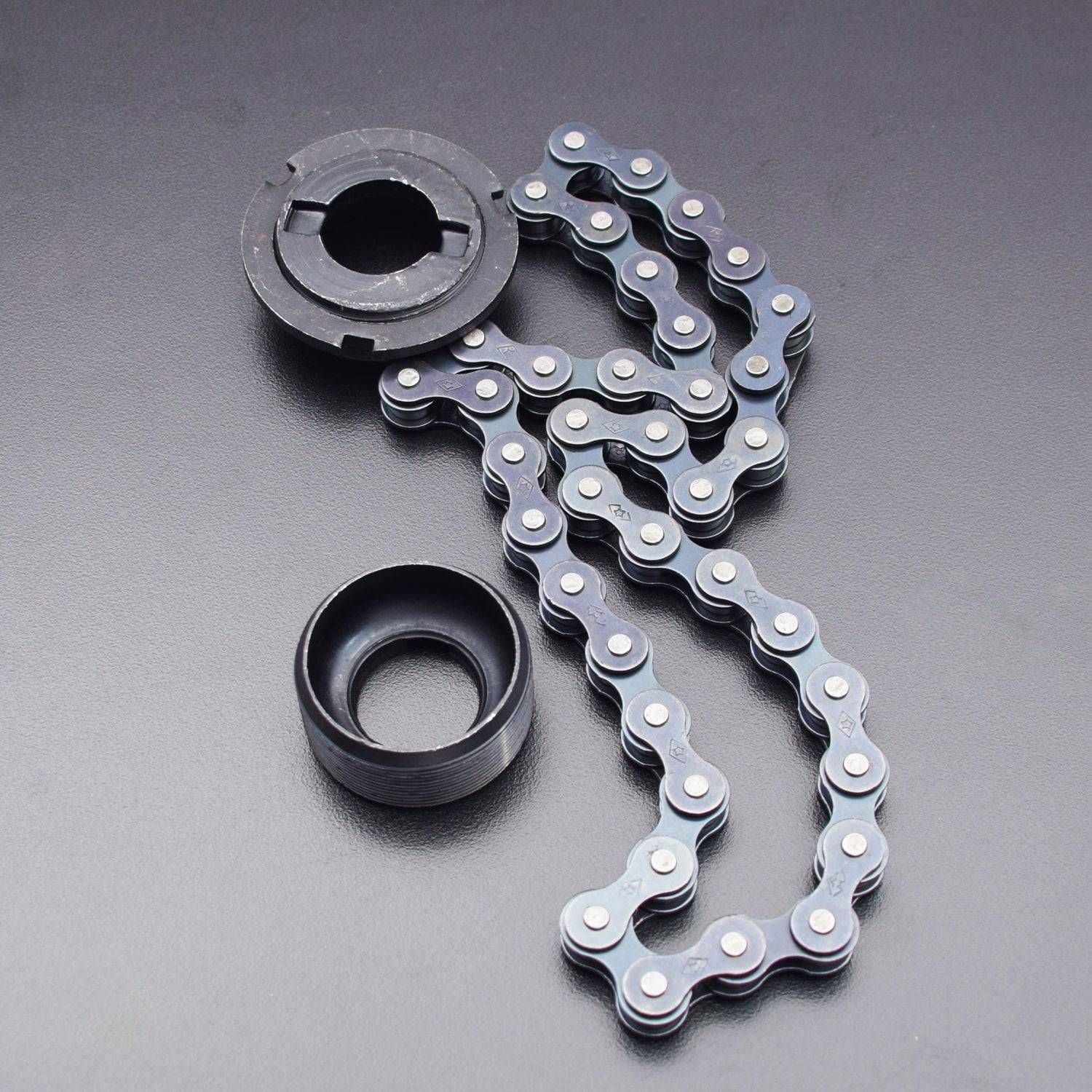

- 1 x 25H High-Quality Chain
- 1 x Mounting plate with bolts

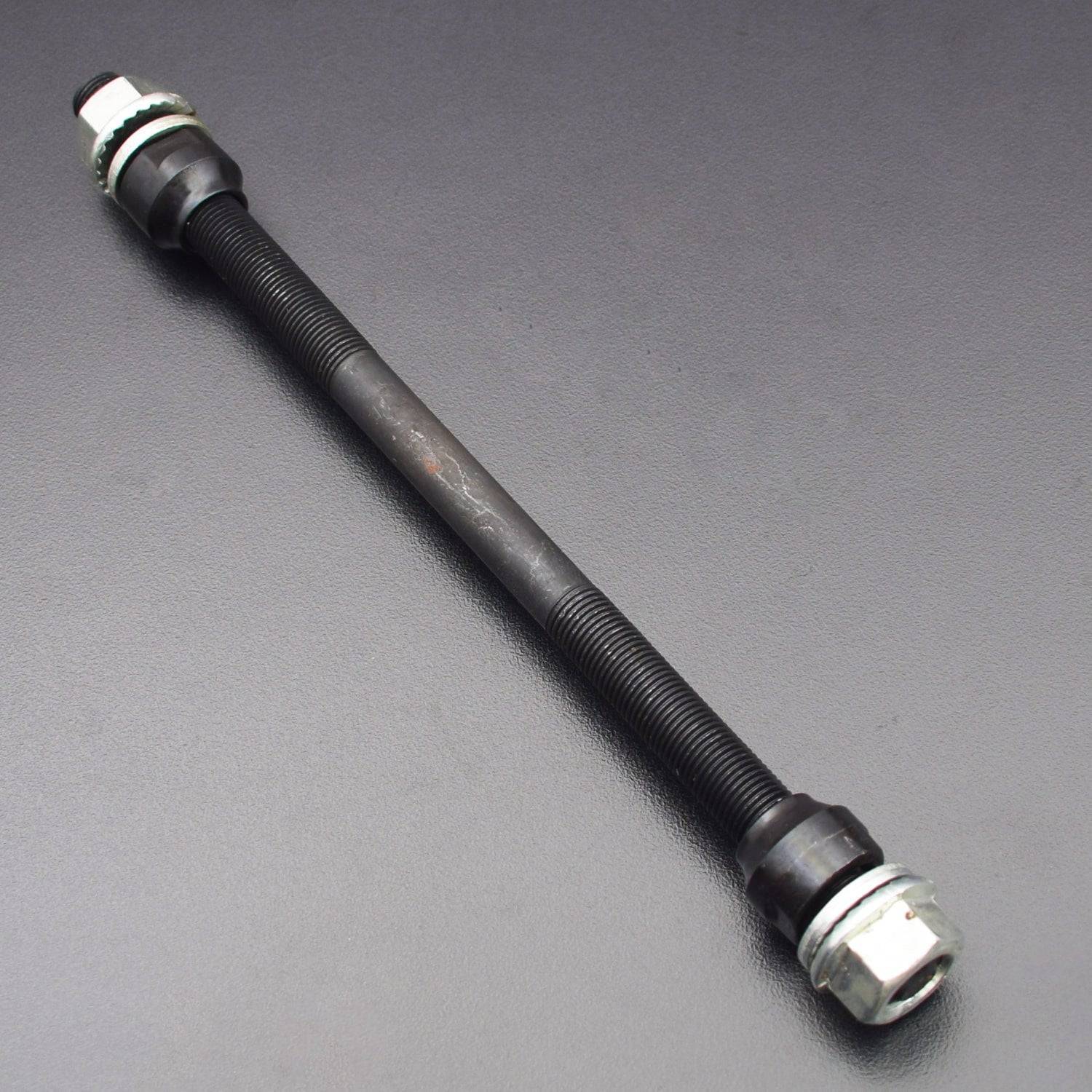

- 1 x Axel with Nuts

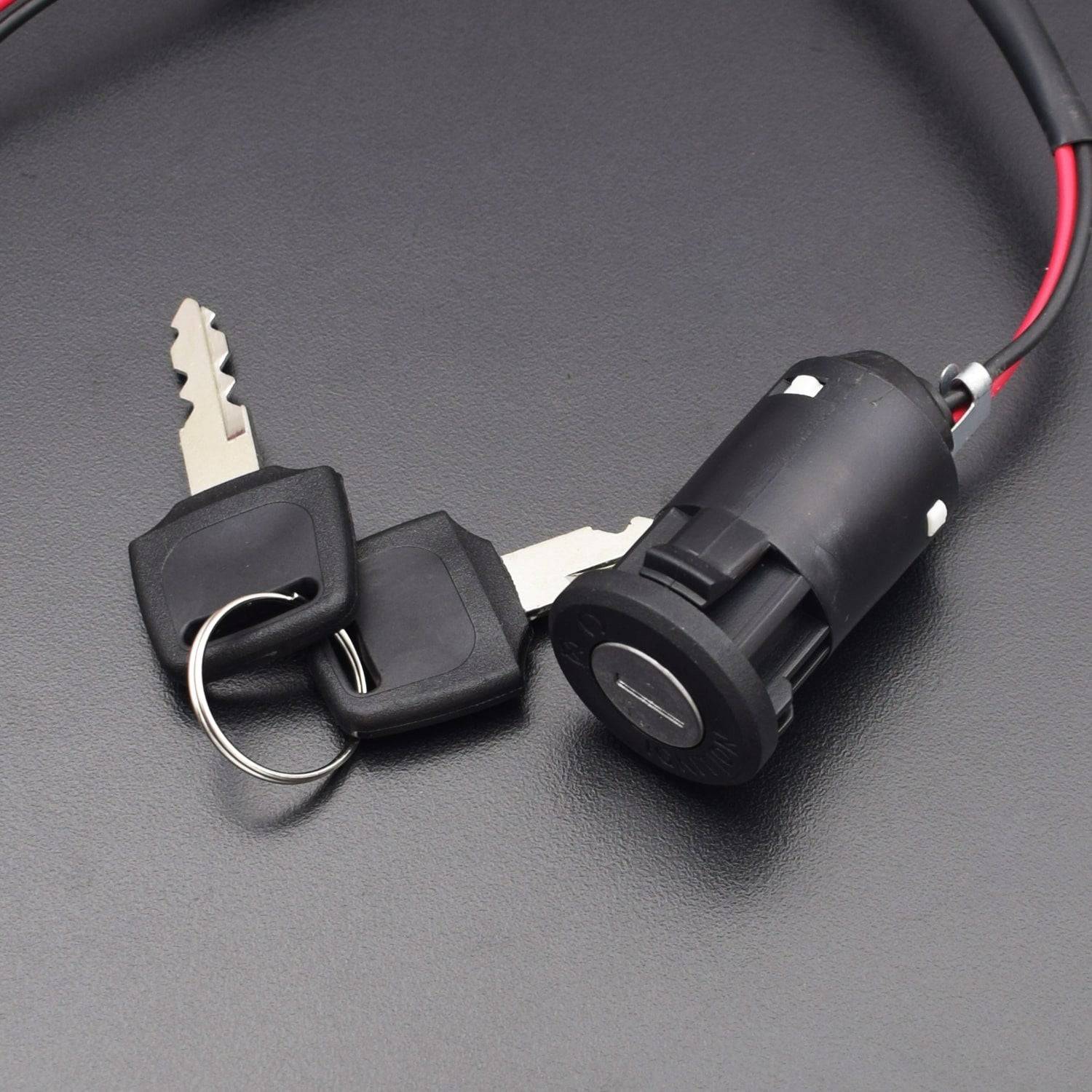

- 1 x Ignition key switch with Two Keys

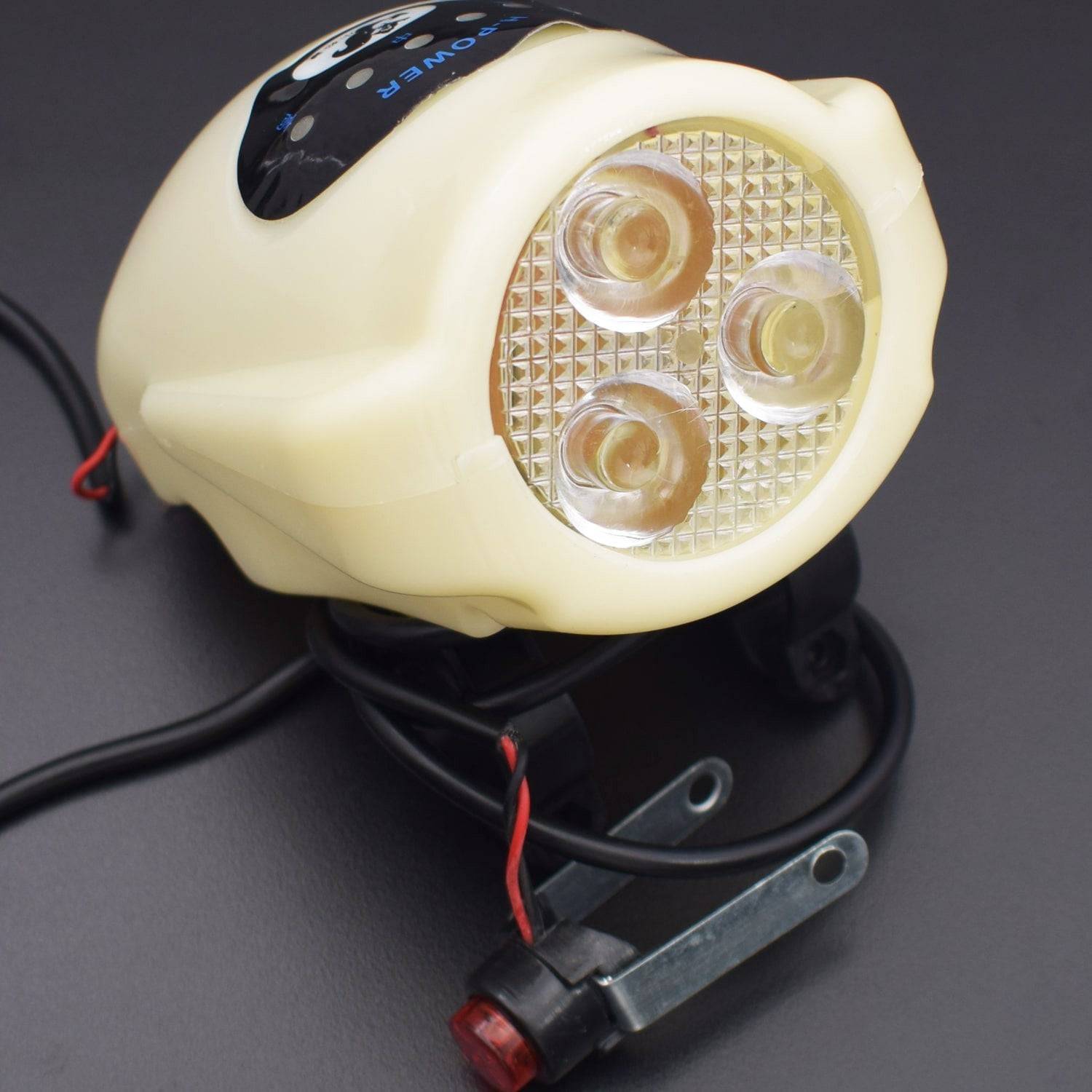

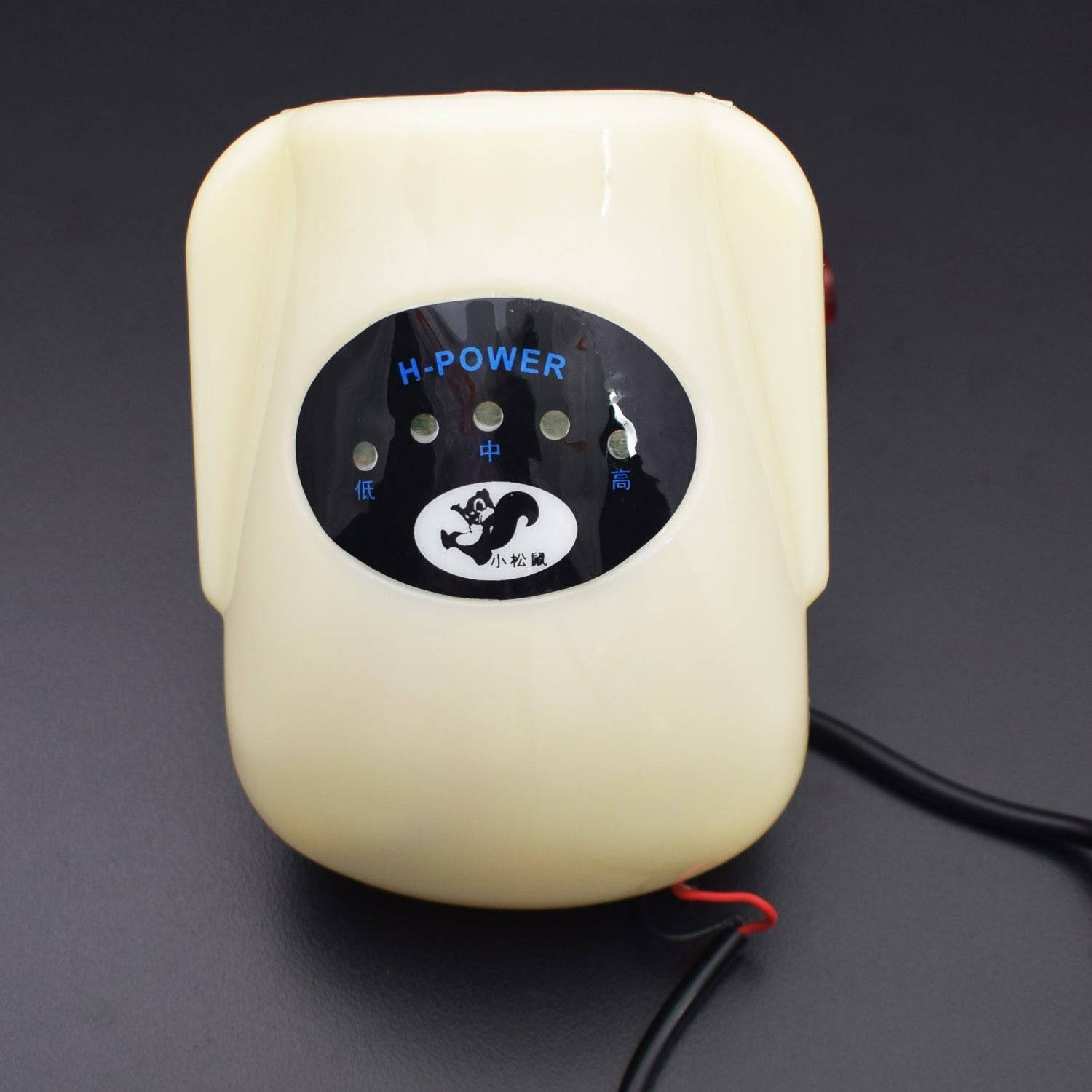

- 1 x Headlight with Inbuilt Horn
- 1 x Plastic Connector Housings set

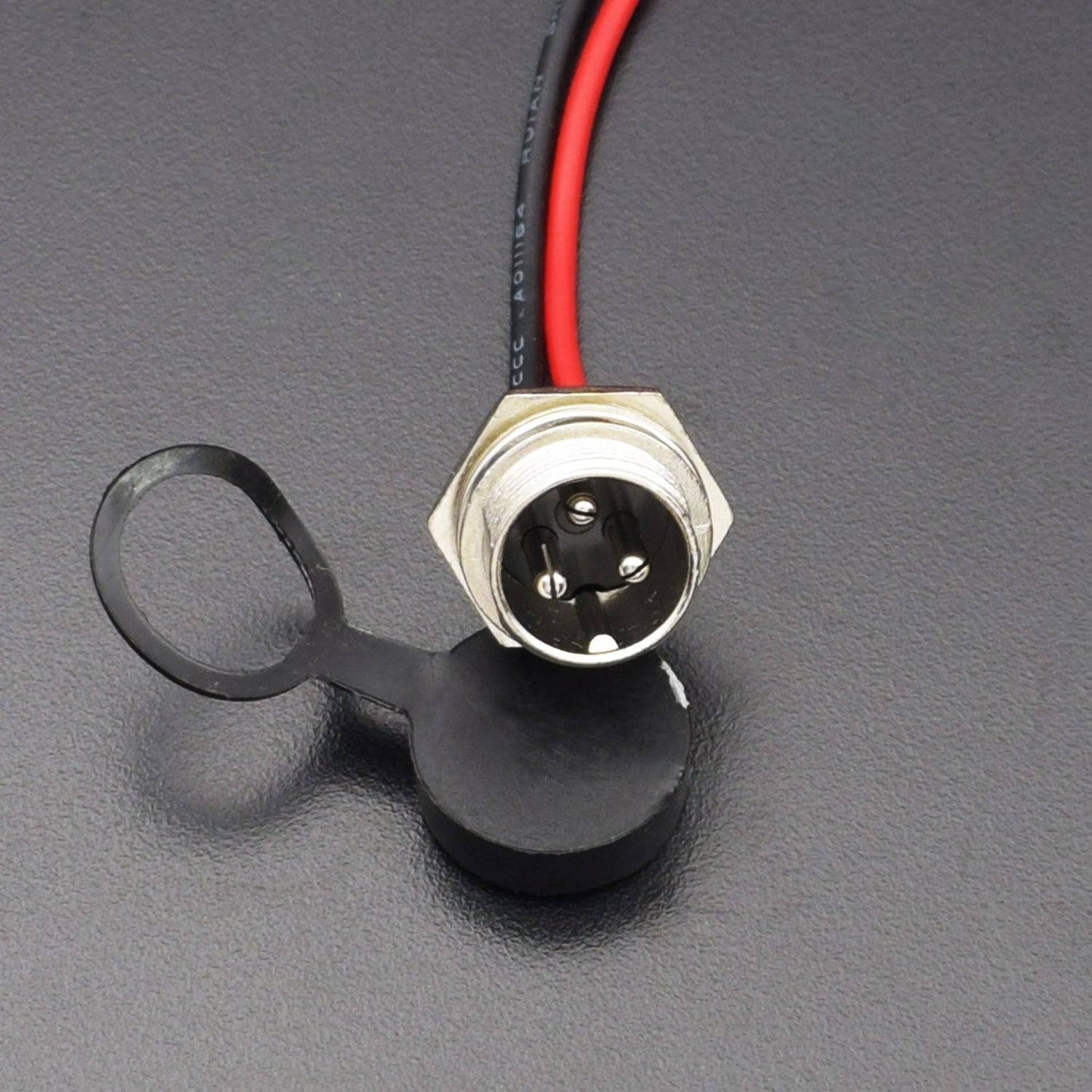

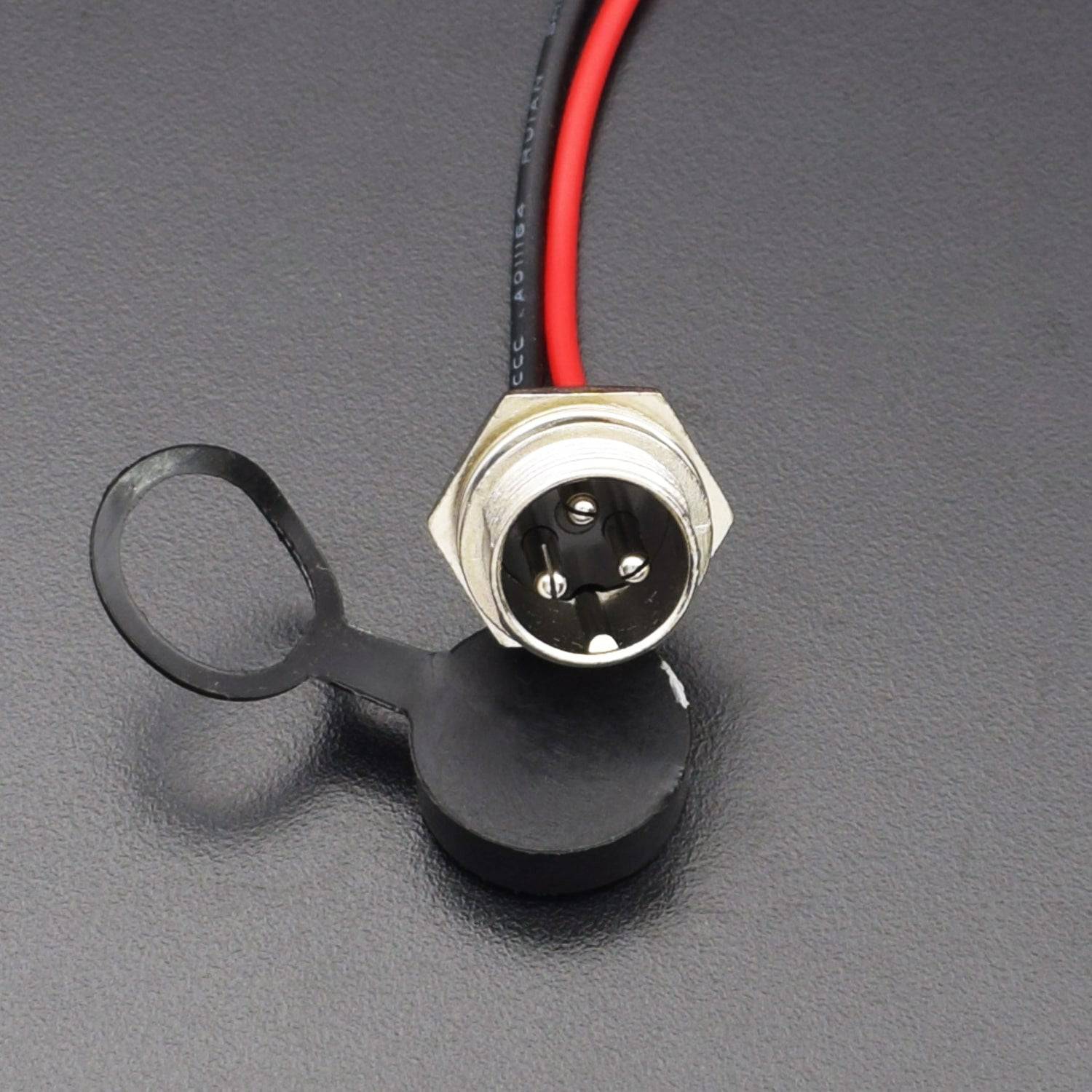

- 1 x Charger Connector Holder
