My Servo WP-2210SG Extreme High-Torque Waterproof Digital Servo With 36kg/cm Torque

My Servo WP-2210SG Extreme High-Torque Waterproof Digital Servo With 36kg/cm Torque

In stock

Rs. 5,839.00
Rs. 5,839.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo is driven by a highly efficient brushless motor. It delivers a massive 36.0kg cm of stall torque and a swift operating speed of 0.11 sec/60° at 7.4V. With a lightning-fast 3μs deadband, it ensures ultra-precise control for your most demanding projects. Its durable design includes a 2BB bearing system and a standard 25T output spline for reliable, easy integration.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Brushless Motor
  • Operating Speed 6.0V): 0.14sec/60°
  • Operating Speed (7.4V): 0.11sec/60°
  • Stall Torque (6.0V):26.0kg/cm
  • Stall Torque (7.4V): 36.0kg/cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • Extreme Power: Delivers a massive 36.0kg cm of stall torque at 7.4V, providing serious muscle for the most demanding applications.
  • Efficient Brushless Motor: A brushless motor provides a long lifespan, fast response, and an operating speed of 0.11 sec/60°.
  • Ultra-Precise Control: A tiny 3μs deadband ensures instantaneous and accurate command execution.
  • Durable Build: Features a sturdy 2BB bearing system and a standard 25T output spline for reliable, long-term use.

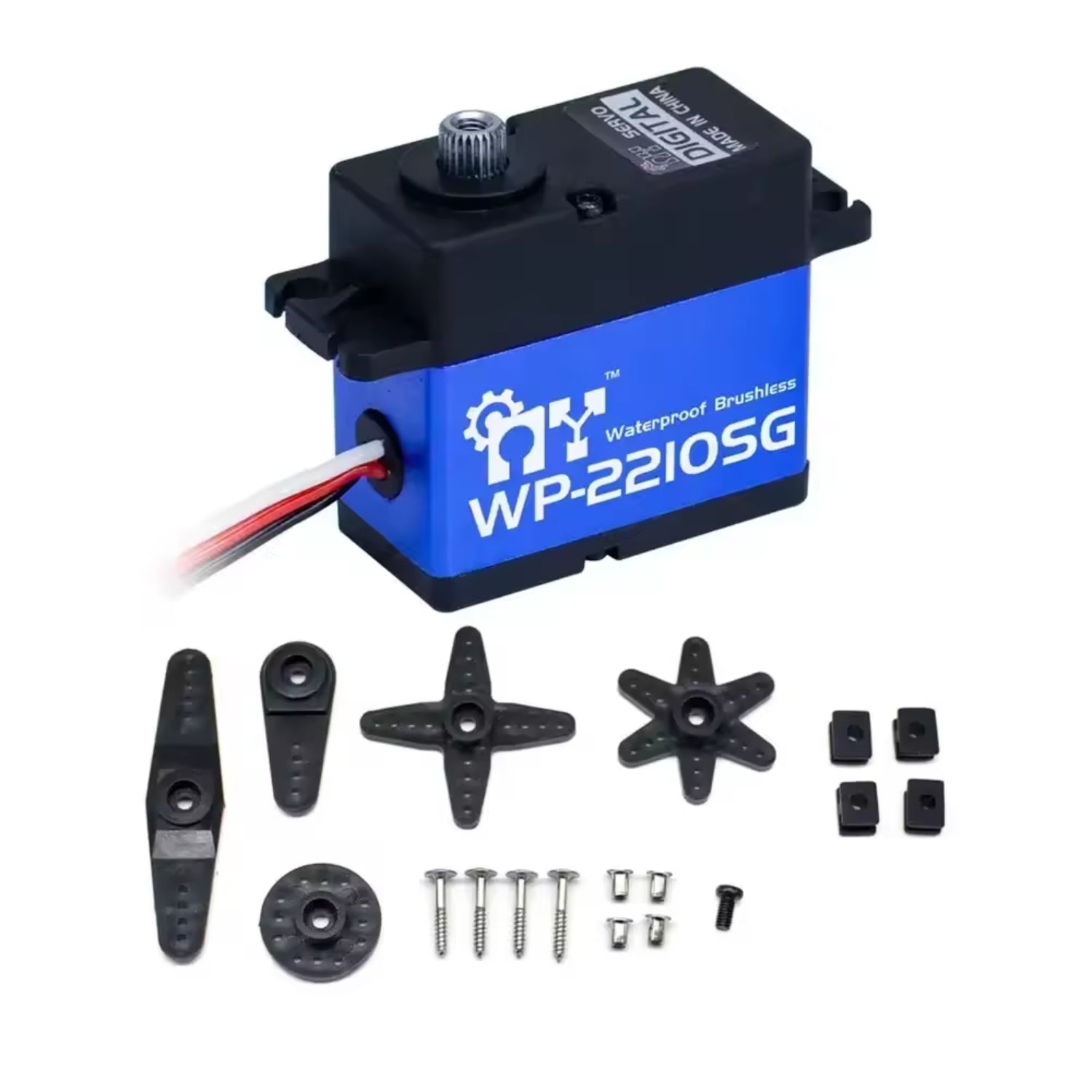

Package Included:

1 x My Servo WP-2210SG Extreme High-Torque Waterproof Digital Servo
