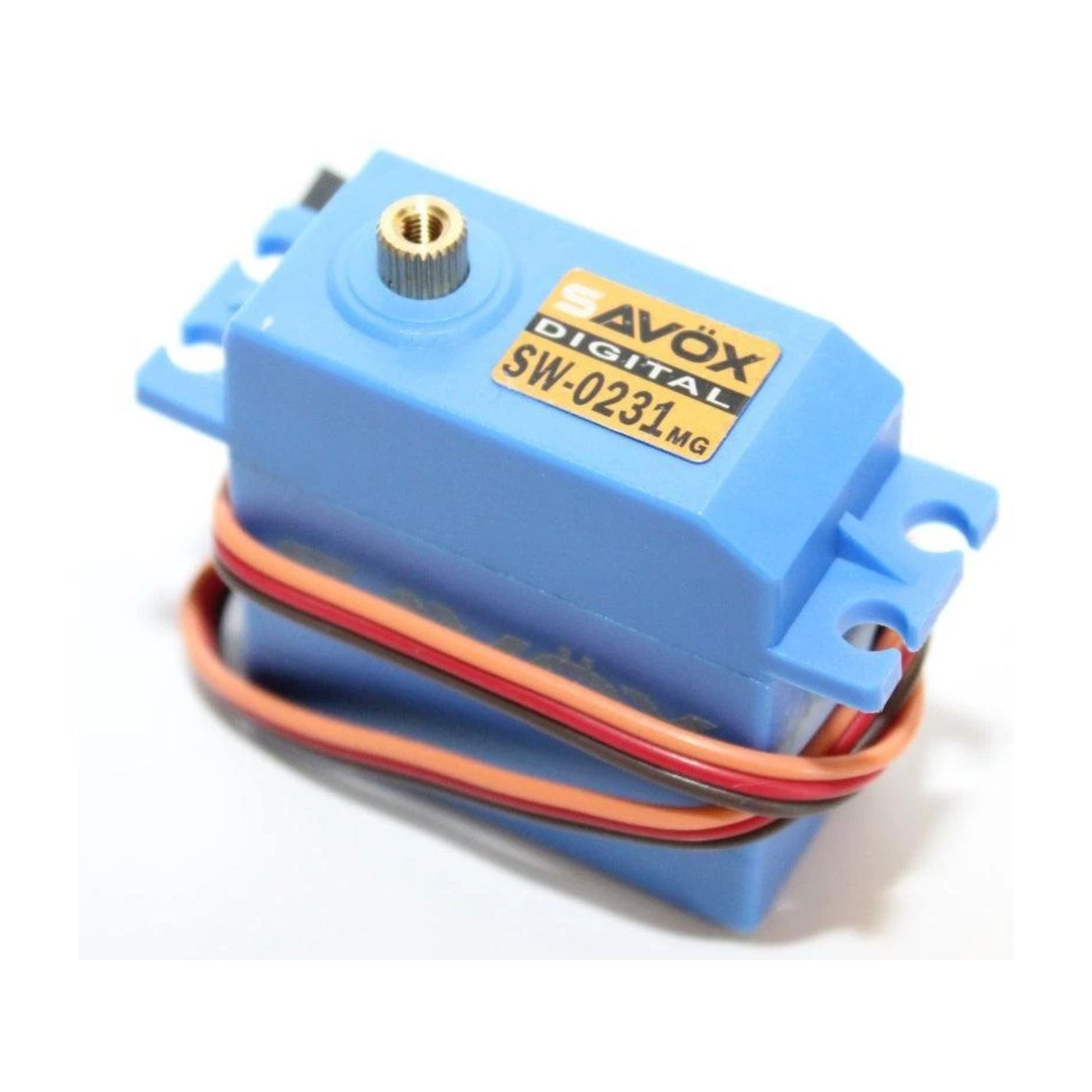

My Servo WP-0231MG High-Speed Waterproof Metal Gear Servo 15kg-cm High-Torque Digital Servo for 1/8 1/10 Scale RC Cars, Trucks

My Servo WP-0231MG High-Speed Waterproof Metal Gear Servo 15kg-cm High-Torque Digital Servo for 1/8 1/10 Scale RC Cars, Trucks

In stock

Rs. 2,379.00
Rs. 2,379.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo features a high-quality cored motor for consistent performance. It delivers a robust 15.0kg cm of stall torque and an efficient operating speed of 0.17 sec/60° at 6.0V, providing a powerful and quick response for demanding applications. The ultra-fast 3μs deadband ensures precise control, while its 2BB bearing system and standard 25T spline offer durable, easy integration.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: high-quality cored motor
  • Operating Speed 4.8V): 0.2sec/60°
  • Operating Speed (6.0V): 0.17sec/60°
  • Stall Torque (4.8V):12.0kg cm
  • Stall Torque (6.0V): 15.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • High-Torque Performance: Delivers a powerful 15.0kg cm of stall torque at 6.0V, providing robust performance.
  • Quick & Responsive: A high-quality cored motor and a lightning-fast 3μs deadband ensure quick and precise control.
  • Efficient Speed: Achieves a respectable speed of 0.17 sec/60° at 6.0V, balancing power with performance.
  • Durable Build: Features a sturdy 2BB bearing system and a standard 25T output spline for reliable, long-term use.

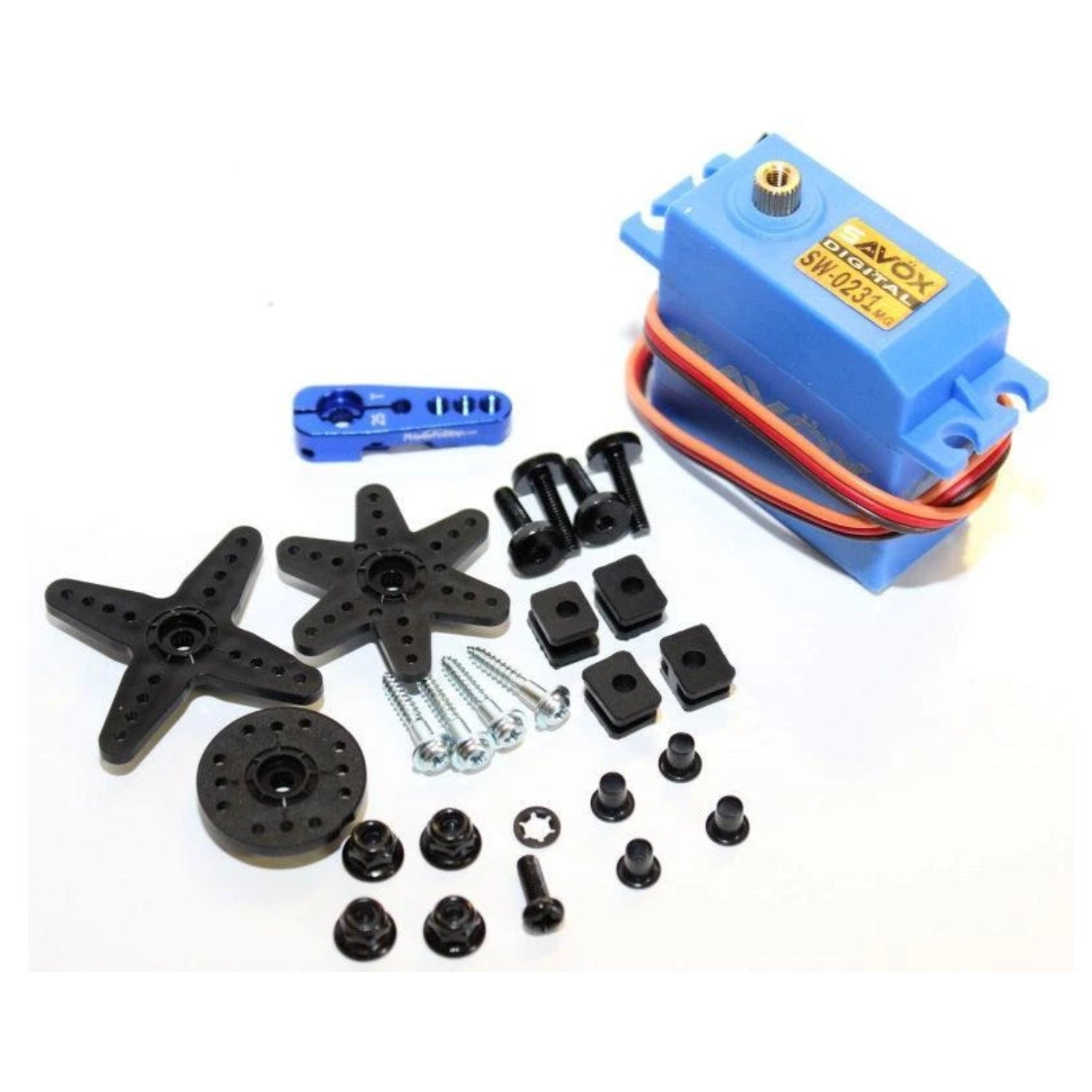

Package Included:

1 x My Servo WP-0231MG High-Torque Waterproof Metal Gear Servo
