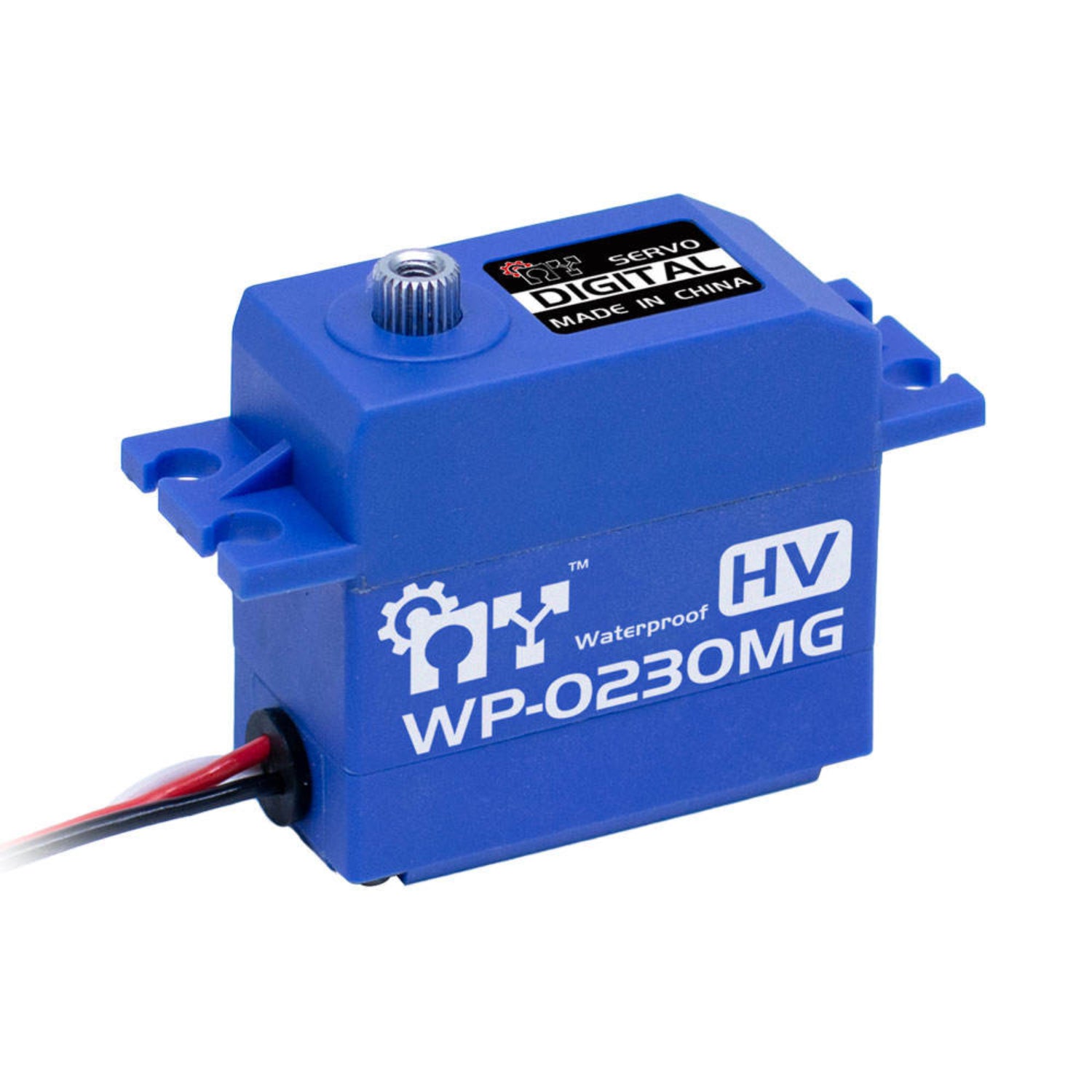

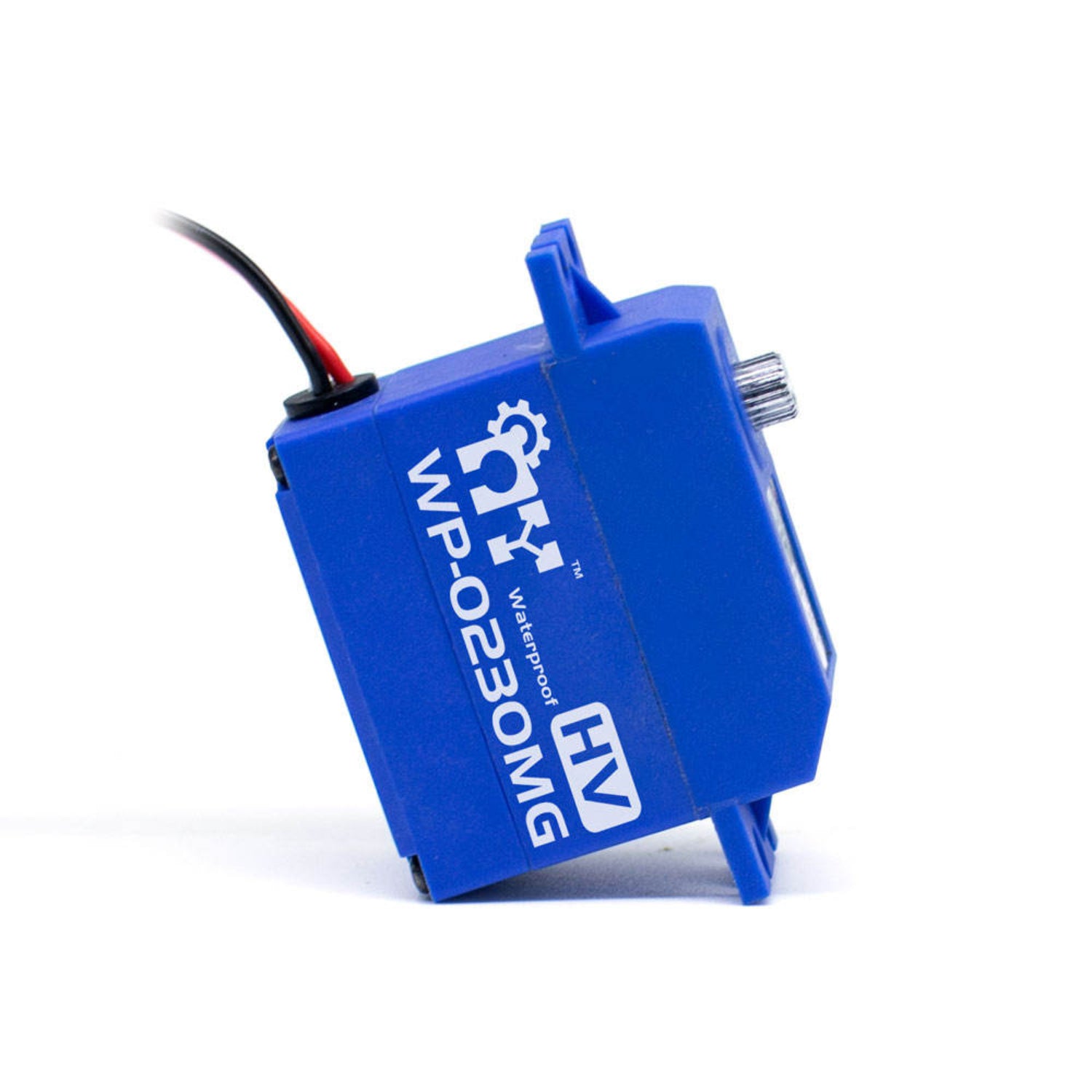

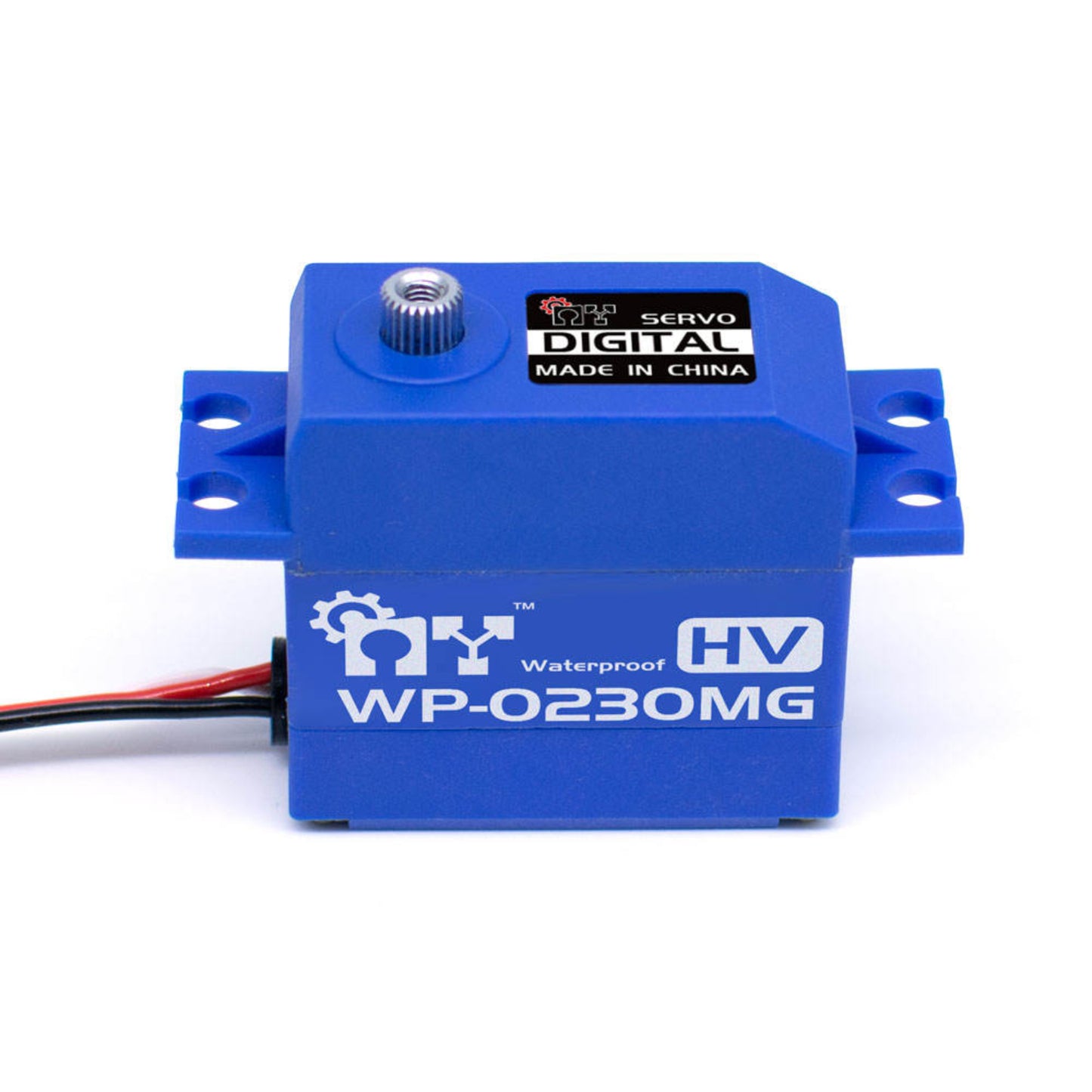

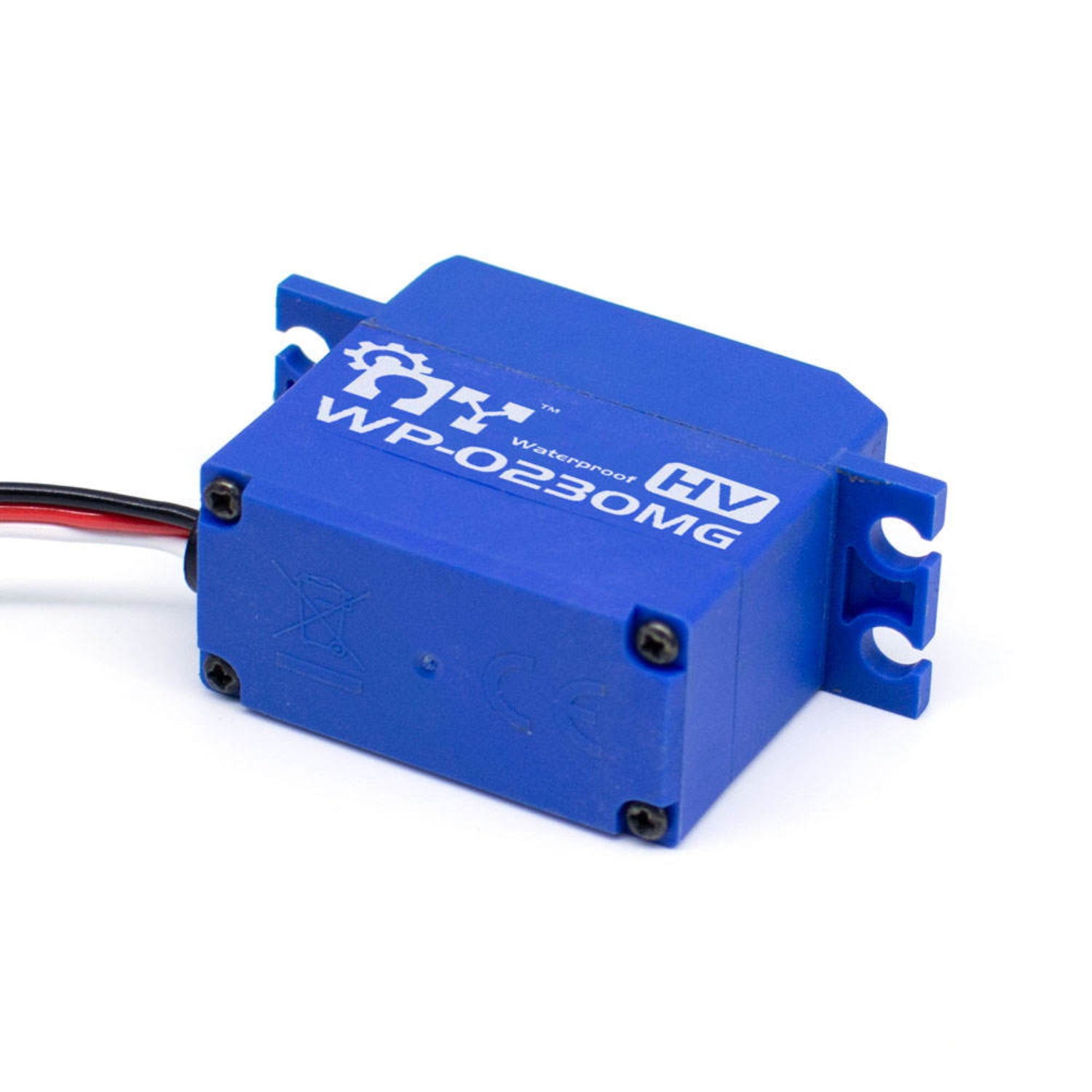

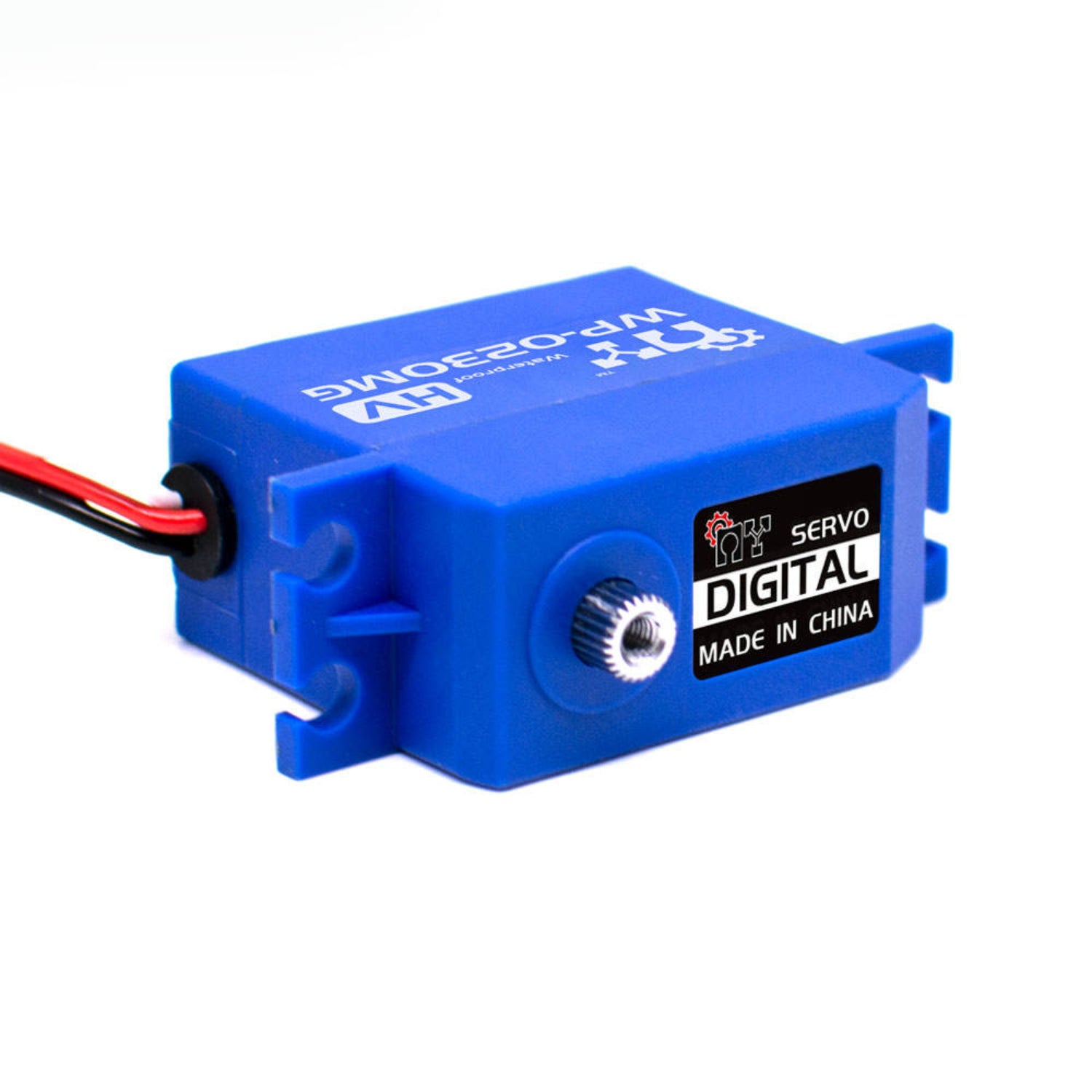

My Servo WP-0230MG High-Torque Metal Gear Servo Waterproof Metal Gear Servo For demanding RC and Robotic projects

My Servo WP-0230MG High-Torque Metal Gear Servo Waterproof Metal Gear Servo For demanding RC and Robotic projects

In stock

Rs. 2,269.00
Rs. 2,269.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo features a high-quality cored motor for consistent and reliable performance. With a speed of 0.13 sec/60° and a stall torque of 8.0kg cm at 7.4V, it provides a powerful and quick response for a wide range of applications. The ultra-fast 3μs deadband ensures precise control, while its 2BB bearing system and standard 25T spline offer durable, easy integration.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: high-quality cored motor
  • Operating Speed 6.0V): 0.16sec/60°
  • Operating Speed (7.4V): 0.13sec/60°
  • Stall Torque (6.0V):6.5kg cm
  • Stall Torque (7.4V): 8.0kg.cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • Reliable Cored Motor: A high-quality cored motor provides dependable performance and consistent power.
  • Quick Response: Achieves a speed of 0.13 sec/60° at 7.4V, ensuring fast command execution.
  • Solid Torque: Delivers a respectable 8.0kg cm of stall torque, offering plenty of power for its class.
  • Precise Control: A lightning-fast 3μs deadband ensures ultra-responsive and accurate control.

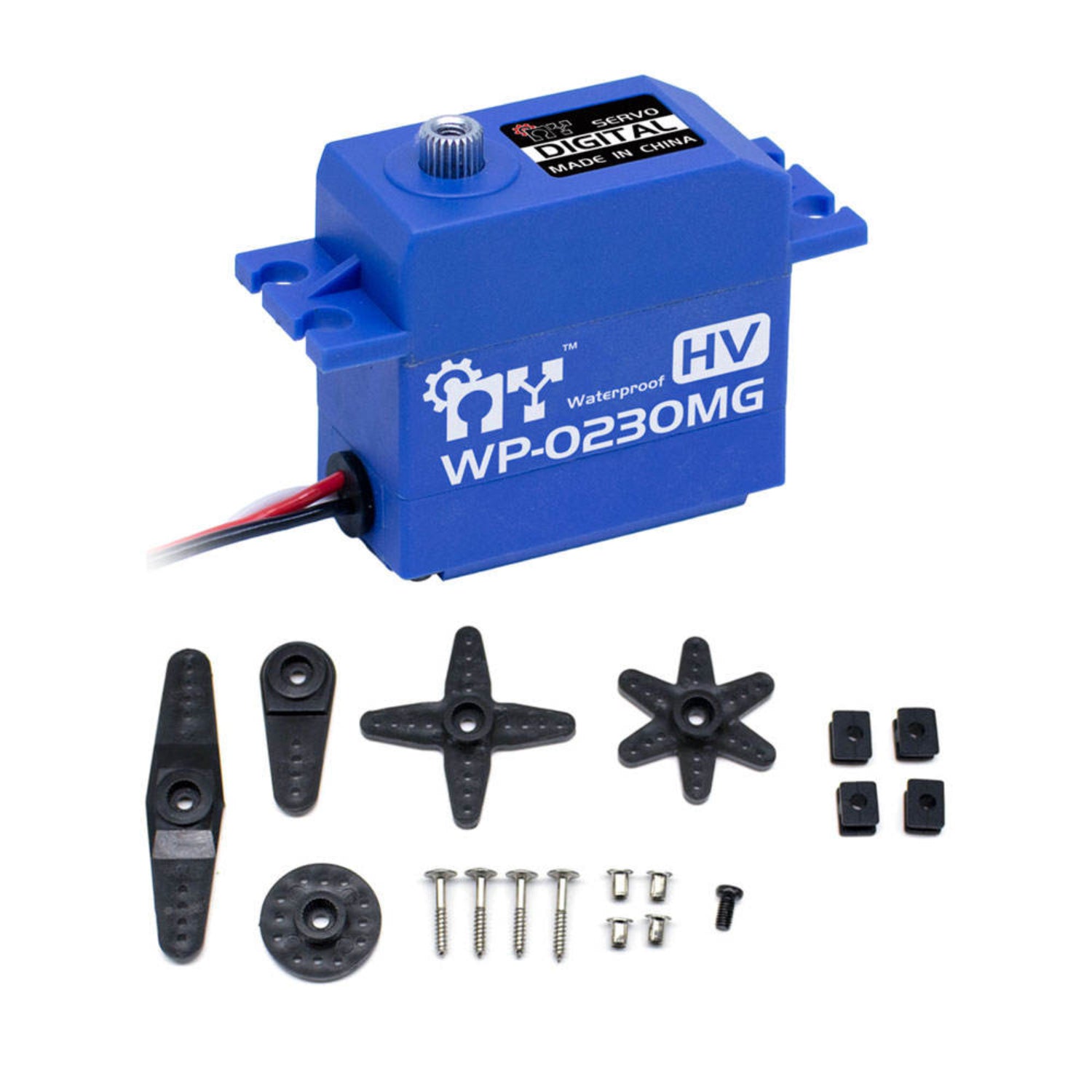

Package Included:

1 x My Servo WP-0230MG High-Torque Waterproof Metal Gear Servo
