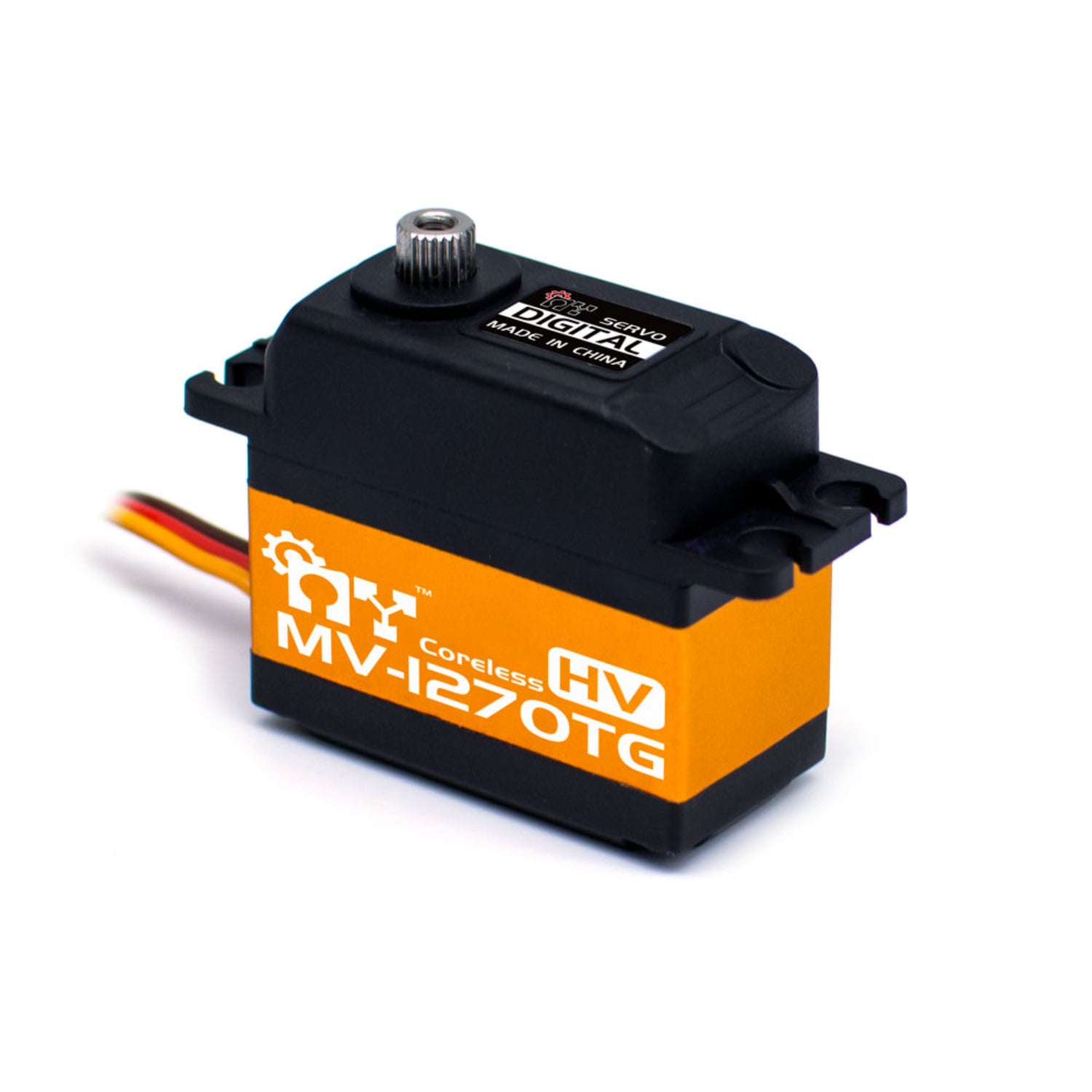

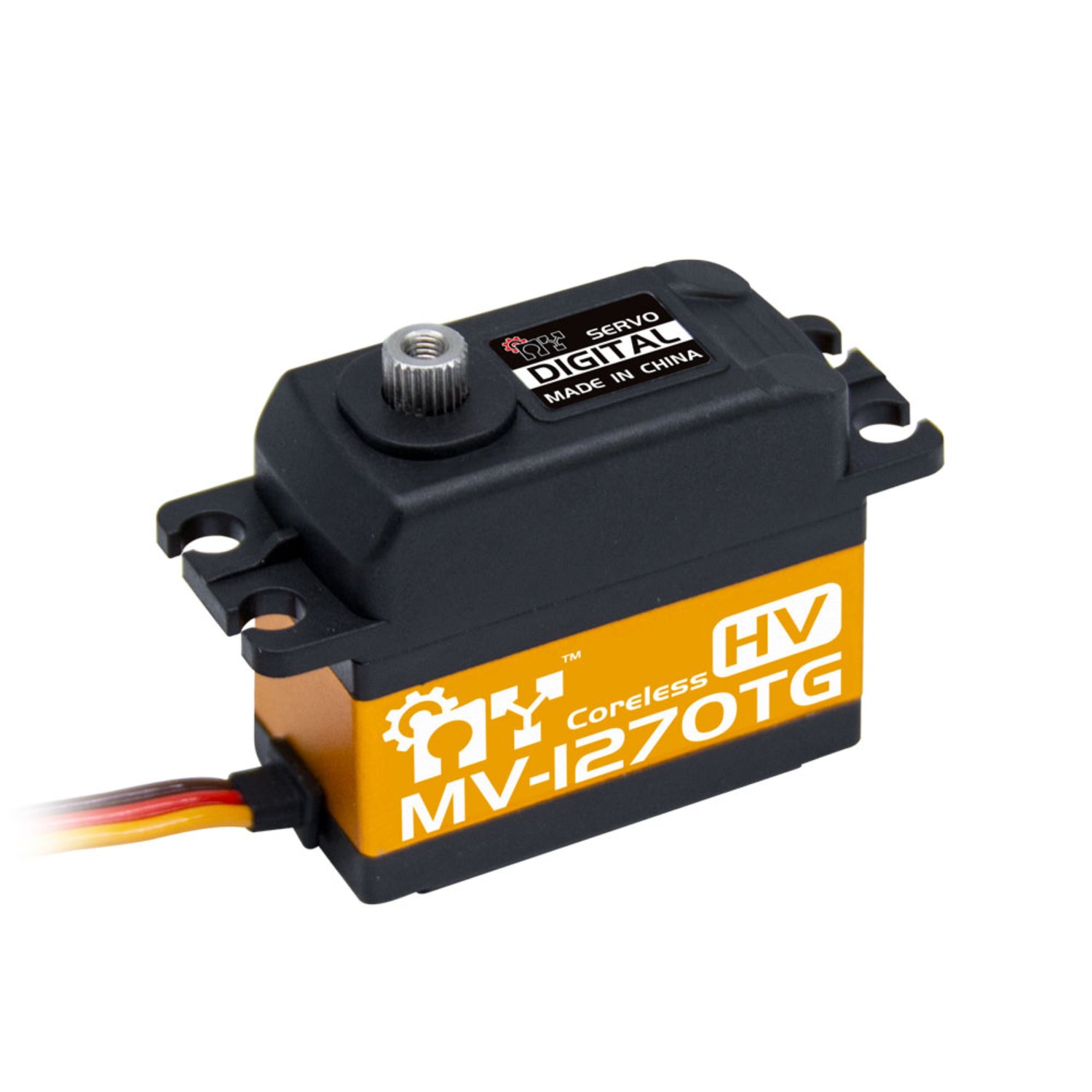

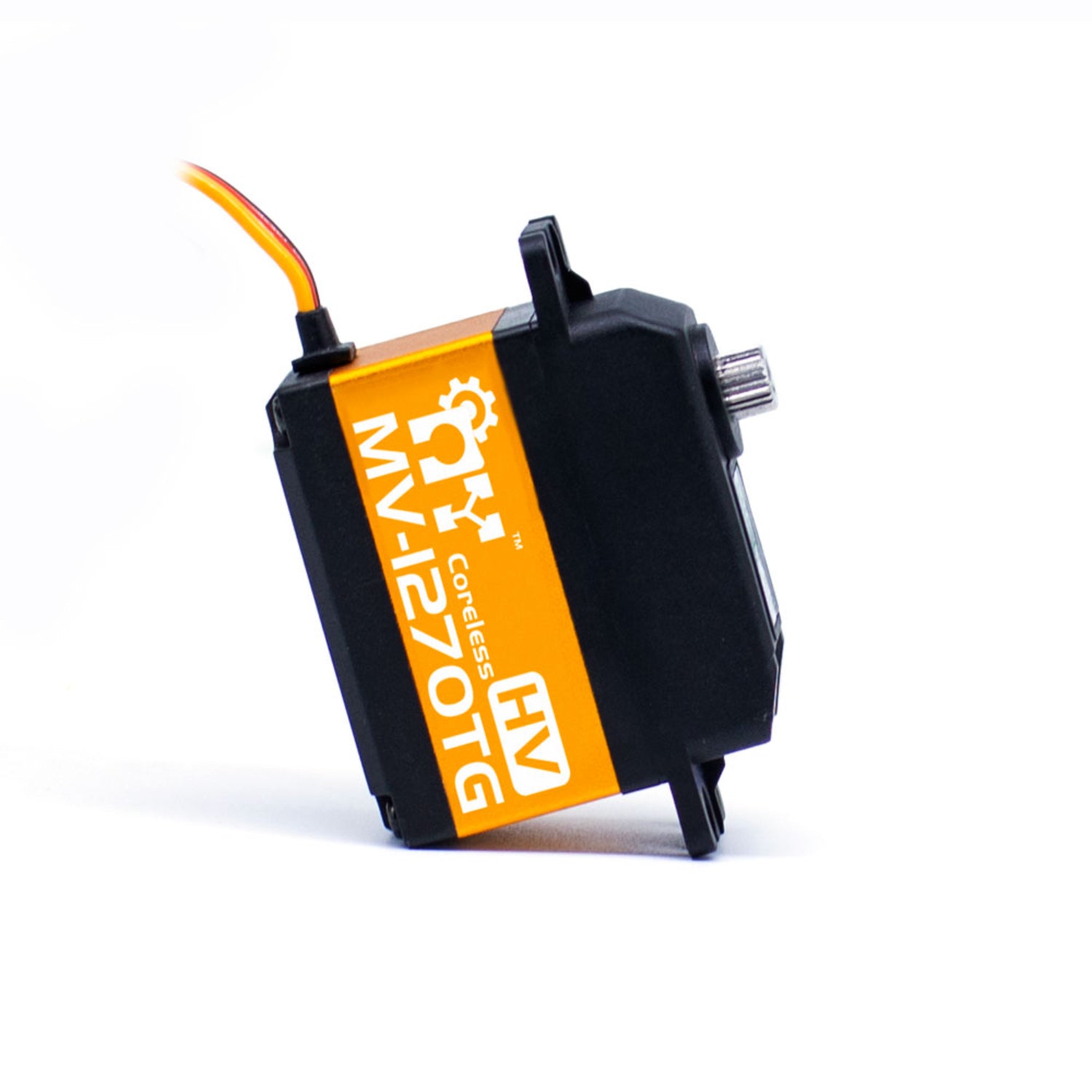

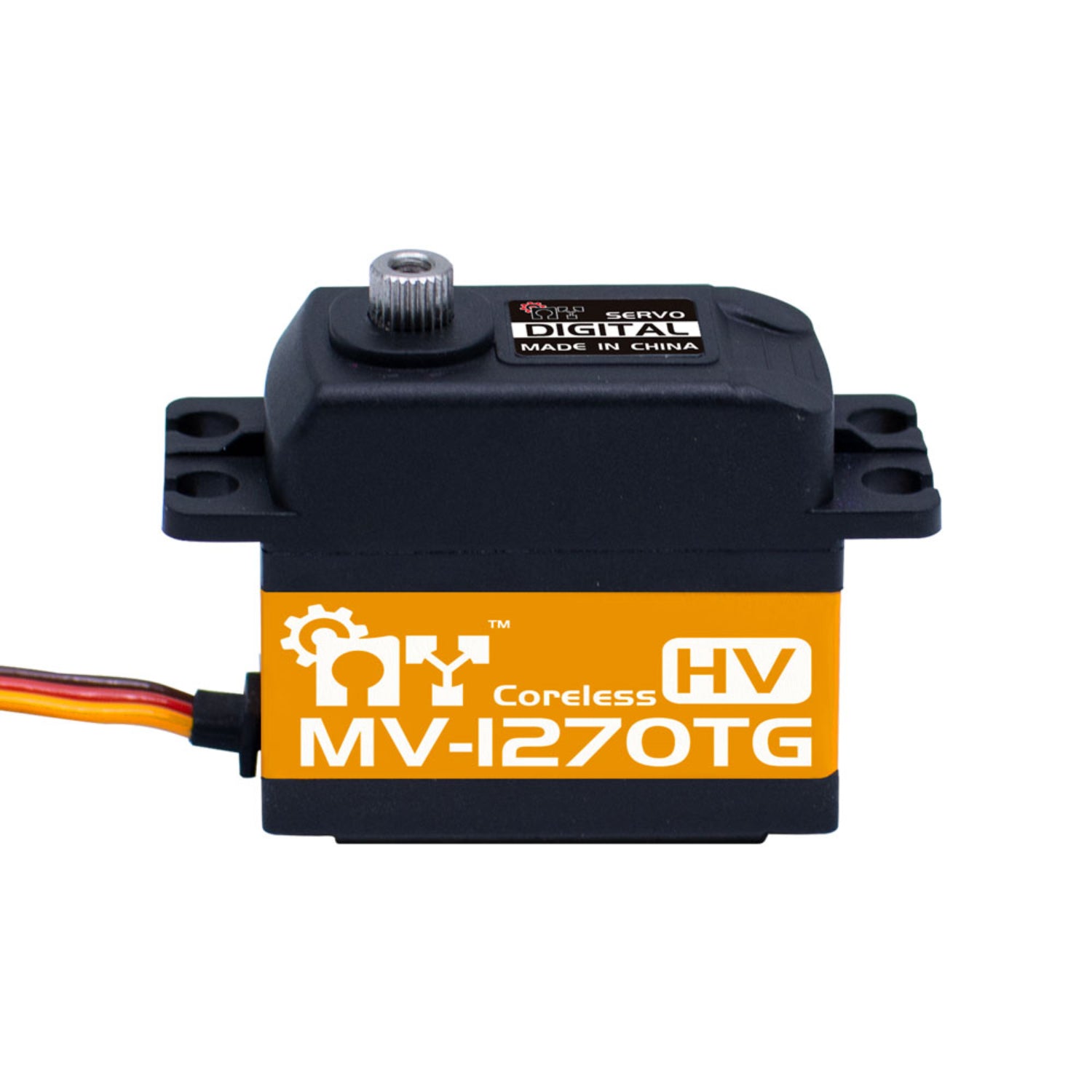

My Servo MV-1270TG High-Voltage Digital Servo 7.4V 1270TG HV Programmable Metal Gear Motor For RC Aircraft and Industrial Applications

My Servo MV-1270TG High-Voltage Digital Servo 7.4V 1270TG HV Programmable Metal Gear Motor For RC Aircraft and Industrial Applications

In stock

Rs. 4,699.00
Rs. 4,699.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

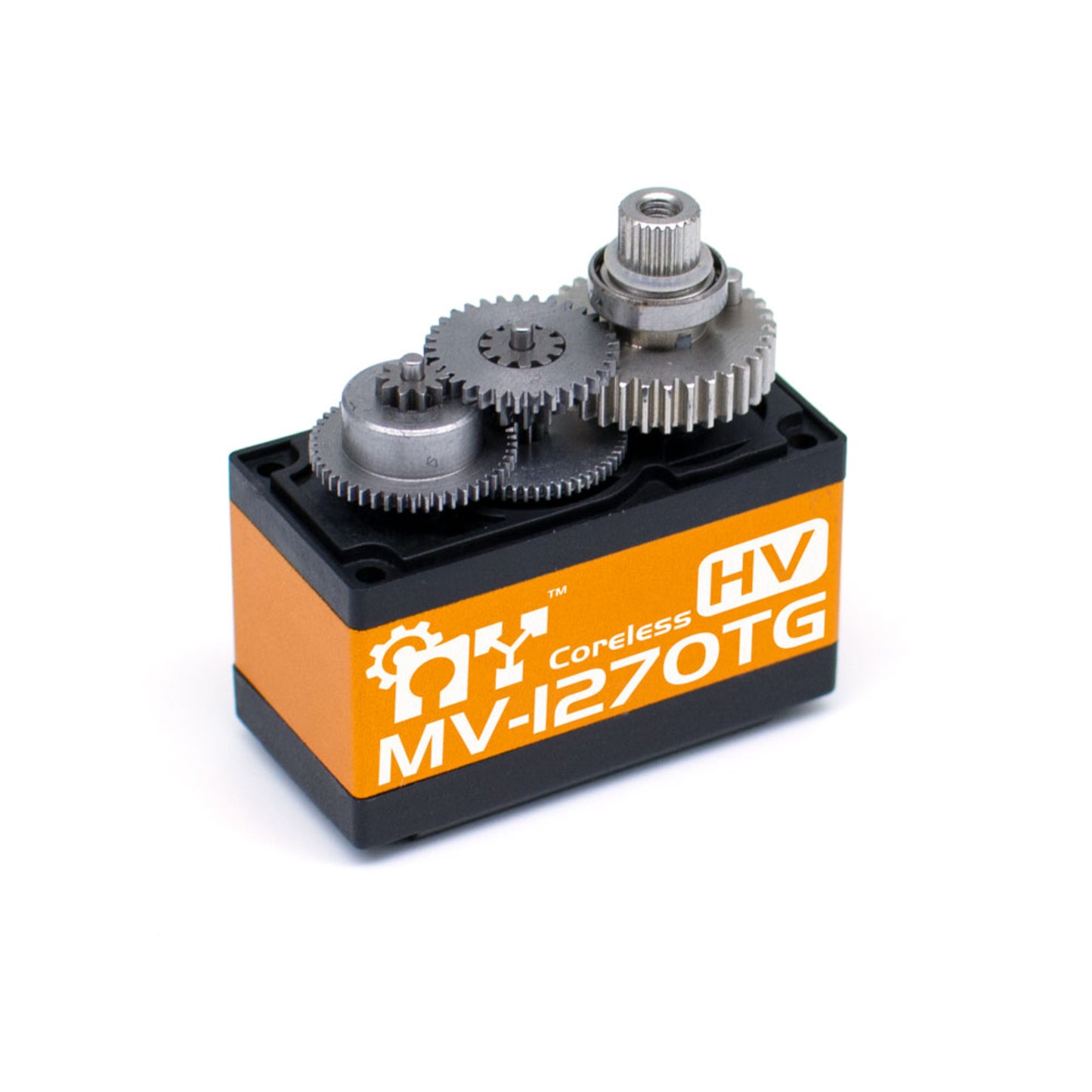

This servo uses a responsive coreless motor to deliver an impressive 35.0kg cm of stall torque and an efficient operating speed of 0.11 sec/60° at 7.4V. A lightning-fast 3μs deadband ensures ultra-precise control, while the durable 2BB bearing system and standard 25T output spline guarantee reliable performance in your most demanding projects.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Coreless Motor
  • Operating Speed 6.0V): 0.14sec/60°
  • Operating Speed (7.4V): 0.11sec/60°
  • Stall Torque (6.0V):26.0kg cm
  • Stall Torque (7.4V): 35.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • High-Torque Performance: Delivers an impressive 35.0kg cm of stall torque at 7.4V, providing serious power for heavy-duty applications.
  • Fast Response: A coreless motor and a lightning-fast 3μs deadband ensure quick and precise command execution.
  • Efficient Speed: Achieves a respectable speed of 0.11 sec/60° at 7.4V, balancing power with performance.
  • Durable Build: Features a sturdy 2BB bearing system and a standard 25T output spline for reliable operation.

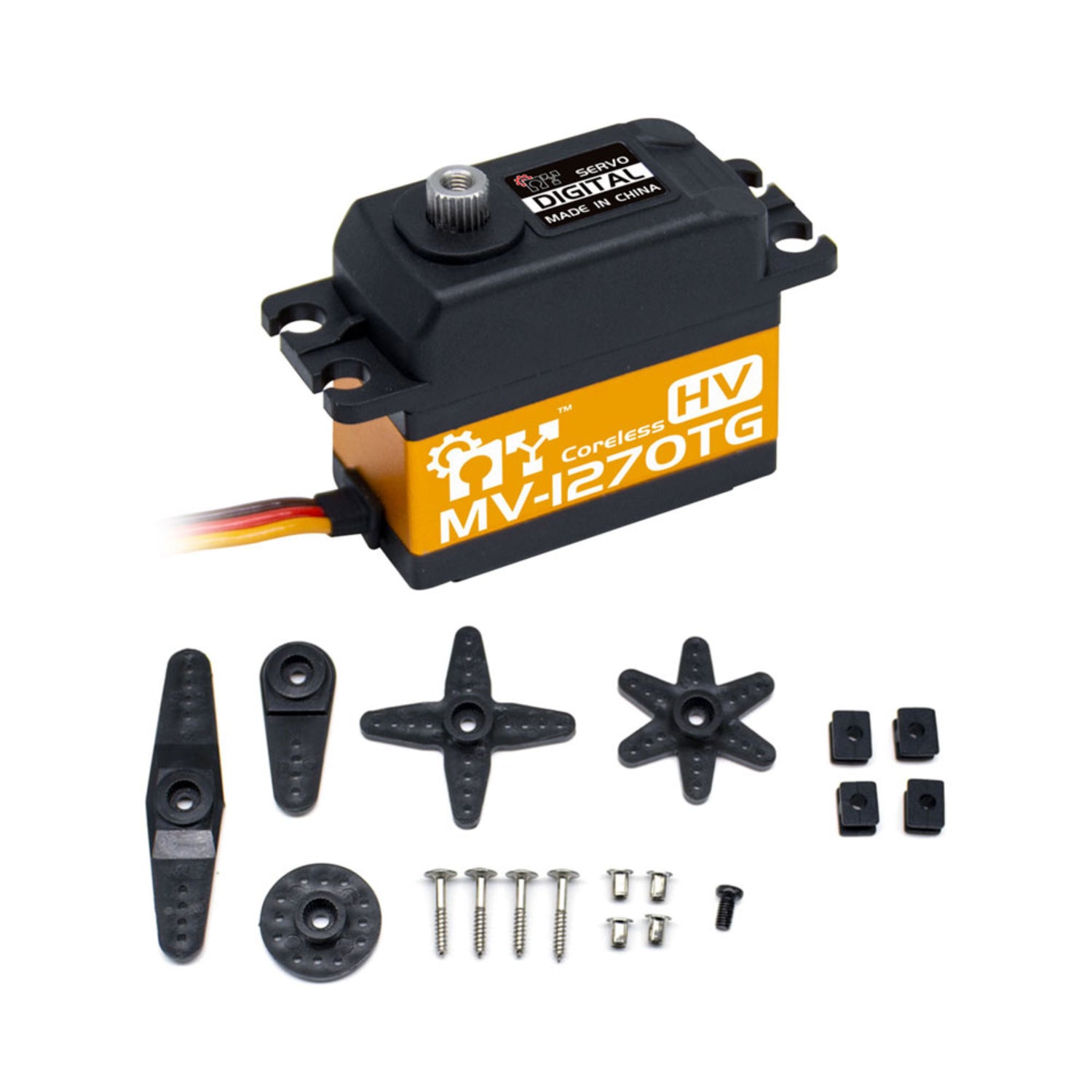

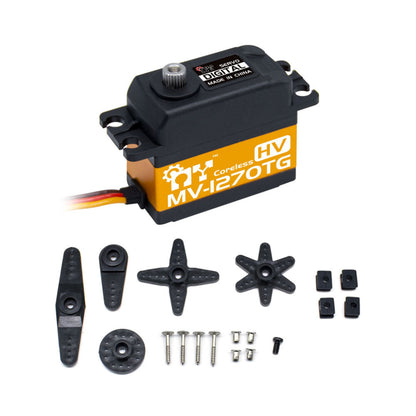

Package Included:

1 x My Servo MV-1270TG High-Torque High-Voltage Digital Servo
