My Servo MB-2275MG Heavy-Duty Metal Gear Servo High-Torque & Waterproof Metal Gear Servo For Robotics, RC Car, Aircraft

My Servo MB-2275MG Heavy-Duty Metal Gear Servo High-Torque & Waterproof Metal Gear Servo For Robotics, RC Car, Aircraft

In stock

Rs. 5,800.00
Rs. 5,800.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo is powered by a high-efficiency brushless motor for superior performance and a longer lifespan. A lightning-fast 3μs deadband ensures ultra-responsive control, while an impressive operating speed of 0.05 sec/60° and a stall torque of 10.0kg cm at 7.4V deliver the perfect balance of power and speed for competitive applications. Its durable design includes a 2BB bearing system and a standard 25T spline.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Brushless Motor
  • Operating Speed (6.0V): 0.06sec/60°
  • Operating Speed (7.4V): 0.05sec/60°
  • Stall Torque (6.0V):5.0kg cm
  • Stall Torque (7.4V): 10.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline25T

Features:

  • Lightning-Fast Speed: Achieves an incredible 0.05 sec/60° at 7.4V, making it one of the fastest servos available.
  • Brushless Motor: Provides superior efficiency, longer lifespan, and quiet operation.
  • Ultra-Responsive Control: A lightning-fast 3μs deadband ensures instant and precise command execution.
  • Compact Power: Delivers 10.0kg cm of torque, balancing power with exceptional speed.

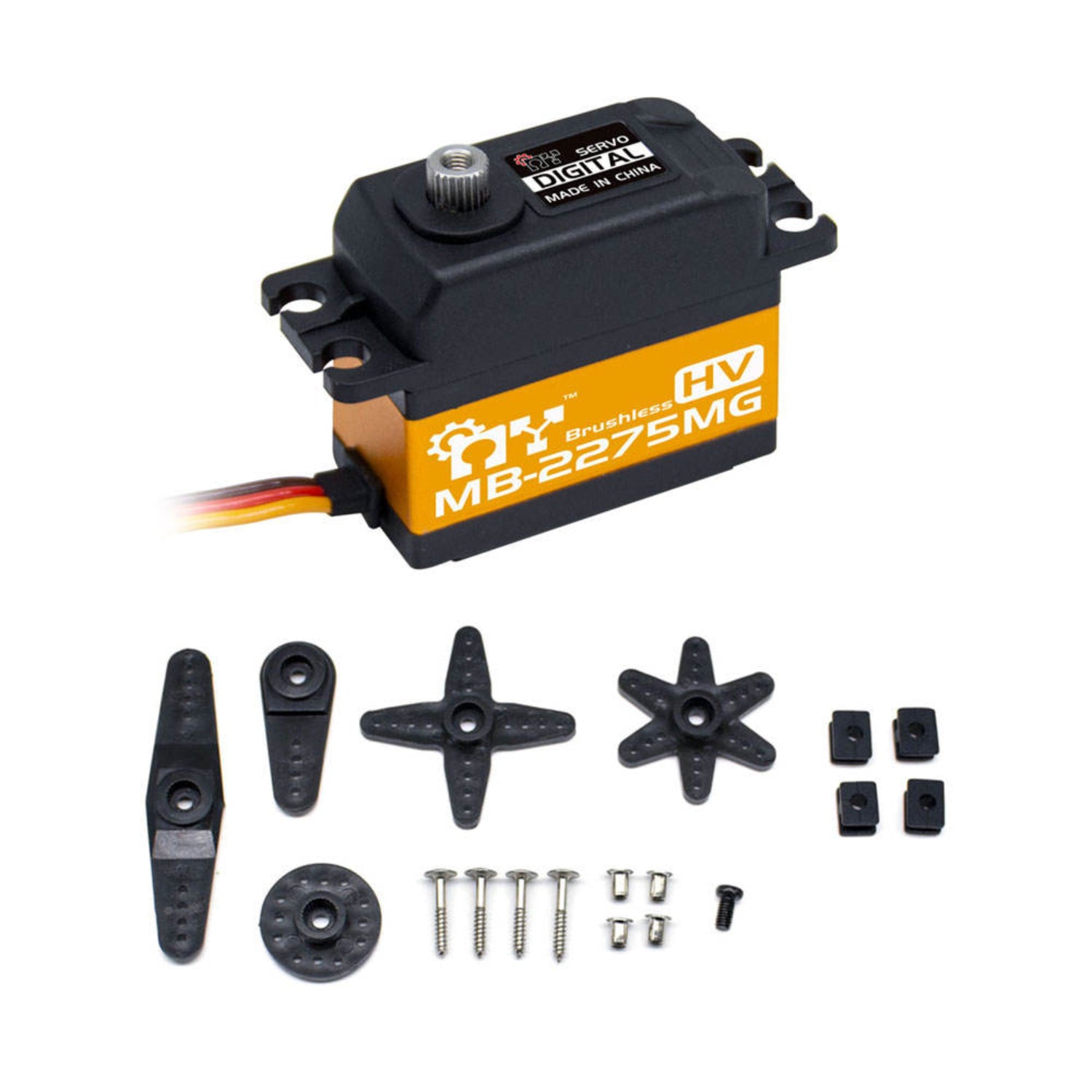

Package Included:

1 x My Servo MB-2275MG Heavy-Duty Metal Gear Servo
