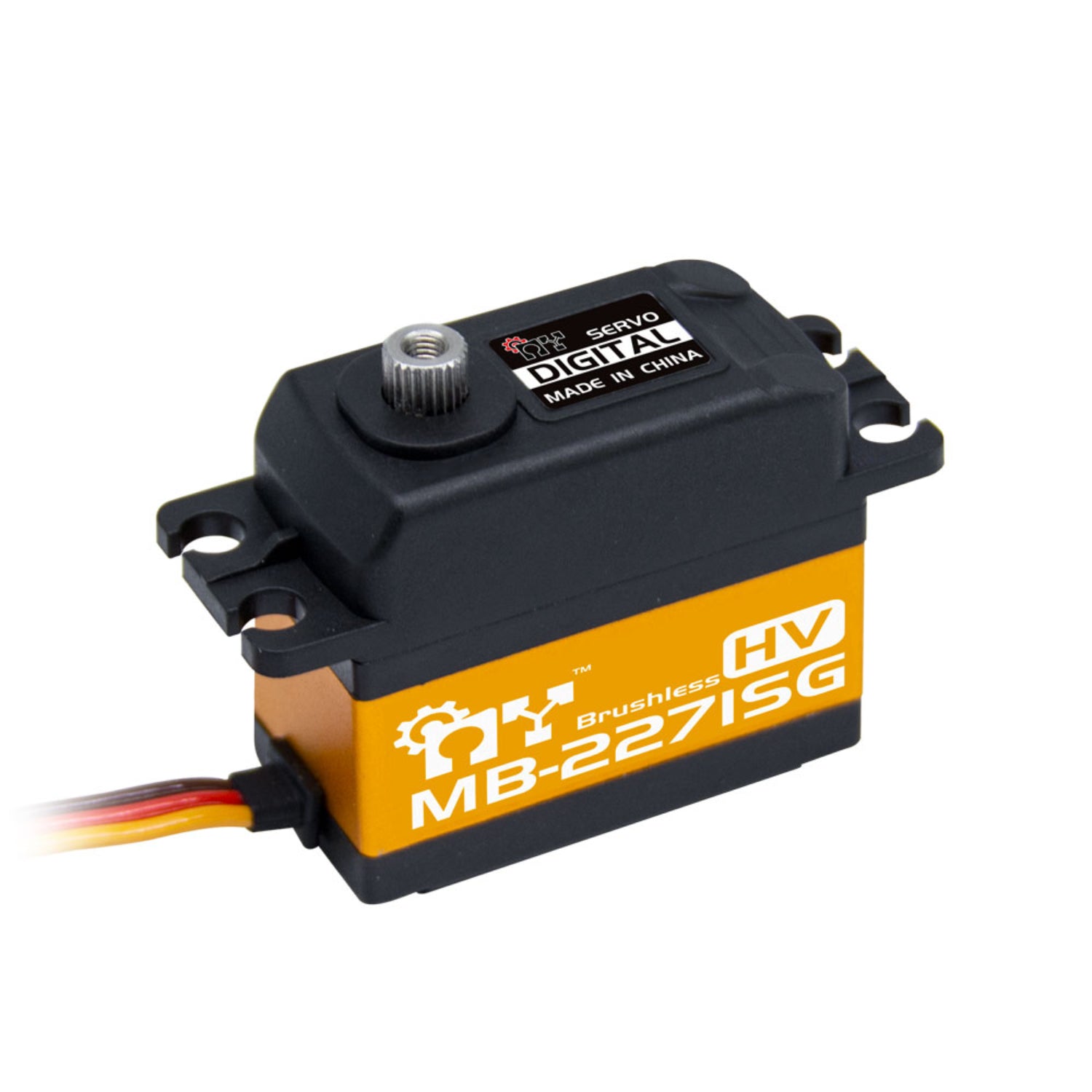

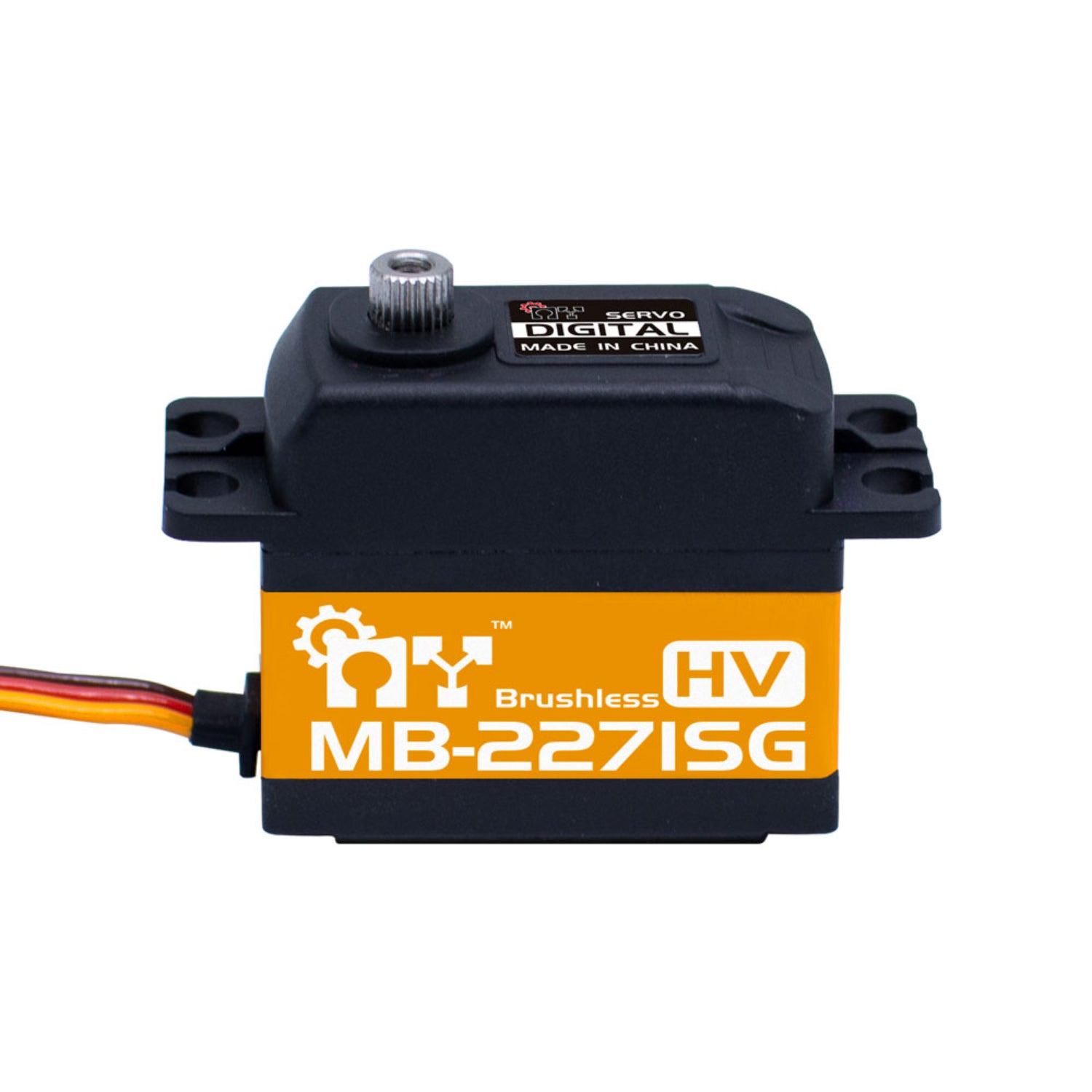

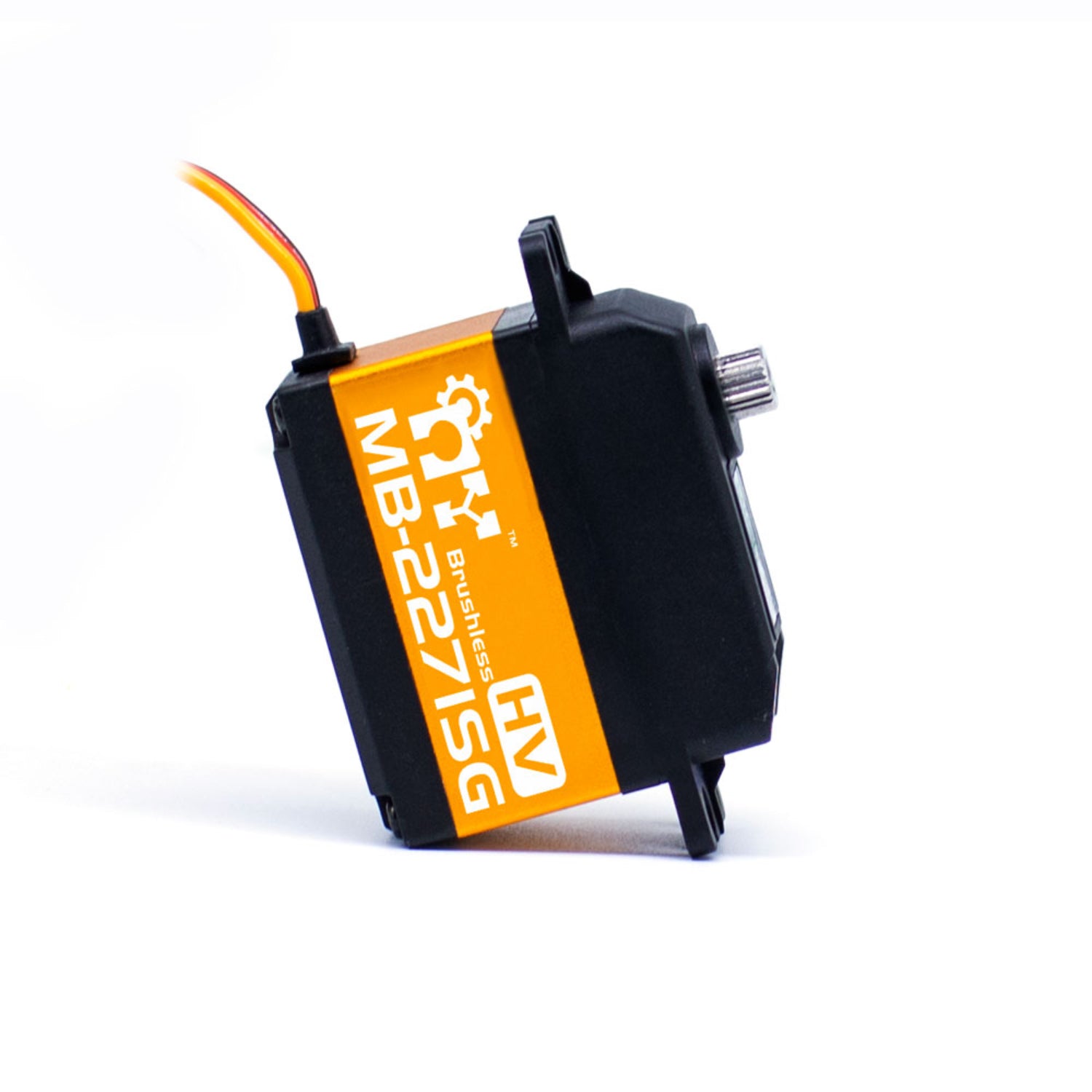

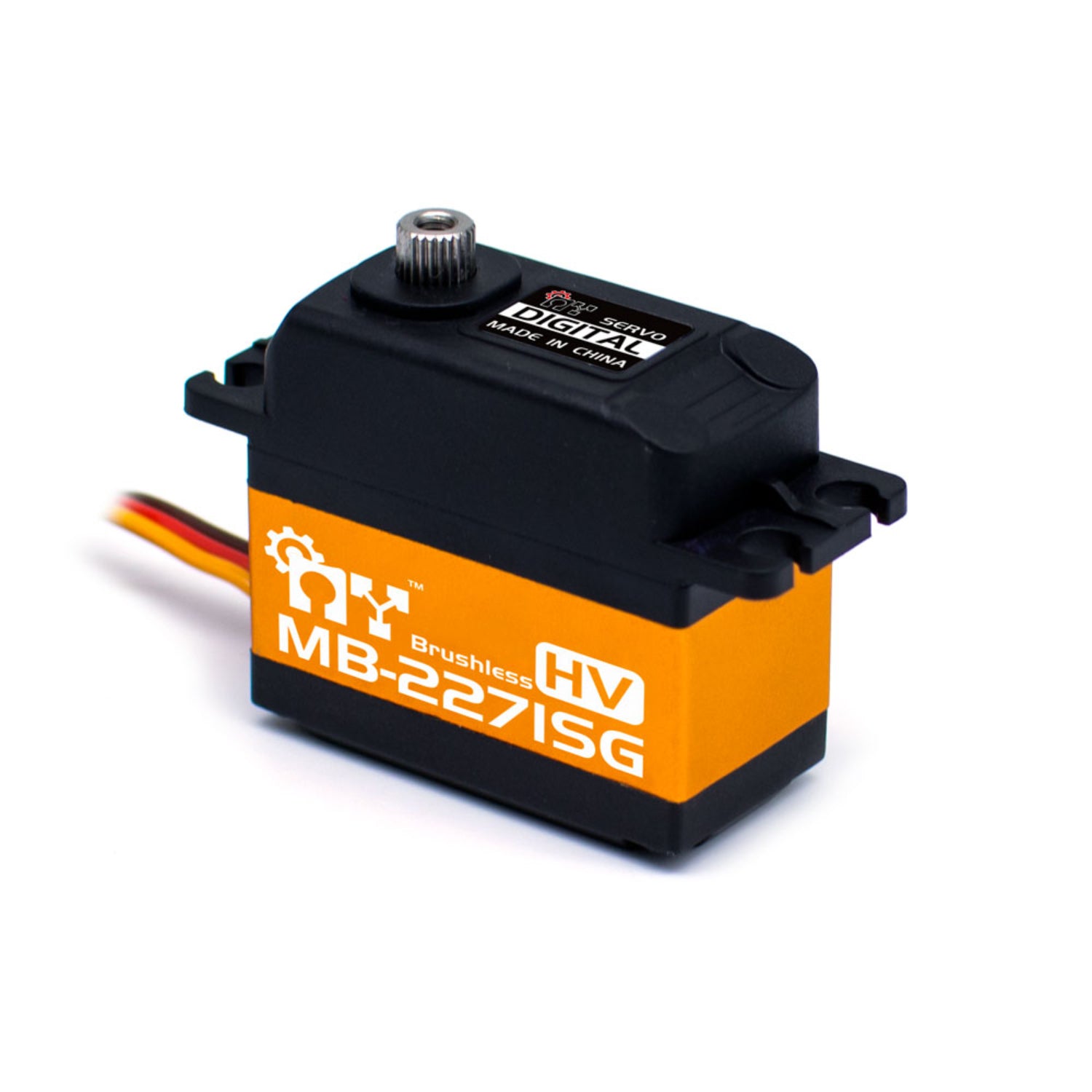

My Servo MB-2271SG Brushless Digital Servo High-Torque Brushless Digital Servo For Professional RC and Robotics

My Servo MB-2271SG Brushless Digital Servo High-Torque Brushless Digital Servo For Professional RC and Robotics

In stock

Rs. 5,700.00
Rs. 5,700.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

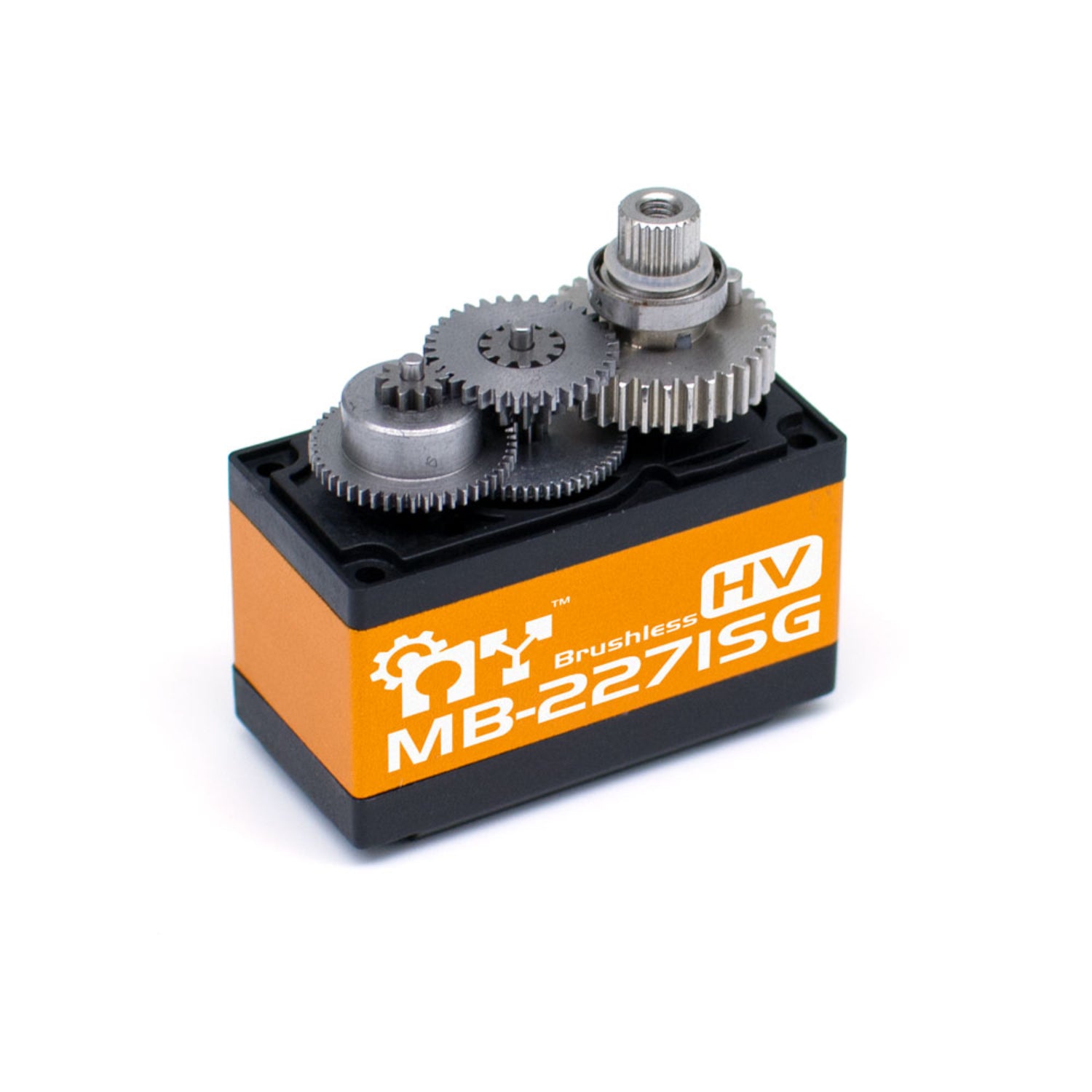

This servo is powered by a high-efficiency brushless motor for superior performance and a longer lifespan. A lightning-fast 3μs deadband and 1520μs / 330Hz working frequency provide instant, responsive control. With an astounding operating speed of 0.06 sec/60° and a stall torque of 20.0kg cm at 7.4V, it delivers the perfect balance of speed and power for competitive applications. Its durable design includes a 2BB bearing system and a standard 25T spline.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Brushless Motor
  • Operating Speed 6.0V): 0.08sec/60°
  • Operating Speed (7.4V): 0.06sec/60°
  • Stall Torque (6.0V): 15.0kg cm
  • Stall Torque (7.4V): 20.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline:25T

Features:

  • Blistering Speed: Achieves an incredible 0.06 sec/60° at 7.4V, making it one of the fastest servos available.
  • Brushless Power: A brushless motor provides superior efficiency, longevity, and consistent performance.
  • Ultra-Responsive Control: A lightning-fast 3μs deadband ensures instantaneous and precise command execution.
  • Compact Power: Delivers a robust 20.0kg cm of torque while maintaining a rapid response.
  • Durable Build: Features a sturdy 2BB bearing system and a standard 25T output spline for easy integration.

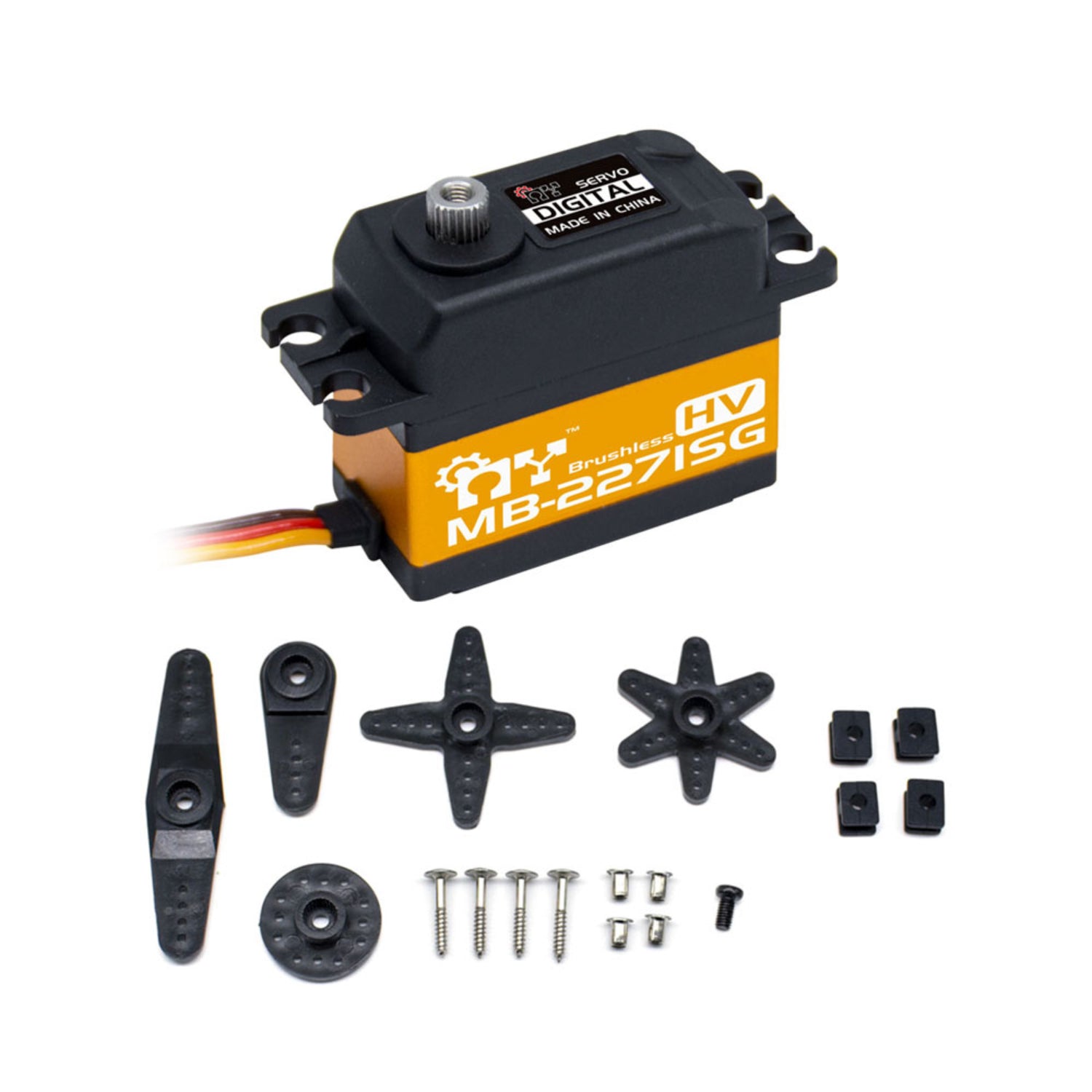

Package Included:

1 x My Servo MB-2271SG High-Speed, High-Torque Brushless Digital Servo
