My Servo MB-2270SG Coreless Digital Servo Ultra High-Torque Digital Servo Ideal For 1/8 Scale RC Buggy, Crawler

My Servo MB-2270SG Coreless Digital Servo Ultra High-Torque Digital Servo Ideal For 1/8 Scale RC Buggy, Crawler

In stock

Rs. 6,000.00
Rs. 6,000.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

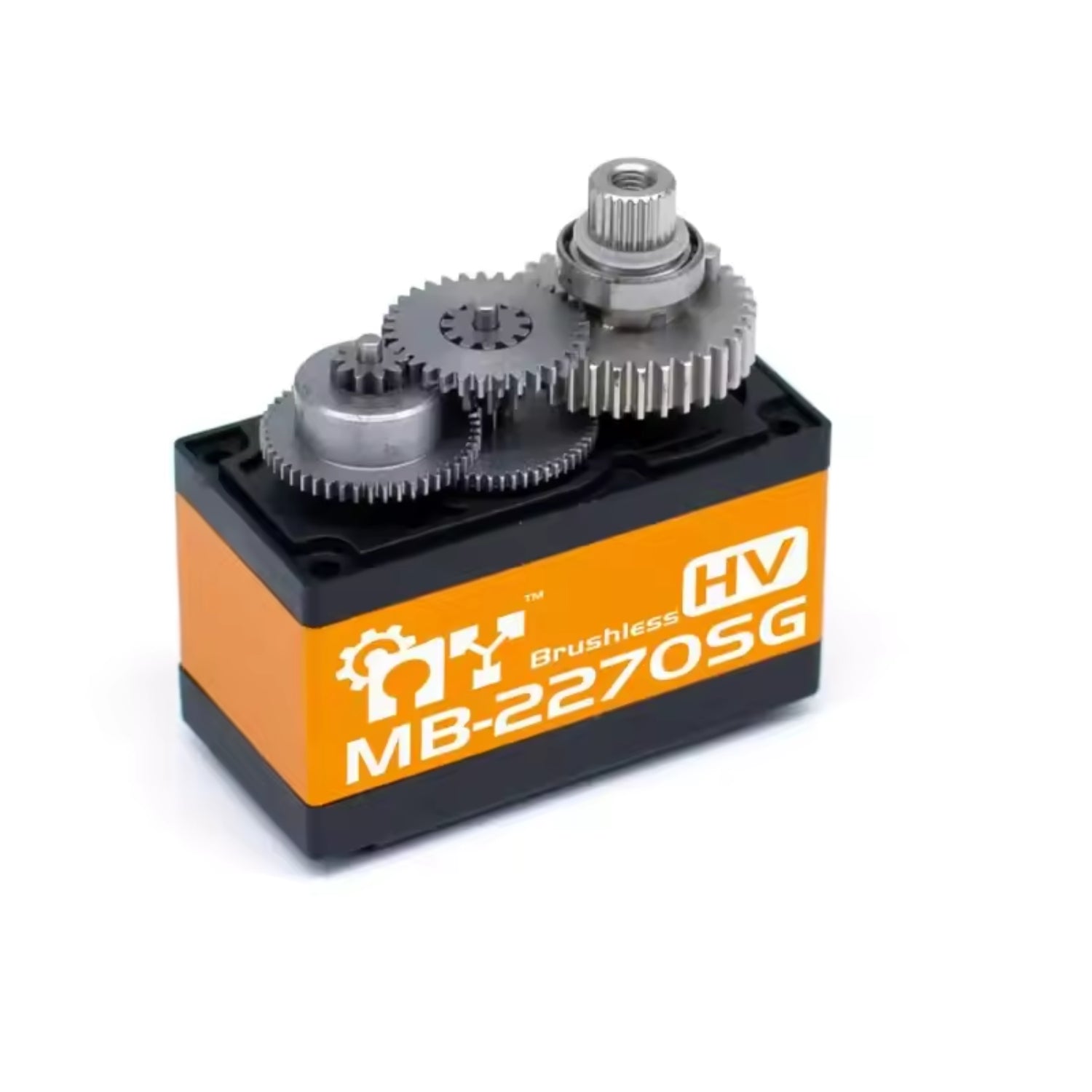

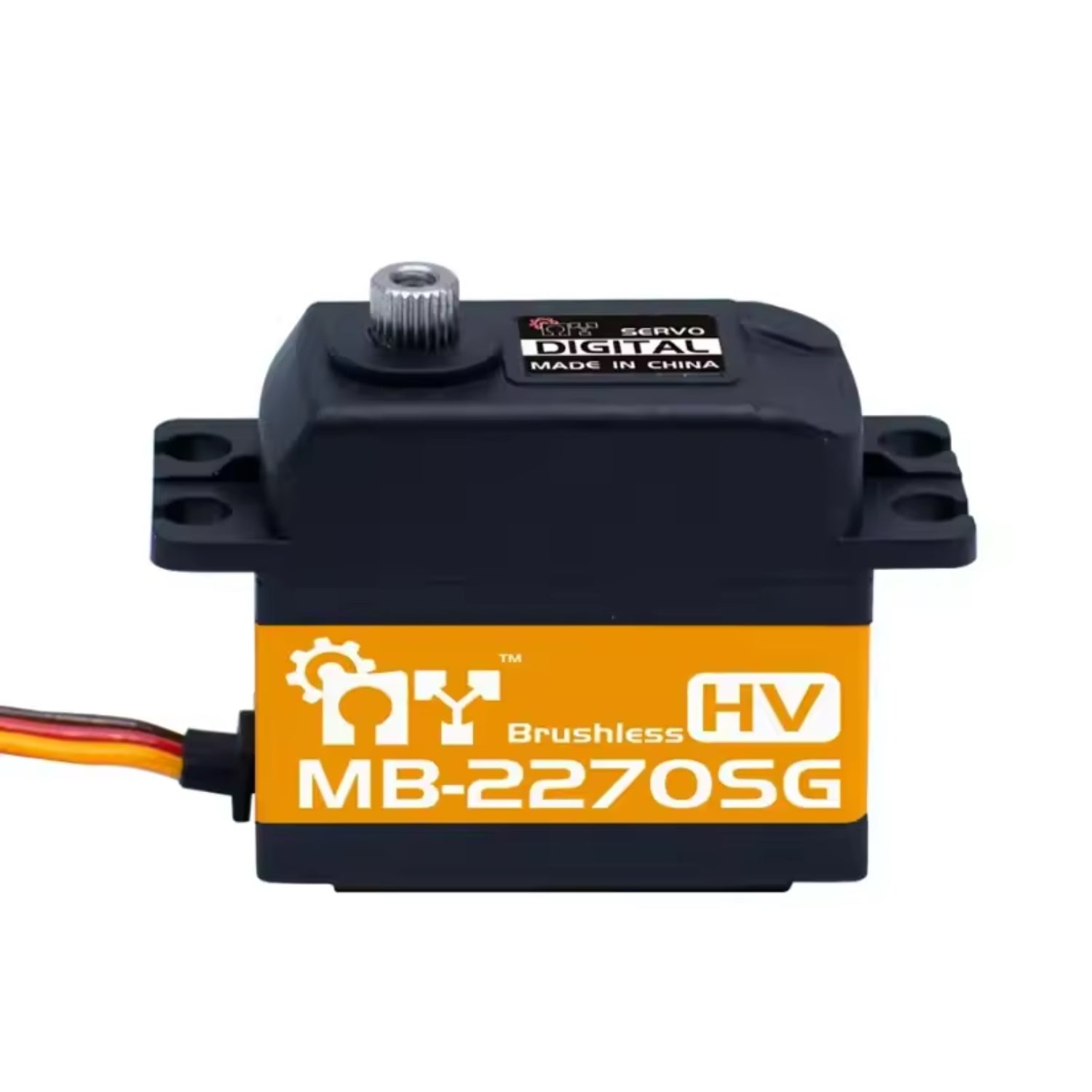

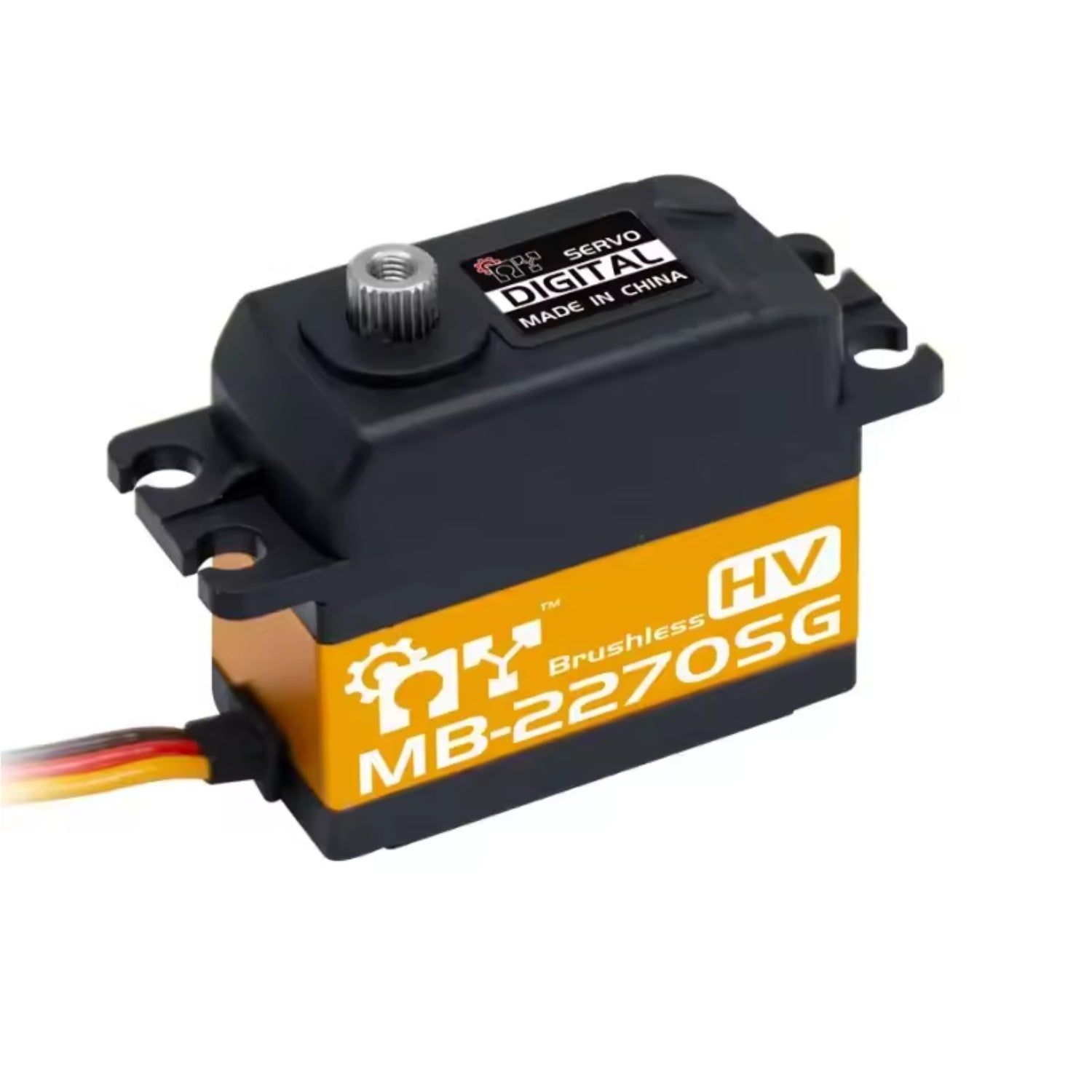

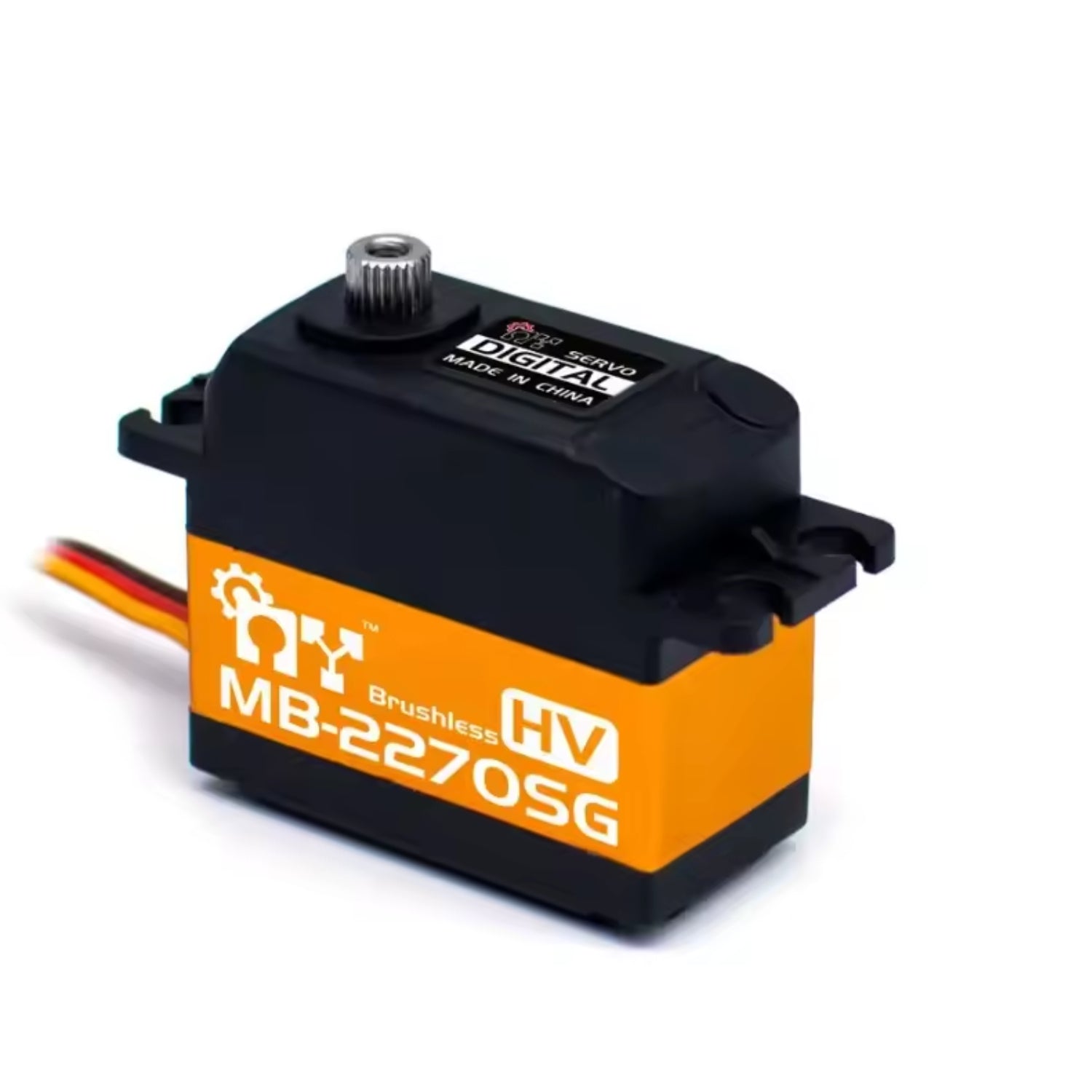

This servo is engineered for performance and reliability. Its brushless motor provides superior efficiency and a longer service life, while a lightning-fast 3μs deadband ensures ultra-responsive and precise control. With an impressive operating speed of 0.12 sec/60° and a stall torque of 32.0kg cm at 7.4V, it delivers the power and speed needed for the most demanding applications. The servo is built to last with a sturdy 2BB bearing system and a standard 25T output gear spline for easy integration.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Brushless Motor
  • Operating Speed 6.0V): 0.15sec/60°
  • Operating Speed (7.4V): 0.12sec/60°
  • Stall Torque (6.0V):25.0kg cm
  • Stall Torque (7.4V): 32.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline25T

Features:

  • High-Performance Brushless Motor: Delivers superior efficiency, speed, and a longer lifespan.
  • Ultra-Responsive Control: A lightning-fast 3μs deadband ensures precision and quick command execution.
  • Extreme Power Speed: Achieves 32.0kg cm of torque and a speed of 0.12 sec/60° at 7.4V.
  • Durable, Reliable: Built to last with a sturdy 2BB bearing system and standard 25T spline.

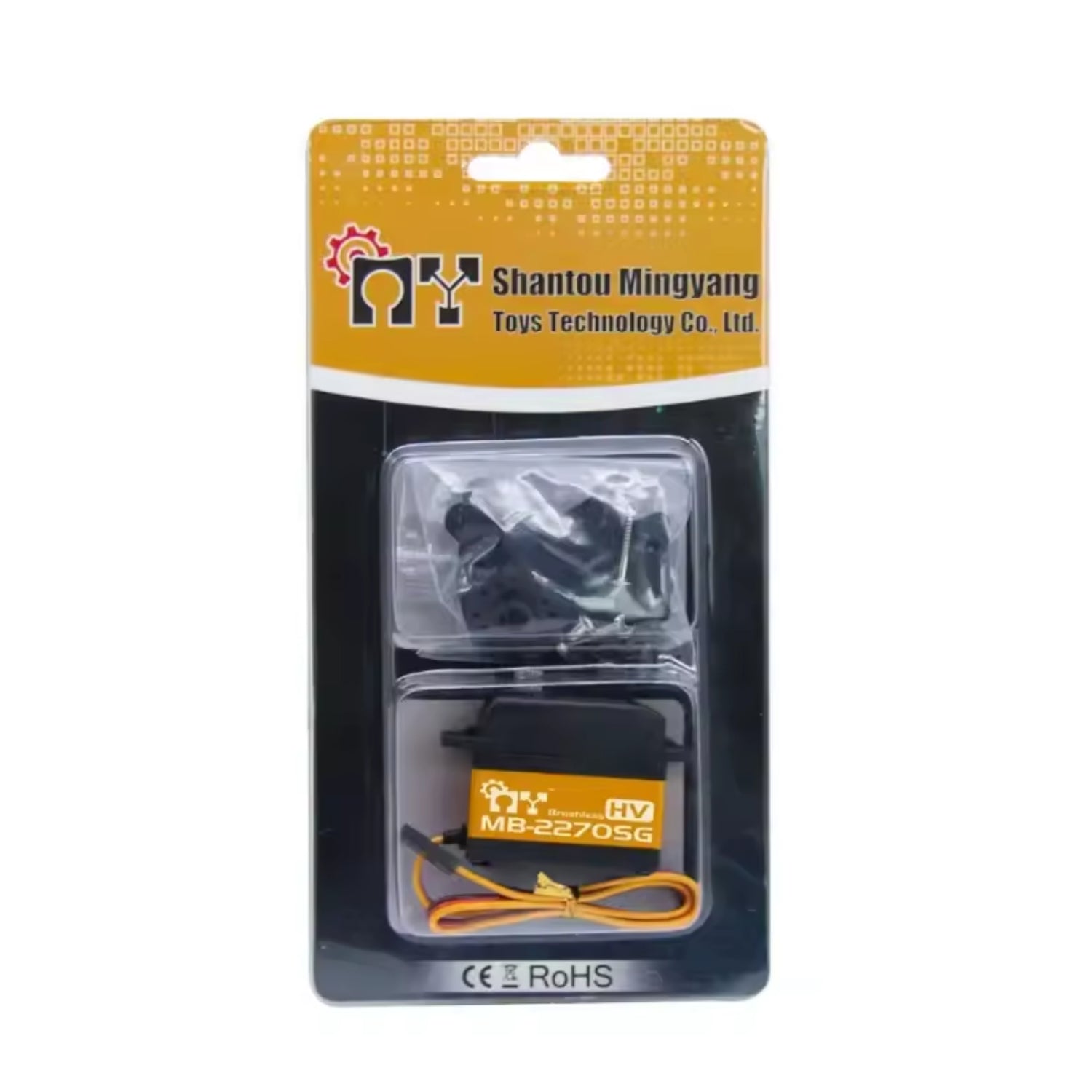

Package Included:

1 x My Servo MB-2270SG Ultra High-Torque Coreless Digital Servo
