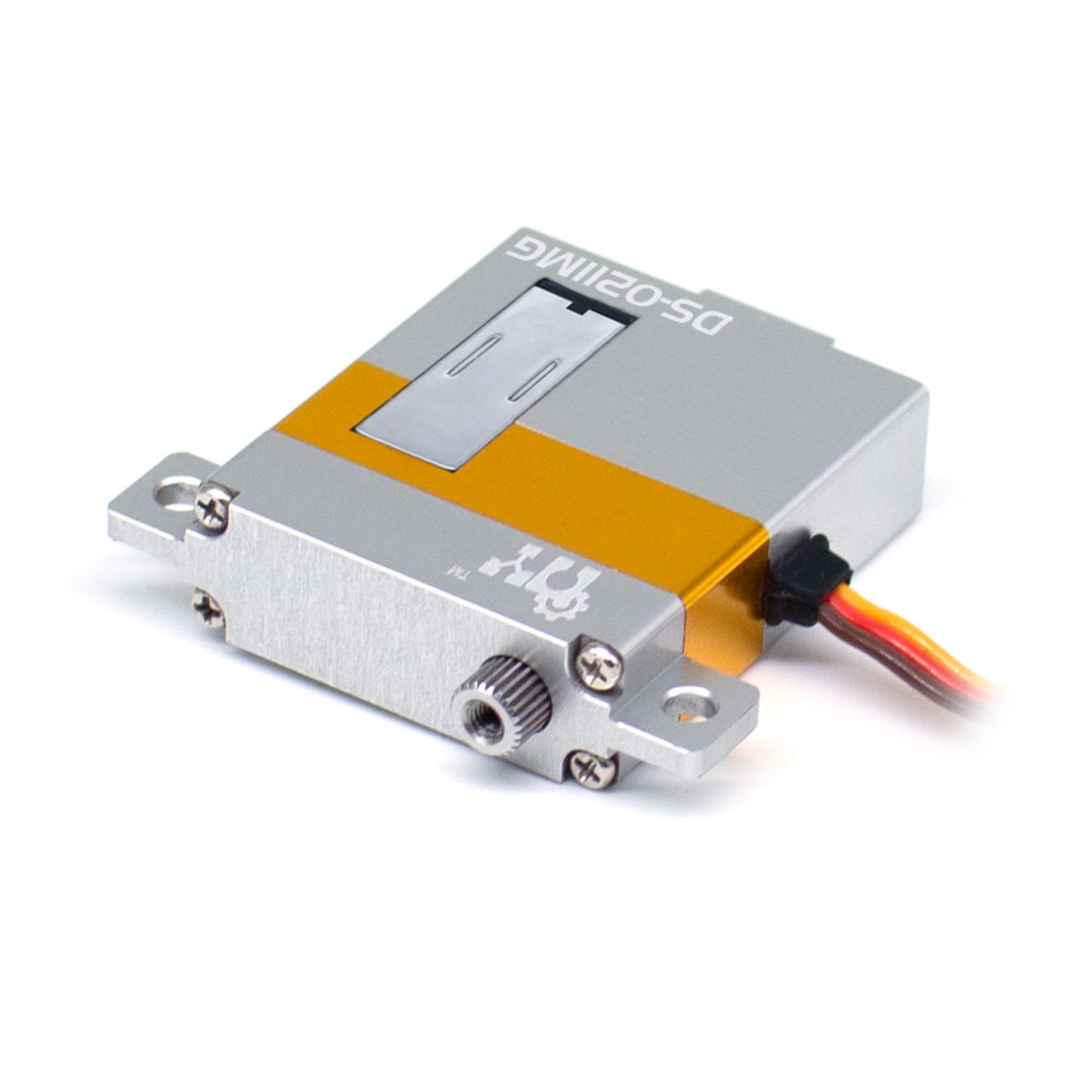

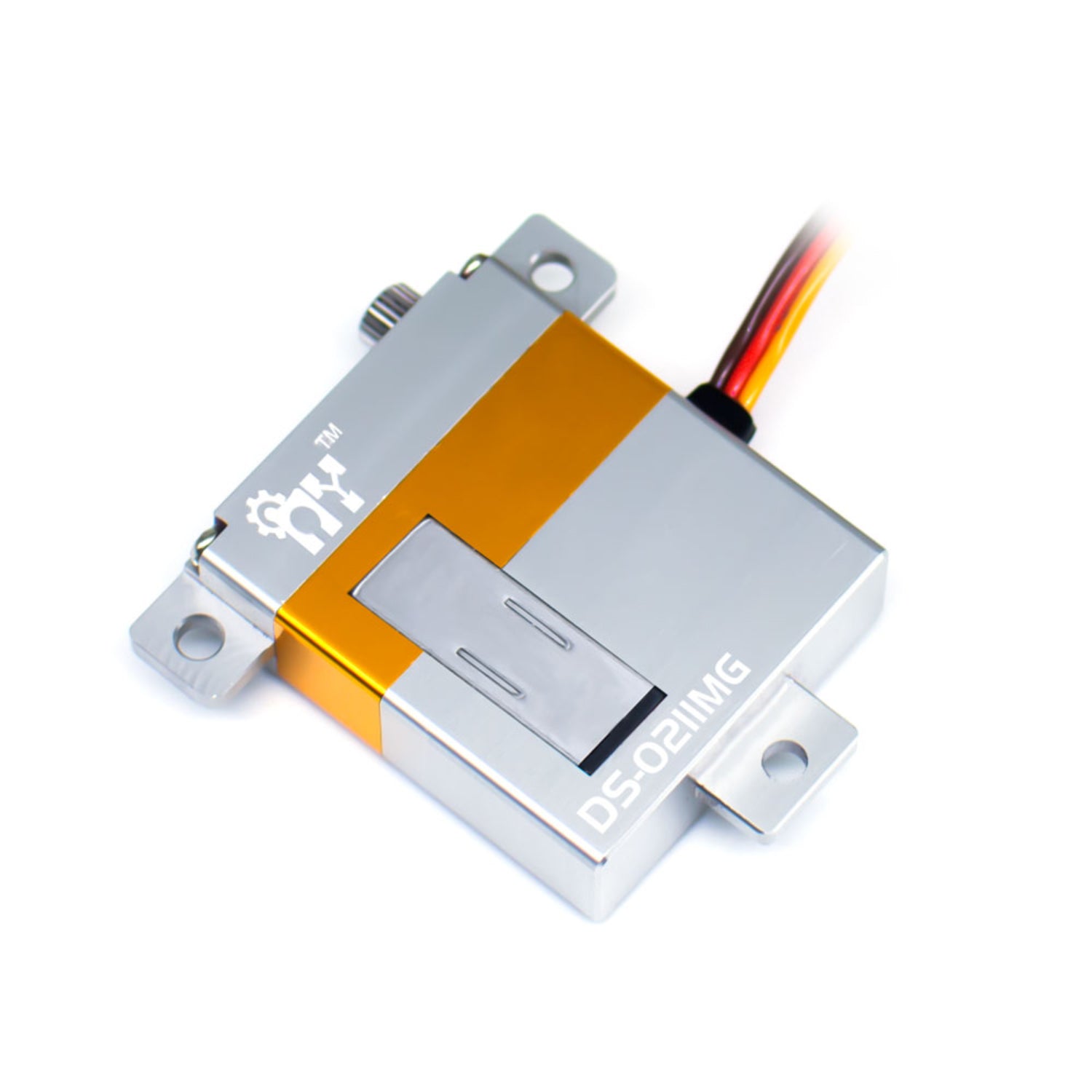

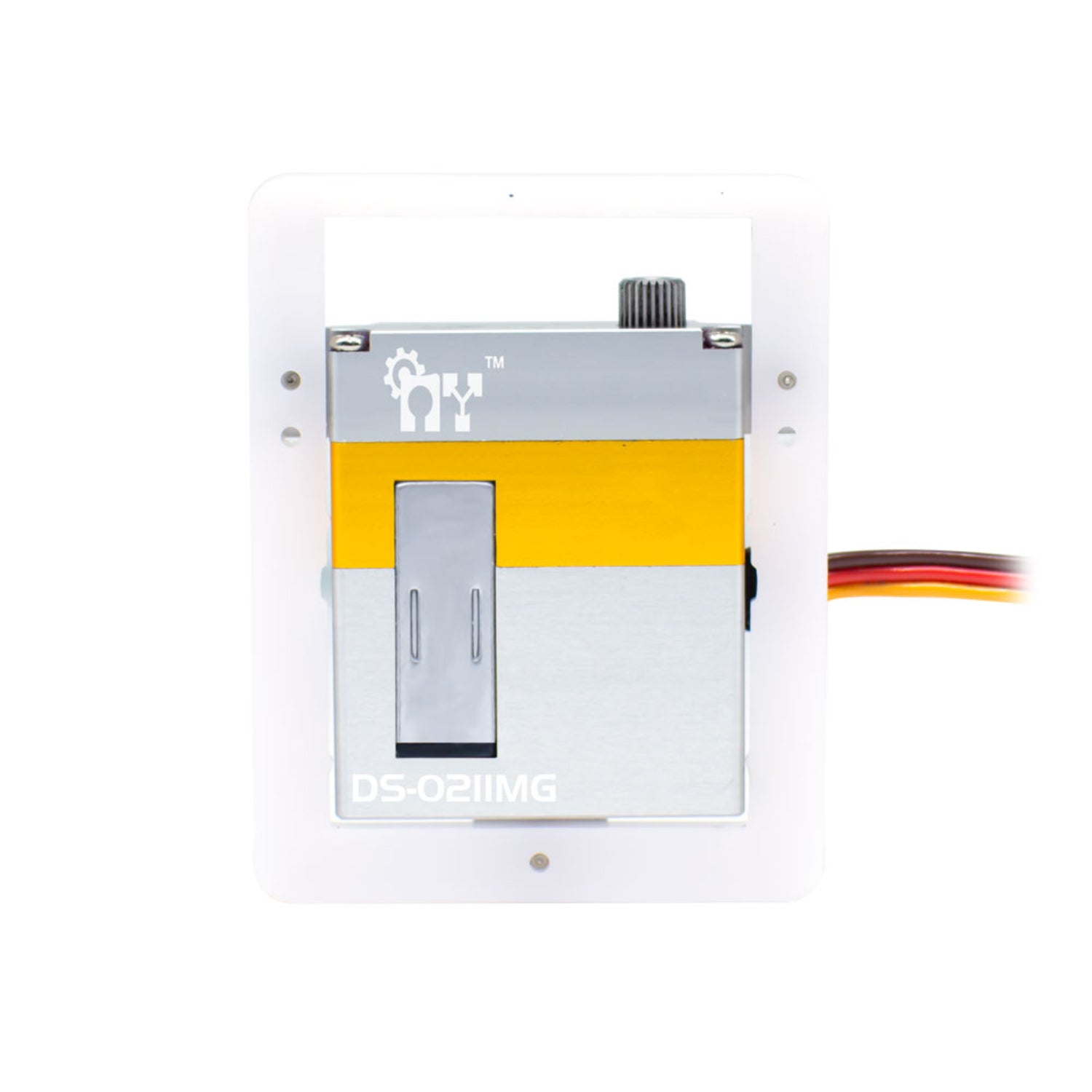

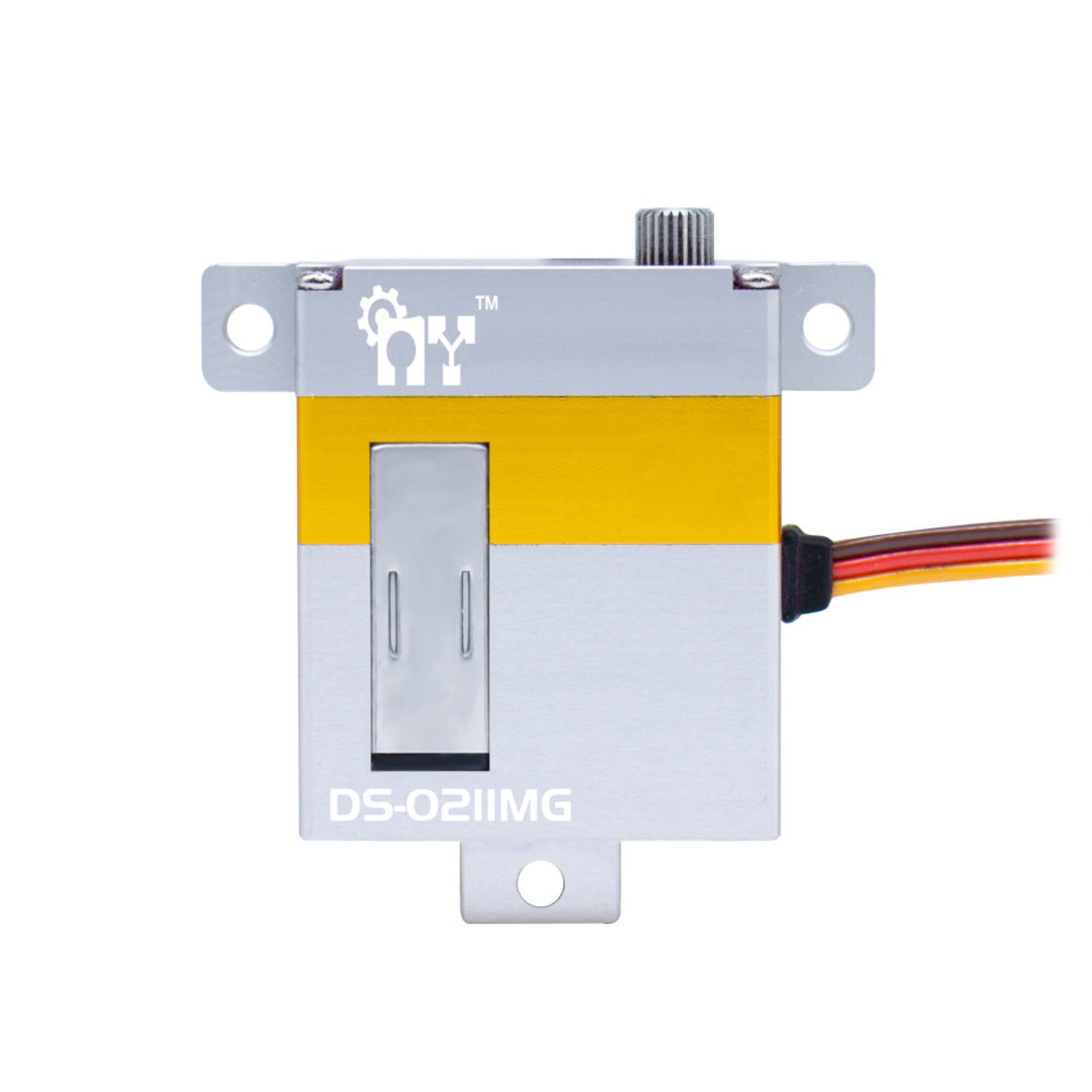

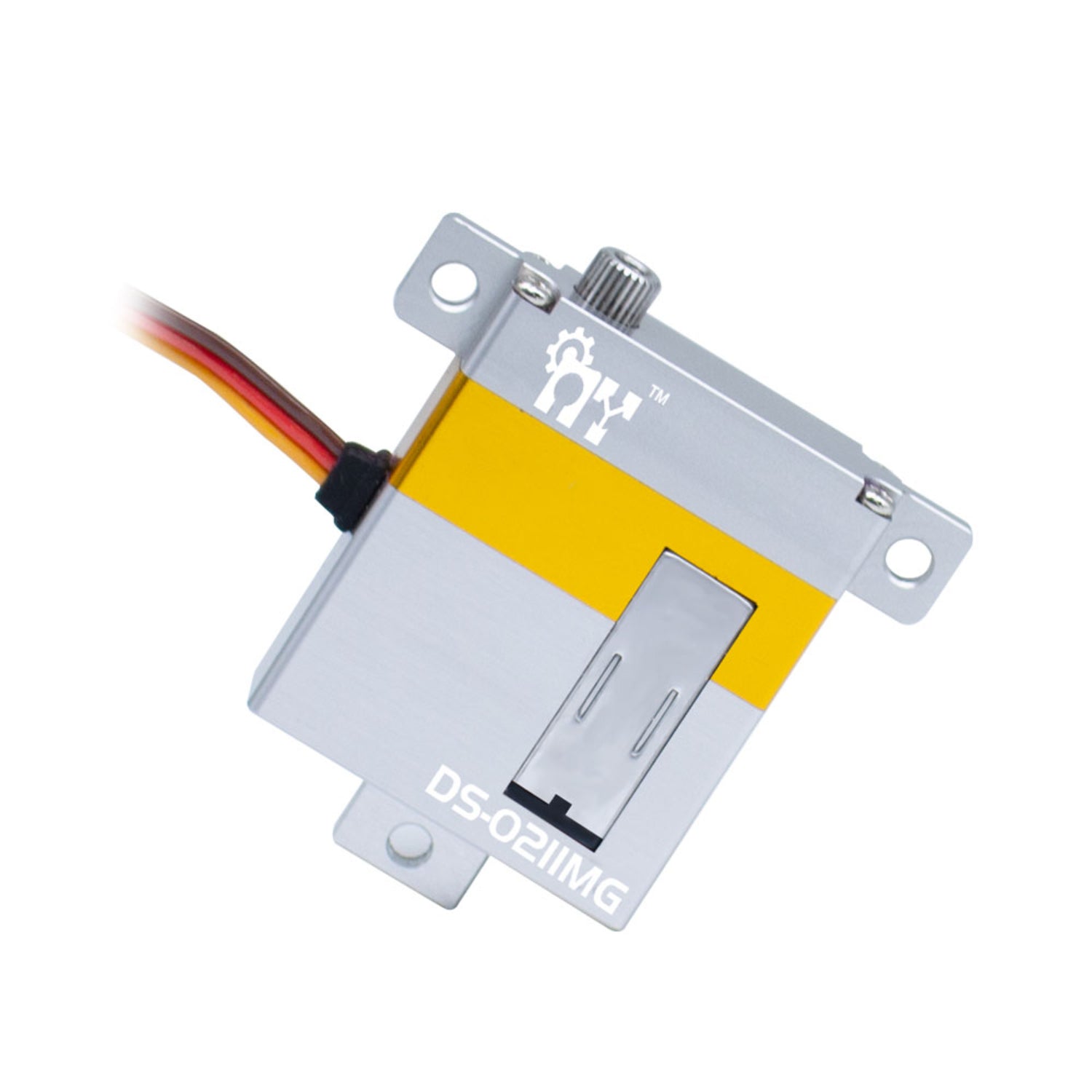

My Servo DS-0211MG High-Speed Micro Servo 8kg/cm Torque Coreless Servo Motor For RC Planes & Gliders

My Servo DS-0211MG High-Speed Micro Servo 8kg/cm Torque Coreless Servo Motor For RC Planes & Gliders

In stock

Rs. 2,450.00
Rs. 2,450.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo provides a quick response with a dead band of just 3μs, ensuring it responds to commands instantly. It operates at a working frequency of 1520μs / 330Hz, which allows for smooth and precise movement. The servo is compatible with a voltage range of 4.8V to 6.0V, making it suitable for a wide variety of standard power sources. At its core is a traditional brushed core motor that provides reliable performance.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Voltage Range:4.8-6.0V
  • Motor: Core Motor
  • Operating Speed 4.8V): 0.16sec/60°
  • Operating Speed (6.0V): 0.13sec/60°
  • Stall Torque (4.8V):6.0kg cm
  • Stall Torque (6.0V): 8.0kg cm
  • Connector Wire Length: JR  220 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • Instant Response: A tiny 3μs dead band ensures the servo reacts instantly and accurately to your commands.
  • Smooth, Precise Control: Operates at a working frequency of 1520μs / 330Hz for consistently smooth and precise motion.
  • Standard Voltage Compatibility: Designed to work with a 4.8V-6.0V range, making it compatible with most standard power systems.
  • Reliable Core Motor: Features a dependable core motor for consistent and reliable performance.

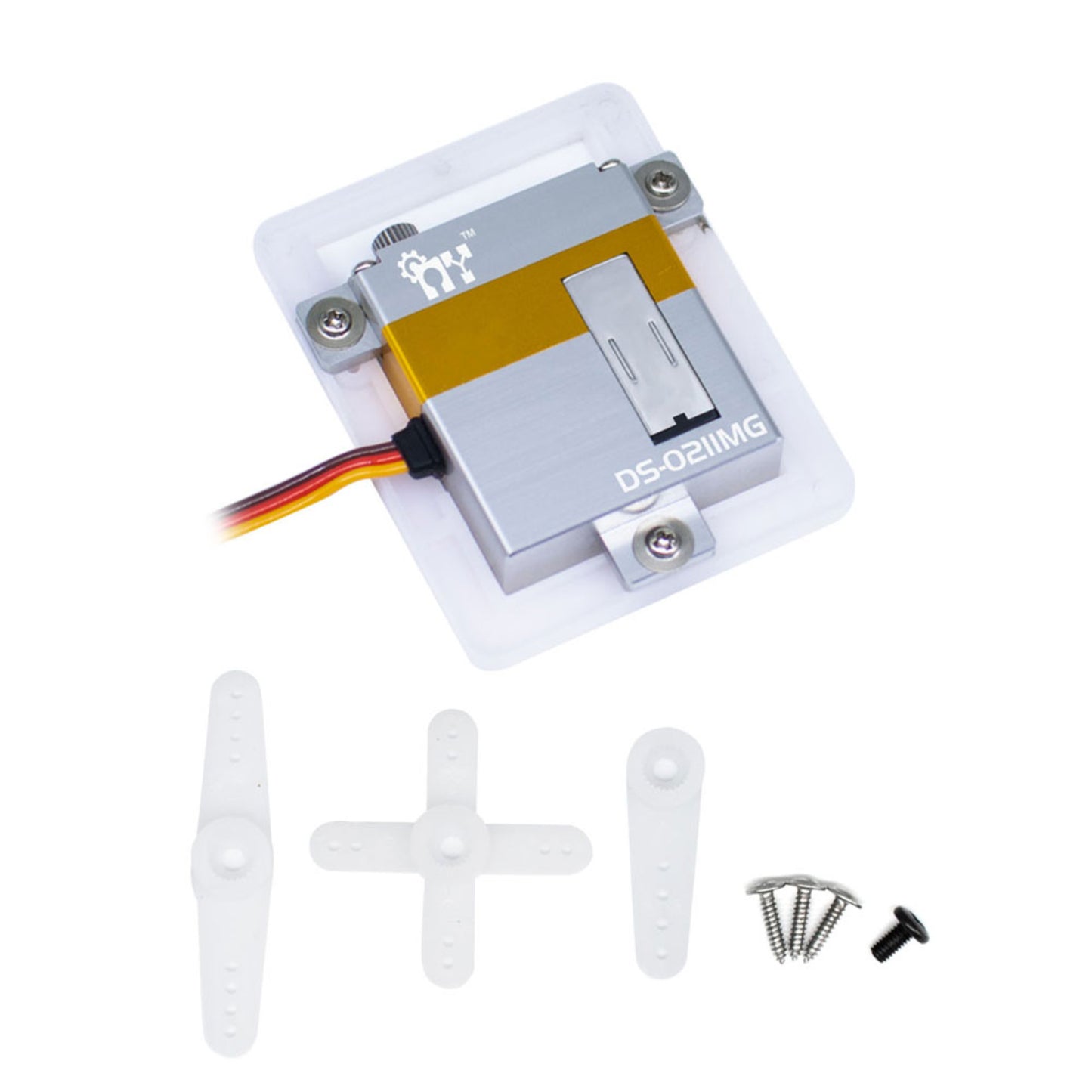

Package Included:

1 x My Servo DS-0211MG High-Speed Digital Metal Gear Micro Servo
