My Servo CS-1268SG Coreless Digital Servo 25kg-cm High-Torque Digital Servo For RC Cars, Planes, & Robotics

My Servo CS-1268SG Coreless Digital Servo 25kg-cm High-Torque Digital Servo For RC Cars, Planes, & Robotics

In stock

Rs. 4,199.00
Rs. 4,199.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo uses a responsive coreless motor to deliver up to 25.0kg cm of stall torque and an operating speed of 0.11 sec/60° at 7.4V. A lightning-fast 3μs deadband ensures ultra-precise control, while the durable 2BB bearing system and standard 25T output spline guarantee reliable performance in demanding applications.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Motor: Coreless Motor
  • Operating Speed 6.0V): 0.13sec/60°
  • Operating Speed (7.4V): 0.11sec/60°
  • Stall Torque (6.0V):15.0kg cm
  • Stall Torque (7.4V): 25.0kg cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • Fast Response: A coreless motor and a lightning-fast 3μs deadband ensure quick and precise command execution.
  • Powerful Performance: Delivers up to 25.0kg cm of stall torque and a speed of 0.11 sec/60° at 7.4V.
  • Durable Build: Features a sturdy 2BB bearing system and a standard 25T output spline for easy integration and reliable operation.

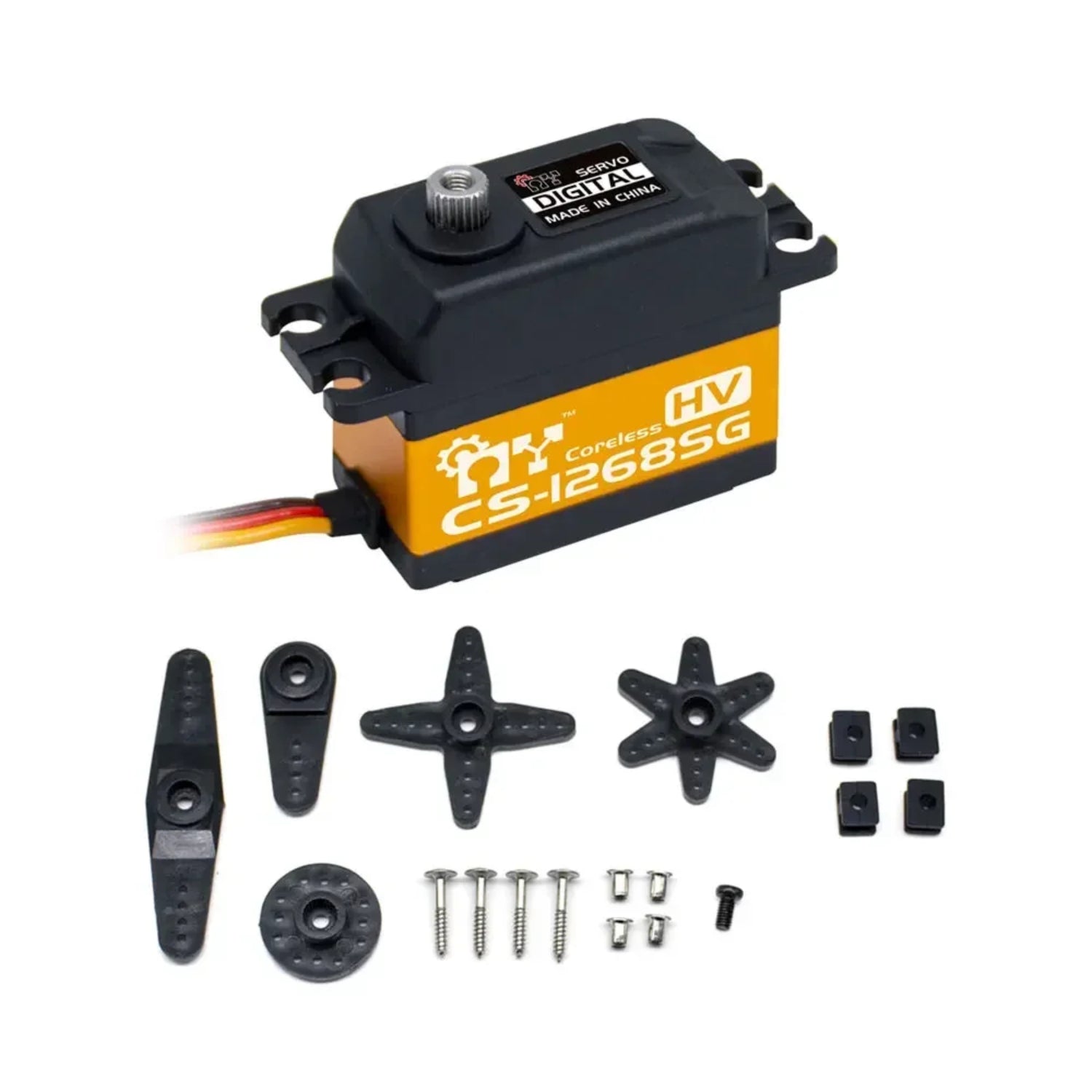

Package Included:

1 x My Servo CS-1268SG High-Torque Coreless Digital Servo
