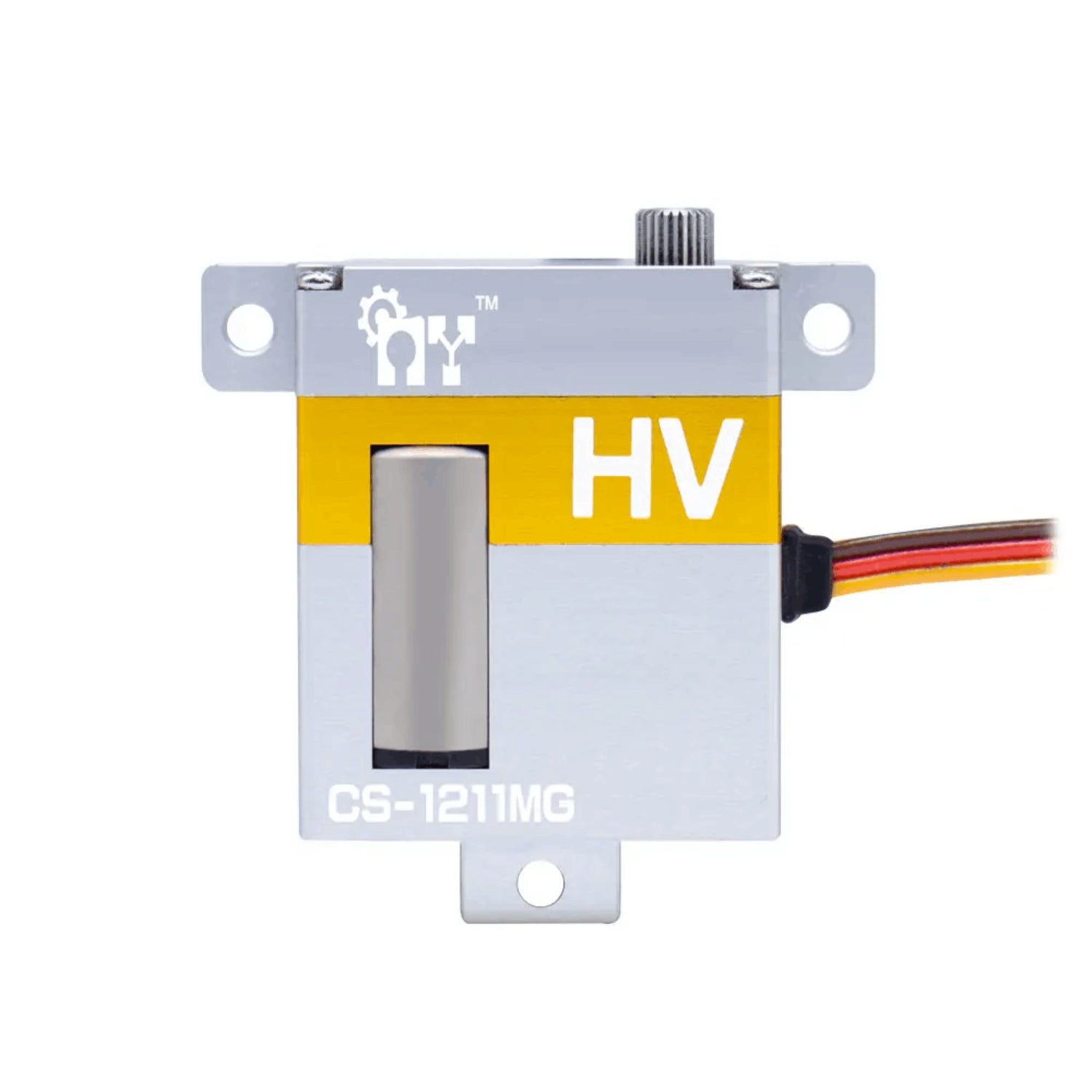

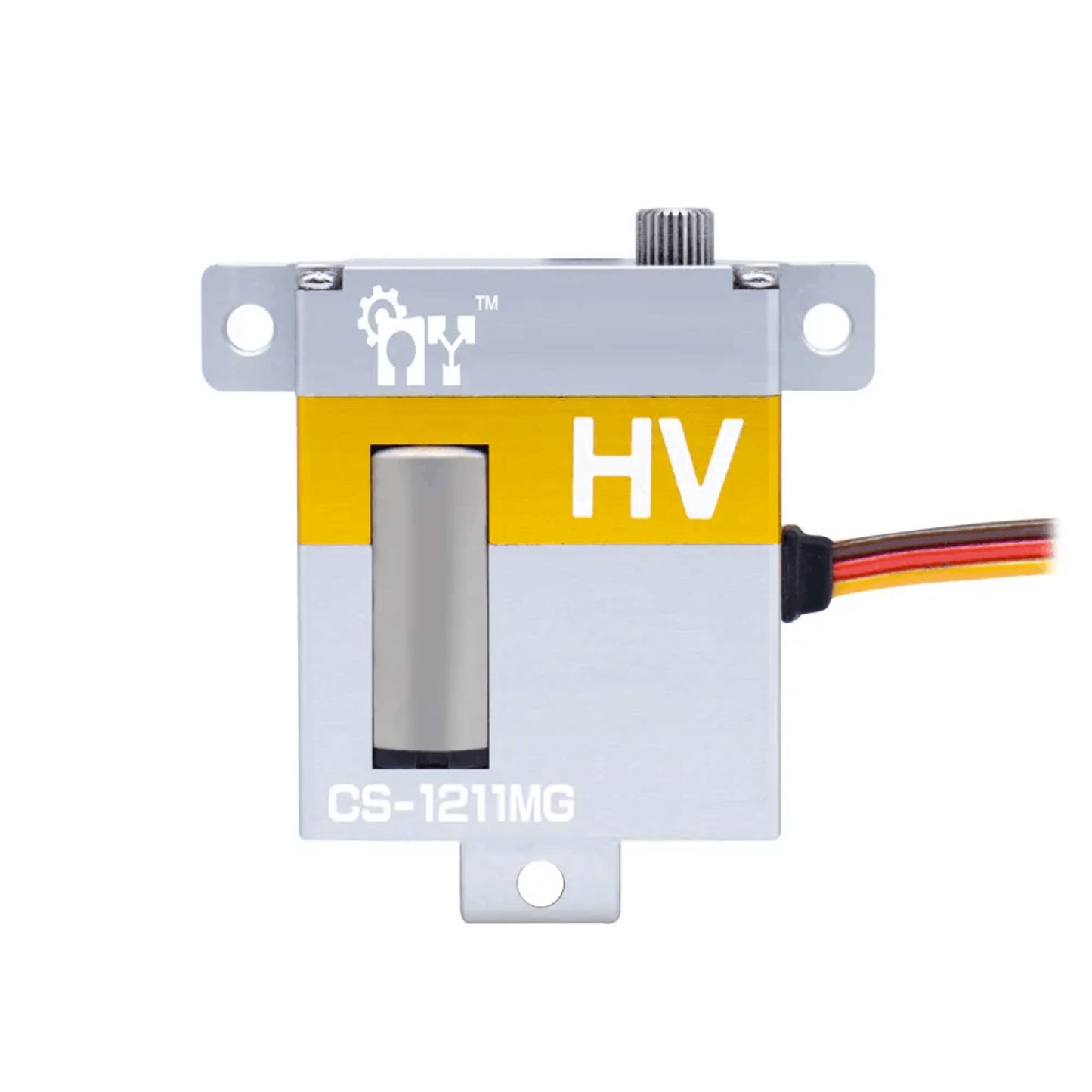

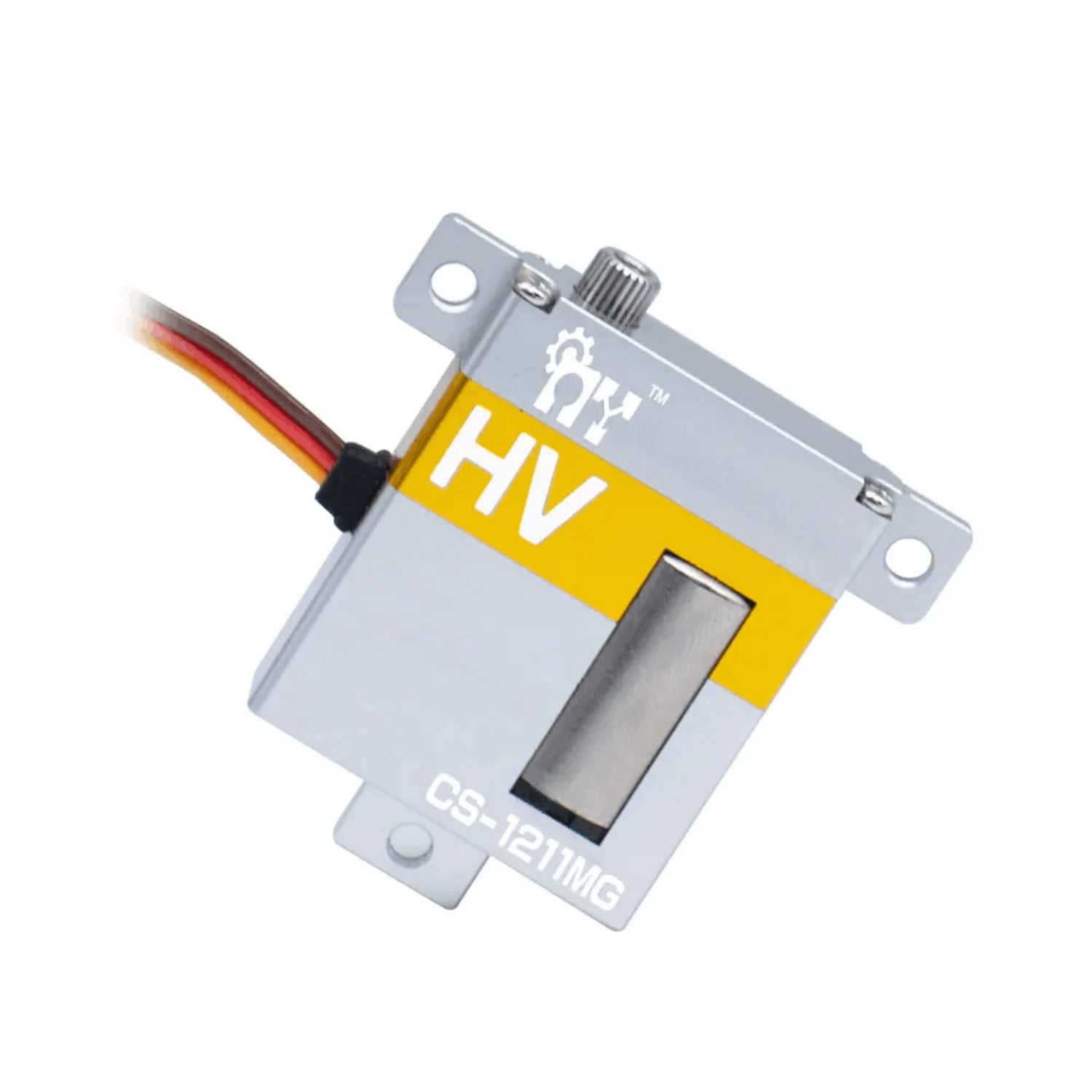

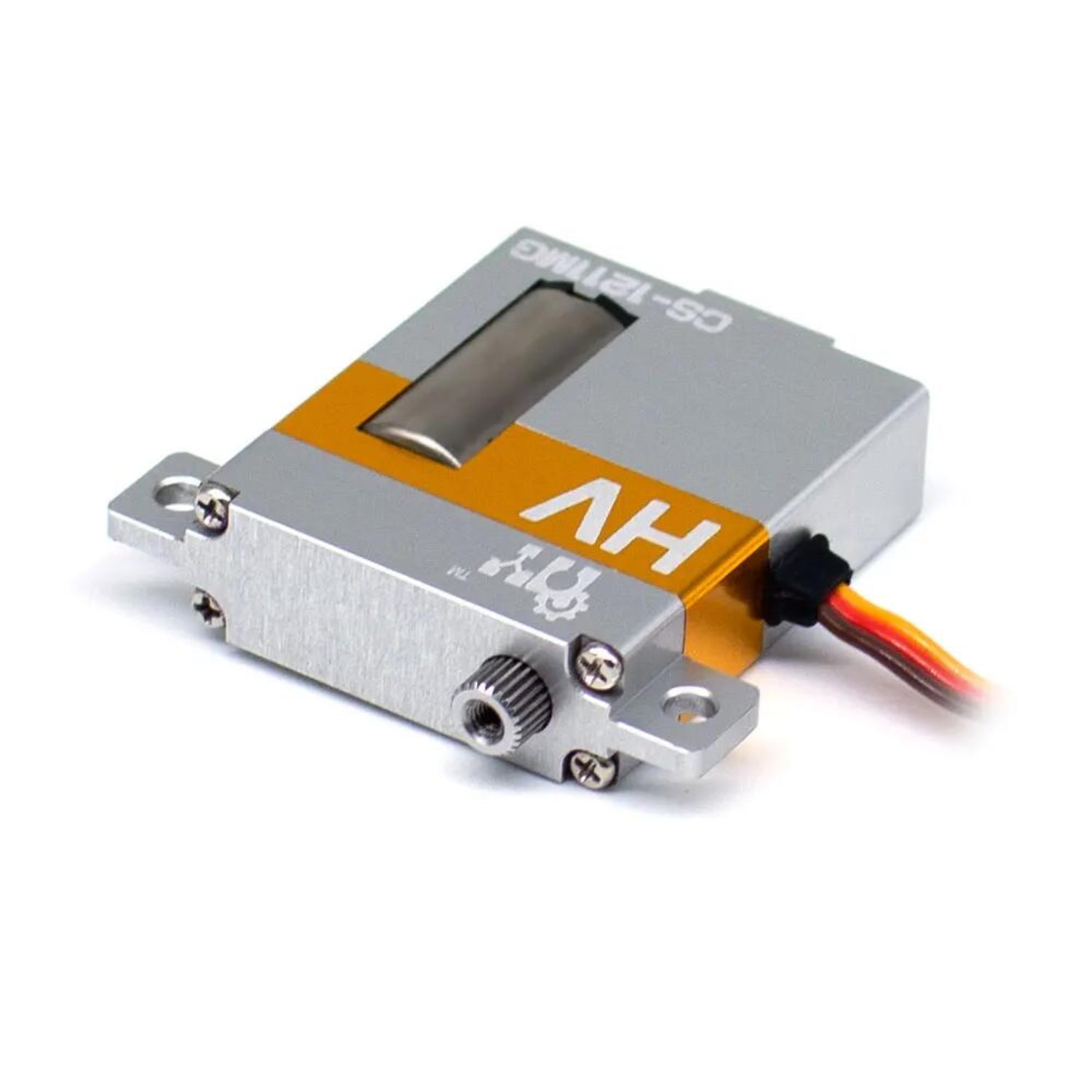

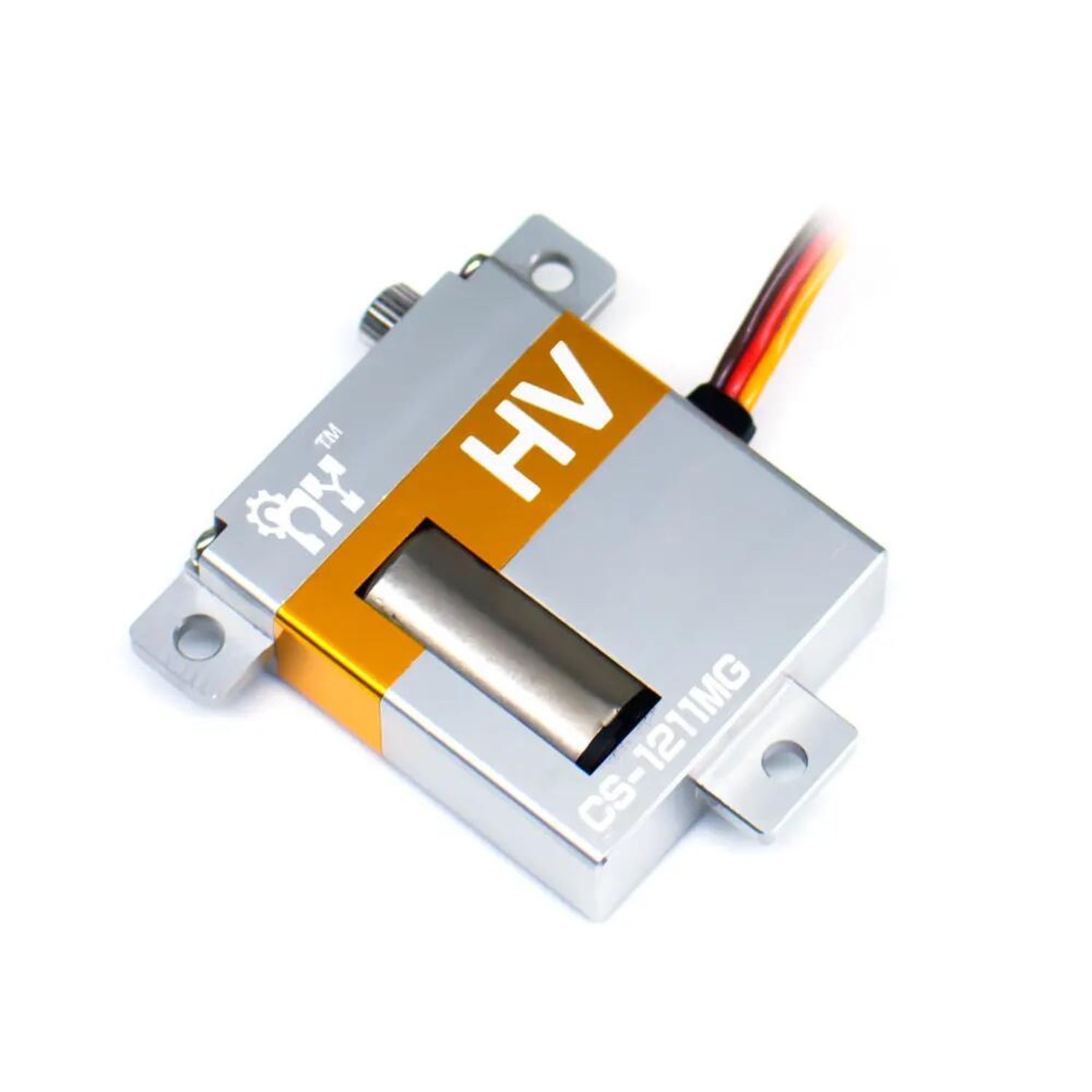

My Servo CS-1211MG High-Torque Digital Metal Gear Servo 11kg/cm Torque Coreless Servo Motor For Reliable Performance

My Servo CS-1211MG High-Torque Digital Metal Gear Servo 11kg/cm Torque Coreless Servo Motor For Reliable Performance

In stock

Rs. 3,099.00
Rs. 3,099.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo boasts an ultra-fast response with a dead band of just 3μs, ensuring it reacts instantly to your commands. It operates at a high working frequency of 1520μs / 330Hz for smooth and precise movement. The wide voltage range of 6.0V-7.4V makes it compatible with both standard and high-voltage (HV) setups, giving you flexibility in your projects. At its core is a powerful coreless motor that delivers quick acceleration and higher efficiency than traditional motors.

Specifications:

  • Dead band: 3μs
  • Working frequency: 1520μs / 330Hz
  • Voltage Range:6.0-7.4V
  • Motor: Coreless Motor
  • Operating Speed 6.0V): 0.17sec/60°
  • Operating Speed (7.4V): 0.15sec/60°
  • Stall Torque (6.0V):9.0kg cm
  • Stall Torque (7.4V): 11.0kg cm
  • Connector Wire Length: JR  220 mm
  • Bearing: 2BB
  • Output Gear Spline: 25T

Features:

  • Lightning-Fast Response: A tiny 3μs dead band means this servo reacts instantly, delivering precise control without delay.
  • High-Frequency Operation: A 1520μs / 330Hz working frequency ensures smooth, accurate, and stable movement.
  • Flexible Voltage Range: Compatible with both standard and high-voltage setups (6.0V-7.4V), giving you more power and versatility.
  • Efficient Coreless Motor: The powerful coreless motor provides quick acceleration and superior efficiency compared to conventional motors.

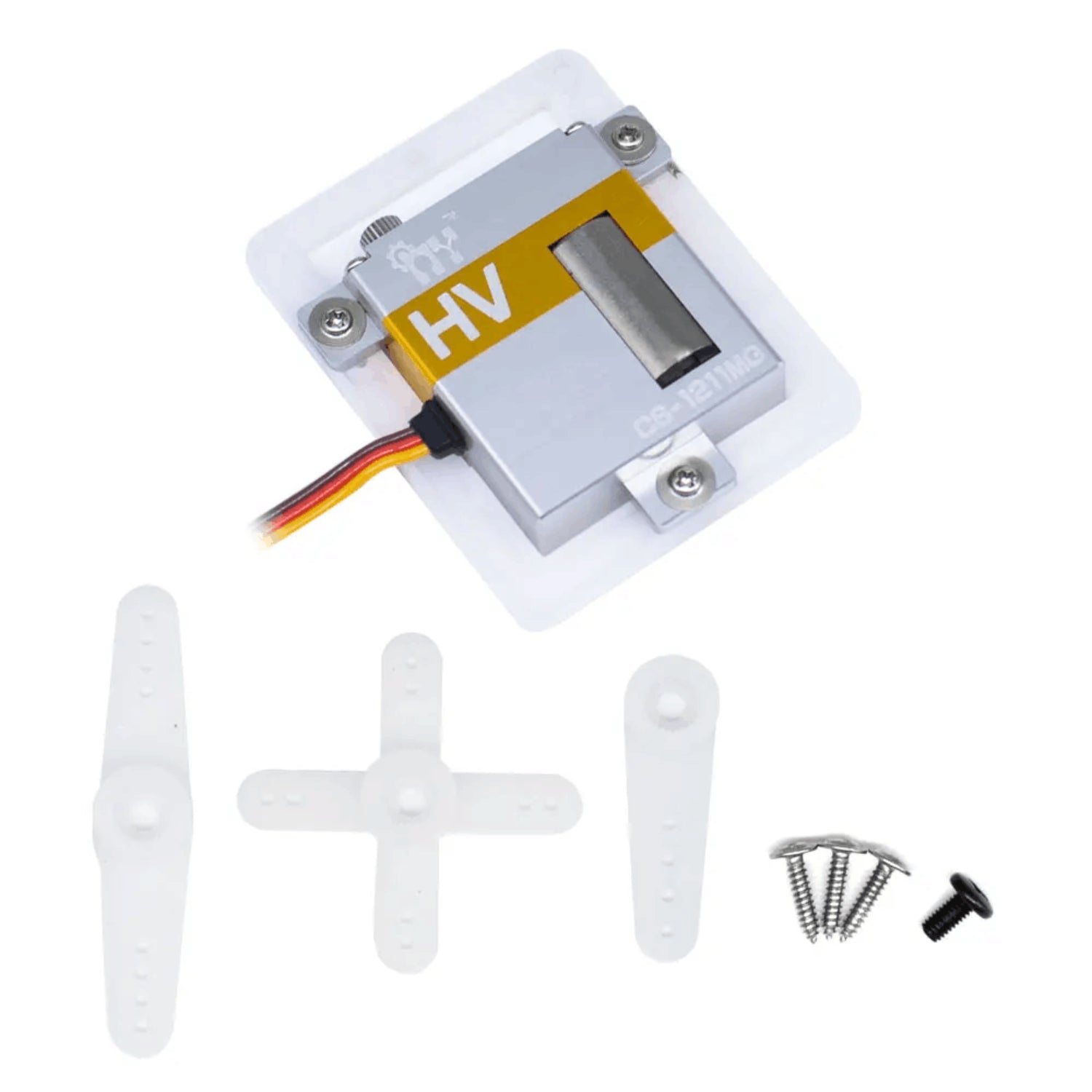

Package Included:

1 x My Servo CS-1211MG High Torque Digital Metal Gear Servo
