Description:

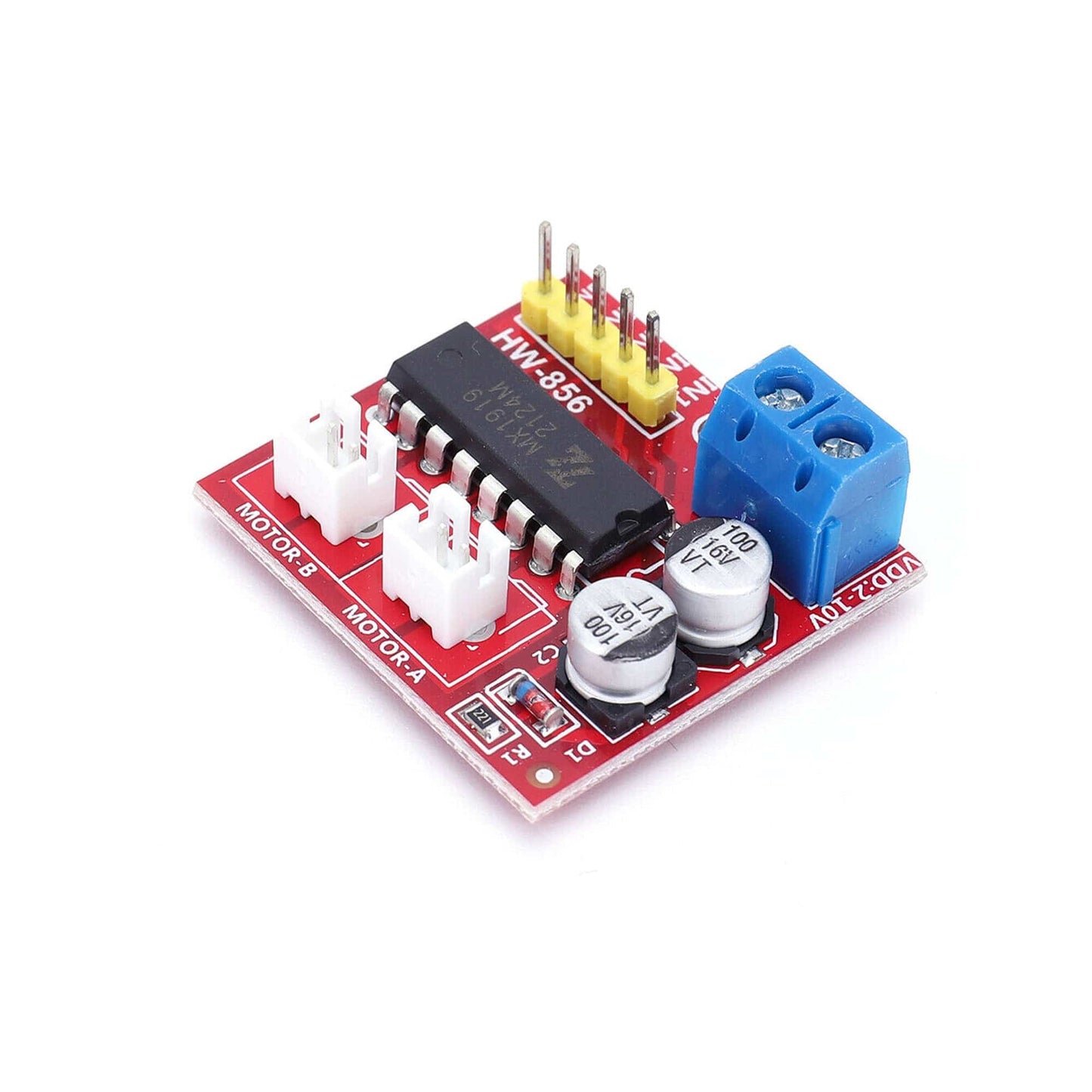

This MX1919 Motor Driver Module is a high-power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular MX1919 motor driver IC. It can control up to 2 DC motors with directional and speed control.
This MX1919 Motor Driver Module is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.
Specifications:
- Operating Voltage: 2-10V DC (3-9V DC recommendation)
- Maximum Current: 2.5A per channel
- Standby Current: 0.1uA
- Trigger Voltage: 1.8v-7v (recommended trigger 3.3-5v logic level)
Features:
- MX1919 Motor Driver Module is suitable as a replacement for L293D or L298N drivers.
- Compatible with Arduino and ESP8266/ESP32/STM32.
- Can set the direction of rotation of the motor and adjust the speed with PWM.

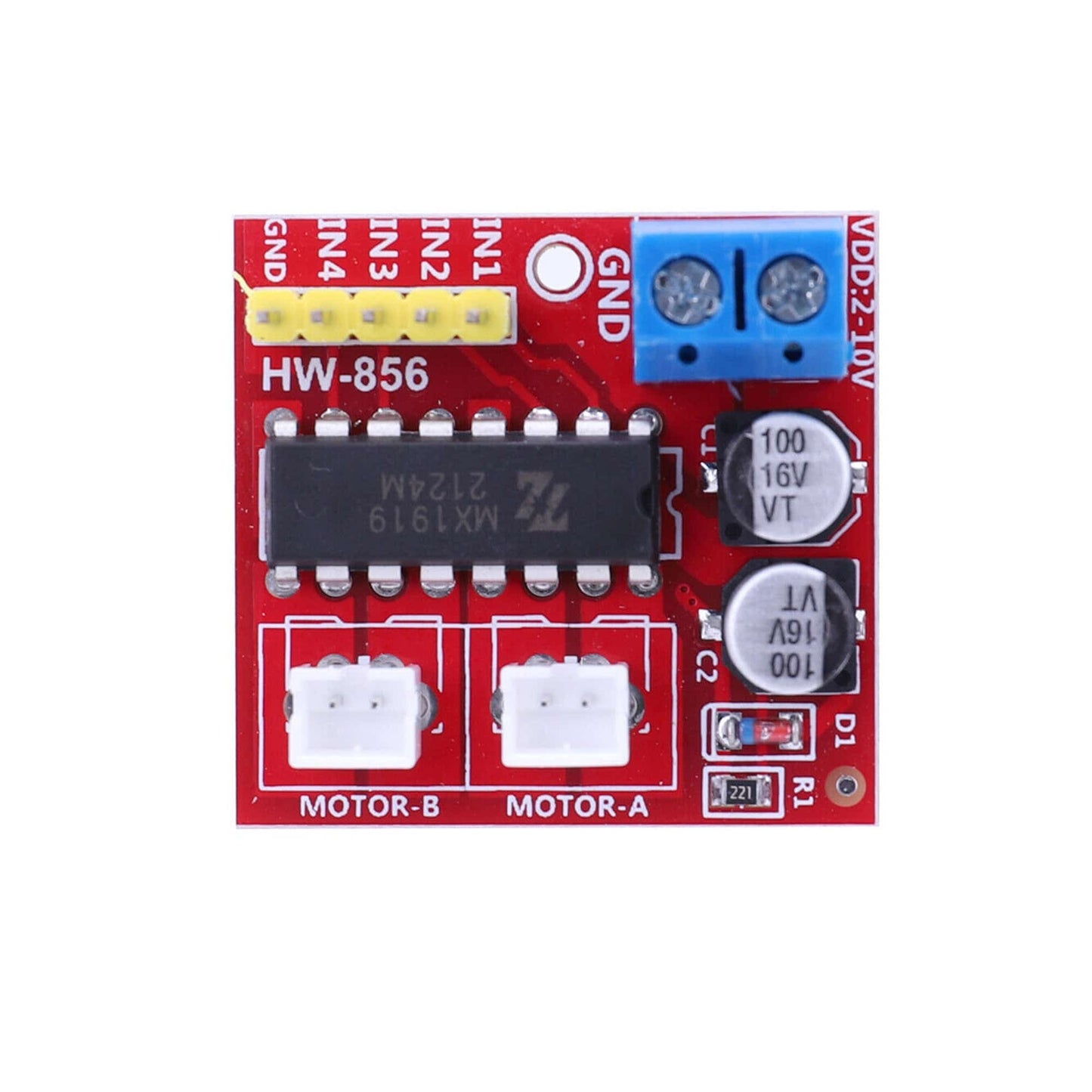

Pin Description:
- MOTOR-A: Motor A output
- MOTOR-B: Motor B output
- IN A1: 1st input for Motor A
- IN A2: 2nd input for Motor A
- IN B1: 1st input for Motor A
- IN B2: 2nd input for Motor B
Package Included:

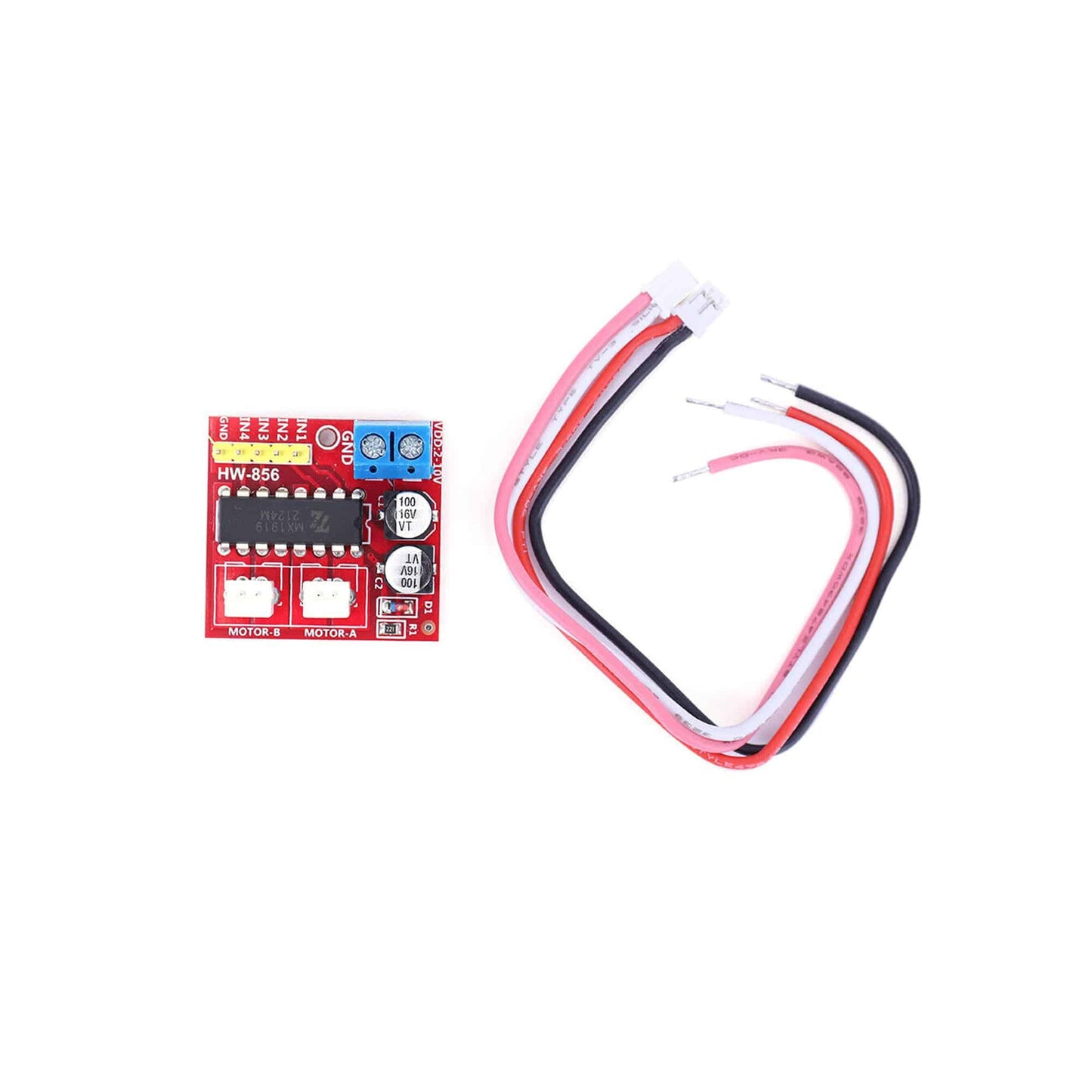

1 x MX1919 Motor Driver Module MX1919 Motor Drive Shield Board 2.5A Dual-Circuit Motor Drive Module for Arduino
