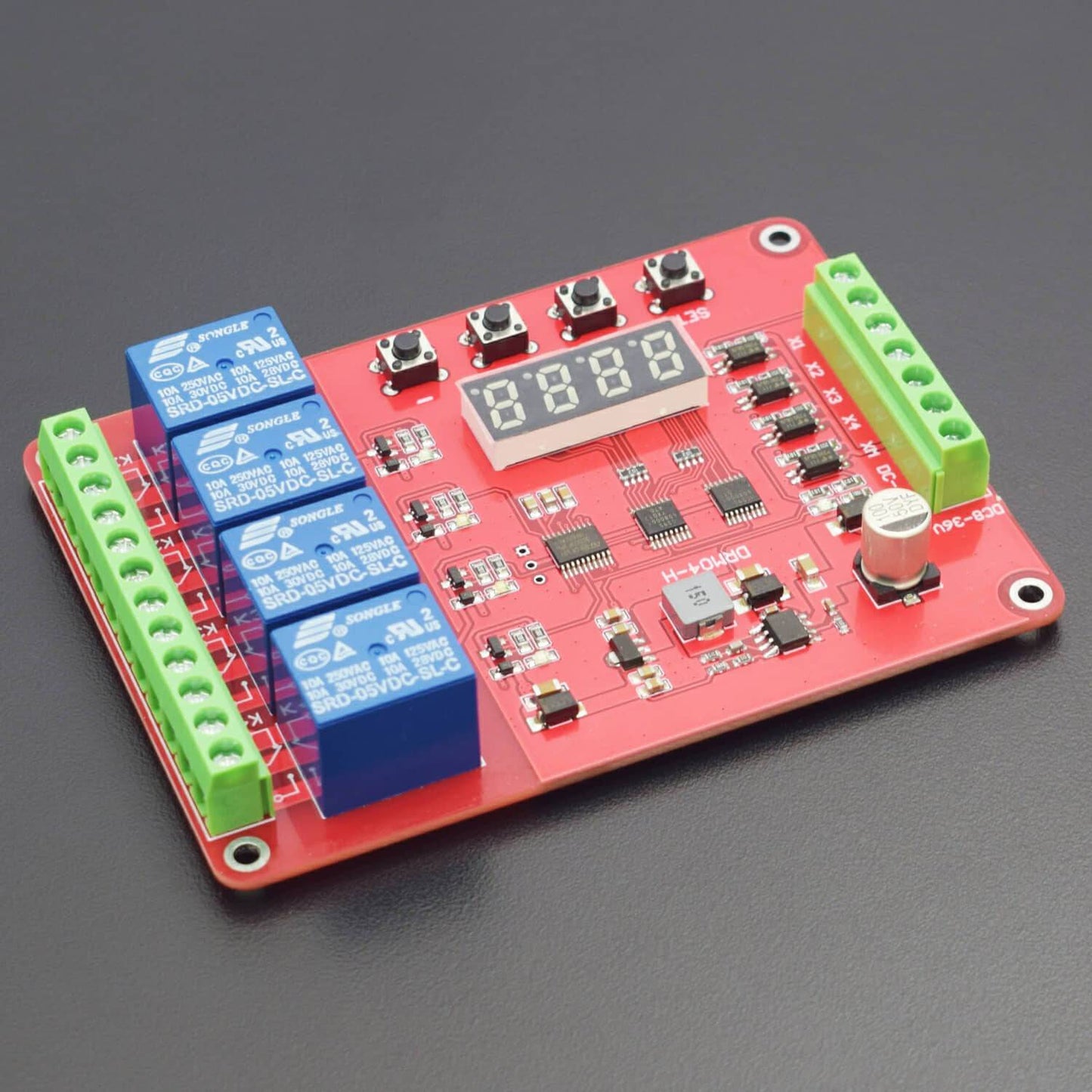

- Self Lock Relay Cycle Timer Relay Module
- 6-40 V
- 9 kinds of function parameters
- Accuracy of better than 0.1 seconds
DESCRIPTION
Users can display the buttons and select the following nine kinds of functions in one, you can set and save 9 kinds of function parameters, you can also view the current function parameters, time parameter sets the minimum one second adjustable accuracy of better than 0.1 seconds.
TWO MODULE INTERFACE
- Module control side: there are 3-wire interface, all interfaces are terminal, user-friendly.
- DC+: DC power supply positive(with 5V, 12V and 24V modules to choose from)
- DC-: DC power cathode.
- CH1: Hold Input Detection Interface.
- Relay outputs: A 3-wire interface, all interfaces are terminals.
- NO1: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1.
- COM1: Relay Common Interface.
- NC1: normally closed relay interface relay shorted before and COM1, pull vacant post.
FUNCTIONS
- Function 1: Timing Pick: After power relay delay time T1, T1 in 0 seconds adjustable between -270 hours, give CH1 connector is a high pulse signal(high duration is greater than or equal 20ms, hereinafter the same), repeat the above functions.
- Function 2: Timed disconnect: On power relay, time relay off delay time T1, T1 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, repeat the above functions.
- Function 3: Loop Timing Mode 1: After power on, to not pull the relay, the delay time T1 after arrival relay; pull the relay off time T2 after arrival, and then repeat the above state, the delay time T1 and T2 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, you can resume these functions.
- Function 4: Loop Timing Mode 2: After power, the relay immediately pull, delay time T1 after arrival relay off; off time T2 arrives relay, and then repeat the above state, the delay time T1 and T2 in 0 seconds - adjustable between 270 hours and give CH1 connector is a high pulse signal, these functions can be re-started.
- Function 5: Latching relay mode: CH1 connector to relay a high level pulse signal, the relay, to give a high level pulse signal relay disconnected.
PACKAGE INCLUDED
- 1 x Multifunctional relay module
