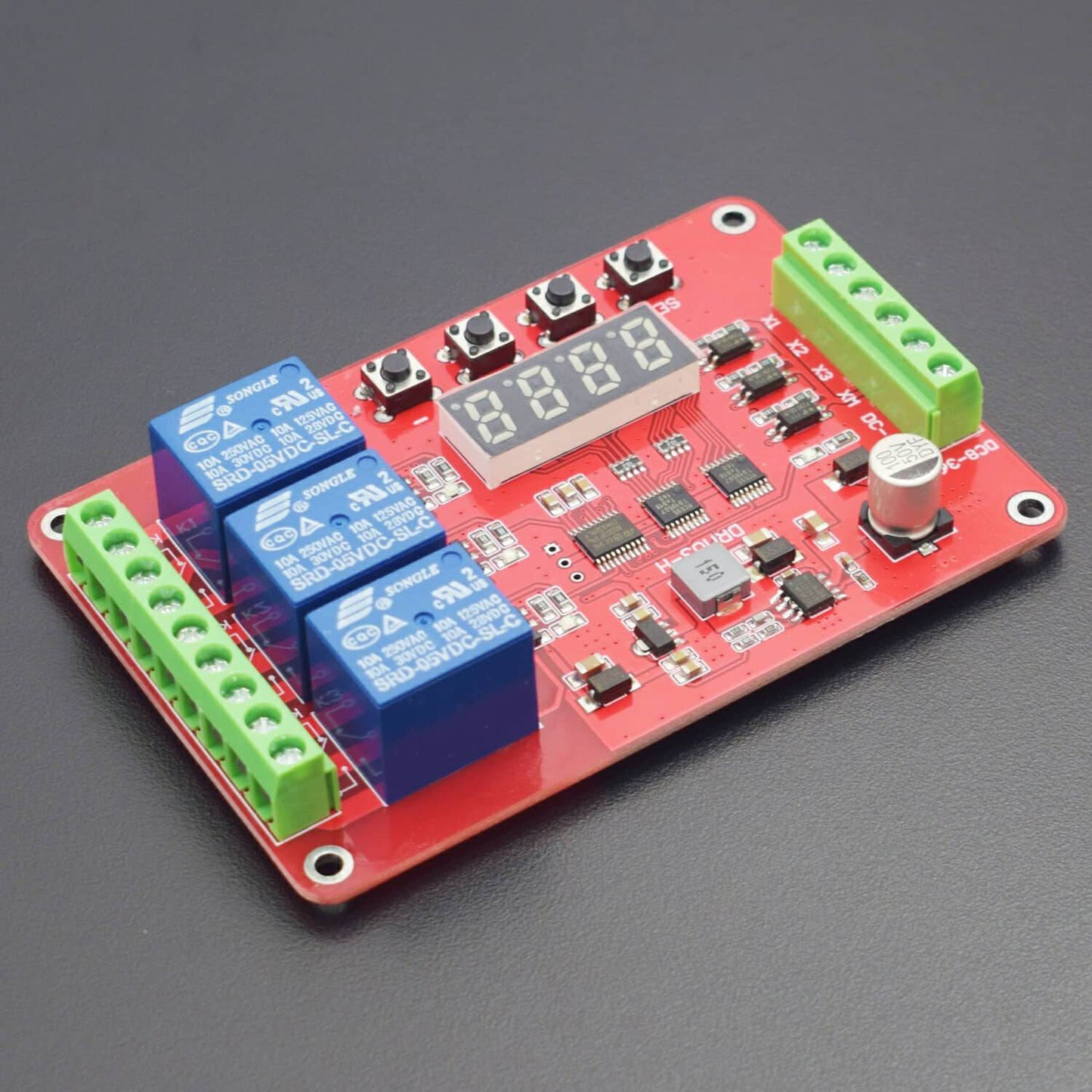

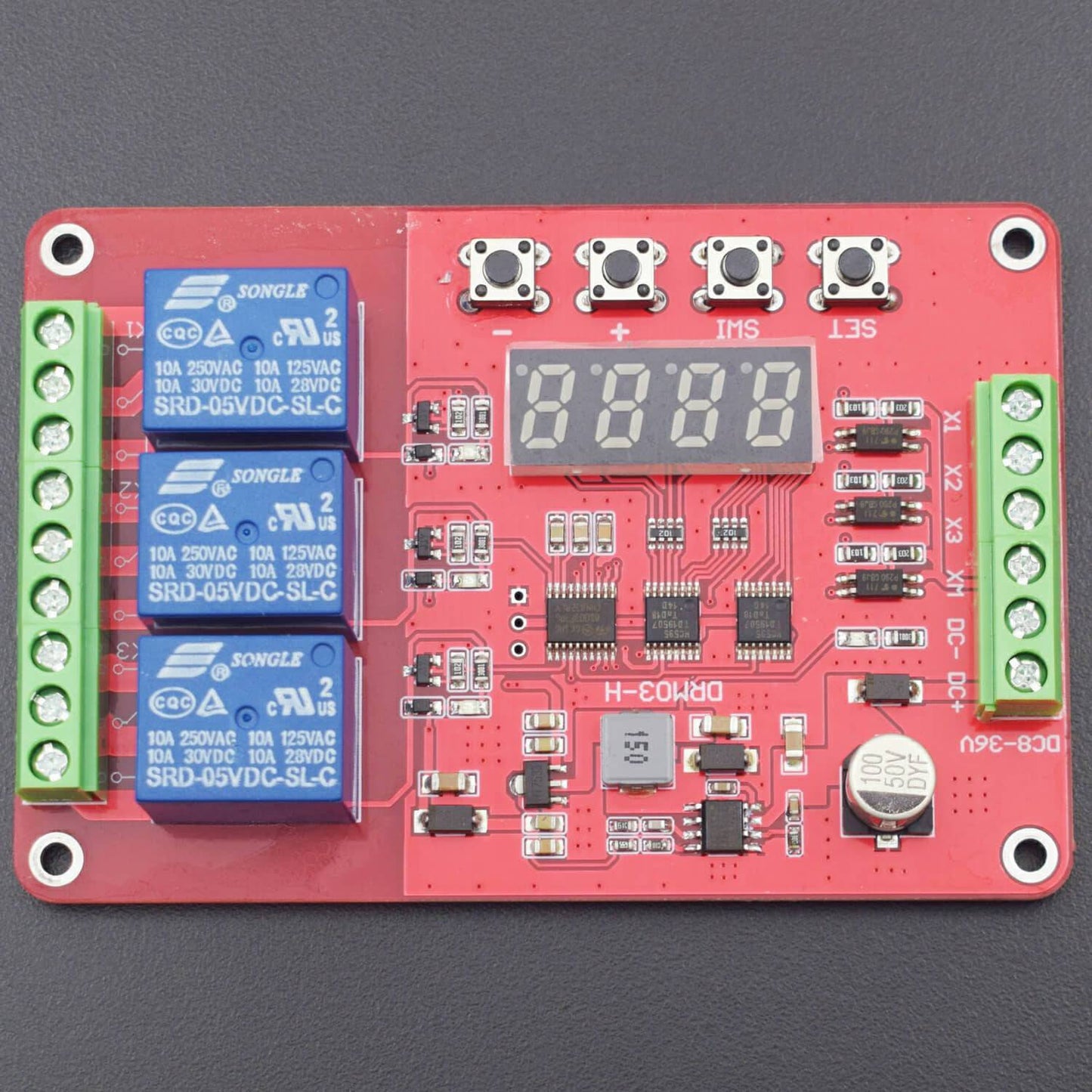

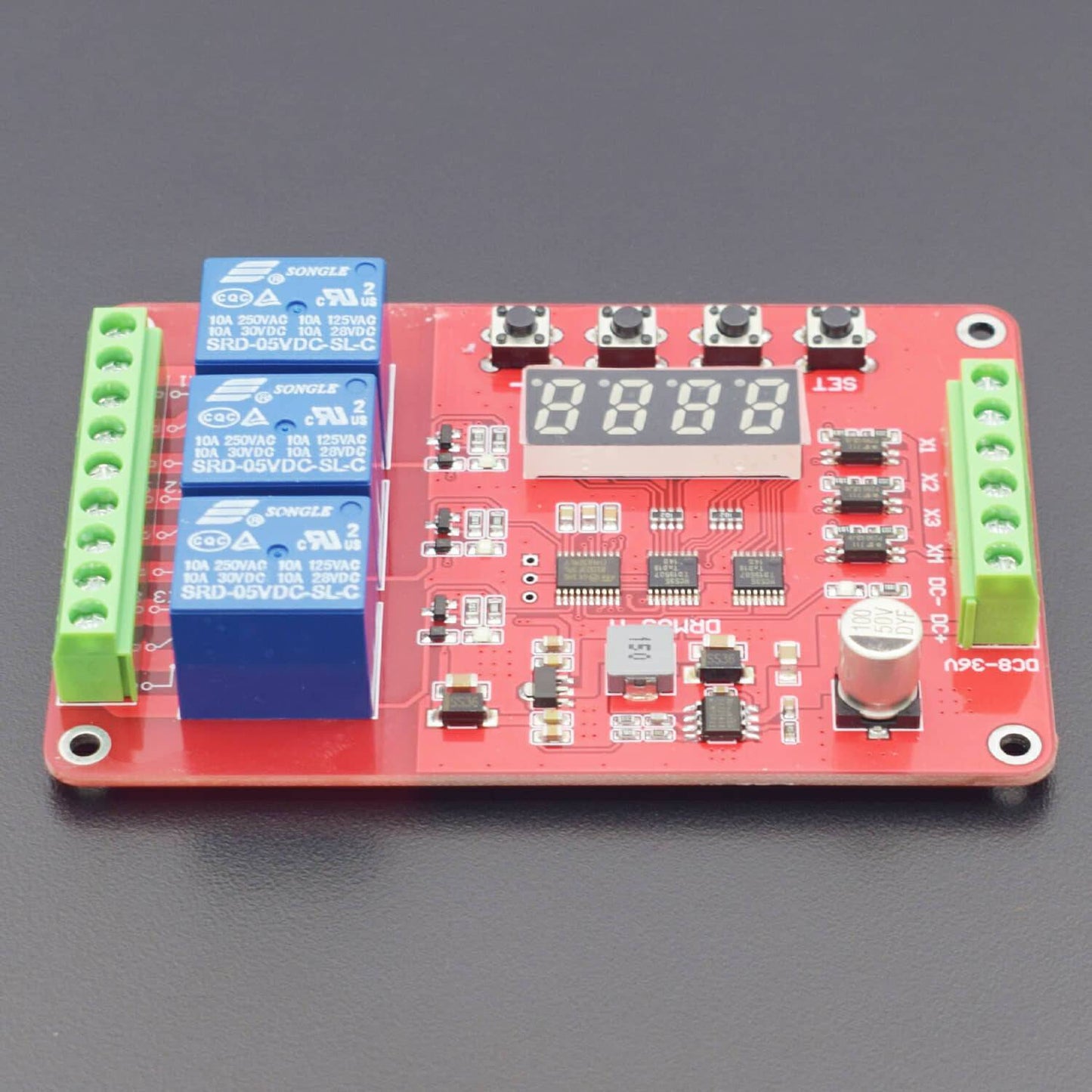

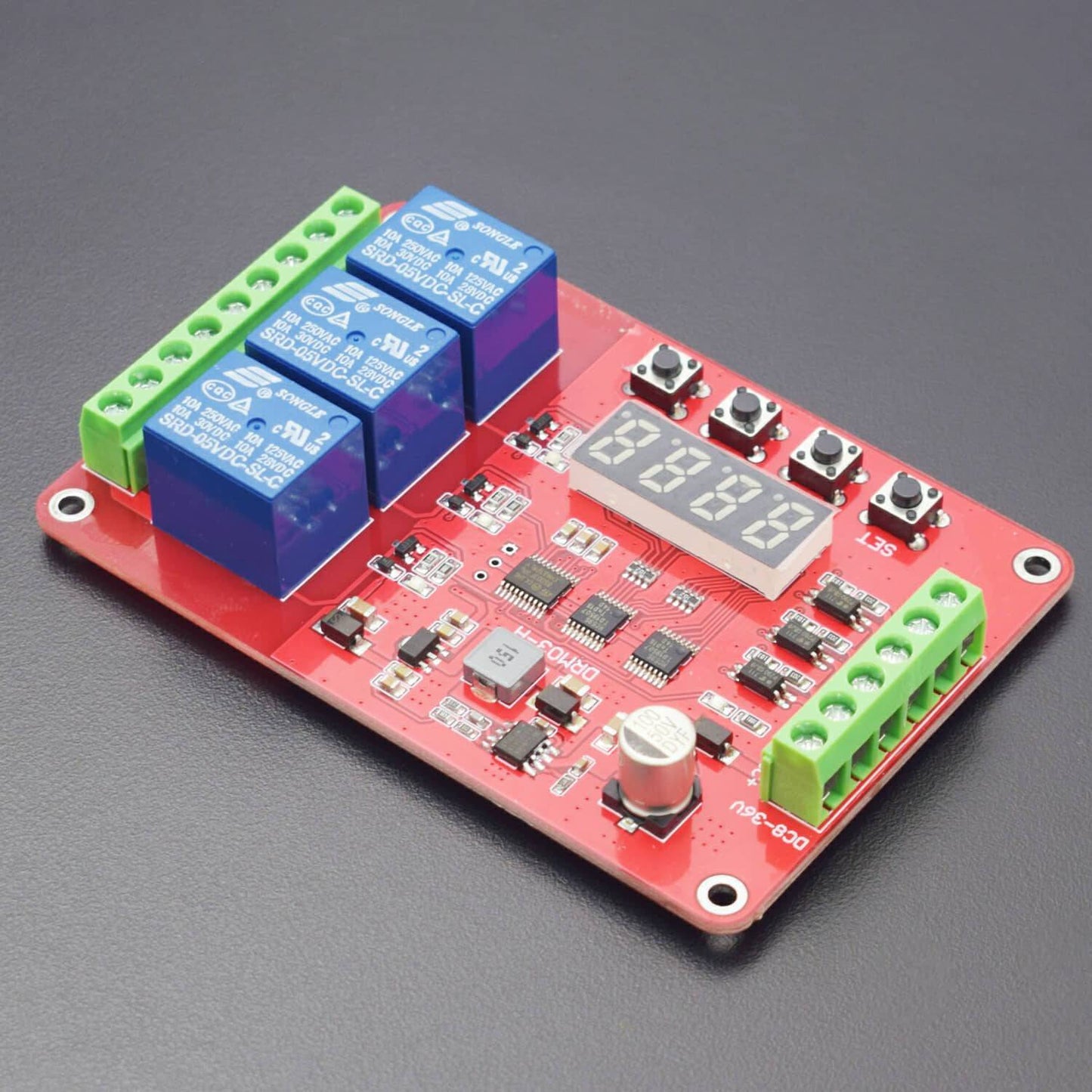

Multifunction Self-Lock Relay Cycle Timer Module PLC Automation Delay FRM03 8V-32V - RS1796
Multifunction Self-Lock Relay Cycle Timer Module PLC Automation Delay FRM03 8V-32V - RS1796
SKU:RS1796
Low stock: 10 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
Cash on Delivery is currently unavailable for new orders
Existing COD Orders Only
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
The REES52 Promise
The REES52 Promise
We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.
Dead on arrival or defective? We replace it.
If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.
Refunds, with real timelines.
- Approved refunds go back to your original payment method within 6-7 working days.
- Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
- Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.
Wrong item or not as described?
Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.
About lead times on some products.
A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.
Talk to a human.
Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.
- Operating Voltage: Recommended DC 8-32V
- Operating Temperature: Recommended 20~60°C
Description:
Users can display the buttons and select the following nine kinds of functions in one, you can set and save 9 kinds of function parameters, you can also view the current function parameters, time parameter sets the minimum one second adjustable accuracy of better than 0.1 seconds.
Specification:
- Operating Voltage: Recommended DC 8-32V
- Operating Temperature: Recommended 20~60°C
Function:
- Function 1: Timing Pick: After power relay delay time T1, T1 in 0 seconds adjustable between -270 hours, give CH1 connector is a high pulse signal(high duration is greater than or equal 20ms, hereinafter the same), repeat the above functions.
- Function 2: Timed disconnect: On power relay, time relay off delay time T1, T1 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, repeat the above functions.
- Function 3: Loop Timing Mode 1: After power on, to not pull the relay, the delay time T1 after arrival relay; pull the relay off time T2 after arrival, and then repeat the above state, the delay time T1 and T2 in 0 seconds adjustable between -270 hours, giving a high level pulse signal CH1 connector, you can resume these functions.
- Function 4: Loop Timing Mode 2: After power, the relay immediately pull, delay time T1 after arrival relay off; off time T2 arrives relay, and then repeat the above state, the delay time T1 and T2 in 0 seconds - adjustable between 270 hours and give CH1 connector is a high pulse signal, these functions can be re-started.
- Function 5: Latching relay mode: CH1 connector to relay a high level pulse signal, the relay, to give a high level pulse signal relay disconnected.
- Function 6: Self-locking relay mode: to the relay X interface a high (low) level pulse signal, the relay pull, and then to a high (low) level pulse signal, the relay disconnected.
- Function 7: Level trigger relay mode (including delay disconnect function): when power on, relay disconnect, gives the X interface a high (low) level signal, the relay immediately pull, after X port signal disappears, the relay is still pull, after T1 time in pull, the relay disconnect, T1 can be adjusted between 0.1 seconds -270 hours.
- Note: in this function, if the T1 is set to 0 seconds, it becomes: if the X port has a high (low) level signal, relay pull, if no signal it will immediately disconnected.
- Function 8: Trigger timing pull: when power on, relay disconnect, gives the X interface a high (low) level pulse signal, delay T1 time, relay pull. T1 can be adjusted between 0.1 seconds -270 hours. Repeat to the X interface a high (low) level pulse signal, repeat this function again.
- Function 9: Trigger timing disconnection: when power on, relay disconnect, gives the X interface a high (low) level pulse signal, relay pulls, after T1 time, relay disconnect. T1 can be adjusted between 0.1 seconds -270 hours. Repeat to the X interface a high (low) level pulse signal, repeat this function again.
- Function 10: Trigger timing pull and then disconnect: when power on, relay disconnect, gives the X interface a high (low) level pulse signal, after T1 time, relay pull, after T2 time, relay disconnect. T1 and T2 can be adjusted between 0.1 seconds -270 hours. Repeat to the X interface a high (low) level pulse signal, repeat this function again.
- Function 11: Trigger timing disconnect and then pull: when power on, relay disconnect, gives the X interface a high (low) level pulse signal, relay pull, after T1 time, relay disconnect, after T2 time, relay pull. T1 and T2 can be adjusted between 0.1 seconds -270 hours. Repeat to the X interface a high (low) level pulse signal, repeat this function again.
- Function 12:Infinite cycle mode 1: when power on, relay disconnect, gives the X interface a high (low) level pulse signal, delay T1 time, relay pull, after T2 time in pull, relay disconnect, and then repeat the above action. T1 and T2 can be adjusted between 0.1 seconds -270 hours, and repeat to give X interface a high (low) level of the pulse signal, the above function can start again.
Module Interface:
- Module control side: there are 3-wire interface, all interfaces are terminal, user-friendly.
- DC+: DC power supply positive(with 5V, 12V and 24V modules to choose from).
- DC-: DC power cathode.
- CH1: Hold Input Detection Interface.
- Relay outputs: A 3-wire interface, all interfaces are terminals.
- NO1: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1.
- COM1: Relay Common Interface.
- NC1: normally closed relay interface relay shorted before and COM1, pull vacant post.
Package Included:
1 x Multifunctional relay module
