Description:

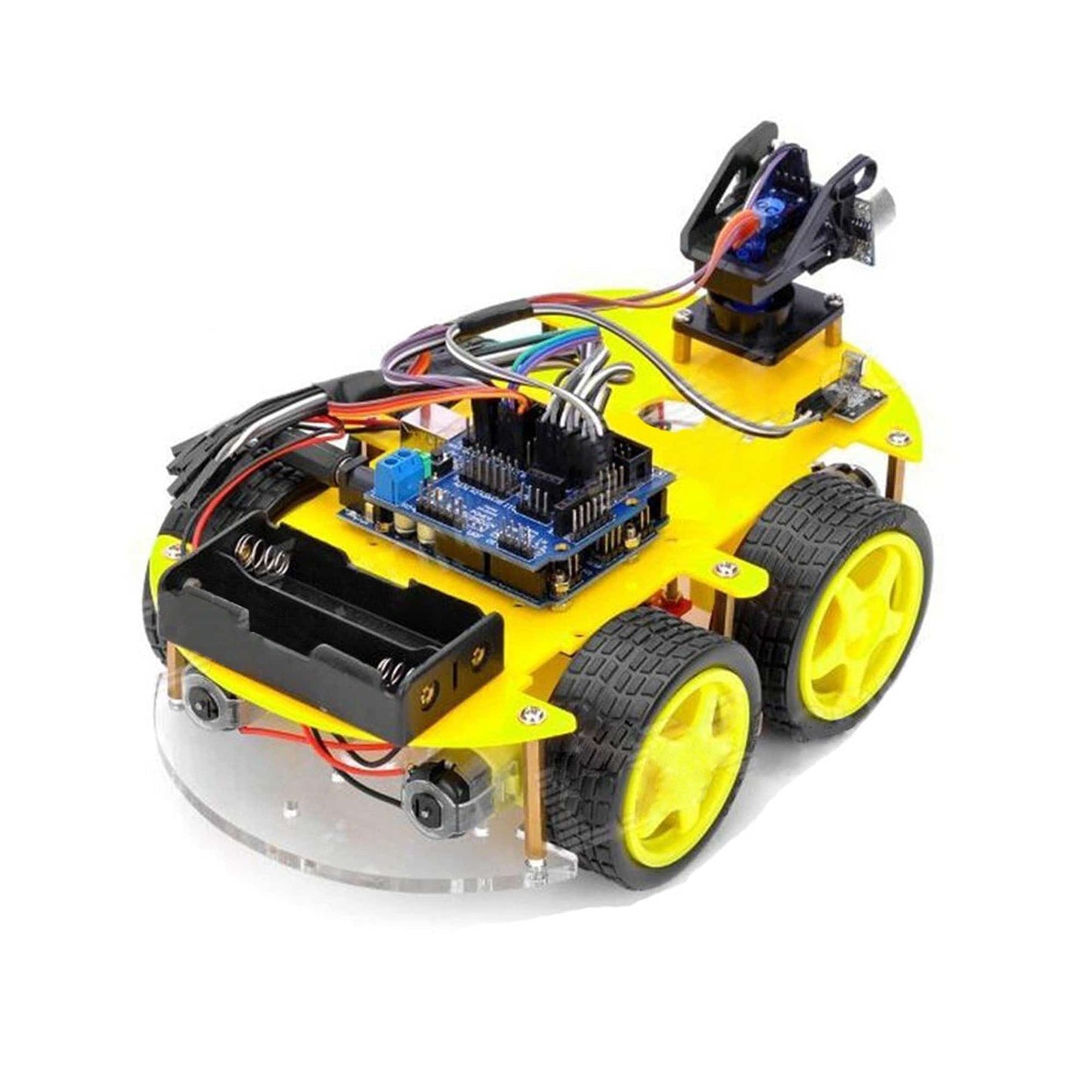

The Multi-function 4WD Robot Car Kit is an upgraded version of the auto-walk car, which added the part of Bluetooth control. The Multi-function 4WD Robot Car Kit is a microcontroller learning application development system, based on AtMega-328p. Multi-function 4WD Robot Car Kit has the function of hunting, obstacle avoidance and remote control. And also expands external modules to increase the car's function.
Specifications:
- Working Voltage: 7V - 12V
- Decelerate Motors Ratio 1:48
- Motor Drive Voltage 6V
Features:
- Uses L298N driver module, real isolation to MCU
- Three groups of hunt modules (detects black and white lines), higher accuracy
- The infrared remote communication module, composed of the smart car is a remote control system.
- Bluetooth wireless communication modues (short-range wireless remote control)
- Multi-function 4WD Robot Car Kit comes with economic and environmentally-friendly rechargeable battery and charger(battery not included)
- Multi-function 4WD Robot Car Kit can be equipped with a variety of sensor modules, depending on your imagination to achieve a variety of functions
Package Included:
- 4 x Geared motor
- 4 x Tyre
- 4 x Motor fixing
- 2 x Acrylic glass plate(100 x 213 x 5mm)
- 1 x L298N motor driver
- 1 x UNO328 controller board
- 1 x Sensor board V5
- 1 x Holder kit
- 1 x Steering gear

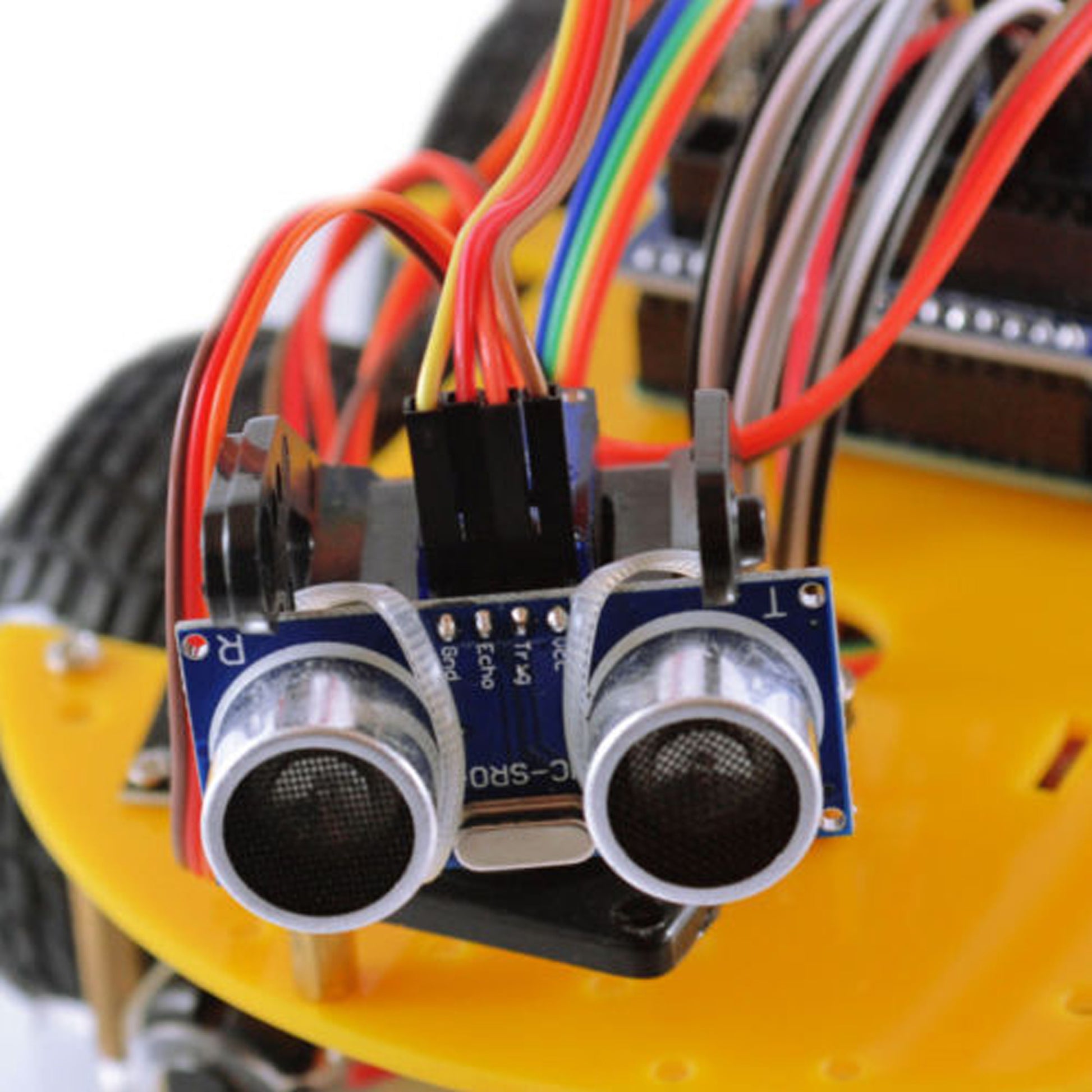

- 1 x Ultrasonic module

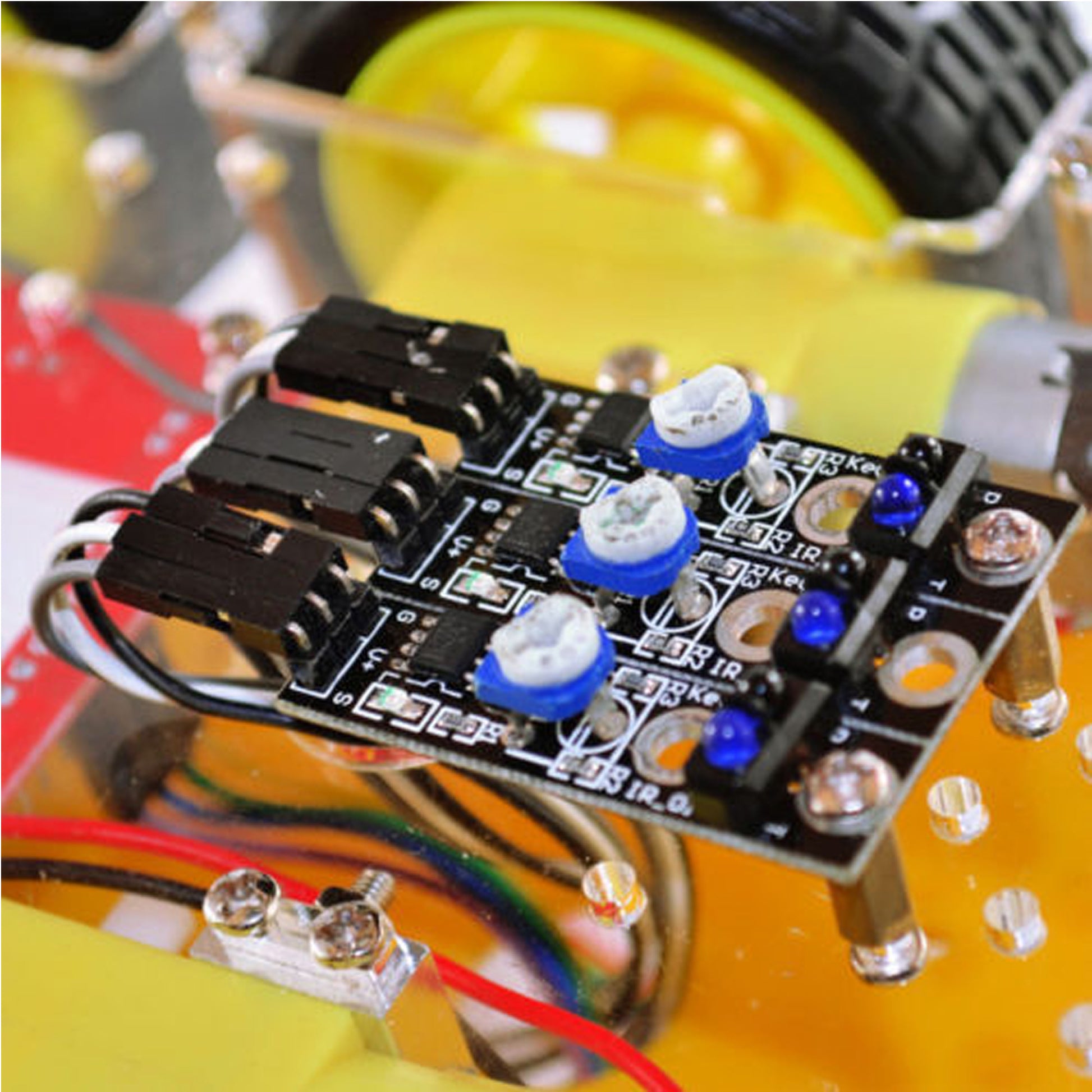

- 3 x Line inductive module

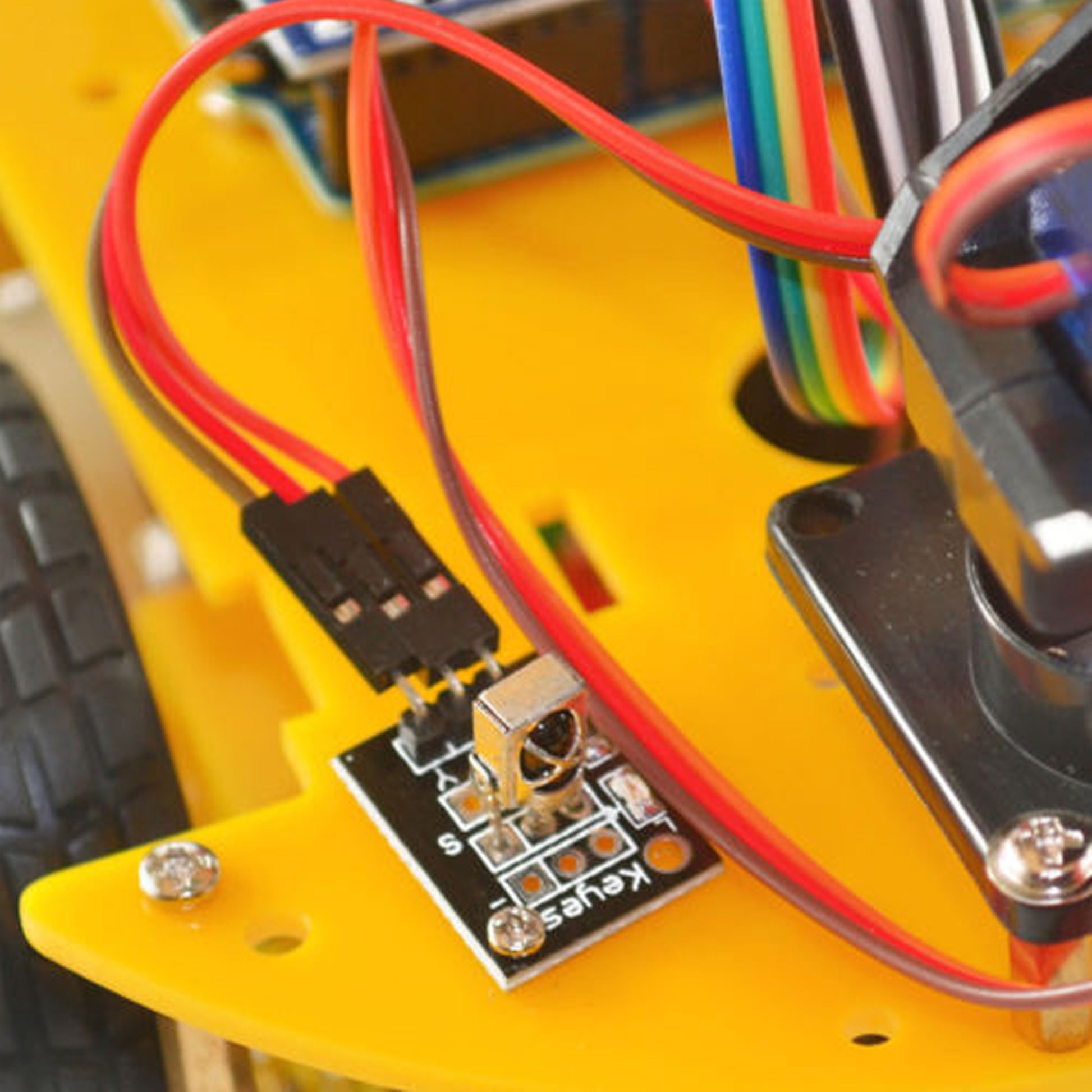

- 1 x Infrared receiver module
- 1 x MCU remote control
- 1 x 18650 battery holder
- 2 x 18650 battery
- 1 x 18650 battery charger
- 1 x Bluetooth adapter
- 1 x USB cable(0.5m)
- 30 x Dupont line
- 15 x Pillars(6 x 35mm / 3 x 20mm / 6 x 6mm)
- All necessary screws and nut
