Description:

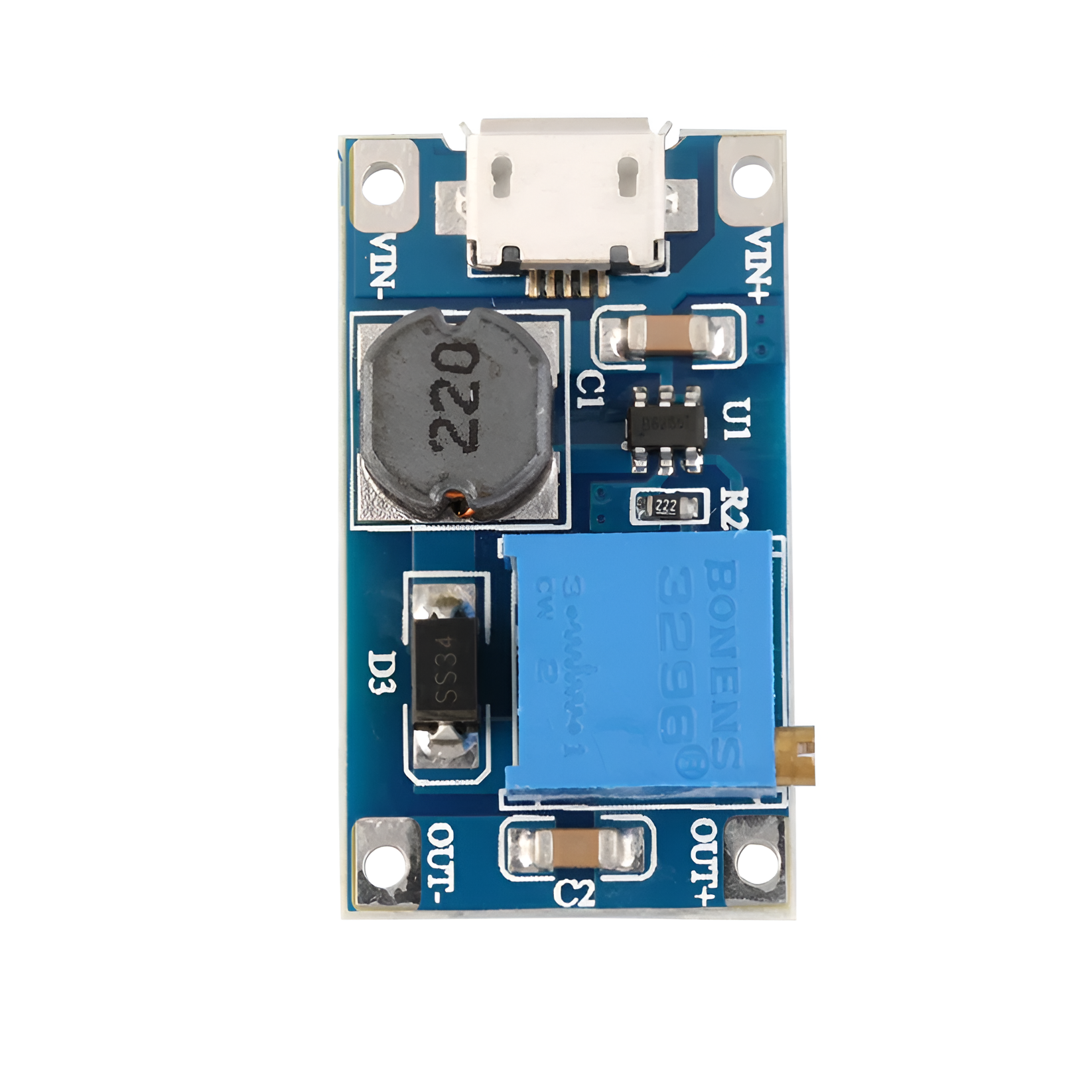

The MT3608 Step-Up (Boost) Converter Module with Micro USB is a compact and highly efficient DC-DC voltage regulator designed to convert low input voltages from 2V to 24V into a stable and adjustable output ranging from 5V to 28V. Powered by the high-performance MT3608 chip, it ensures reliable voltage boosting with high efficiency and low heat generation.
Featuring a convenient Micro USB input port, this module allows easy power connection using any standard 5V USB charger or power bank, making it perfect for portable and DIY applications. It supports a maximum output current of up to 2A, making it suitable for a wide range of low- to medium-power electronic devices.
Ideal for Arduino projects, robotics, IoT systems, LED drivers, battery-powered circuits, and DIY electronics, this boost converter is a must-have component for any electronics enthusiast.
Specifications:
- Type: DC-DC Step-Up (Boost) Converter
- Control IC: MT3608 High-Efficiency Switching Regulator
- Input Voltage (Micro USB): 5V DC
- Input Voltage (VIN Pads): 2V – 24V DC
- Output Voltage Range: 5V – 28V DC (Adjustable via Potentiometer)
- Maximum Output Current: Up to 2A
- Switching Frequency: 1.2 MHz
- Conversion Efficiency: Up to 90% – 93%
Features:
- High-efficiency step-up (boost) DC-DC converter
- Micro USB input for easy 5V power supply connection
- Adjustable output voltage using onboard potentiometer
- Wide input voltage range for flexible applications
- Compact and lightweight PCB design
- Stable output with low ripple performance
- Ideal for portable and low-power electronic projects
Applications:
- Arduino & DIY electronics projects
- Battery-powered devices and power banks
- LED strip and LED driver circuits
- IoT and embedded systems
- Solar and renewable energy prototypes
- Portable DC power supply systems
Package Included:
1 x MT3608 Boost Converter Module
