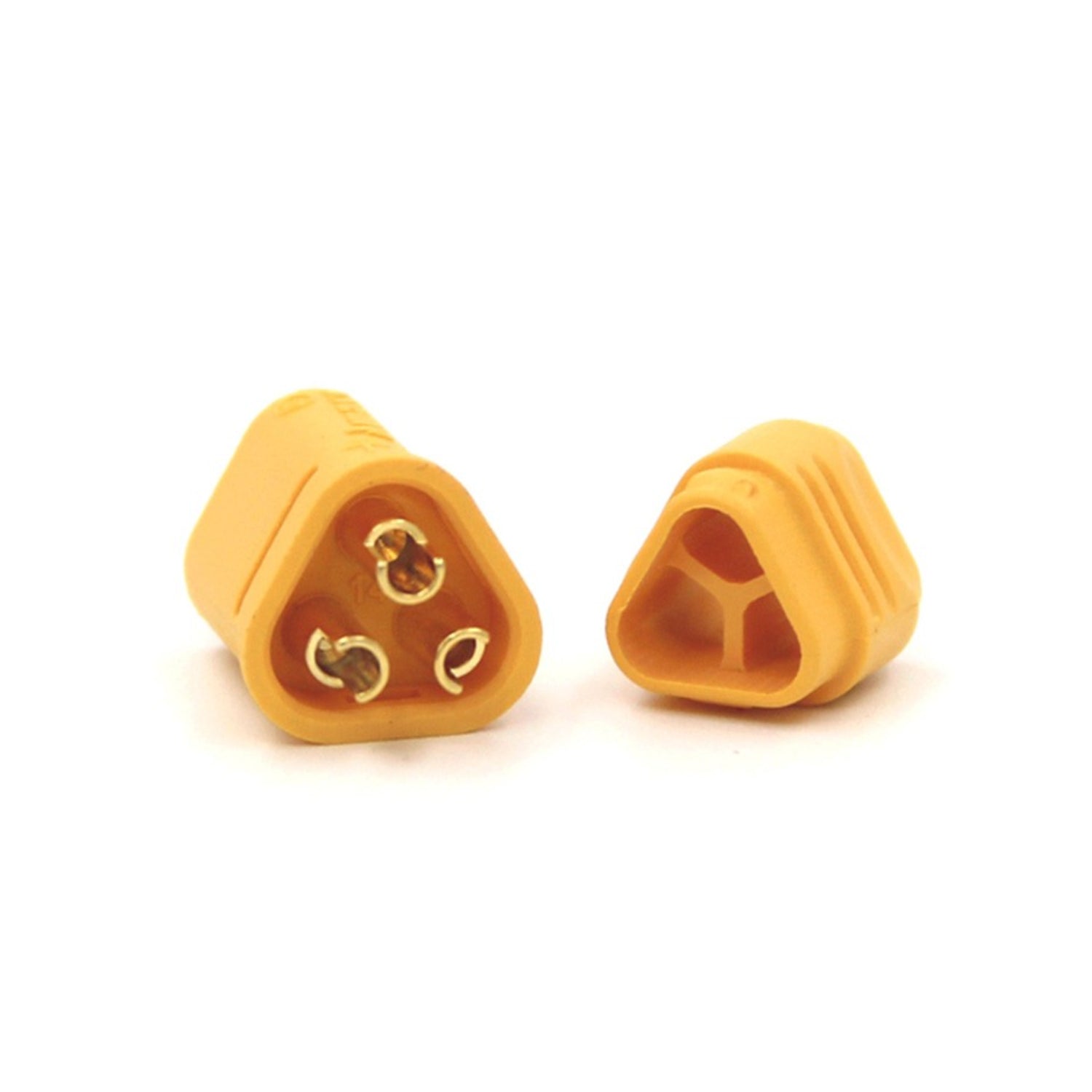

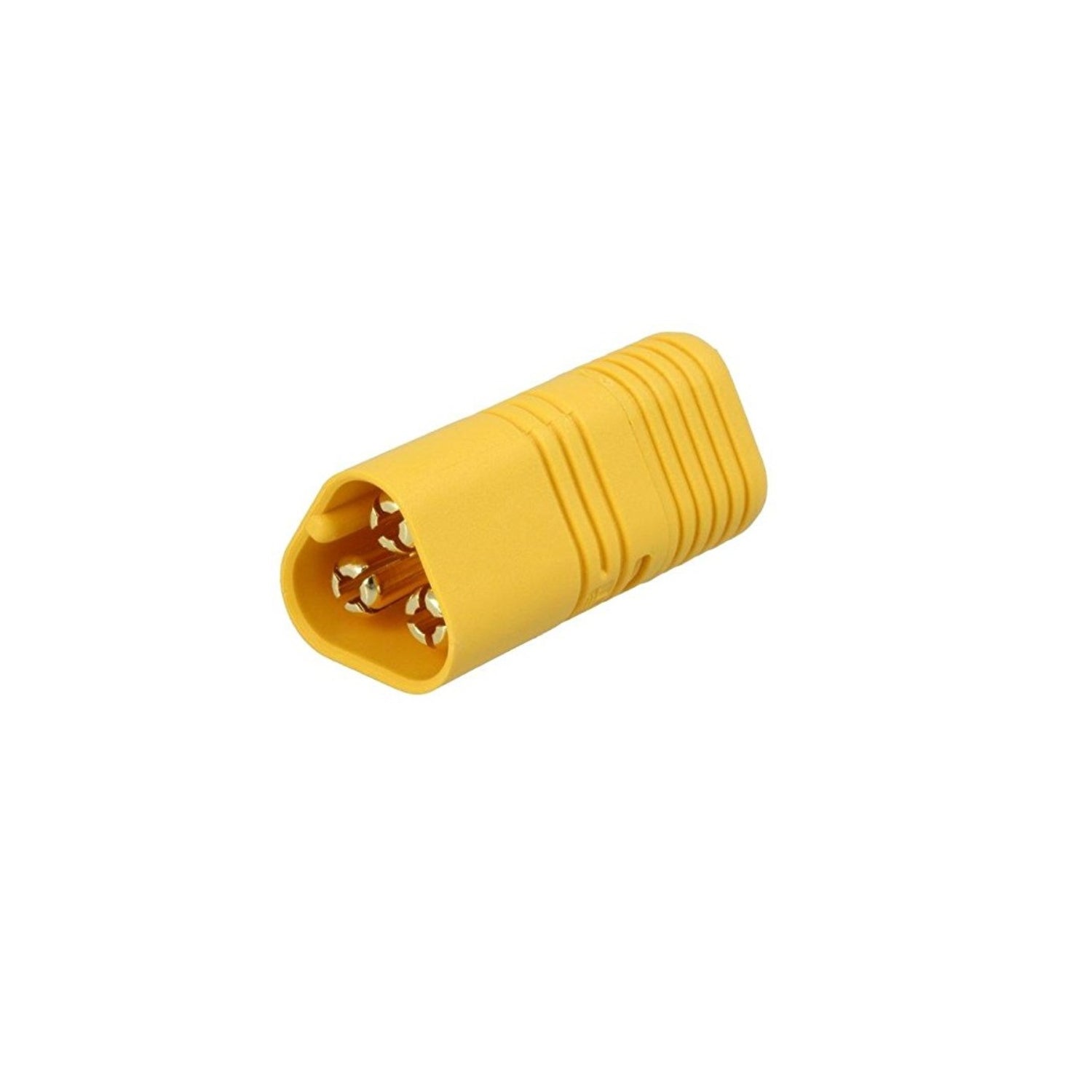

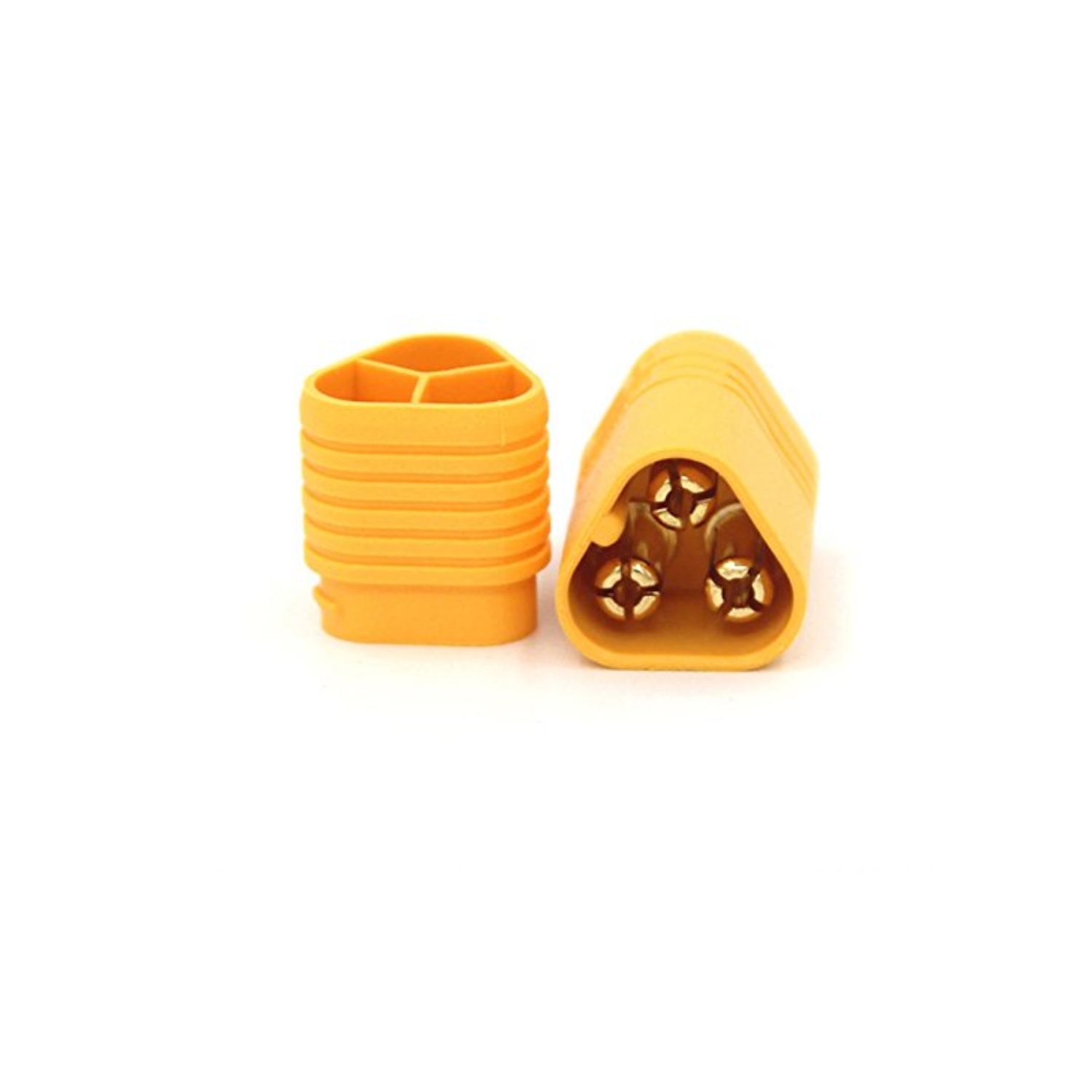

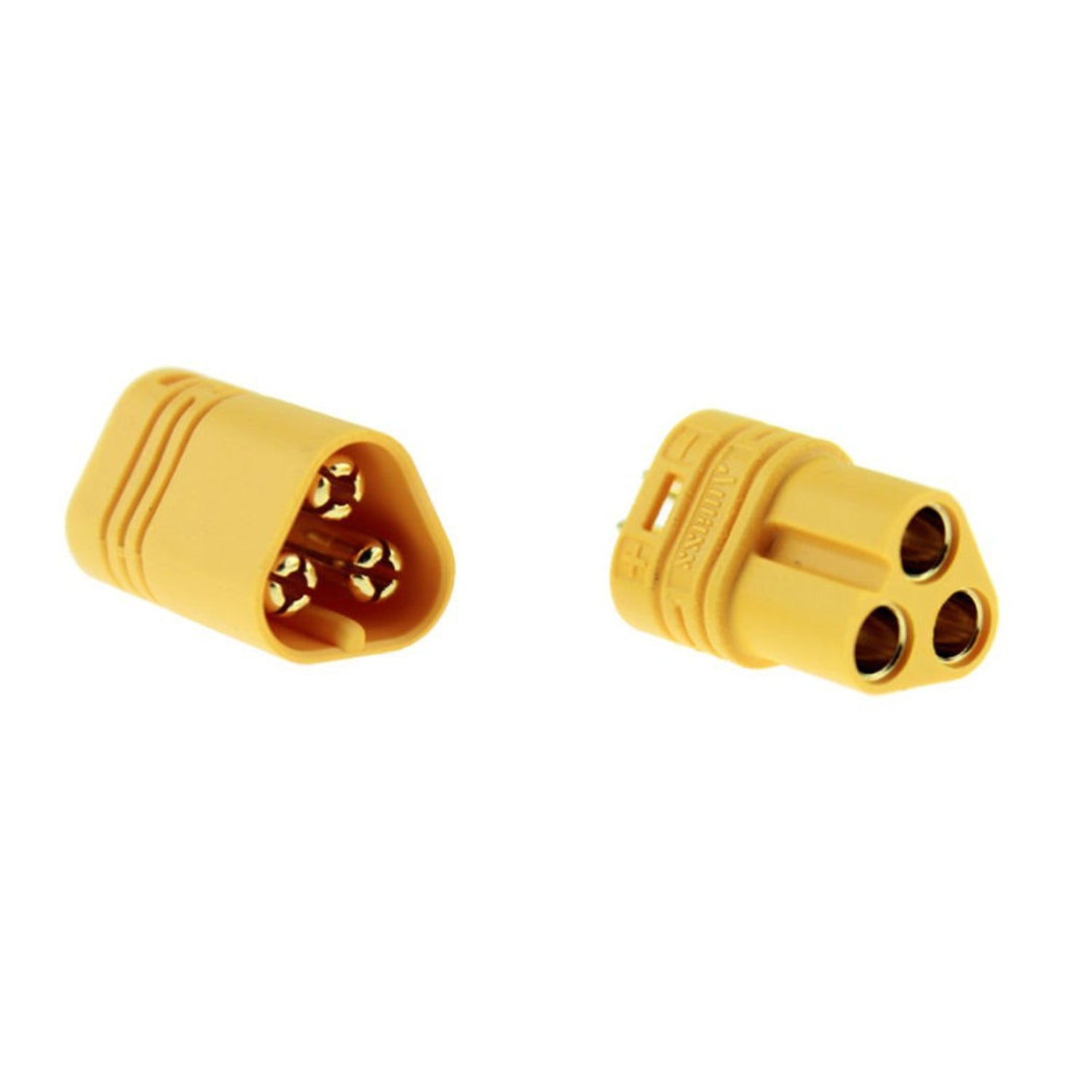

MT30 3-Pole Male Connector Set 3mm Power Plug For RC Brushless Motor/ESC - RS3964

MT30 3-Pole Male Connector Set 3mm Power Plug For RC Brushless Motor/ESC - RS3964

RS3964

50 in stock

Rs. 55.00
Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Ensure secure, low-resistance connections between your brushless motor and Electronic Speed Controller (ESC) with the MT30 3-Pole Male Connector Set. Designed and manufactured by Amass, this robust plug-and-play solution is engineered specifically for RC applications, providing superior performance and reliability.

Specifications:

  • Gender: Male
  • Operating Voltage: 500VDC
  • Contact Plating: Gold flash
  • Contact Material: Brass
  • Allowed Wire Size: 16 to 18AWG
  • Current Handle Capacity: 60A
  • Operating Temperature: -20 to 120°C
  • Flammability Rating: UL94V-0
  • Connector Type: MT30
  • No. of Contact Points: 3Pin
  • Dimensions (L x W x H): 20 x 10 x 10mm

Features:

  • Secure 3-Pole Configuration: Provides a solid, reliable electrical pathway for 3-wire brushless motor systems.
  • Gold-Plated Bullet Connectors: Equipped with 2mm gold-plated contacts, ensuring maximum current flow, minimal resistance, and excellent corrosion resistance for long-term use.
  • High Current Capacity: Perfectly suited for handling the power demands of miniature RC vehicles, drones, and fixed-wing aircraft, accommodating up to 16AWG gauge wires.

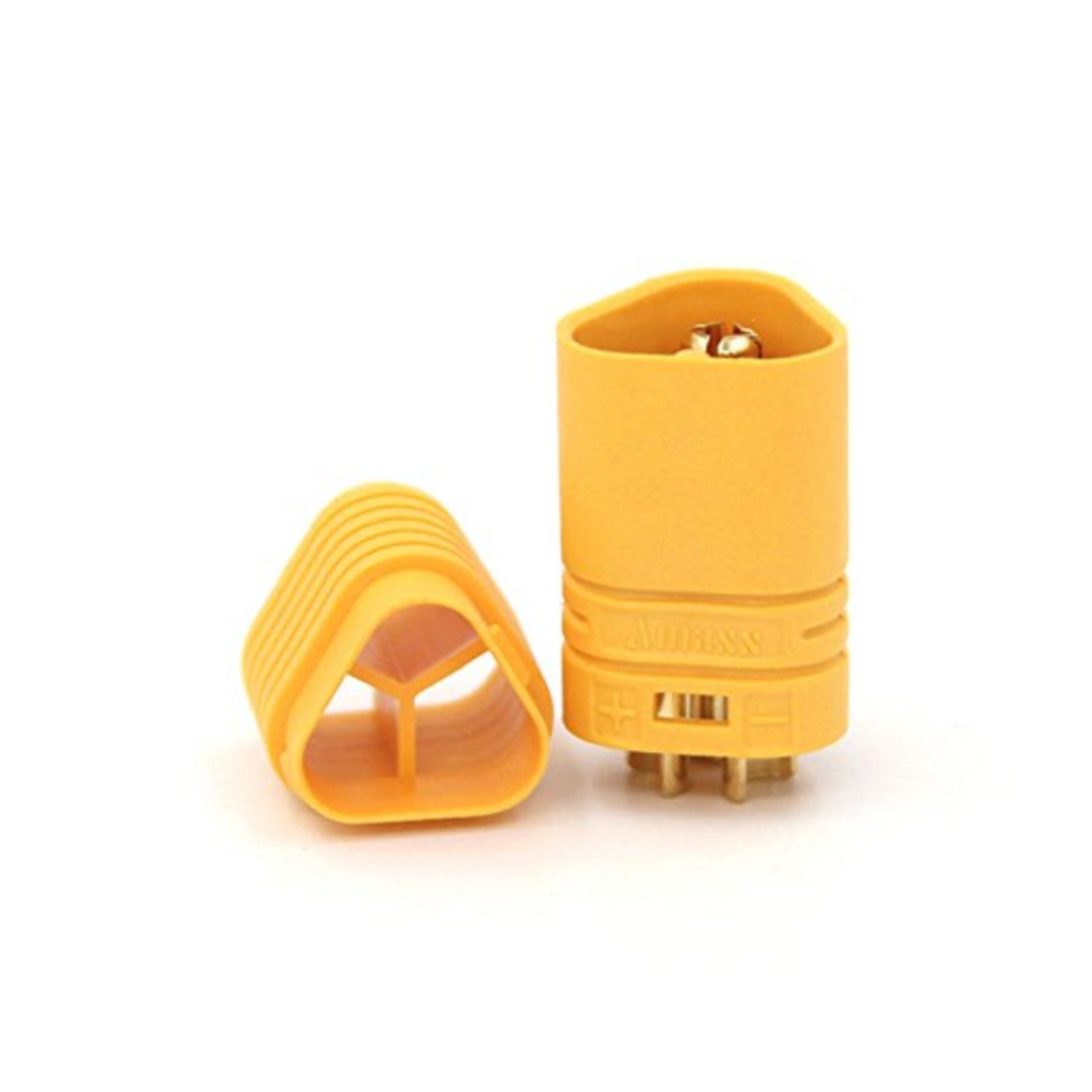

  • Integrated Cable Tidy Cap: Each male connector comes supplied with a durable plastic cap attachment, designed to keep your soldering points and wires organized and protected from shorts and debris, ensuring a neat and professional finish.
  • High-Quality Housing: Constructed from rugged, high-temperature plastic (designed by Amass), offering outstanding durability and insulation integrity even under heavy load.

Package Included:

1 x MT30 3-Pole Male Connector Set
