Generic
MT30 3-Pin Motor ESC Connector Male Female Pair Gold Plated For RC Brushless Motors - 1 Pair - RS3914
MT30 3-Pin Motor ESC Connector Male Female Pair Gold Plated For RC Brushless Motors - 1 Pair - RS3914
SKU:RS3914
19 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The MT30 3-Pole Motor-ESC Connector Set Male-Female Pair is a premium gold-plated 3-pin connector designed for secure, high-current connections between brushless motors and ESCs. Constructed from durable high-temperature nylon with precision gold-plated brass contacts, it delivers low resistance, efficient power transfer, and reliable long-lasting performance. Perfect for RC drones, FPV racing drones, RC aeroplanes, helicopters, RC boats, robotics, and DIY electronics projects.
Specifications:
- Connector Type: MT30 3-Pin (3 Pole)
- Gender: 1 × Male Connector + 1 × Female Connector (1 Pair)
- Contact Material: Gold-Plated Brass
- Number of Pins: 3
- Connection Type: Solder Type
- Operating Temperature: -20°C to +120°C
- Voltage Rating: Up to DC 500V
- Colour: Yellow
- Compatibility: Brushless Motors and Electronic Speed Controllers (ESCs)
Features:
- MT30 3-Pin Motor ESC Connector for secure and reliable brushless motor connections.
- Gold-Plated Brass Contacts provide maximum conductivity and minimal power loss.
- Low-Resistance Design ensures efficient, stable, and high-current power transfer.
- Durable high-temperature nylon housing offers excellent heat and impact resistance.
- Compact & lightweight design ideal for RC drones, aeroplanes, cars, boats, and robotics.
- Easy to solder with a secure locking fit for long-lasting performance.
Applications:
- RC Drones and FPV Racing Drones
- Quadcopters and Multirotors
- RC Aeroplanes and Fixed-Wing Aircraft
- RC Cars and Trucks
- RC Boats
- Brushless Motor and ESC Connections
- Robotics Projects
- DIY Electronics
- Educational STEM Projects
- Electronic Prototyping
Package Included:

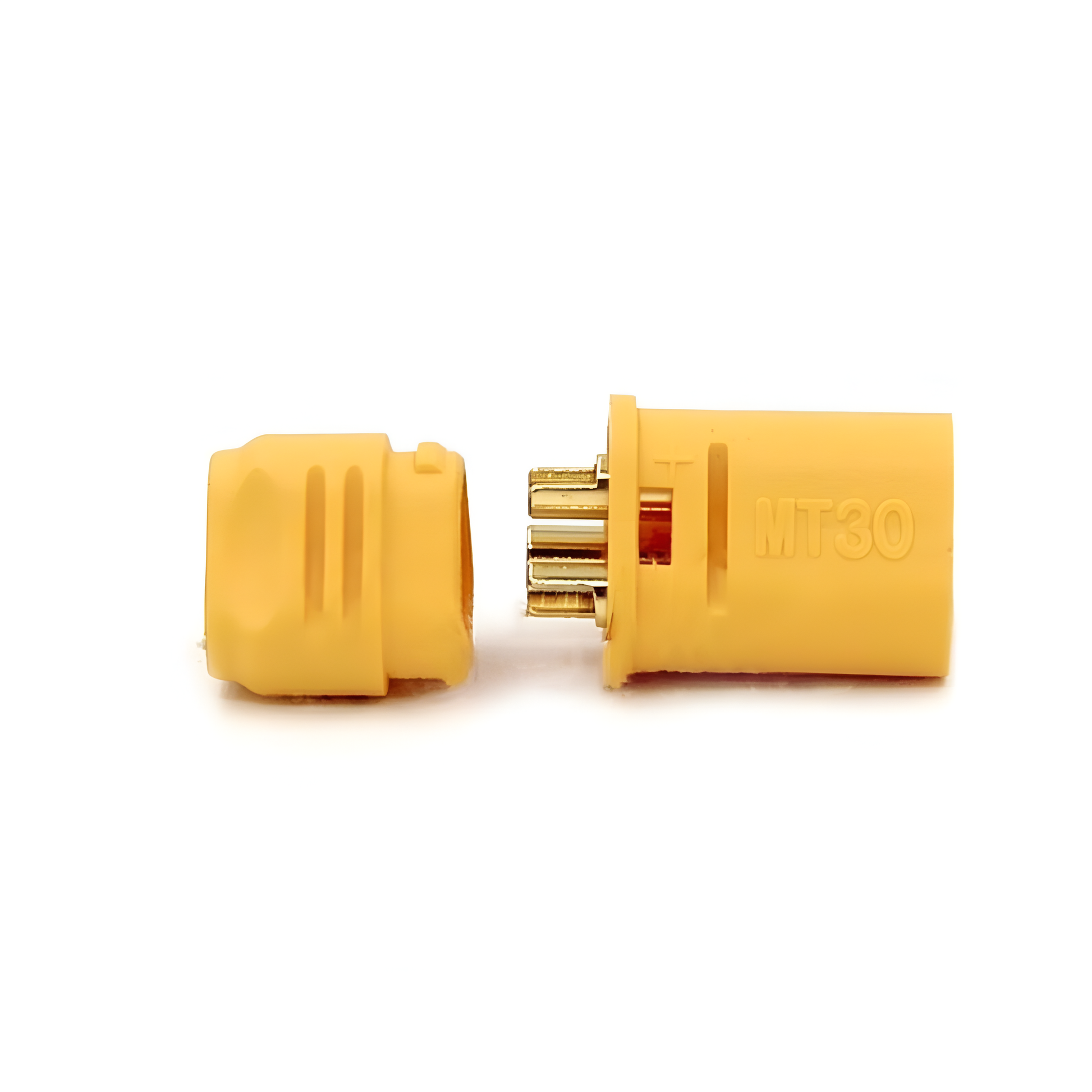

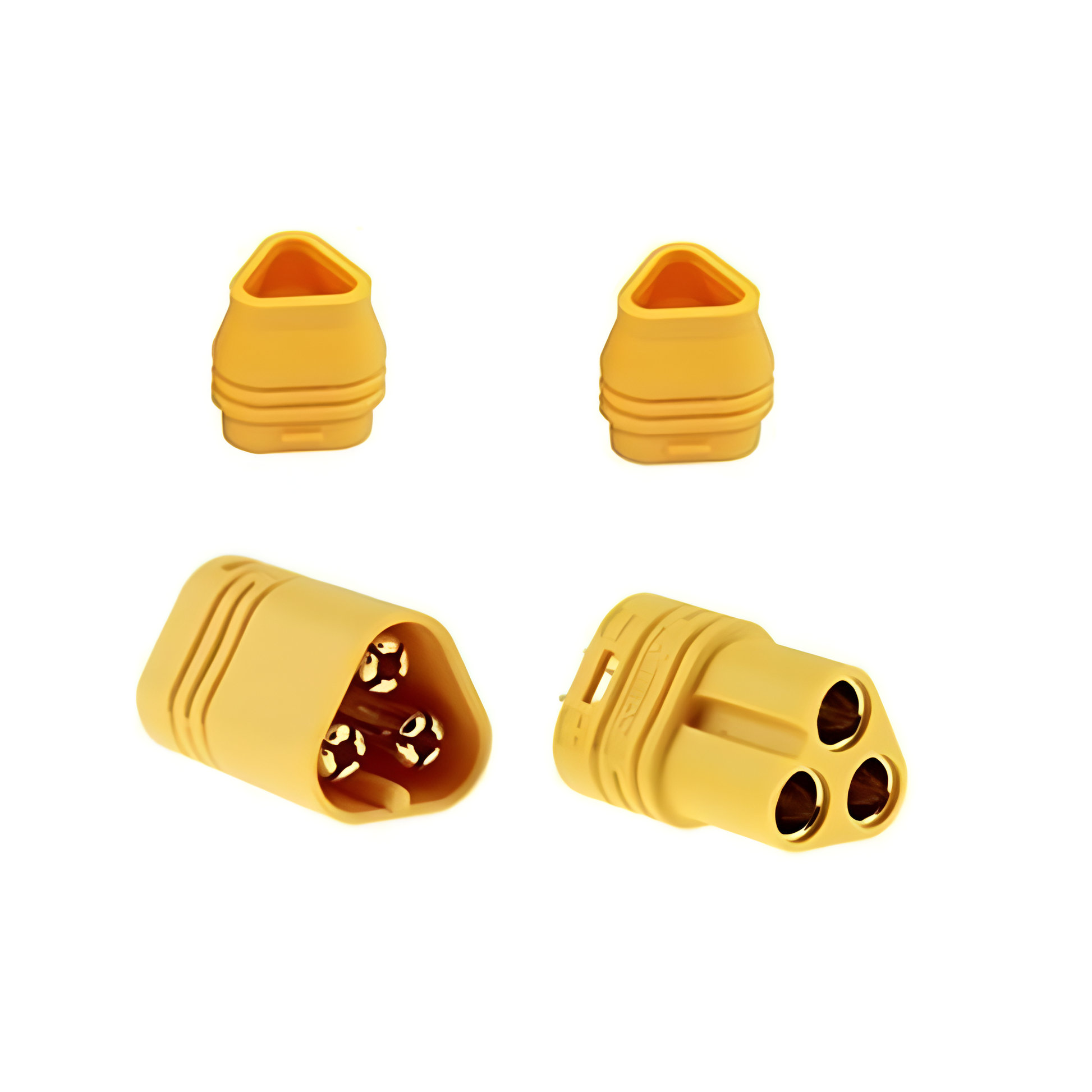

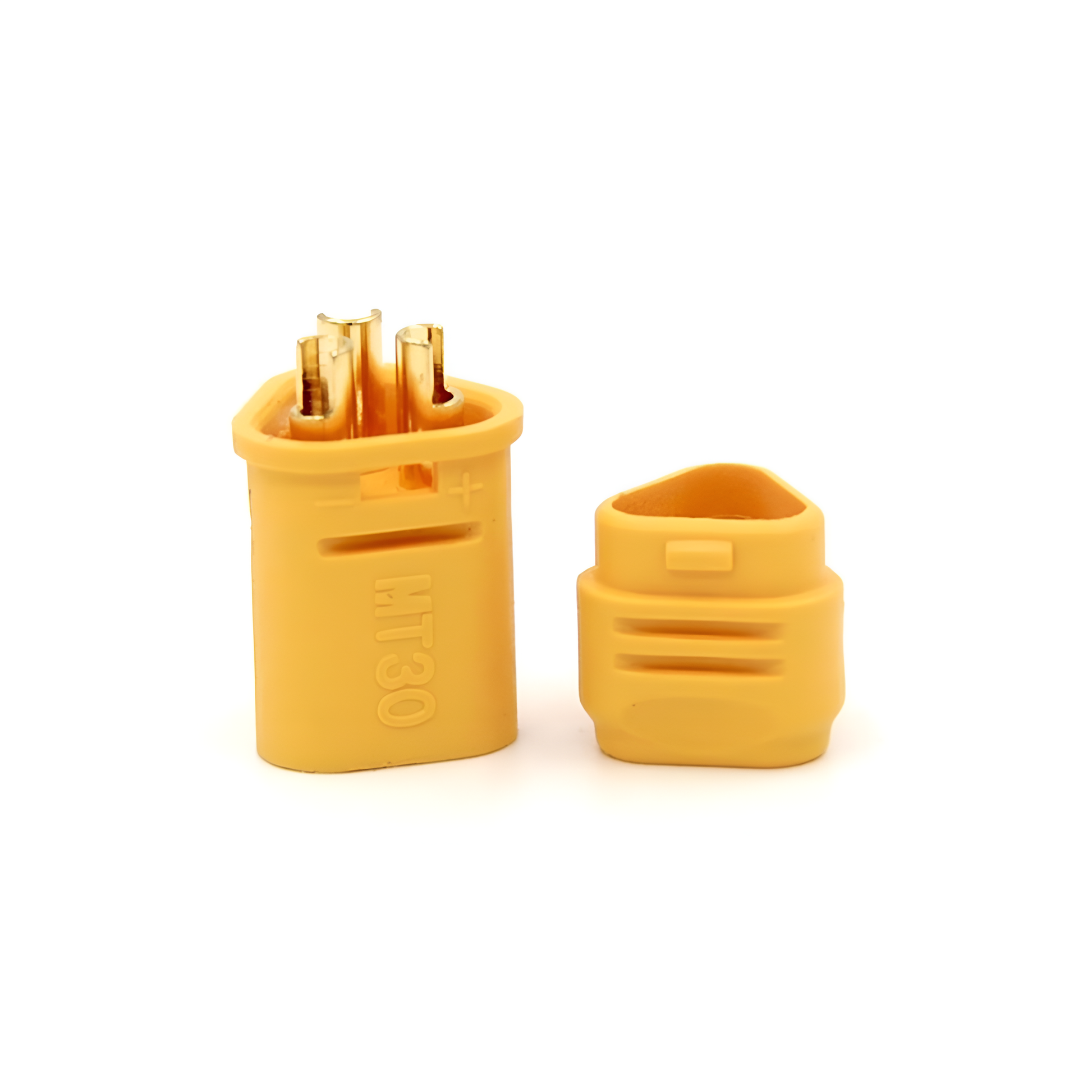

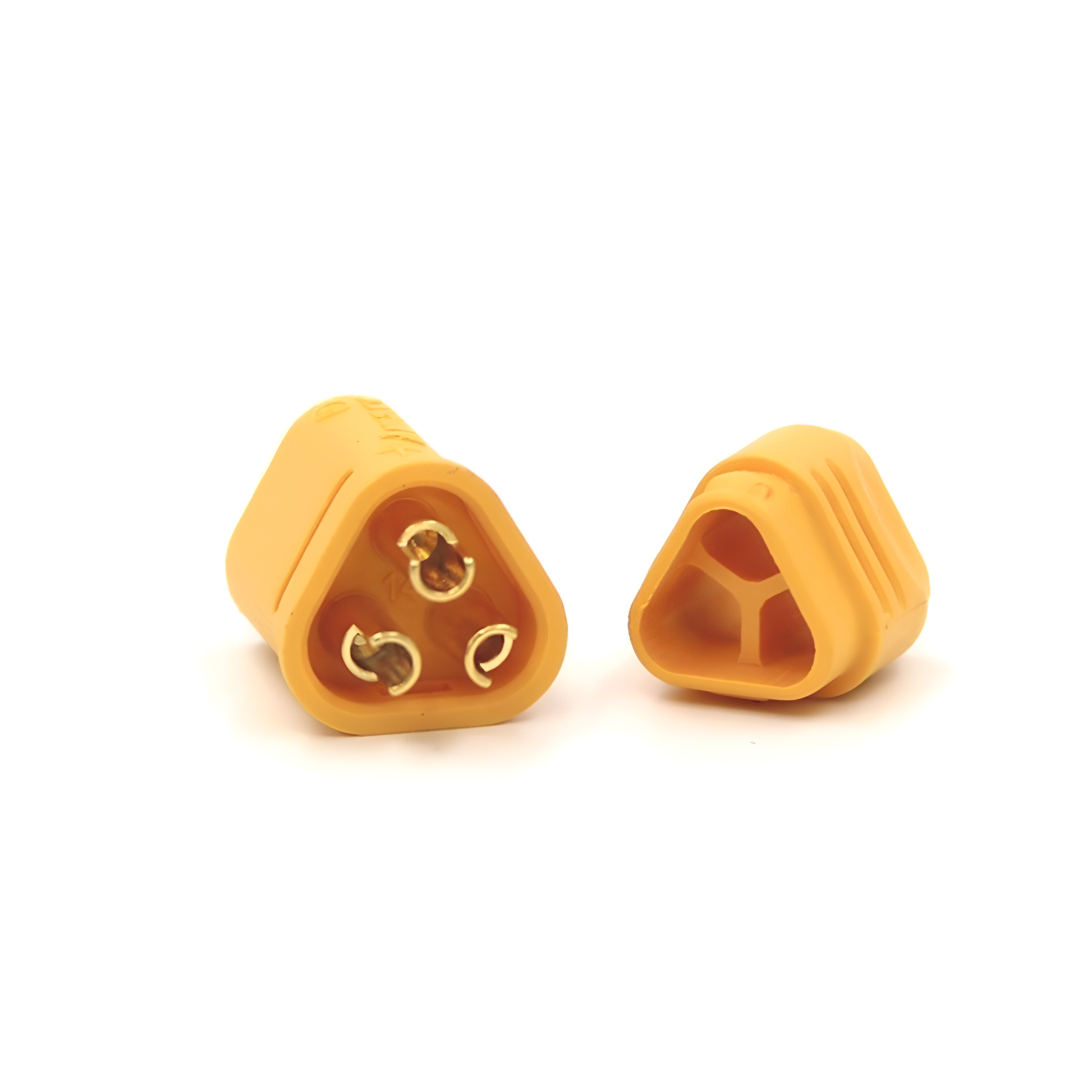

1 × MT30 Male Connector + 1 × MT30 Female Connector (1 Pair)
