Description:

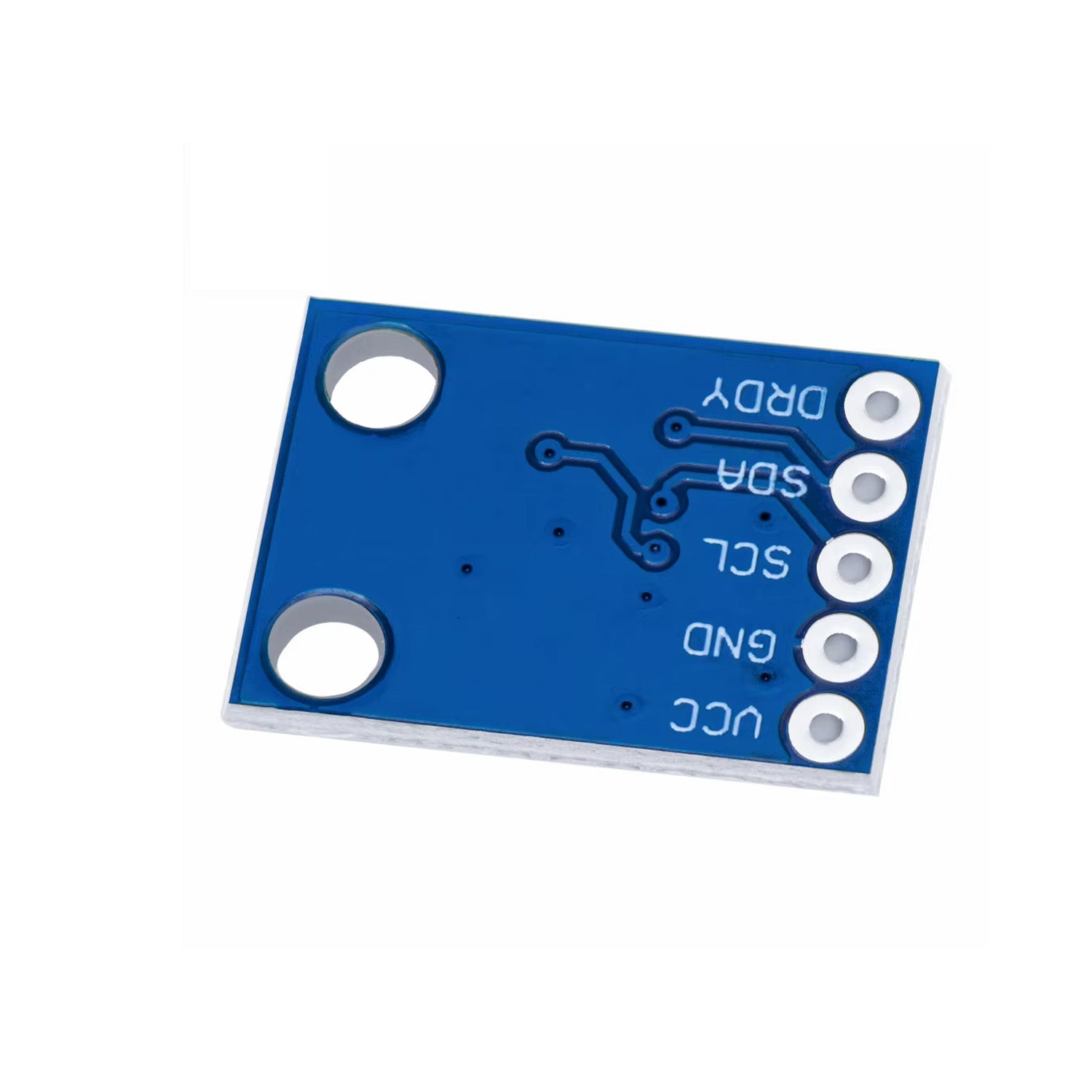

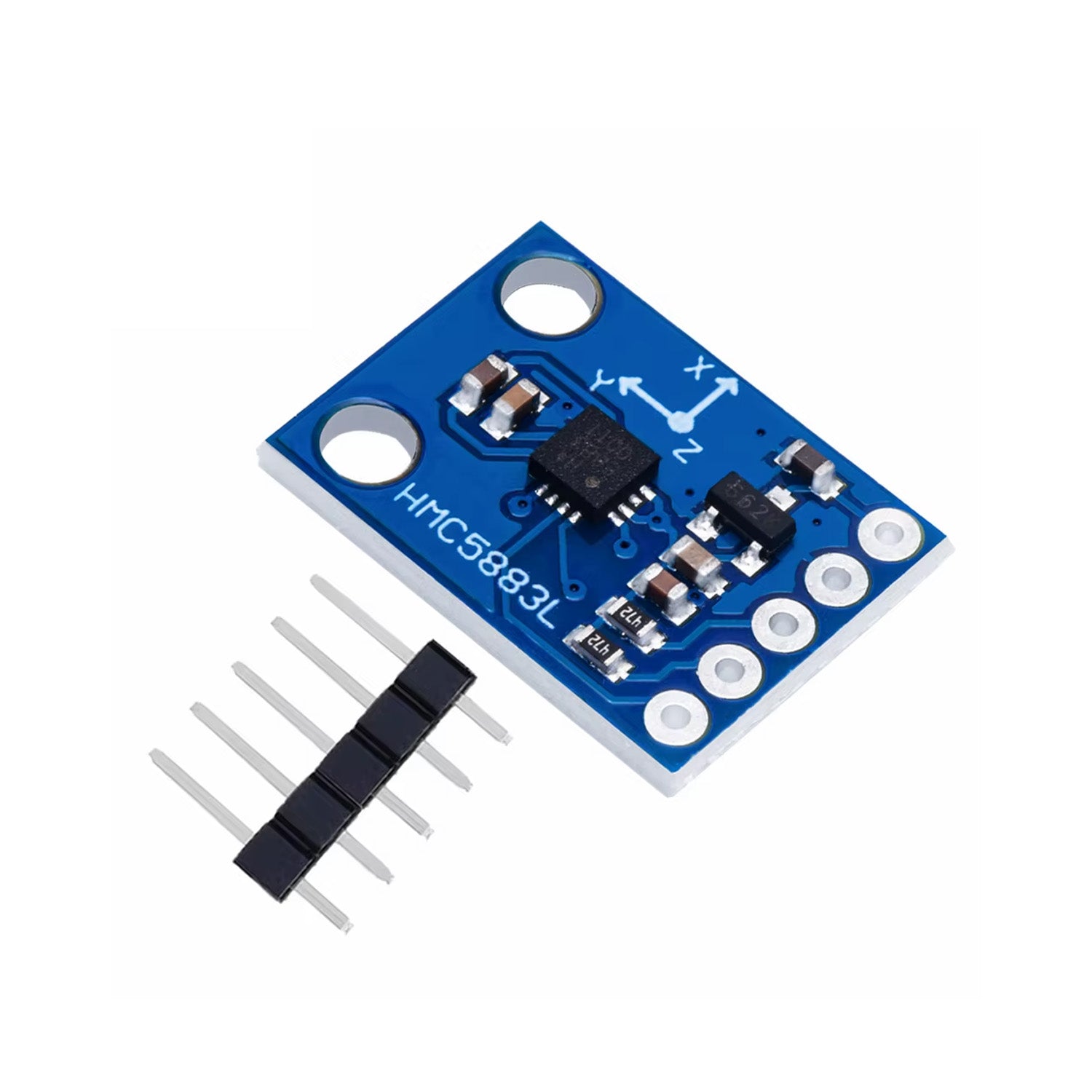

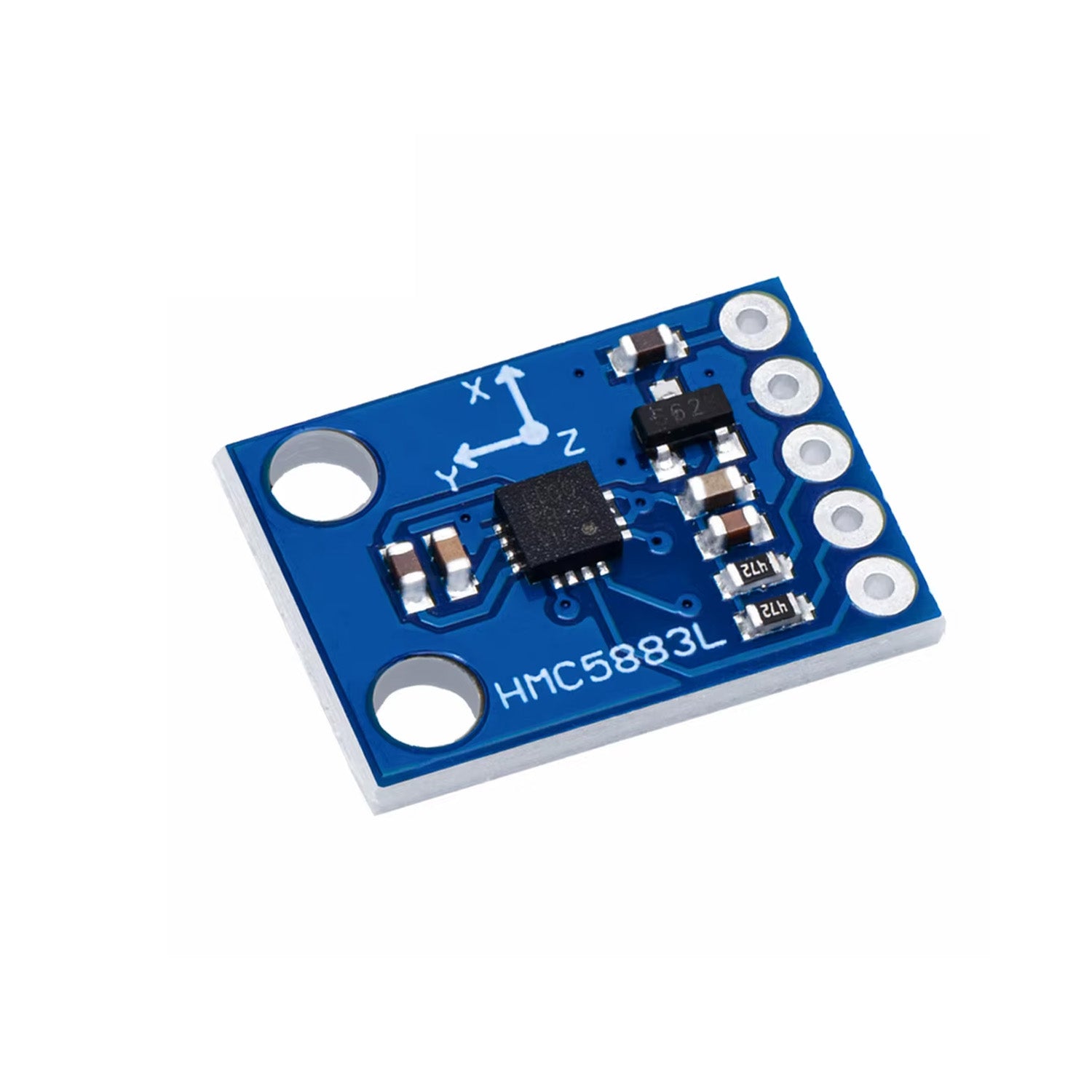

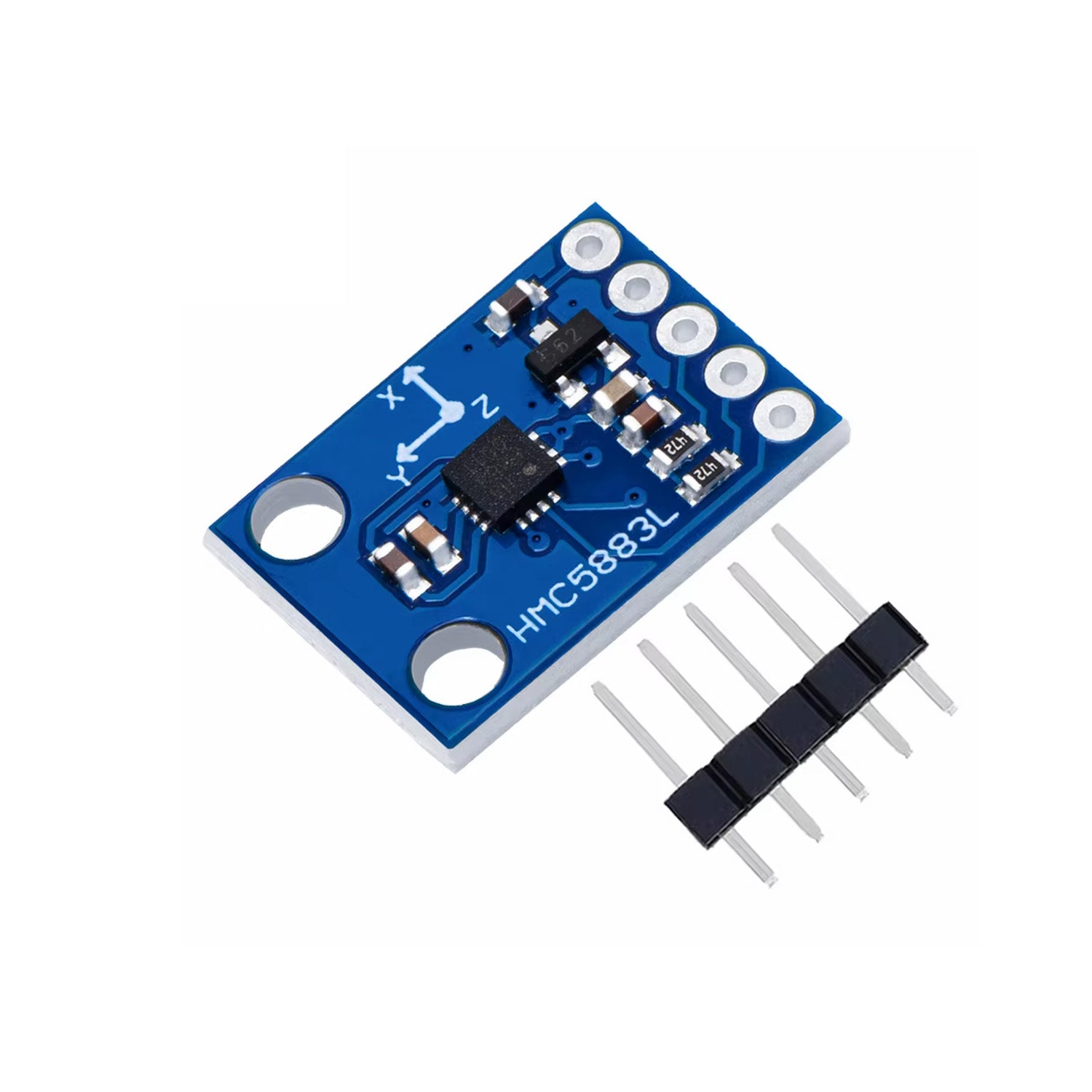

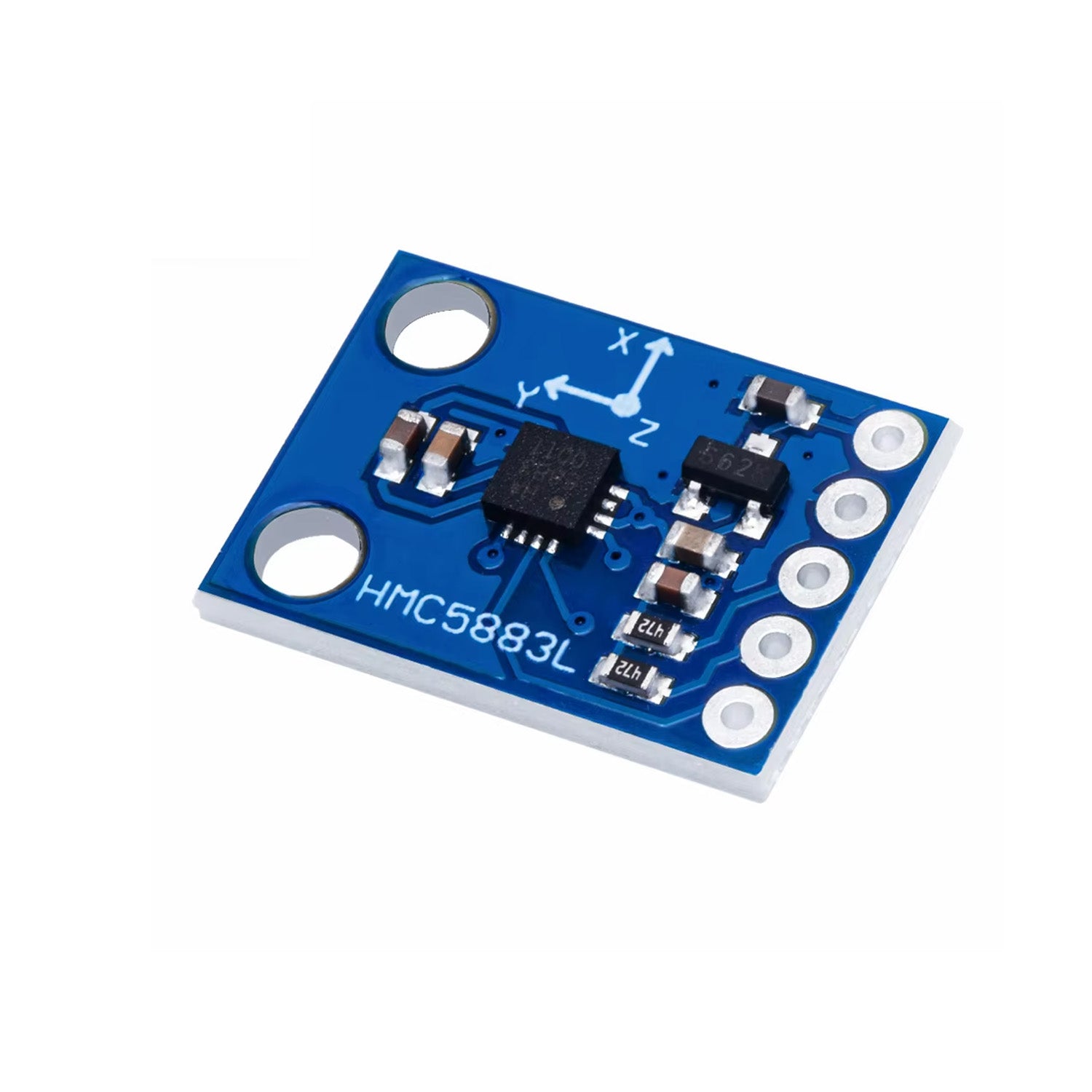

GY-273 HMC5883L 3-Axis Module Magnetic Field Sensor The GY-273 module is based on the Honeywell QMC5883L IC for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry. The QMC5883L includes state-of-threat, high-resolution QMC118X series magneto-resistive sensors plus an ASIC containing amplification; automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
The I2C serial bus allows for an easy interface. The QMC5883L utilizes Honeywell’s Anisotropic Magnetoresistive (AMR)technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gausses. Honeywell’s Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry.
Specifications:
- QMC5883L module (Three-Axis Magnetic Field Module)
- Model: GY-273
- Driver Chip: QMC5883L
- Operating Voltage: 3~5VDC
- Communication: I2C interface
- 1-2 degree heading accuracy
- Integrated 12-bit ADC
- 160Hz Max Data Rate
- A Range of -8 ~ +8 Gauss
Features:
- 3-Axis magnetic electronic compass
- 1-2 degree heading accuracy
- A range of -8 to +8 Gauss
-
Communication: IIC communication protocol
Applications:
- Auto and personal navigation
- UAV systems
- Robotic navigation
- Location-based services (LBS)
Package Included:
1 x GY-273 HMC5883L Magnetometer Module 3-Axis Digital Compass Module Magnetic Field Sensor Module Arduino High-Performance 3-Axis Magnetometer Module Precise Magnetic Field Sensor
