Stop Gas Leaks Early — MQ-6 Gas Sensor Module for LPG/Propane/Butane
Stop Gas Leaks Early — MQ-6 Gas Sensor Module for LPG/Propane/Butane
SKU:SR056
869 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Worried about silent LPG or propane leaks in your home, kitchen or workshop? With the MQ-6 Gas Sensor Module you gain a fast-responding, reliable detector that senses combustible gases like LPG, butane, propane and natural-gas before they become a hazard.

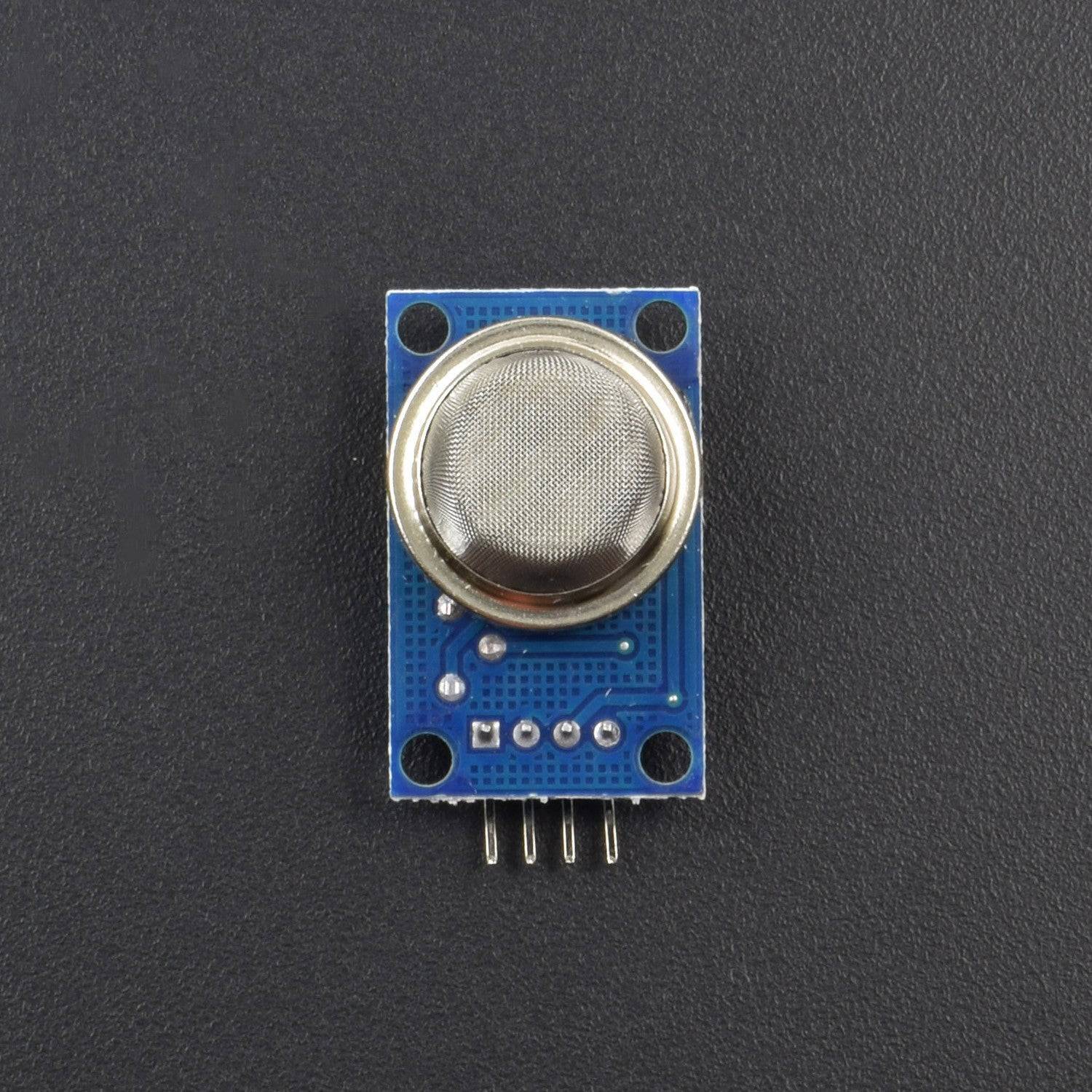

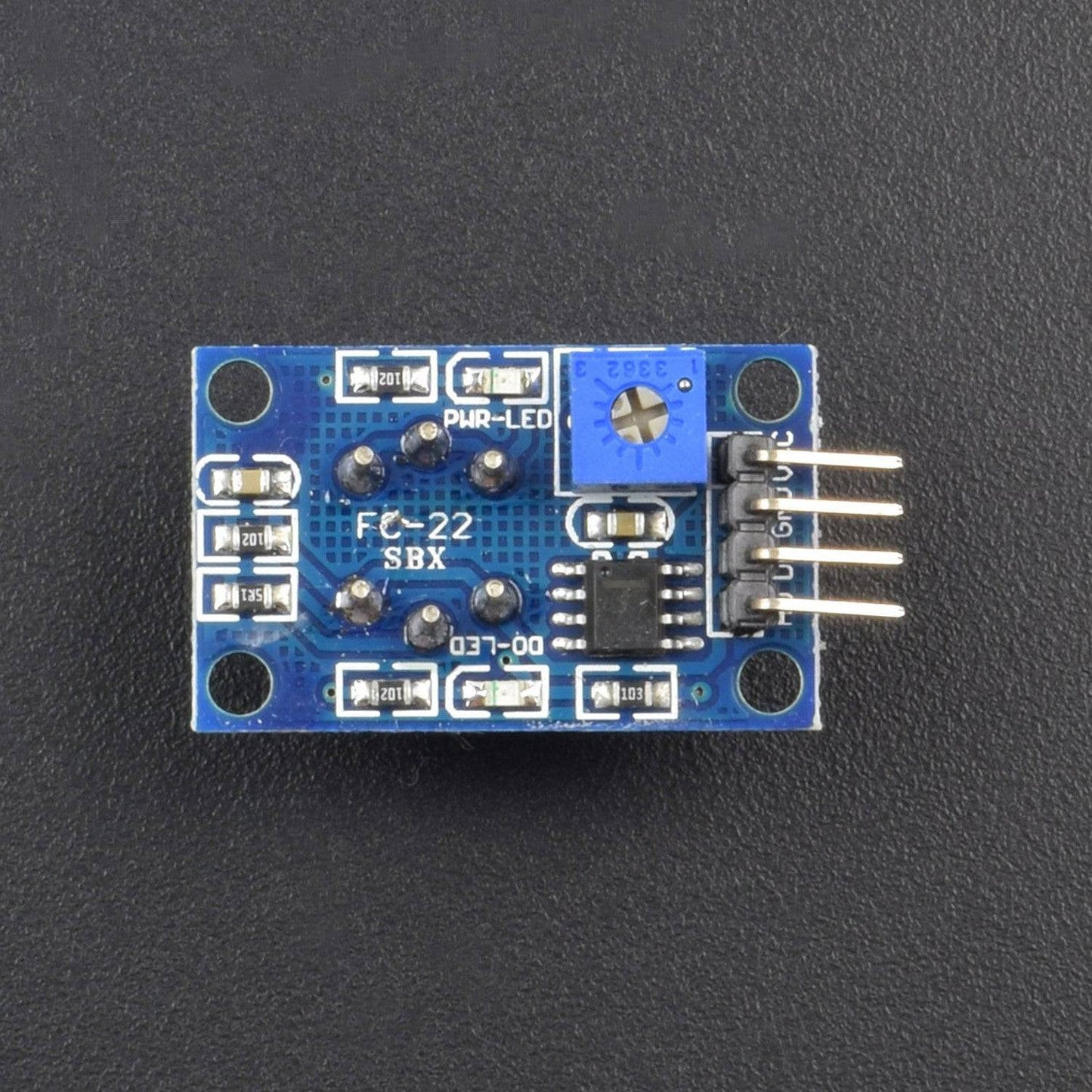

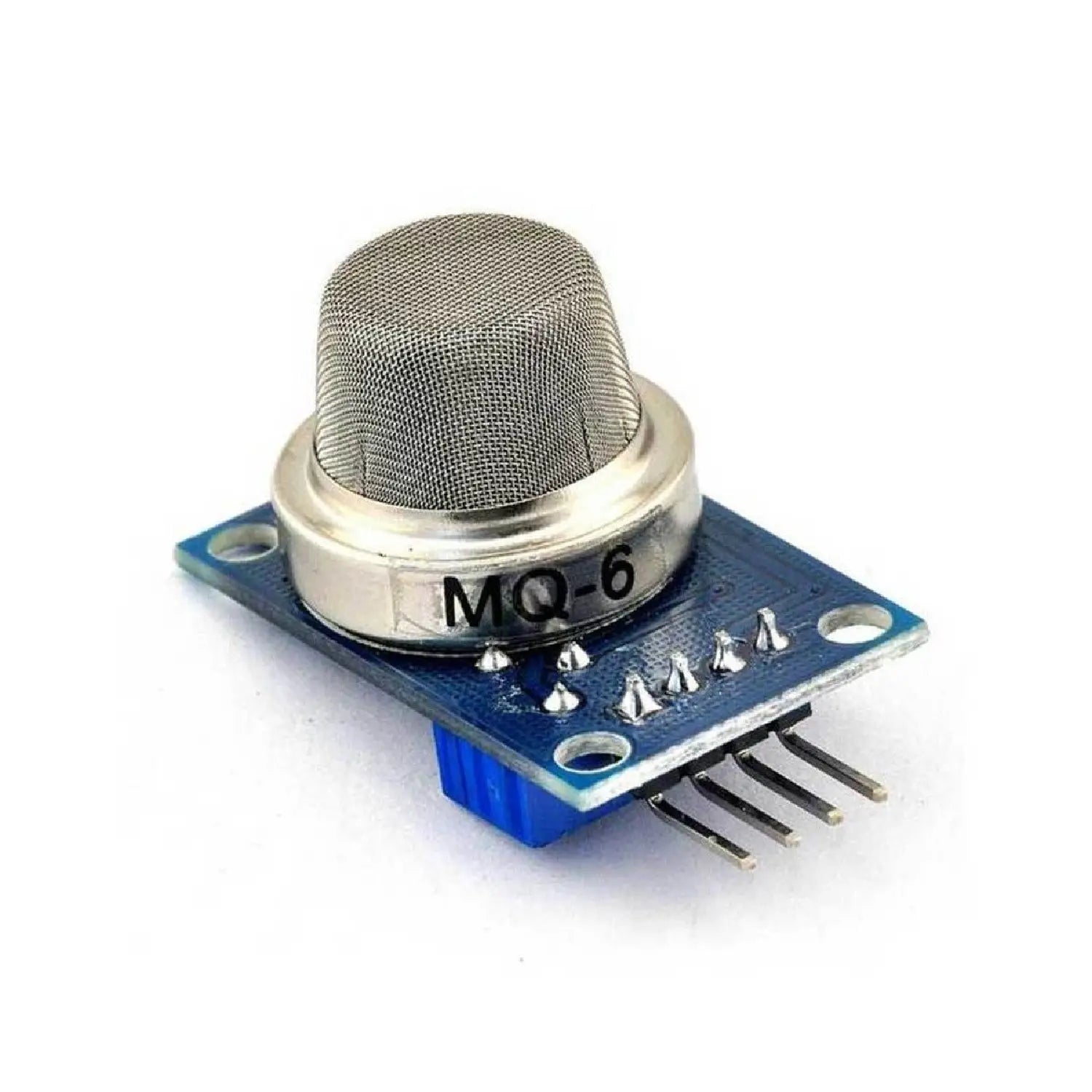

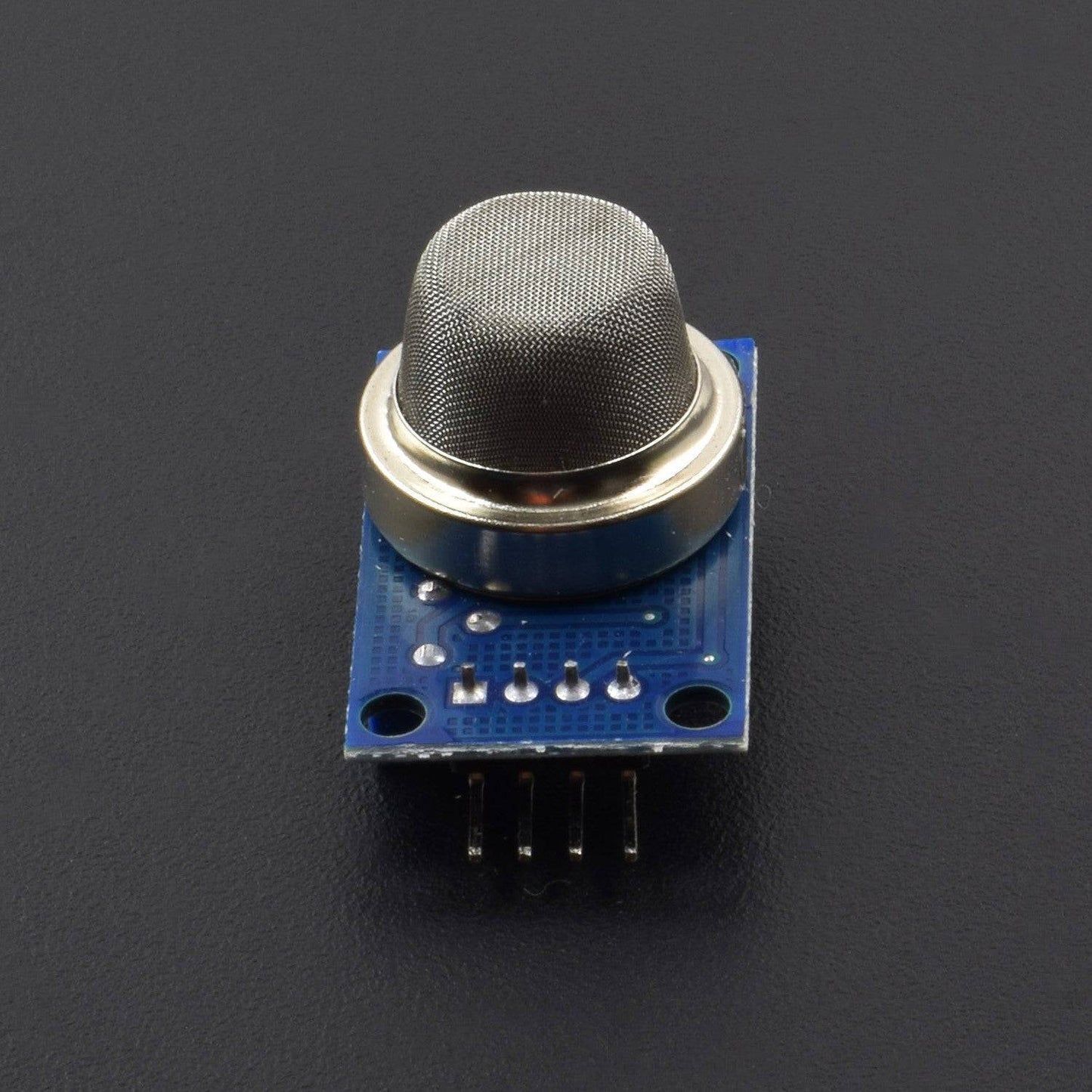

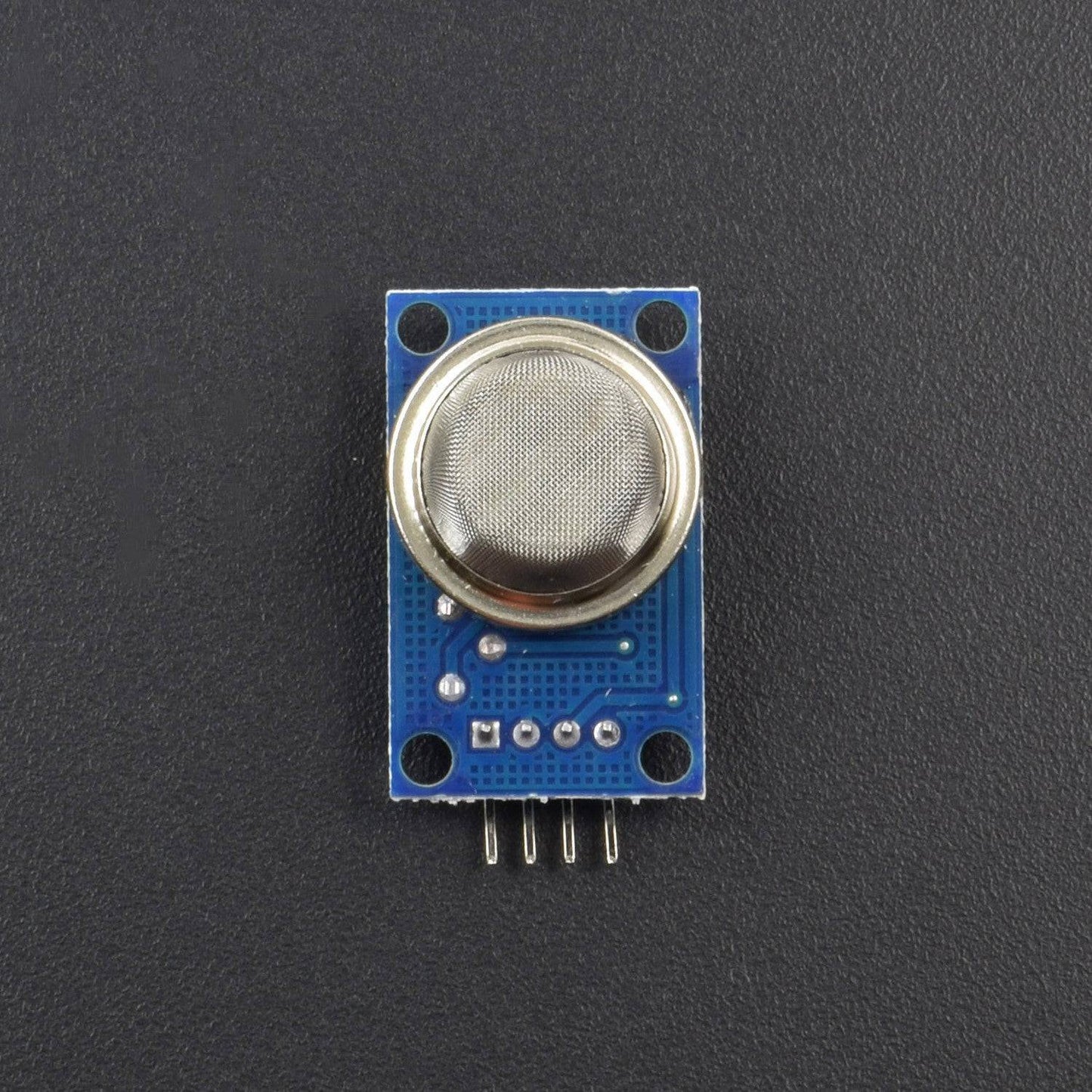

The MQ-6 sensor module is designed for practical use in both DIY electronics and safety systems. Built around a metal-oxide semiconductor (SnO₂) sensing element, it measures changes in conductivity when combustible gases are present. It's highly sensitive to LPG (propane, butane) and suitable for integration with microcontrollers such as Arduino or Raspberry Pi.
With dual outputs — analog (0-5 V) and digital (TTL) — you can choose to either read a continuous concentration range or trigger an alarm when a preset threshold is exceeded.
The module integrates easily: power it with 5 V DC, allow a short pre-heat time, wire the analog output to your ADC or digital output to your microcontroller, and it’s ready to monitor your environment. For example, it can be installed in kitchens, workshops, gas cylinder areas, automotive fuel-system checks, industrial safety panels, and more.
Specifications:
| Model | MQ-6 |
| Detectable Gases | LPG (mainly propane & butane), Natural Gas/CH₄ (limited) |
| Detecting/Concentration Range | ~200-10,000 ppm (some sources 300-10,000ppm) |
| Operating Voltage | 5 V DC ±0.1 V |
| Heater Voltage | 5 V ±0.1 V AC or DC |
| Heater Resistance | ~30 Ω ±3Ω |
| Current Consumption | Approx. 150-mA typical (varies) |
| Analog Output | 0-5 V, proportional to gas concentration |
| Digital Output | TTL logic 0/5 V when threshold exceeded |
| Operating Temperature | –10 °C to +50 °C (some sources –20 °C to +40 °C) |
| Operating Humidity | <95% RH (non-condensing) |
| Module Dimensions | ~32 mm × 20 mm × 22 mm |
| Material / Sensing Element | SnO₂ (Tin Dioxide) sensitive material on ceramic tube |
Features:
- High Sensitivity to LPG/Propane/Butane: Detects low levels of combustible gases so you can warn early.
- Analog + Digital Output: Choose continuous monitoring or simple threshold-trigger alarm integration.
- Works with 5 V Supply: Compatible with standard microcontroller systems (Arduino, Raspberry Pi, ESP32).
- Simple & Low-cost Implementation: Easy to wire and incorporate into safety or IoT systems without complex signal chains.
- Wide Application Range: From home/kitchen LPG leak detection to industrial combustible-gas alarms and custom electronics projects.
- Compact Form Factor: Small size (approx. 32mm × 20mm × 22mm) makes it easy to mount in tight spaces.
Package Included:

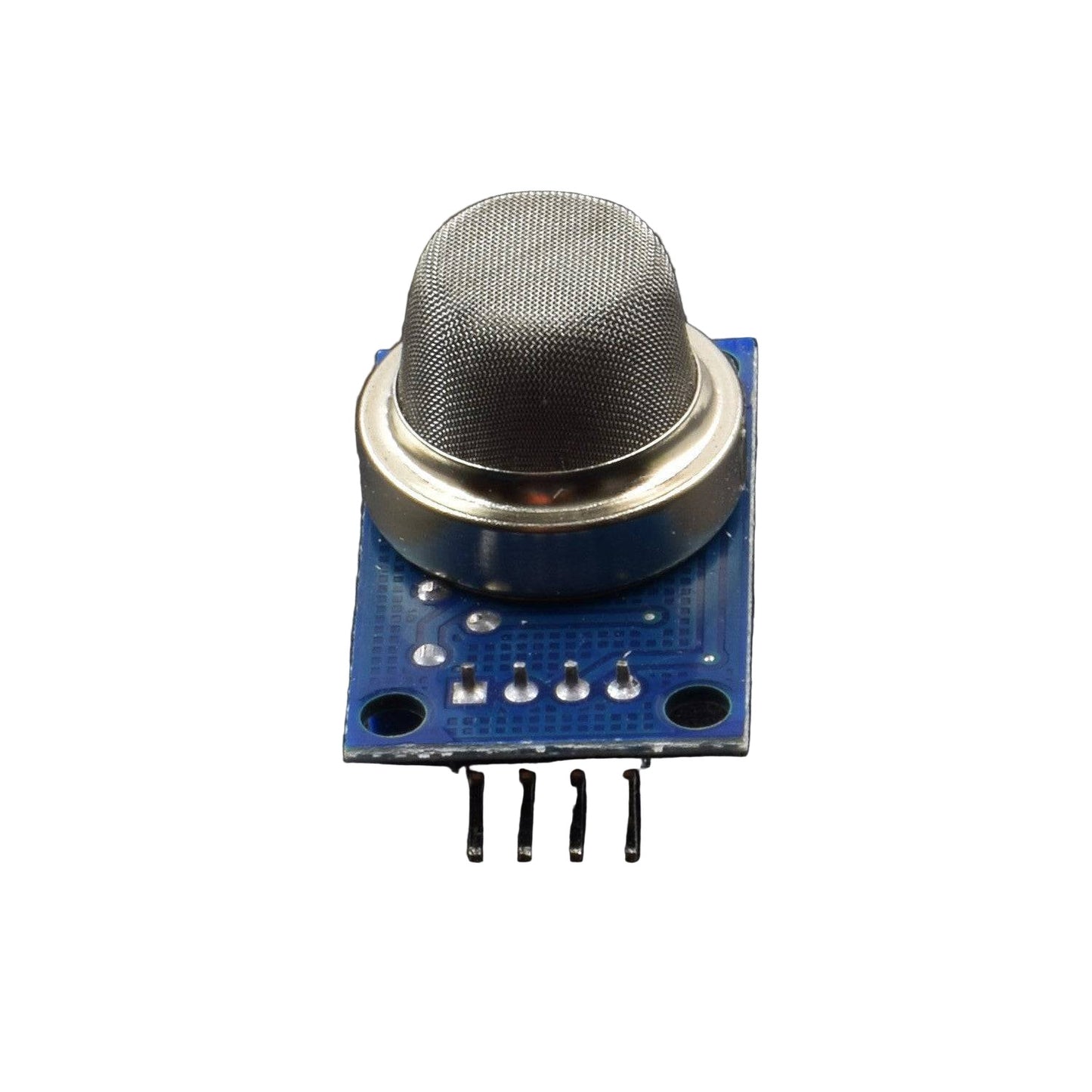

- 1 x MQ-6 Gas Sensor Module - Detects Propane, Butane, LPG and Natural Gas
Protect your home or workspace today — add the MQ-6 Gas Sensor Module to your cart now and start building a reliable gas leak detection system.
