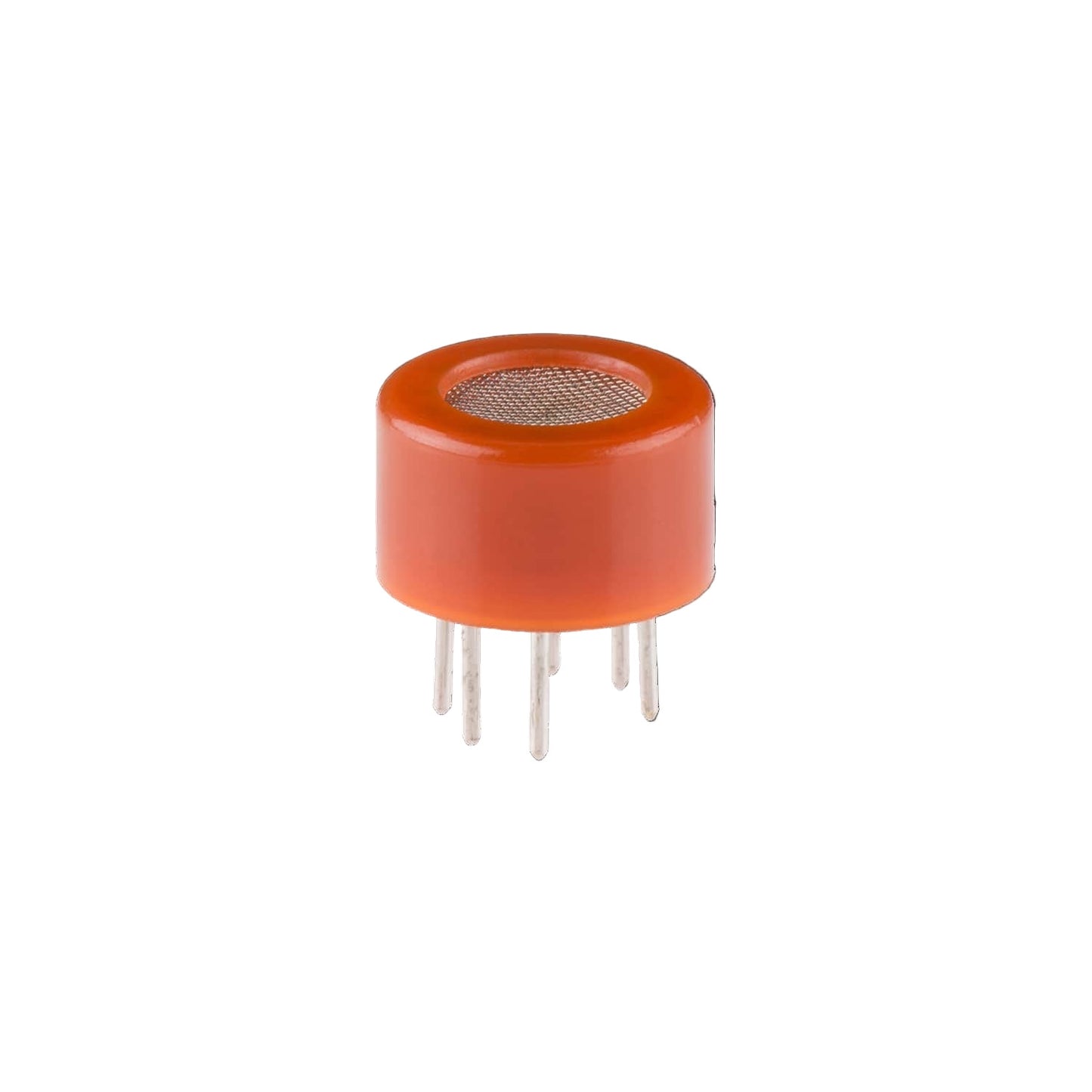

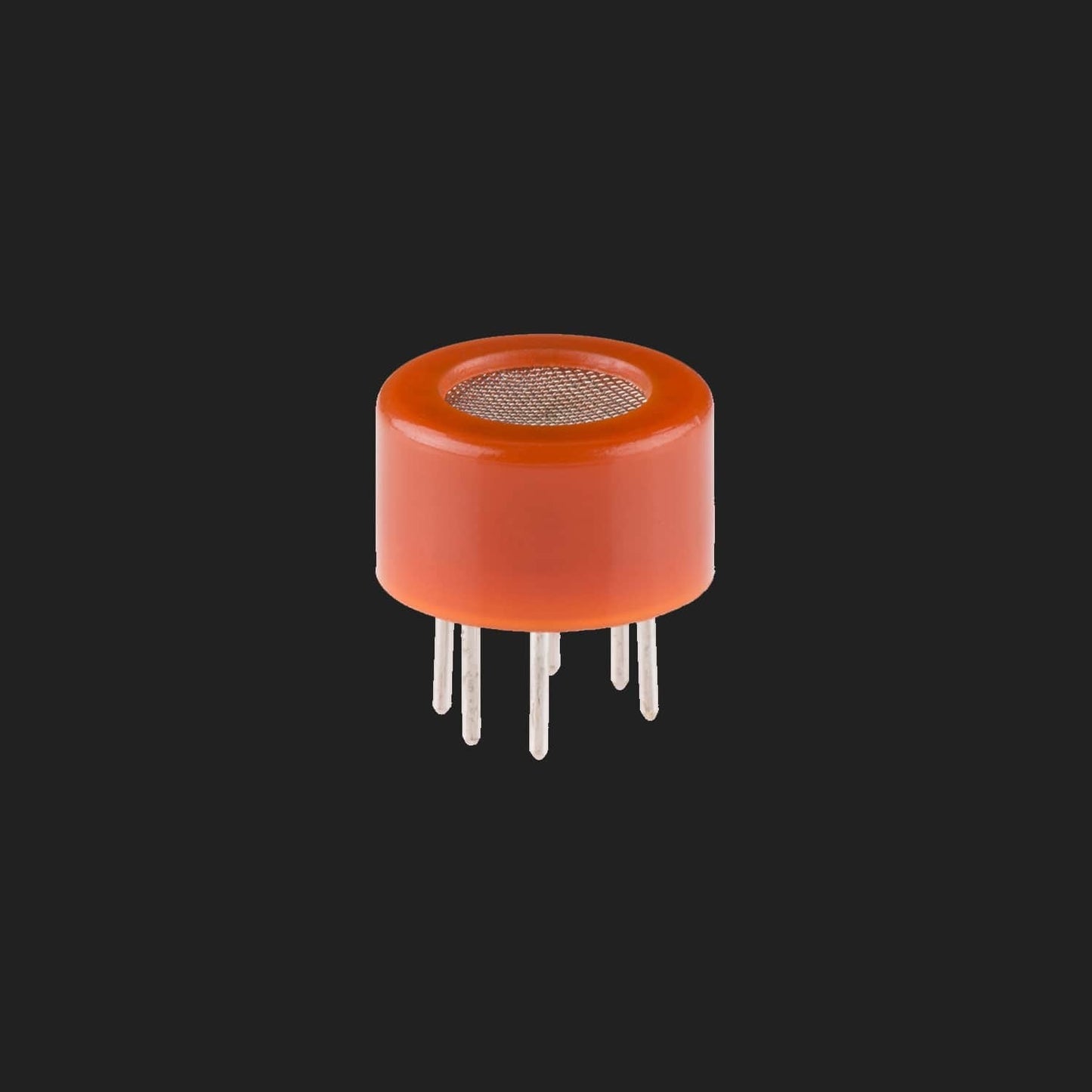

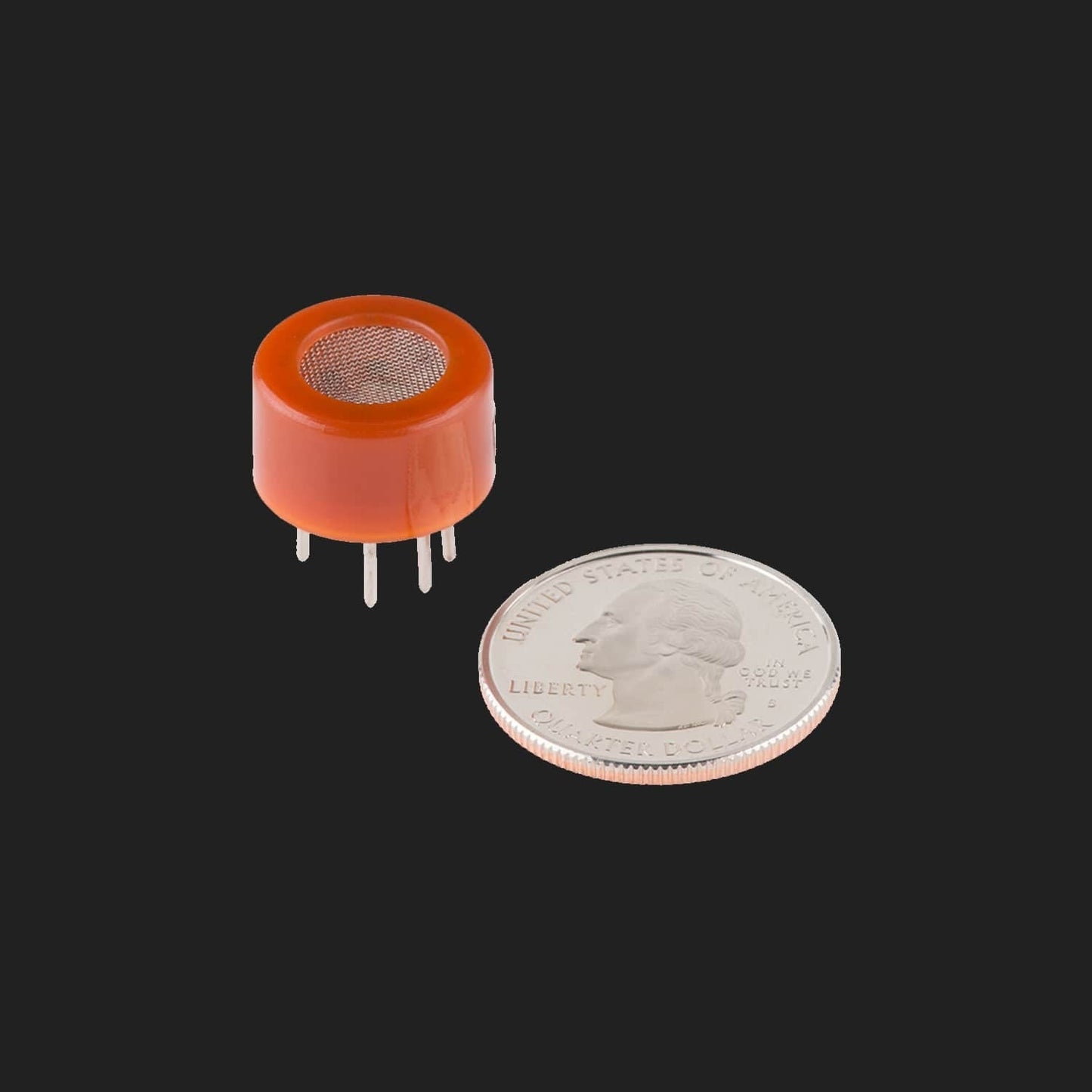

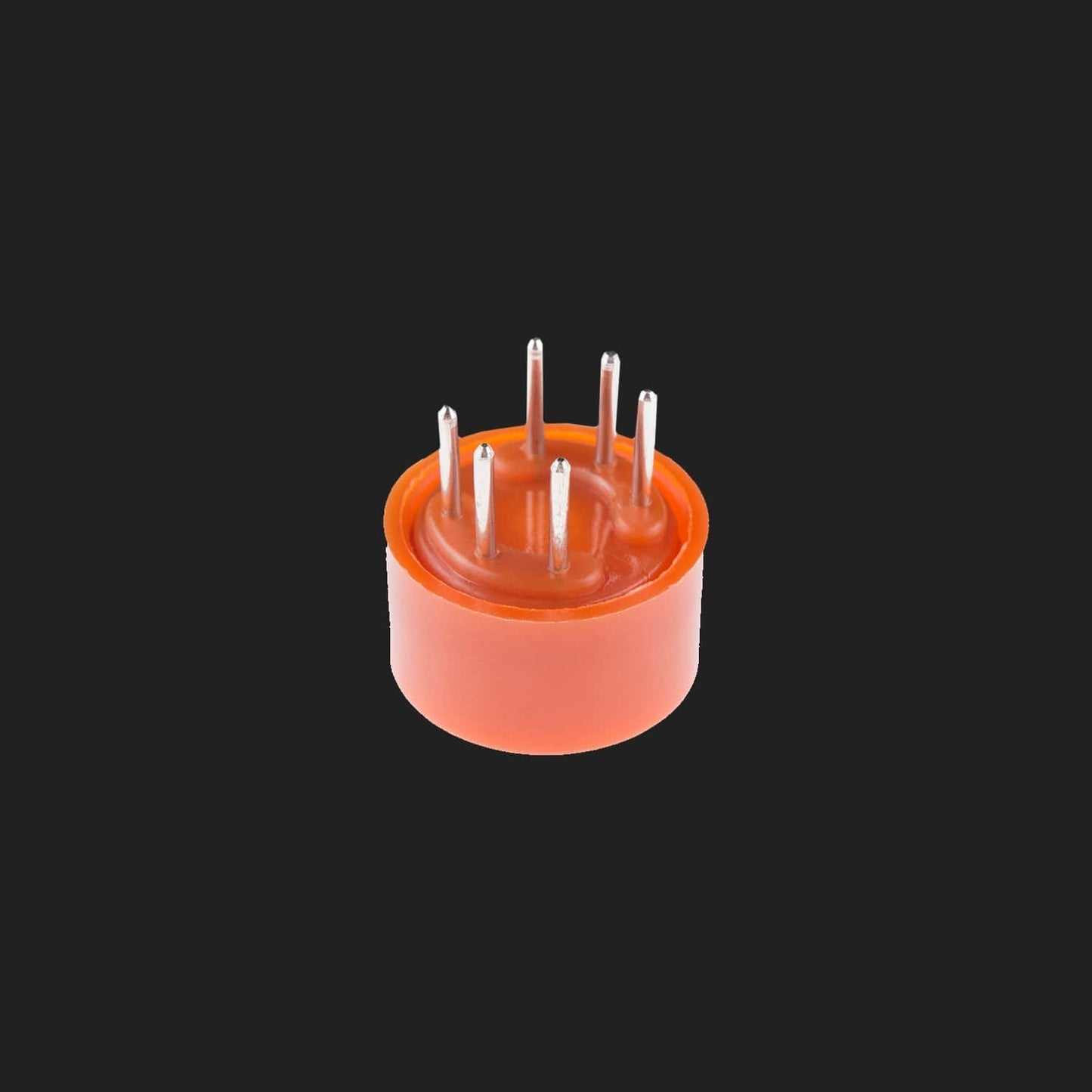

MQ3 ethanol alcohol gas sensor sense Alcohol, Benzine, CH4, Hexane, LPG, CO - RS198

MQ3 ethanol alcohol gas sensor sense Alcohol, Benzine, CH4, Hexane, LPG, CO - RS198

SKU:RS198

In stock

Regular price Rs. 90.00
Regular price Sale price Rs. 90.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description

The Grove - Gas Sensor(MQ3) module is useful for gas leakage detection (in home and industry). It is suitable for detecting Alcohol, Benzine, CH4, Hexane, LPG, CO. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by using the potentiometer. This module is made using Alcohol Gas Sensor MQ3. It is a low cost semiconductor sensor which can detect the presence of alcohol gases at concentrations from 0.05 mg/L to 10 mg/L. The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air. It’s conductivity increases as the concentration of alcohol gases increases. It has high sensitivity to alcohol and has a good resistance to disturbances due to smoke, vapor and gasoline. This module provides both digital and analog outputs. MQ3 alcohol sensor module can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc

Note:

The sensor value only reflects the approximated trend of gas concentration in a permissible error range, it DOES NOT represent the exact gas concentration. The detection of certain components in the air usually requires a more precise and costly instrument, which cannot be done with a single gas sensor. If your project is aimed at obtaining the gas concentration at a very precise level, then we do not recommend this gas sensor.

Specifications:

Item Parameter Min Typical Max Unit
VCC Working Voltage 4.9 5 5.1 V
PH Heating consumption 0.5 - 750 mW
RL Load resistance adjustable
RH Heater resistance - 33 - Ω
Rs Sensing Resistance 1 - 8
Scope Detecting Concentration 0.05 - 10 mg/L

Product details:

Concentration 0.05 mg/L ~ 10 mg/L Alcohol
Operating Voltage 5V +-0.1
Current Consumption 150mA
Operation Temperature -10degC ~ 70degC































Package Included:

1 x MQ3 ethanol alcohol gas sensor sense Alcohol, Benzine, CH4, Hexane, LPG, CO
